Cable Ladder Rack Horizontal Elbow 90 Degree · CLEH Series
Brand: Hammond Manufacturing · 3 part numbers
90-degree horizontal elbow designed to create smooth directional changes in ladder rack cable routing systems.
- ■16-gauge 1.50 in x 0.38 in USA-manufactured tube steel construction supports durable overhead cable routing and system continuity.
- ■Designed to create a smooth 90-degree horizontal turn in ladder rack systems without disrupting cable pathways.
- ■Supports minimum bend radius cable runs with a gradual transition around corners, helping protect fiber and high-performance cabling.
- ■Available in 12in, 18in, and 24in widths (6in by special order) to match ladder rack systems.
- ■Maintains system load rating when used with compatible splice kits.
- ■9.7 in maximum rung spacing supports cable organization and airflow through the turn.
from $149.27
3 of 3 part numbers priced · in stock · ships by ground · volume pricing on request
Configure & price
Find your CLEH Series part number
Filter 3 part numbers by the specifications Hammond publishes for each one, pick the part, and buy it now. Every value comes straight from the manufacturer's part data.
Dimension tables (inches / mm)
Units shown: inch . Switch units to: mm
| Part No. | Description | Ladder Width | Height | Width | Depth | Price | Order |
|---|---|---|---|---|---|---|---|

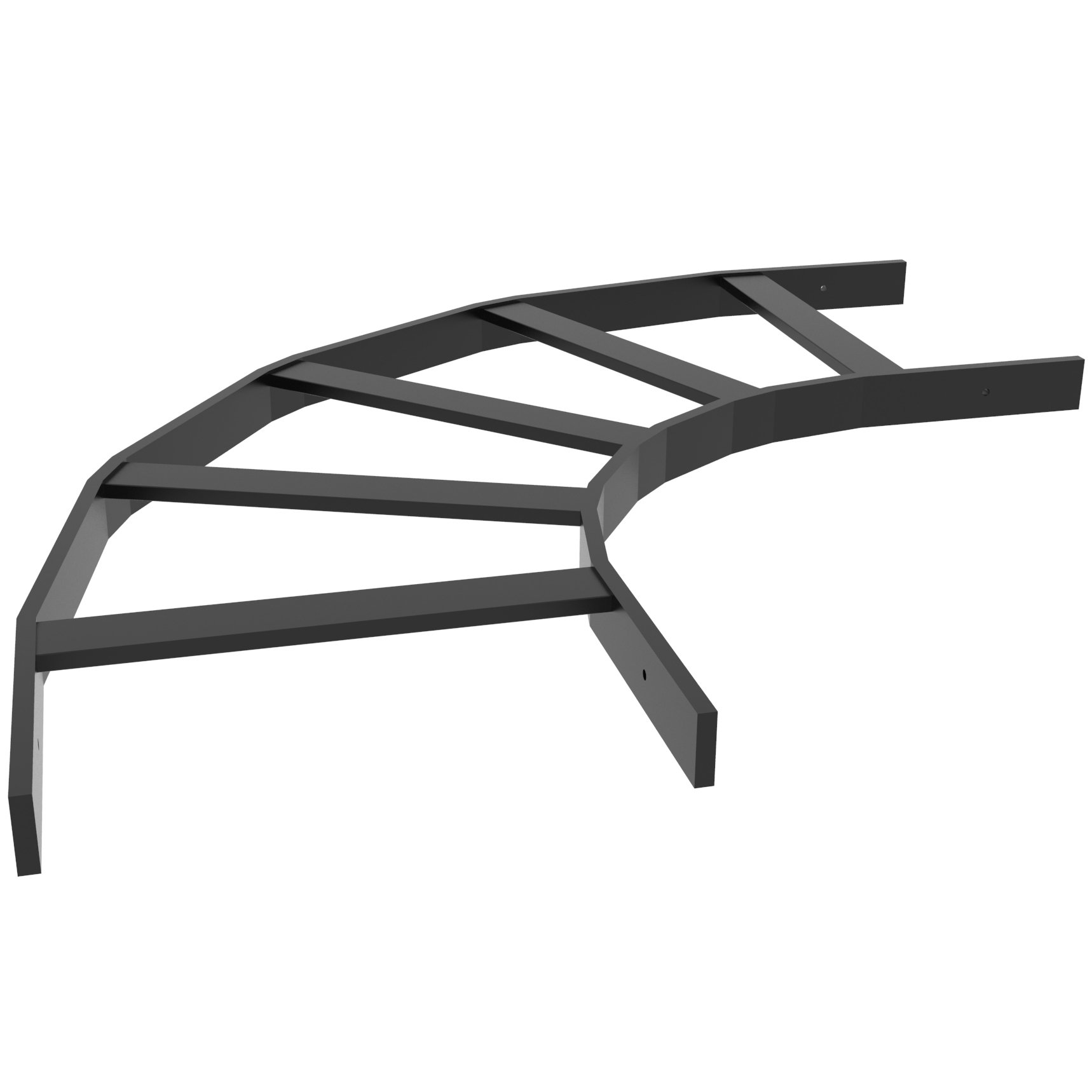

| CLEH12BK | 90 Degree Corner Horizontal Elbow | 12.00 | 1.50 | 29.19 | 29.19 | $149.27In stock | Buy now |

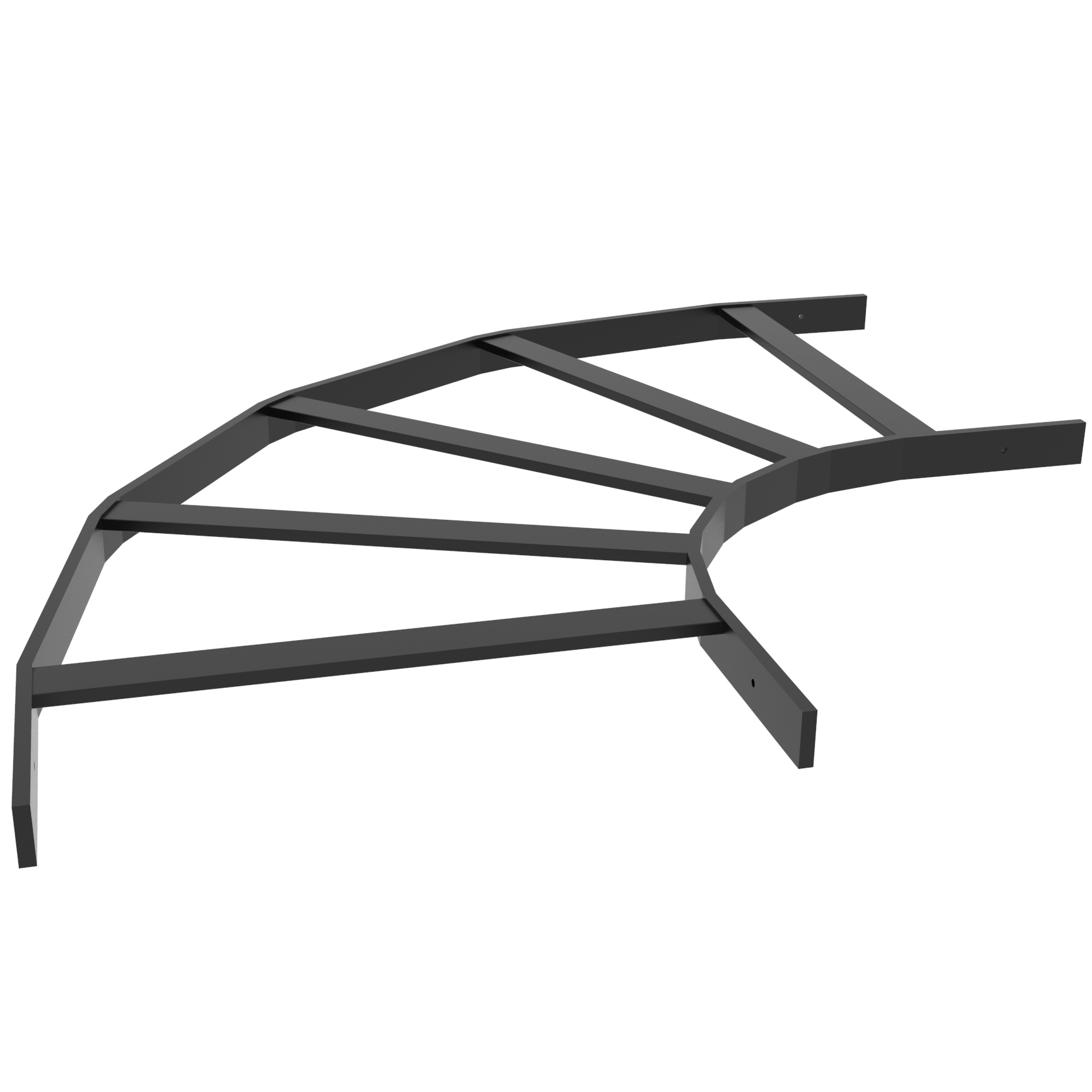

| CLEH18BK | 90 Degree Corner Horizontal Elbow | 18.00 | 1.50 | 35.19 | 35.19 | $168.74In stock | Buy now |

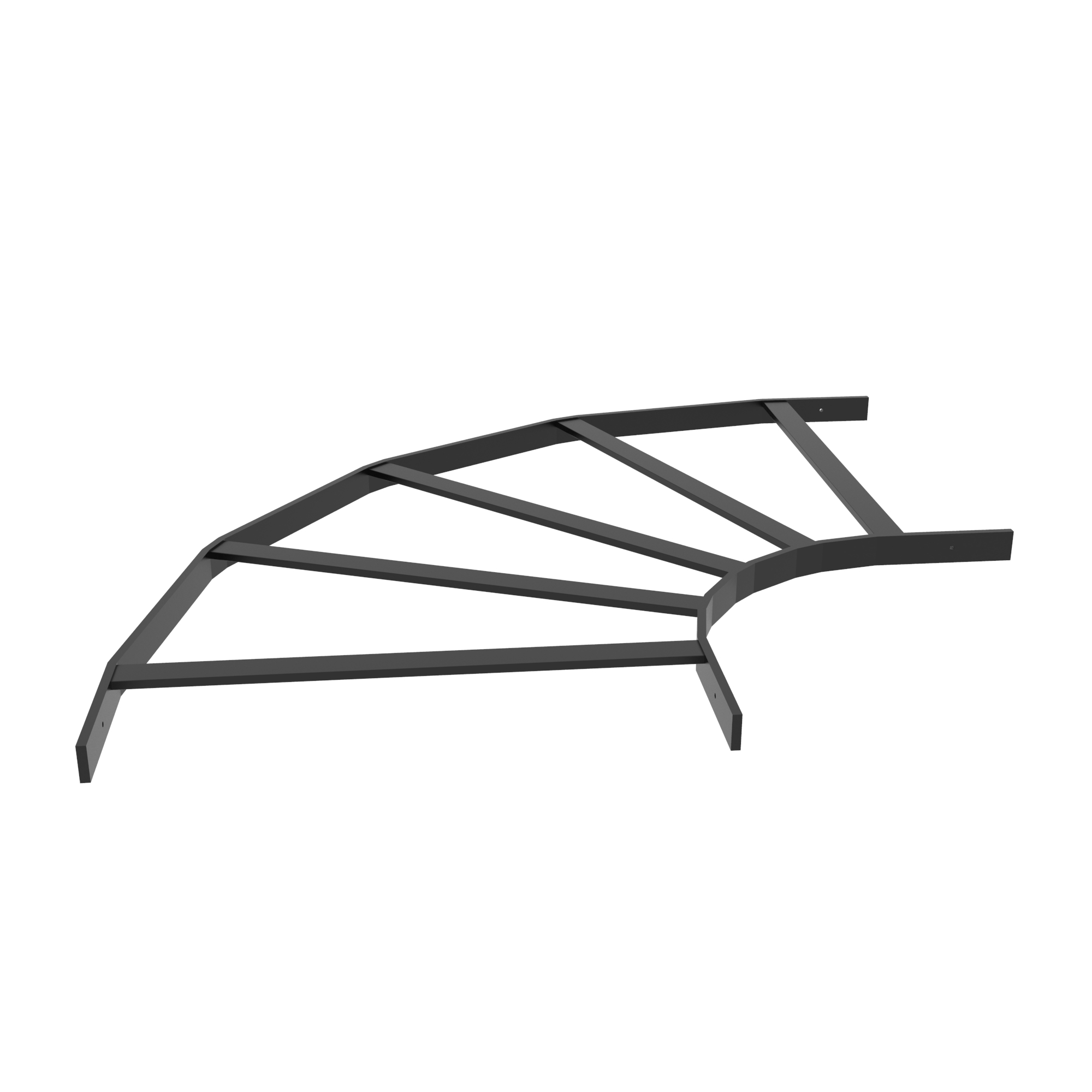

| CLEH24BK | 90 Degree Corner Horizontal Elbow | 24.00 | 1.50 | 41.19 | 41.19 | $178.48Backorder | Buy now |
Key Features and Benefits
The CLEH Series ladder rack horizontal elbows provide a smooth and controlled method for changing direction in overhead cable routing systems. Designed to maintain proper cable bend radius, they help protect fiber and high-performance cabling while ensuring organized routing.
Constructed from USA-manufactured steel, these elbows integrate seamlessly with ladder rack systems to create continuous, scalable cable pathways in data centers and telecom environments.
- ■16-gauge 1.50 in x 0.38 in USA-manufactured tube steel construction supports durable overhead cable routing and system continuity.
- ■Designed to create a smooth 90-degree horizontal turn in ladder rack systems without disrupting cable pathways.
- ■Supports minimum bend radius cable runs with a gradual transition around corners, helping protect fiber and high-performance cabling.
- ■Available in 12in, 18in, and 24in widths (6in by special order) to match ladder rack systems.
- ■Maintains system load rating when used with compatible splice kits.
- ■9.7 in maximum rung spacing supports cable organization and airflow through the turn.
- ■Bonding holes allow for proper grounding and system continuity.
- ■Mounting hardware sold separately for flexible system configuration.
- ■TAA-compliant, manufactured in North America supports government procurement requirements and ensures consistent quality.
- ■Black powder coat finish (GREENGUARD, TSCA, RoHS compliant) supports environmental and durability requirements.
Documents
Additional information
Where the CLEH Series Works Best
- ■Data centers and server rooms
- ■Telecom and network installations
- ■Structured cabling environments
- ■Overhead cable routing systems
- ■Installations requiring directional changes in ladder rack runs
- ■Turning ladder rack pathways around corners
- ■Maintaining proper cable routing through 90-degree transitions
- ■Protecting fiber and high-performance cables from sharp bends
- ■Creating structured overhead cable routing systems
- ■Supporting scalable cable infrastructure layouts
