Hammond CLEH18BK 18 in Wide 90 Degree Horizontal Ladder Rack Elbow
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits 18.00 in (457 mm) ladder width; 90 degree corner horizontal elbow for cable ladder rack runs
- Overall 35.19 in (894 mm) wide x 35.19 in (894 mm) deep, 1.50 in (38 mm) high
- 16-gauge 1.50 in x 0.38 in USA-manufactured tube steel construction in mild steel
- Black powder coat finish, GREENGUARD, TSCA and RoHS compliant
- Gradual transition supports minimum bend radius runs, protecting fiber and high-performance cabling
- 9.7 in maximum rung spacing for cable organization and airflow through the turn
- Bonding holes for proper grounding and system continuity
- TAA-compliant and USMCA compliant, manufactured in North America; no hardware included

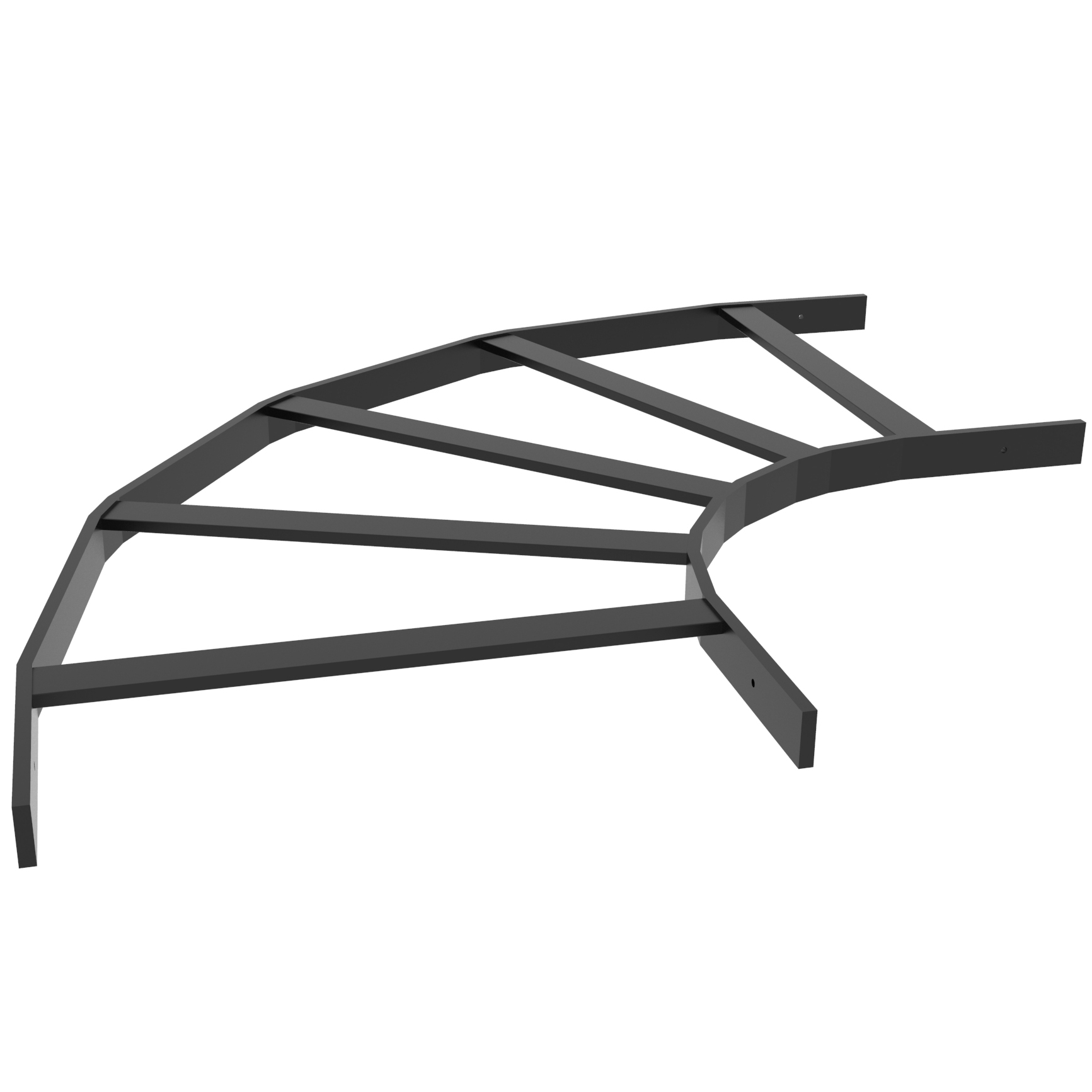

The CLEH18BK is a 90 degree corner horizontal elbow for 18 in wide cable ladder rack, used to turn an overhead cable pathway around a corner without interrupting the run. It suits data center, telecom and structured cabling installers who need a controlled directional change in a ladder rack (cable runway) system while keeping cables supported through the turn.
Construction is mild steel using 16-gauge, 1.50 in x 0.38 in USA-manufactured tube steel, finished in black powder coat that is GREENGUARD, TSCA and RoHS compliant. Bonding holes are provided so the elbow can be grounded and maintain electrical continuity with the rest of the ladder rack system.
This part has an 18.00 in (457 mm) ladder width and a 1.50 in (38 mm) height, with overall footprint dimensions of 35.19 in (894 mm) wide by 35.19 in (894 mm) deep. Maximum rung spacing is 9.7 in, which keeps cables organized and allows airflow through the turn. The geometry supports minimum bend radius cable runs with a gradual transition around the corner, helping protect fiber and other high-performance cabling from sharp bends.
The elbow maintains the system load rating when used with compatible splice kits. No hardware is included with CLEH18BK; mounting hardware and splice kits are ordered separately so the pathway can be configured to the installation. Related accessories in the ladder rack family include butt splice kits, junction (tee) splice kits, ceiling mount brackets, wall support triangle standoff brackets, end cap protective plugs and bonding wire kits.
CLEH18BK is manufactured in North America and is TAA-compliant, USMCA compliant, RoHS compliant and REACH compliant, supporting government and enterprise procurement requirements.
Ideal For
- Turning ladder rack pathways around corners in data centers and server rooms
- Telecom and network installations needing 90-degree cable runway transitions
- Structured cabling and overhead cable routing systems
- Protecting fiber and high-performance cables from sharp bends at direction changes
- Scalable overhead cable infrastructure layouts
Overview
| Series | CLEH Series - Cable Ladder Rack Horizontal Elbow 90 Degree |
| Description | 90 Degree Corner Horizontal Elbow |
| Part Number | CLEH18BK |
| Ladder Width | 18.00 in (457 mm) |
| Short Description | 18W HORIZONTAL ELBOW |
Dimensions
| Depth | 35.19 in (894 mm) |
| Width | 35.19 in (894 mm) |
| Height | 1.50 in (38 mm) |
| Tube Steel Size | 1.50 in x 0.38 in |
| Maximum Rung Spacing | 9.7 in (9.77 in / 248 mm per drawing) |
| Bonding / Mounting Hole Diameter | 0.22 in (6 mm) |
Identifiers
| UPC | 623980006871 |
| UNSPSC | 39131705 |
| GTIN-14 | 00623980006871 |
| Tariff Code | 7326.90.8688 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398000687 |
Construction & Finish
| Gauge | 16-gauge USA-manufactured tube steel |
| Finish | Black powder coat (painted black) |
| Hardware | No hardware included; mounting hardware sold separately |
| Material | Mild Steel |
| Grounding | Bonding holes for grounding and system continuity |
| Load Rating | Maintains system load rating when used with compatible splice kits |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA and RoHS compliant powder coat |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What ladder rack width does CLEH18BK fit?▾
CLEH18BK is built for an 18.00 in (457 mm) ladder width. The CLEH Series is also available in 12 in and 24 in widths, with 6 in available by special order.
How much space does this elbow need?▾
The overall footprint is 35.19 in (894 mm) wide by 35.19 in (894 mm) deep, with a height of 1.50 in (38 mm), so allow that much clearance at the corner of the run.
Is mounting hardware included?▾
No. The drawing states no hardware is included, and mounting hardware is sold separately so the system can be configured as needed. Splice kits are also ordered separately.
Does the elbow affect the load rating of the ladder rack run?▾
According to the data, the elbow maintains the system load rating when used with compatible splice kits.
Can the elbow be bonded to ground?▾
Yes. Bonding holes are provided for proper grounding and system continuity, and bonding wire kits are listed among the ladder rack accessories.
Is CLEH18BK suitable for government projects?▾
It is TAA-compliant and manufactured in North America, and is also listed as USMCA, RoHS and REACH compliant, which supports government procurement requirements.
