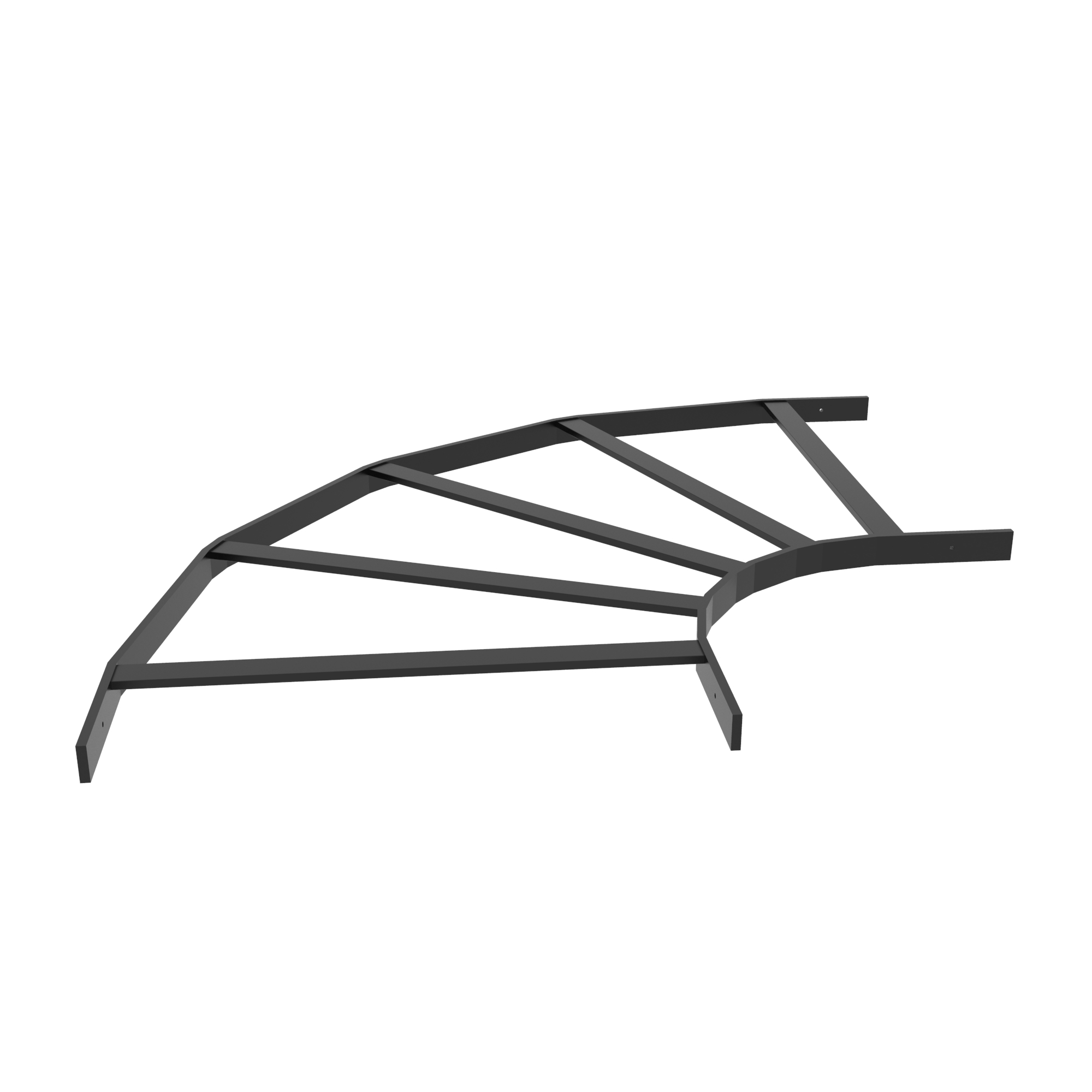

Hammond CLEH24BK 24 in Wide 90 Degree Horizontal Ladder Elbow
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits 24.00 in (610 mm) ladder width; 41.19 in (1046 mm) x 41.19 in (1046 mm) overall footprint
- Creates a smooth 90-degree horizontal turn in ladder rack systems without disrupting cable pathways
- 16-gauge 1.50 in x 0.38 in USA-manufactured tube steel construction for durable overhead cable routing
- Gradual transition supports minimum bend radius runs, protecting fiber and high-performance cabling
- Maintains system load rating when used with compatible splice kits
- 9.7 in maximum rung spacing supports cable organization and airflow through the turn
- Bonding holes for proper grounding and system continuity
- TAA compliant, black powder coat finish (GREENGUARD, TSCA, RoHS compliant); no hardware included
The CLEH24BK is a 90 degree corner horizontal elbow for 24.00 in (610 mm) wide cable ladder rack, used to turn an overhead cable runway pathway around a corner without interrupting the cable route. It is aimed at data center, telecom and structured cabling installers building continuous overhead pathways for copper and fiber.
Construction is 16-gauge 1.50 in x 0.38 in USA-manufactured tube steel in mild steel, finished in black powder coat that is GREENGUARD, TSCA and RoHS compliant. The gradual sweep of the elbow supports minimum bend radius cable runs, helping protect fiber and other high-performance cabling from sharp bends, while a 9.7 in maximum rung spacing keeps cables organized and allows airflow through the turn.
Overall the CLEH24BK measures 41.19 in (1046 mm) wide by 41.19 in (1046 mm) deep with a 1.50 in (38 mm) side rail height, matching a 24.00 in (610 mm) ladder width. Drawing details include a 5.25 in (133 mm) rail set-back dimension, 3.00 in (76 mm) and .75 in (19 mm) rung/end detail spacing and .22 in (6 mm) diameter holes. Bonding holes allow proper grounding and system continuity.
The elbow is joined to straight ladder sections with compatible splice kits, and maintains the system load rating when used with them. No hardware is included with CLEH24BK; mounting hardware and splice kits are ordered separately for flexible system configuration. The part is TAA compliant and manufactured in North America, with RoHS, REACH and USMCA compliance for procurement documentation.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- Structured cabling and overhead cable routing systems
- Turning ladder rack pathways around corners
- Scalable overhead cable infrastructure layouts
Overview
| Series | CLEH Series - Cable Ladder Rack Horizontal Elbow 90 Degree |
| Description | 90 Degree Corner Horizontal Elbow |
| Part Number | CLEH24BK |
| Hardware Included | No hardware included; mounting hardware sold separately |
| Short Description | 24W HORIZONTAL ELBOW |
Dimensions
| Depth | 41.19 in (1046 mm) |
| Width | 41.19 in (1046 mm) |
| Height | 1.50 in (38 mm) |
| Ladder Width | 24.00 in (610 mm) |
| Hole Diameter | .22 in (6 mm) |
| Maximum Rung Spacing | 9.7 in |
| Rail Set-Back (Drawing) | 5.25 in (133 mm) |
| Rung Detail Spacing (Drawing) | 3.00 in (76 mm) and .75 in (19 mm) |
Identifiers
| UPC | 623980013336 |
| UNSPSC | 39131705 |
| GTIN-14 | 00623980013336 |
| UPC W/o Check Digit | 62398001333 |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Country Of Origin | CA |
Construction & Finish
| Finish | Black powder coat (painted black) |
| Material | Mild Steel |
| Grounding | Bonding holes for grounding and system continuity |
| Tube Steel | 16-gauge, 1.50 in x 0.38 in, USA-manufactured |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant powder coat |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What ladder rack width does CLEH24BK fit?▾
It is sized for 24.00 in (610 mm) ladder width. The CLEH Series is also available in 12 in and 18 in widths, with 6 in by special order.
What is the overall footprint of CLEH24BK?▾
The elbow measures 41.19 in (1046 mm) wide by 41.19 in (1046 mm) deep, with a side rail height of 1.50 in (38 mm).
Is mounting hardware included?▾
No. The drawing states no hardware included, and mounting hardware is sold separately for flexible system configuration.
Does the elbow reduce the load rating of the ladder run?▾
The CLEH Series maintains the system load rating when used with compatible splice kits.
Can the elbow be bonded for grounding?▾
Yes. Bonding holes are provided to allow proper grounding and system continuity, and bonding wire kits are listed among series accessories.
Is CLEH24BK suitable for government projects?▾
It is TAA compliant and manufactured in North America, with country of origin CA, plus RoHS, REACH and USMCA compliance.
Will it protect fiber cable at the turn?▾
The elbow provides a gradual 90-degree transition that supports minimum bend radius cable runs, helping protect fiber and high-performance cabling from sharp bends.
