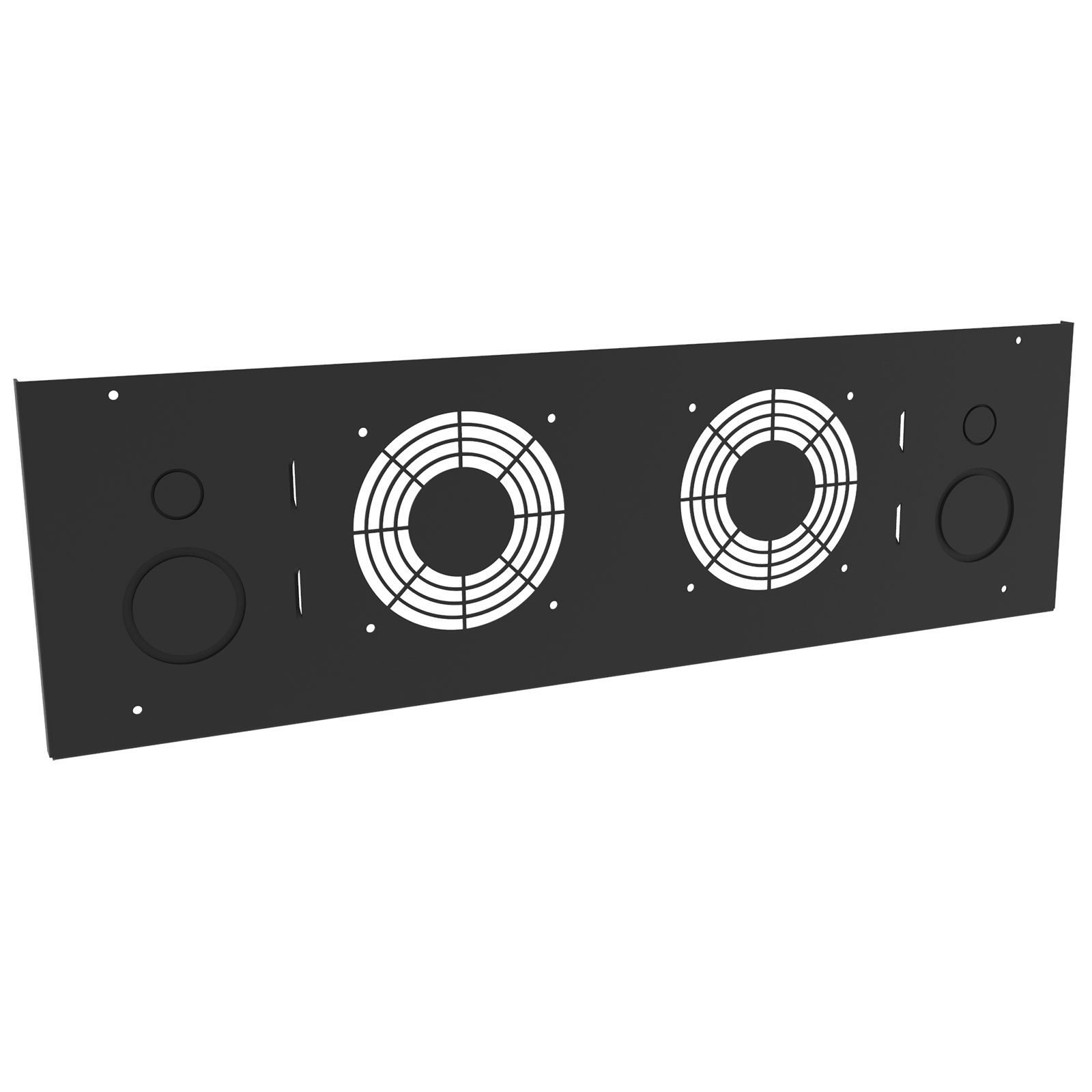

Hammond SDC3UCFP 3U Conduit/Fan Cover Panel for SDC Cabinets
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 3U conduit/fan cover panel exclusively for use with the SDC Cabinet Series; mounts to either end of the cabinet
- Constructed in 16-gauge mild steel
- Overall size 7.4 in x 24.59 in x 0.5 in (188 mm x 625 mm x 13 mm)
- 2X conduit knockouts O0.875 and O1.125 in, plus 2X conduit knockouts O2.00 and O2.50 in
- Laser fan cut-out for optional fan kits DNMF100AC115 and DNMF100AC23; cable lances included
- Textured RAL9005 black powder paint coat complying with Greenguard indoor air quality guidelines
- Mounting hardware included, plus four stick-on rubber bumper feet
- TAA-compliant for GSA Schedule purchases; RoHS and REACH compliant; manufactured in North America
The SDC3UCFP is a 3U conduit/fan cover panel from the SDCD Series, designed exclusively for use with Hammond SDC Series cabinets. Unlike the hinged, locking doors in the same series, this is a non-door option that mounts directly to either end of the cabinet, giving integrators, electricians and facilities teams a clean way to bring conduit and cable into a wall-mount enclosure while adding optional forced-air cooling.
The panel is constructed in 16-gauge mild steel and finished in textured RAL9005 black powder paint coat, a finish that complies with Greenguard guidelines for indoor air quality. Overall size is 7.4 in x 24.59 in x 0.5 in (188 mm x 625 mm x 13 mm), and shipping weight is 4 lbs (1.81 kg).
Factory-punched openings cover typical field needs: two conduit knockouts at O0.875 and O1.125 in, two conduit knockouts at O2.00 and O2.50 in, cable lances, and a laser fan cut-out sized for optional fan kits DNMF100AC115 and DNMF100AC23. Mounting hardware is included, and each SDC3UCFP ships with the conduit/fan panel plus four stick-on rubber bumper feet.
- Non-door end panel for SDC Series cabinets, 3U size
- Conduit entry plus optional fan mounting in one part
- Textured black powder coat for a consistent cabinet appearance
SDC3UCFP is manufactured in North America (country of origin CA), is USMCA compliant, RoHS and REACH compliant, and is TAA-compliant for GSA Schedule purchases.
Ideal For
- Conduit entry into SDC Series wall-mount cabinets
- Adding optional fan cooling to a 3U SDC cabinet
- Cable entry through lanced openings on the cabinet end
- Closing off either end of an SDC Series cabinet
- TAA-compliant GSA Schedule cabinet build-outs
Overview
| Type | Conduit/Fan Cover Panel (non-door option) |
| Series | SDCD Series (SDC Doors) |
| Description | 3U SDC Conduit/Fan Panel |
| Part Number | SDC3UCFP |
| Compatibility | Exclusively for use with the SDC Cabinet Series |
| Cabinet Rack Units | 3U |
Dimensions
| Depth | 0.5 in (13 mm) |
| Width | 24.59 in (625 mm) |
| Height | 7.4 in (188 mm) |
| Size H X W X D | 7.4 in x 24.59 in x 0.5 in (188 mm x 625 mm x 13 mm) |
| Reference Panel Dimension | 6.25 in (159 mm) |
| Mounting Hole Spacing (Front View) | 19.09 in (485 mm) and 21.19 in (538 mm) |
Identifiers
| UPC | 623980955612 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980955612 |
| UPC W/o Check Digit | 62398095561 |
Included Items
| Conduit/Fan Panel | 1 |
| Mounting Hardware | Included |
| Stick-On Rubber Bumper Feet | 4 |
Knockouts & Openings
| Cable Entry | Cable lances |
| Fan Cut-Out | Laser knockout for optional fan kits |
| Optional Fans | DNMF100AC115, DNMF100AC23 |
| Conduit Knockouts | 2X O0.875 in and O1.125 in; 2X O2.00 in and O2.50 in |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Manufactured In | North America |
| Shipping Weight | 4 lbs (1.81 kg) |
| Country Of Origin | CA |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL9005 black powder paint coat |
| Material | Mild Steel |
Environmental & Protection
| Indoor Air Quality | Complies with Greenguard guidelines |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What cabinets does the SDC3UCFP fit?▾
It is made exclusively for use with the Hammond SDC Cabinet Series, and this 3U version mounts directly to either end of the cabinet.
Is the SDC3UCFP a door?▾
No. It is the non-door option in the SDCD Series - a conduit/fan cover panel. The hinged locking door options for 3U cabinets are the solid SDC3UD, vented SDC3UVD and cable entry/fan SDC3USD.
What size conduit knockouts are provided?▾
The drawing shows two conduit knockouts at O0.875 in and O1.125 in, plus two conduit knockouts at O2.00 in and O2.50 in.
Can I add a fan to this panel?▾
Yes. It includes a laser fan cut-out for optional fan kits, with DNMF100AC115 and DNMF100AC23 listed as the optional fans on the drawing.
Is mounting hardware included?▾
Yes, mounting hardware is included, along with four stick-on rubber bumper feet.
Is SDC3UCFP suitable for government purchasing?▾
It is TAA-compliant for GSA Schedule purchases, and is also RoHS, REACH and USMCA compliant with country of origin CA.
