Hammond RRHDDOL 1,500 lb Heavy Duty 2-Post Rack Dolly
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 1,500 lbs (680 kg) maximum weight load, carried on a set of four (4) casters under the dolly plate
- 3.00 in (76 mm) ball bearing swivel casters with hard composition wheels
- Brakes on two (2) of the four casters for parking a loaded rack
- Overall 4.13 in H x 21.00 in W x 24.00 in D (105 x 533 x 610 mm); dolly weighs 35 lb (15.9 kg)
- Mild steel construction with painted black textured finish
- Includes all rack mounting hardware
- Transportation base for DNRR Heavy Duty and RRAL aluminum relay racks; compatible with DNRRHDW, RB-2P, RB-2PS, RB-2PA
- TAA compliant for GSA Schedule purchases; RoHS and REACH compliant; manufactured in North America

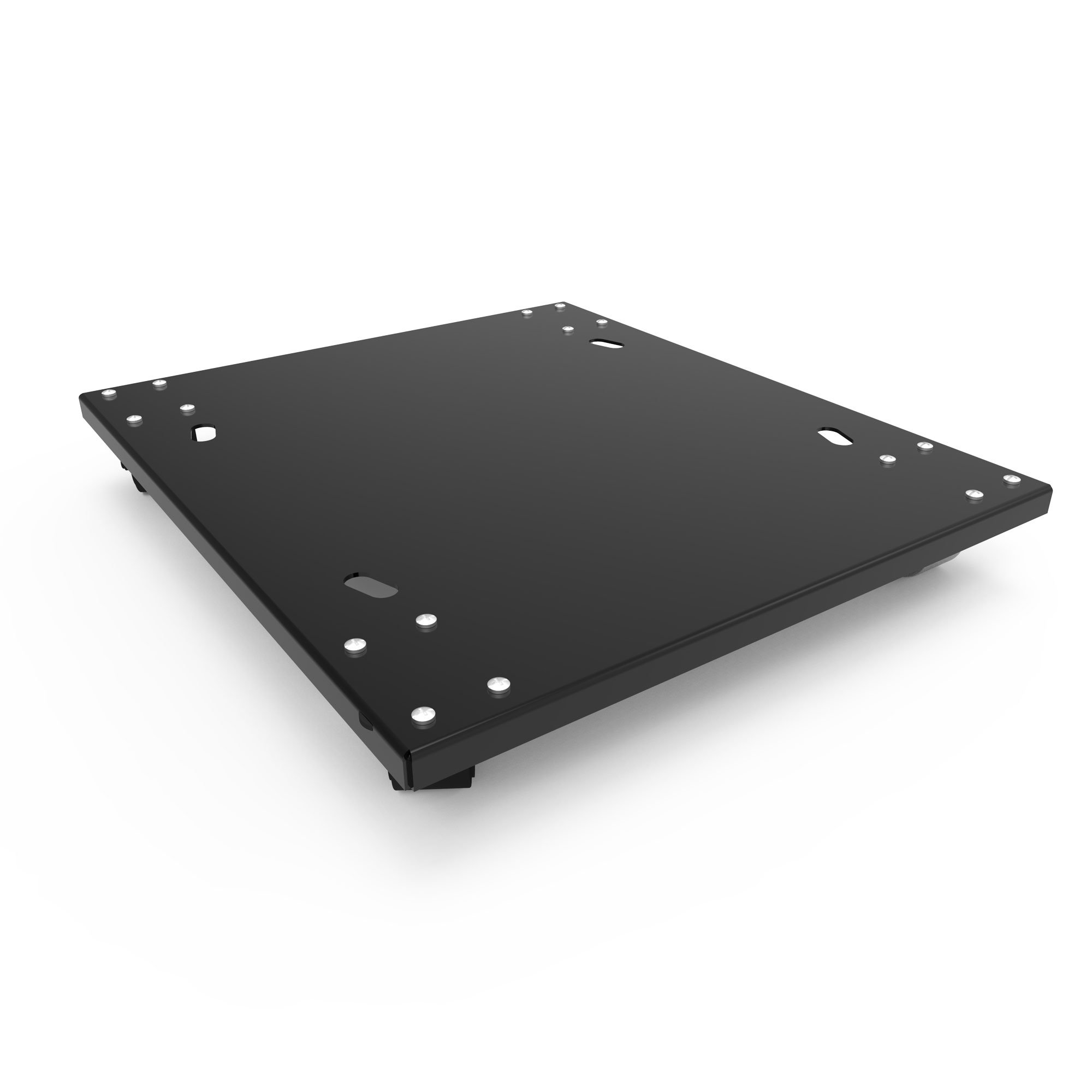

The RRHDDOL is a heavy duty transportation dolly designed to put a 2-post relay rack on wheels. It is intended for IT, AV and broadcast integrators, facilities crews and OEM builders who need to roll a loaded open-frame rack across a room or between spaces rather than lifting or dragging it. The dolly is a caster base accessory in the rack accessories category, listed by the manufacturer as "HEAVY DUTY DOLLY".
Construction is mild steel with a painted black textured finish. A set of four (4) casters mounts beneath the dolly plate, each with a ball bearing swivel and hard composition wheel measuring 3.00 in (76 mm) in diameter. Two of the four casters are a locking type with brakes, so the rack can be parked in place once positioned. All rack mounting hardware is included.
Overall dimensions of the RRHDDOL are 4.13 in (105 mm) high, 21.00 in (533 mm) wide and 24.00 in (610 mm) deep, and the dolly itself weighs 35 lb (15.9 kg). Maximum weight load is 1,500 lbs (680 kg), covering the dolly and the rack and equipment it carries.

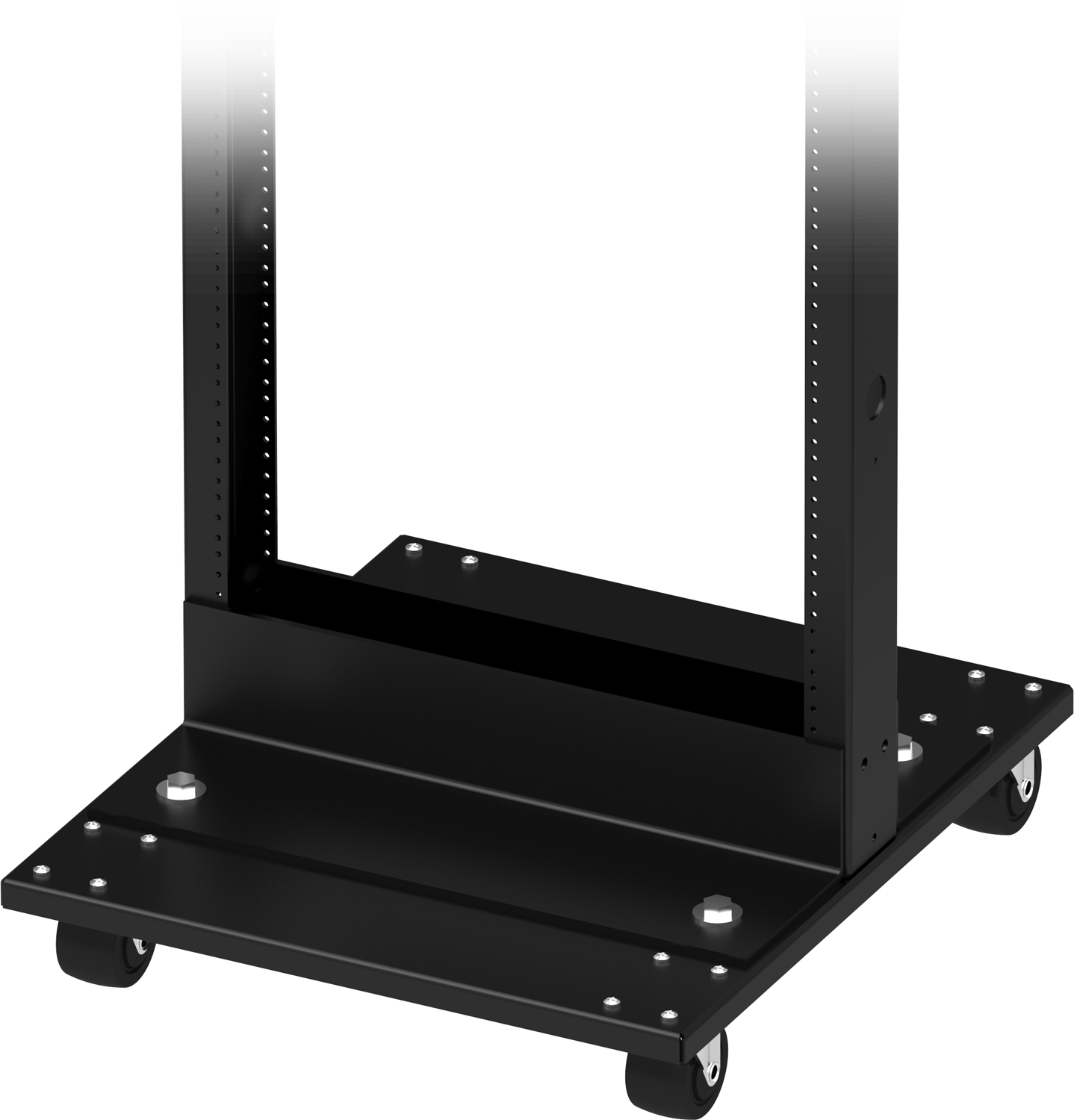

According to the manufacturer's drawing, this dolly is a transportation base for DNRR Heavy Duty and RRAL aluminum relay racks, and is listed as compatible with DNRRHDW, RB-2P, RB-2PS and RB-2PA. It is not compatible with 23 in rackmount relay racks, and the relay rack itself is sold separately.
RRHDDOL is RoHS and REACH compliant, TAA compliant for GSA Schedule purchases, and manufactured in North America (country of origin CA).
Ideal For
- Rolling loaded 2-post relay racks between rooms or work areas
- Mobile broadcast, AV and equipment rack carts
- Staging and pre-build of open-frame racks before final placement
- GSA Schedule and government projects requiring TAA compliant rack accessories
Overview
| Series | RRHDDOL Series - 2-Post Rack Heavy Duty Dolly |
| Part Number | RRHDDOL |
| Product Type | Caster base / heavy duty transportation dolly for 2-post relay racks |
| Short Description | HEAVY DUTY DOLLY |
Dimensions
| Overall Depth | 24.00 in (610 mm) |
| Overall Width | 21.00 in (533 mm) |
| Overall Height | 4.13 in (105 mm) |
| Wheel Diameter | 3.00 in (76 mm) |
Identifiers
| UPC | 623980012247 |
| UNSPSC | 31162701 |
| GTIN-14 | 00623980012247 |
| UPC W/o Check Digit | 62398001224 |
Compatibility
| Application | Transportation base for DNRR Heavy Duty and RRAL aluminum relay racks |
| Limitations | Not compatible with 23 in rackmount relay racks; relay rack sold separately |
| Compatible Racks | DNRRHDW, RB-2P, RB-2PS, RB-2PA |
Included Items
| Hardware | Includes all rack mounting hardware |
Capacity & Casters
| Caster Type | Ball bearing swivel with hard composition wheels |
| Brakes Included | Yes on two (2) |
| Caster Quantity | Set of four (4) casters under dolly plate |
| Weight Capacity | 1,500 lbs (680 kg) |
| Maximum Weight Load (Drawing) | 1500 lb |
Packaging & Shipping
| Tariff Code | 8428.90.0390 |
| Dolly Weight | 35 lb (15.9 kg) |
| Shipping Weight | 35 lbs (15.88 kg) |
| Country Of Origin | CA (manufactured in North America) |
Construction & Finish
| Finish | Painted black textured |
| Material | Mild Steel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | No |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much weight can the RRHDDOL dolly support?▾
The dolly has a weight capacity of 1,500 lbs (680 kg), listed on the drawing as a maximum weight load of 1500 lb. The load is carried on a set of four (4) casters under the dolly plate.
Do the casters lock?▾
Yes. Two of the four casters are a locking type; the specification table lists brakes included "Yes on two (2)".
Which racks does RRHDDOL fit?▾
It is listed as compatible with DNRRHDW, RB-2P, RB-2PS and RB-2PA, and the drawing describes it as a heavy duty transportation base for DNRR Heavy Duty and RRAL aluminum relay racks. It is not compatible with 23 in rackmount relay racks.
Is mounting hardware included?▾
Yes, all rack mounting hardware is included. The relay rack itself is sold separately.
What are the dimensions and wheel size?▾
Overall dimensions are 4.13 in (105 mm) high, 21.00 in (533 mm) wide and 24.00 in (610 mm) deep, with 3.00 in (76 mm) diameter wheels.
Is this part TAA and RoHS compliant?▾
Yes. RRHDDOL is TAA compliant for GSA Schedule purchases and is both RoHS and REACH compliant. It is manufactured in North America with country of origin CA.
