Hammond RP1465C 220 x 165 x 85 mm ABS Box, Clear Polycarbonate Lid
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Clear polycarbonate lid over light gray ABS body
- IP65; 220 x 165 x 85 mm (8.66 x 6.50 x 3.35 in)
- UL94 HB per drawing description
- Inside 208.92 x 153.92 x 78.00 mm
- PC board up to 205 x 150 mm
- Stainless M3.5 self captivating lid screws
- Includes gasket, 4 PCB screws and 4 lid screws

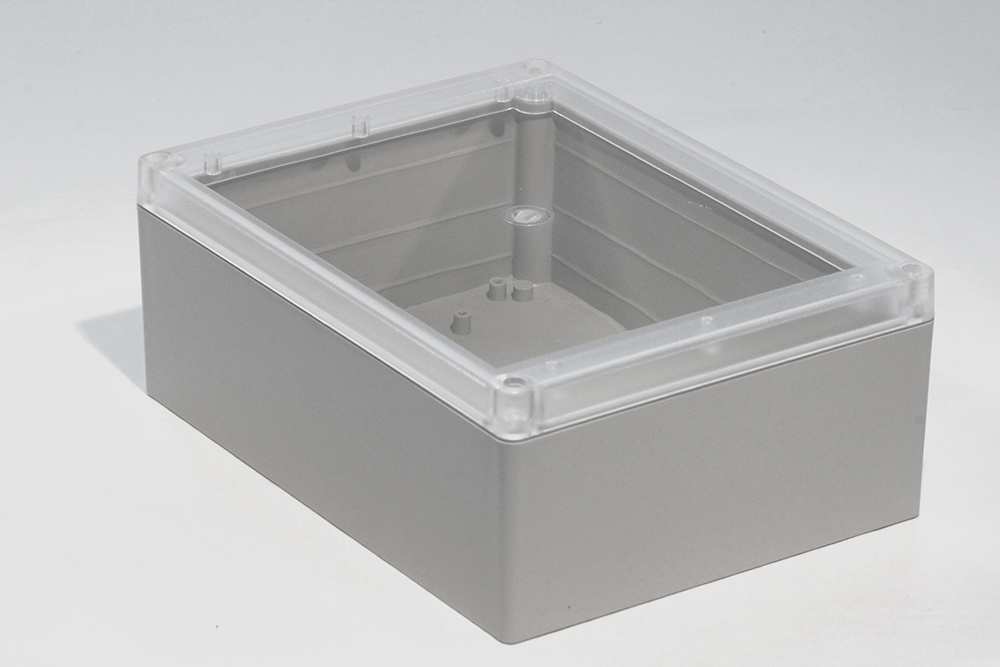

The RP1465C is a light gray ABS enclosure topped with a clear polycarbonate lid, 220 x 165 x 85 mm (8.66 x 6.50 x 3.35 in) overall. It gives OEM designers and installers a deeper, sealed housing where displays, indicator LEDs or internal labels remain visible.
Per the drawing, the material is General Purpose ABS Light Grey with Polycarbonate Clear Lid (UL94 HB). The lid joins the base with a two piece tongue & groove seal and a rubber gasket that is included for field installation, providing IP65 protection. Self captivating M3.5 stainless steel screws thread into corrosion resistant bushings.
Interior space is 208.92 x 153.92 x 78.00 mm (8.23 x 6.06 x 3.07 in). A P.C. board up to 205 x 150 mm mounts on M3 self-tapping posts, and the series design offers internal DIN rail mounting tabs where the size allows. Recommended lid screw torque is (43-50) ozf.in / (30-35) cN.m.
The RP1465C ships in a bag with box, lid, string gasket, four PCB screws and four lid screws, at 1.28 lbs (0.58 kg). It is RoHS and REACH compliant, and it takes the STC146 / STA146 inner panels and RP145GASKET replacement gasket. Hammond notes that some chemicals, including acetone, ketones, thread locking compounds and cutting fluids, can damage or weaken plastic.
Ideal For
- Visible LEDs or displays in a deeper sealed box
- Printed circuit board and component housings
- DIN rail mounted devices
- Monitoring equipment in dusty or wet locations
Overview
| Type | General purpose, water-tight |
| Series | RP Series Water-Tight ABS & Polycarbonate Enclosures (Clear Lid Options) |
| Lid Style | Clear lid |
| Description | enclosure - plastic |
| Part Number | RP1465C |
| Drawing Reference | RP146 |
| Short Description | ABS WATERTIGHT CLEAR LID |
| Drawing Description | General Purpose ABS Light Grey with Polycarbonate Clear Lid (UL94 HB) |
Dimensions
| Inside Width | 153.92 mm [6.06 in] |
| Inside Height | 78.00 mm [3.07 in] |
| Inside Length | 208.92 mm [8.23 in] |
| Lid Inlay Depth | 0.40 mm [0.02 in] |
| Max. P.C. Board Width | 150 mm |
| Depth (Ordering Table) | 3.35 in (85 mm) |
| Max. P.C. Board Length | 205 mm |
| Width (Ordering Table) | 6.50 in (165 mm) |
| Length (Ordering Table) | 8.66 in (220 mm) |
| Overall Width (Drawing) | 165.00 mm [6.50 in] |
| Nominal Size (L X W X H) | 8.66 in x 6.5 in x 3.35 in (220 mm x 165 mm x 85 mm) |
| Overall Height (Drawing) | 85.00 mm [3.35 in] |
| Overall Length (Drawing) | 220.00 mm [8.66 in] |
Identifiers
| UPC | 623980178462 |
| UNSPSC | 39121301 |
Included Items
| Purchased Assembly Includes | Box, lid, string gasket, 4 PCB screws, and 4 lid screws |
Modification & CAD
| Solid Models | Available in .stp or .x_t |
| Factory Modification | Enclosures can be factory modified (milling, drilling, printing etc.) |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 1.28 lbs (0.58 kg) |
Construction & Finish
| Lid | Polycarbonate clear lid |
| Gasket | String gasket, EPDM grey (included; must be field installed) |
| Material | ABS Plastic |
| Lid Surface | Smooth recessed area for membrane, label or silkscreen |
| Lid Fastening | Self captivating M3.5 stainless steel machine screws threaded into corrosion resistant bushings |
| Lid Screw Size | M3.5-0.6 x 10mm |
| Lid Construction | Gasketed two piece "tongue & groove" lid |
| Color (Part Page) | Light Gray |
| PC Board Mounting | Mounting posts accept M3 self-tapping screws (M3 x 6mm PCB screws) |
| Recommended Torque | (43-50) Ozf.in / (30-35) cN.m |
| Ordering Table Column | Light Gray ABS Plastic (Clear Lid) |
| Internal Mounting Features | Internal DIN rail mounting tabs and PC board mounting posts (options vary with size; see drawing) |
Environmental & Protection
| IP Rating | IP65 |
| Protection | Gasketed lid protects against access of oil, dust, and water |
| Flame Rating | UL94 HB |
| Chemical Resistance | Some chemicals can damage or weaken plastic; see manufacturer Chemical Resistance Statement |
Accessories & Related Parts
| Extra Lid Screws | SC619-50 - M3.5-0.6 x 10mm (50 Pkg) |
| Extra PCB Screws | SC622-50 - M3 x 6mm self-tapping (50 Pkg) |
| Same-Size Variants | Light Gray ABS opaque lid: RP1465, Light Gray ABS clear lid: RP1465C, Off-White polycarbonate opaque lid: RP1460, Off-White polycarbonate clear lid: RP1460C |
| Replacement Gasket (2-pk) | RP145GASKET - String Gasket EPDM Grey (2 Pkg) |
| Optional Inner Panel (Plastic) | STC146 - General Purpose ABS Black Inner Panel 3mm Thick |
| Optional Inner Panel (Aluminum) | STA146 - Metal Inner Panel 1mm Thick |
| Compatible Mounting Feet Kits (Sets Of 4) | MF0050 (polycarbonate, open "U" slot), MF0055 (ABS, open "U" slot) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the RP1465C lid transparent?▾
Yes, it has a polycarbonate clear lid on a light gray ABS base.
What are the inside dimensions?▾
208.92 x 153.92 x 78.00 mm (8.23 x 6.06 x 3.07 in).
What IP rating applies?▾
IP65.
Which inner panels fit?▾
STC146 (ABS, 3mm thick) and STA146 (metal, 1mm thick).
Are CAD models available?▾
Solid models of this enclosure are available in .stp or .x_t.
