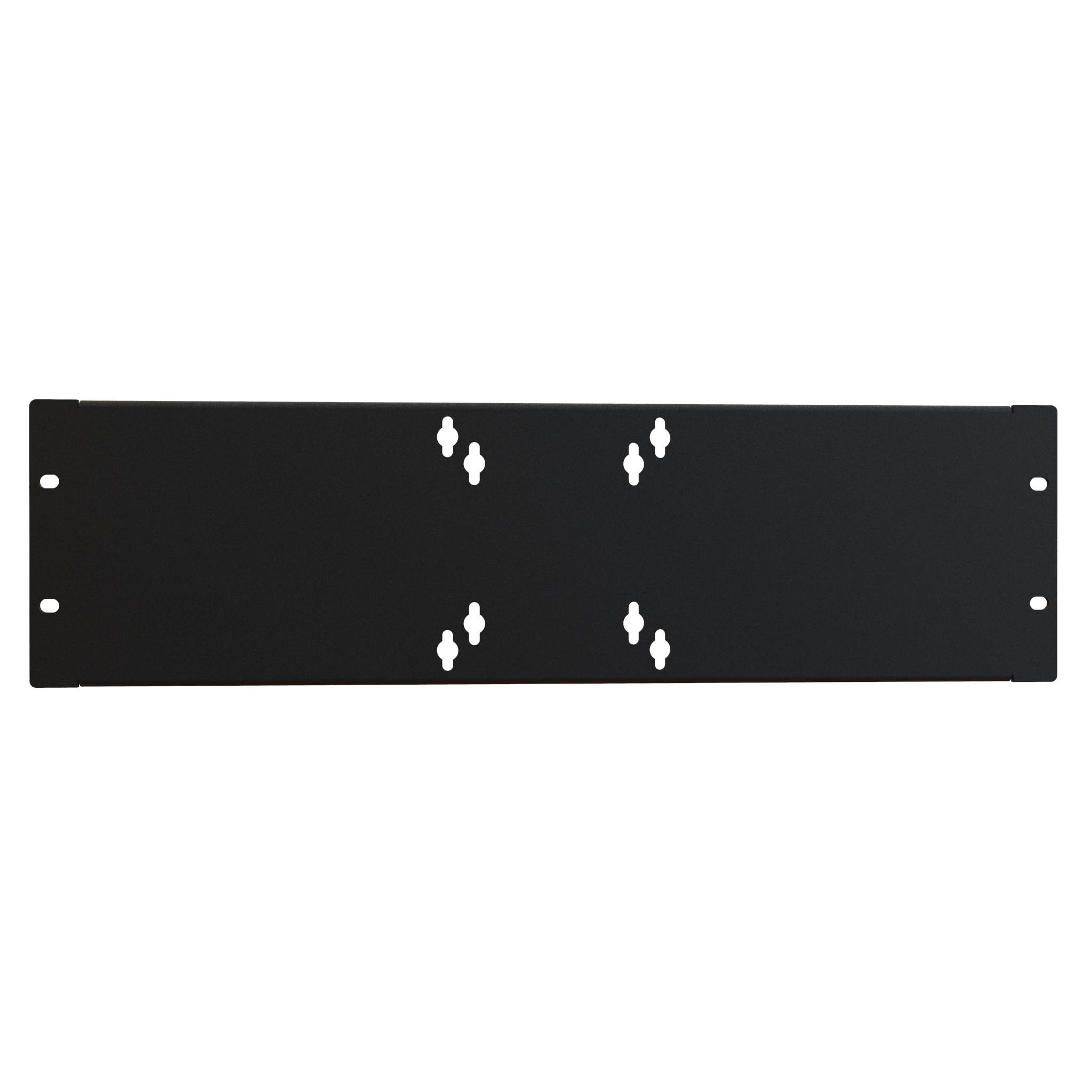

Hammond RMMB193UBK3 3U 19-Inch Vesa MIS-D Monitor Mount Panel

The RMMB193UBK3 is a fixed rack mount monitor panel that lets you attach a VESA display directly to standard 19 in EIA-compliant rack rails. It is intended for IT and AV integrators, control system builders and facilities teams who need a permanent, flush-mounted screen inside a rack for monitoring, control or diagnostic work.

Construction is 12-gauge mild steel (0.095 in) with a formed profile that increases rigidity and strength for long-term durability. The finish is a black powder coat described by the manufacturer as GREENGUARD, TSCA and RoHS compliant, so the panel suits environments where material and emissions requirements are specified.

The panel measures 19.00 in (483 mm) wide with an overall height of 5.25 in (133 mm) and occupies 3U of rack space. Four 0.250 in x 0.375 in slots handle the rack rail attachment, while the display face is drilled for VESA MIS-D patterns at both 75 x 75 mm (2.95 in) and 100 x 100 mm (3.94 in). Per VESA guidelines, the design targets monitors up to approximately 30 in and 30.8 lb (14 kg).

• Fixed, non-adjustable panel for a flush, low-profile display installation
• Includes four M4 x 12 mm screws to mount the monitor to the panel only
• 3U footprint at a shipping weight of 3 lbs (1.36 kg)

RMMB193UBK3 is TAA-compliant and manufactured in North America in an ISO 9001 certified facility, and it is listed as USMCA, RoHS and REACH compliant. If adjustable monitor positioning is required instead of a fixed panel, the RB-MMB Series is the alternative noted by the manufacturer.
