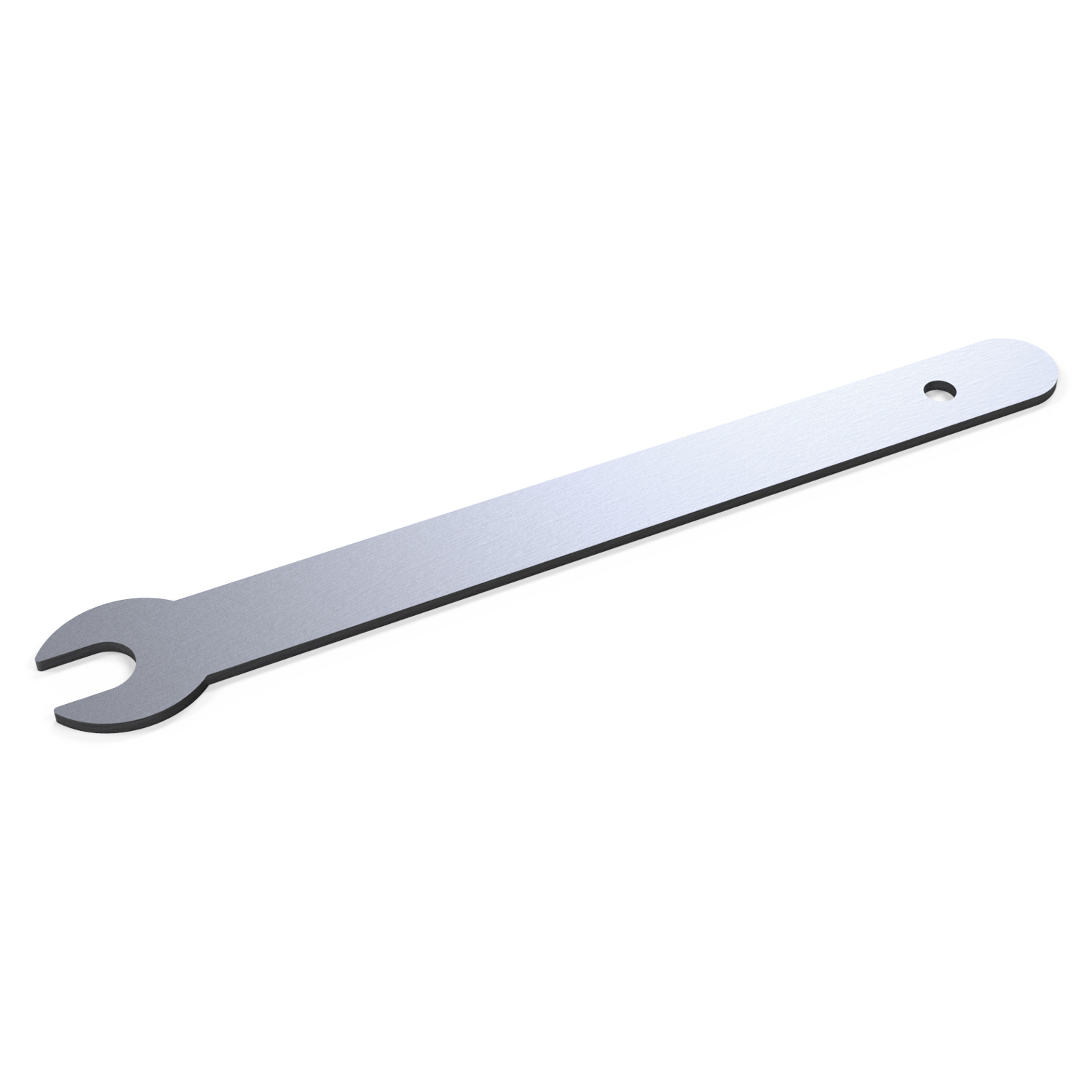

Hammond RFLW 7.85 Inch Rack Cabinet Leveling Foot Wrench

The RFLW is a dedicated rack foot leveling wrench used to adjust the leveling feet on racks and cabinets. It is intended for installers, IT and AV integrators, electricians and facilities crews who need to square and stabilise a cabinet on an uneven floor without improvising with a shifter or pliers.

The wrench is constructed of heavy duty stainless steel, with the part drawing identifying the RFLW as stainless steel; the manufacturer's product data also lists the material as mild steel. It is finished in a rugged textured black powder paint for a durable, low-glare surface.

At 7.85 in (199 mm) long, the RFLW provides the leverage needed to turn a leveling foot under load. Key drawing dimensions include a 0.50 in (13 mm) and 0.44 in (11 mm) head profile, a 0.75 in (19 mm) feature width, a 0.25 in (6 mm) diameter hole and 0.10 in (2 mm) material detail. Shipping weight is 0.17 lbs (0.08 kg), making it easy to keep in a tool bag or ship with a cabinet order.

The wrench is designed for use with CLFK leveling feet but will work with any standard leveling foot, so it can be used across a mixed fleet of cabinets. The RFLW is manufactured in North America, is USMCA compliant and TAA compliant, and is RoHS and REACH compliant, with ECCN EAR99 and tariff code 8204.11.0030 for export and procurement documentation.
