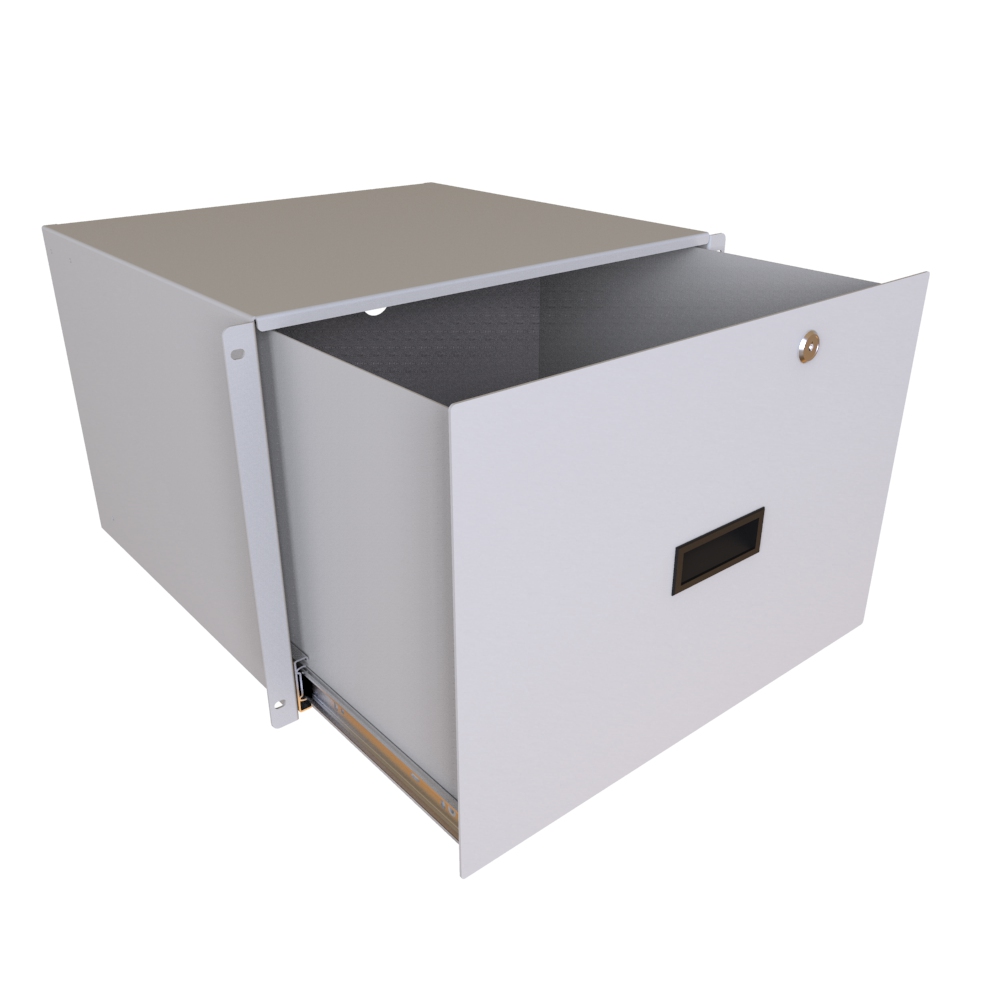

Hammond RDRW1901216LG1 7U 16 in Deep Locking Rack Storage Drawer

The RDRW1901216LG1 is a 7U locking rack storage drawer, 16 inches deep, finished in light gray. It is part of the RDRW Series of secure, lockable storage drawers that keep tools, documentation, and accessories organized and protected inside a standard 19-inch rack or cabinet. IT and network teams, industrial controls builders, broadcast and AV integrators, and service technicians use drawers like this to convert unused rack space into secure on-site storage.

Construction is mild steel — the series uses 14 and 16-gauge steel — with a heavy-duty sliding drawer body, a shroud, a keyed lock with 7.5 mm nut, and a plastic pull handle at the front. Two keys are supplied with the lock so sensitive tools, media, test equipment, or manuals can be secured. A cable pass through is provided in the rear of the drawer. The light gray powder coat is a textured RAL7035 finish that is GREENGUARD Gold Certified, TSCA and RoHS compliant.

Overall body width is 17.36 in (441 mm) with a 16.25 in (413 mm) depth; the front panel measures 19.00 in (483 mm) wide by 12.13 in (308 mm) high for 7U of rack space, with a 10.50 in (267 mm) front opening height. Rear mounting brackets adjust over a 16.10 in to 21.88 in (409 mm to 556 mm) rail depth range. Series load capacities run up to 145 lb (66 kg) in 4-post installations and 60 lb (27 kg) in 2-post racks.

RDRW1901216LG1 mounts in standard 19-inch EIA-310-E racks and cabinets, making it suitable for new builds and retrofits. Two rear drawer support brackets are included and can be fastened directly to the rear rack rails for added stability. The drawer is manufactured in North America in an ISO 9001 certified facility and is TAA compliant, USMCA compliant, RoHS and REACH compliant. Shipping weight is 39 lbs (17.69 kg).
