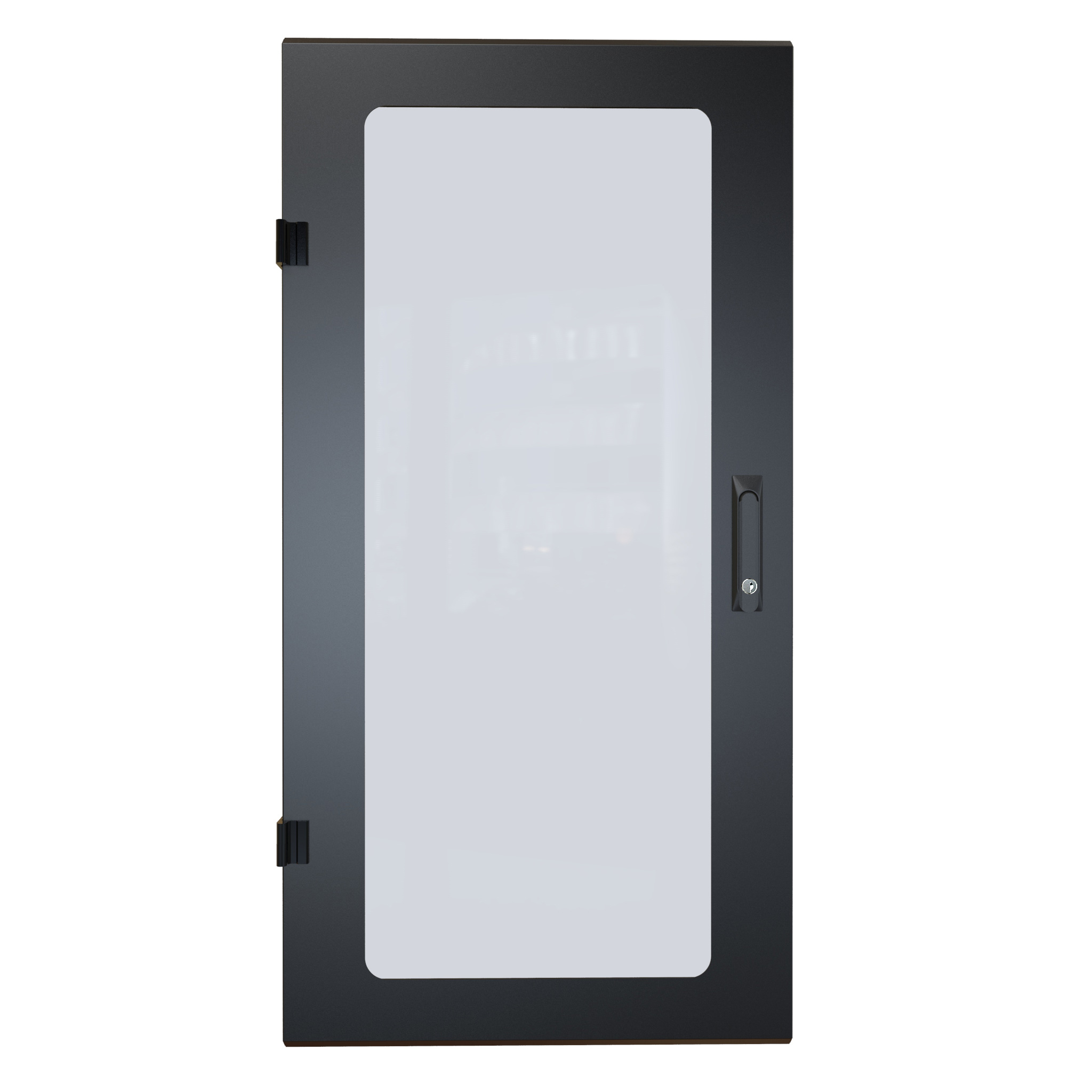

Hammond RCKWD24UBK1 24U Smoked Acrylic Window Door With Lock
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 24U window door sized 46.88 in x 23.6 in x 0.85 in (1,191 mm x 599 mm x 22 mm) for RCK series cabinets
- 0.24 in (6 mm) smoked acrylic window with venting for equipment visibility
- 16-gauge mild steel construction, textured RAL9005 black powder paint finish
- Includes locking swing handle (FH333) and keys plus door mounting hardware
- Two surface door hinges (LH) and hinge cover plates included; hinge hardware shipped loose
- Screw-on hinges install without access to the cabinet interior; left- or right-hand mounting
- Handle cutout compatible with electronic locks
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
The RCKWD24UBK1 is a 24U locking window door made exclusively for the Hammond RCK cabinet series. It suits IT and AV integrators, facilities teams and OEM engineers who need to secure equipment in a 24U wall-mount or floor cabinet while keeping front-panel indicators, displays and patching visible without opening the enclosure.
The door panel is 16-gauge mild steel with a 0.24 in (6 mm) smoked acrylic window, and the RCKD series is finished in textured RAL9005 black powder paint that complies with the Greenguard guidelines for indoor air quality. The window style in this series pairs the acrylic panel with venting, so equipment stays visible while the door remains part of the cabinet's airflow path.
Overall size is 46.88 in x 23.6 in x 0.85 in (1,191 mm x 599 mm x 22 mm), matching the 24U RCK cabinet opening. The assembly ships as an RCK plexi door with a swing handle key lock (FH333), two surface door hinges (LH) and two hinge cover plates; hinge components hardware is shipped loose.
- Screw-on hinges mount without access to the inside of the cabinet.
- The door can be hung on the left or the right to suit the room layout.
- The handle cutout accepts electronic locks.
RCKWD24UBK1 is manufactured in North America, is RoHS and REACH compliant, USMCA compliant and TAA-compliant for GSA Schedule purchases. Matching 24U doors in the same series include solid (RCKSD24UBK1) and vented mesh (RCKVD24UBK1) styles.
Ideal For
- Securing 24U RCK cabinets in IT and network closets
- AV equipment racks where front-panel visibility is needed
- TAA-compliant GSA Schedule cabinet projects
- Retrofitting or replacing a door on an existing RCK 24U cabinet
- Indoor installations requiring Greenguard-compliant finishes
Overview
| Type | Rack accessory - door |
| Series | RCKD Series Locking Door |
| Door Style | Window (smoked acrylic with venting) |
| Description | 24U Window Door for RCK |
| Part Number | RCKWD24UBK1 |
Dimensions
| Overall Width | 23.60 in (599 mm) |
| Overall Height | 46.88 in (1,191 mm) |
| Size H X W X D | 46.88 in x 23.6 in x 0.85 in (1,191 mm x 599 mm x 22 mm) |
| Acrylic Thickness | 0.24 in (6 mm) |
| Thickness (Depth) | 0.85 in (22 mm); .84 in (21 mm) per drawing side view |
| Window Opening Width | 16.00 in (406 mm) |
| Window Opening Height | 40.25 in (1,022 mm) |
Identifiers
| UPC | 623980428765 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980428765 |
| UPC W/o Check Digit | 62398042876 |
Rack Mounting
| Hinge Type | Screw-on surface hinges, mountable without access to cabinet interior |
| Compatibility | Exclusively for use with the RCK Cabinet Series |
| Hinge Orientation | Door can be mounted on the left or right |
| Cabinet Height (Use With) | 24U |
Security & Hardware
| Lock | Locking swing handle key lock FH333 with keys included |
| Assembly Note | Hinge components hardware shipped loose |
| Included Items | RCK plexi door (1), swing handle key lock FH333 (1), surface door hinge LH (2), hinge cover plate (2); door mounting hardware included |
| Electronic Lock Ready | Door handle cutout compatible with electronic locks |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Colour | Black |
| Finish | Textured RAL9005 black powder paint coat |
| Material | Mild Steel, 16-gauge |
| Window Material | Smoked acrylic |
Environmental & Protection
| Indoor Air Quality | Finish complies with the Greenguard guidelines for indoor air quality |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does RCKWD24UBK1 fit?▾
It is designed exclusively for the Hammond RCK cabinet series, specifically the 24U cabinet height.
Can the door be hinged on either side?▾
Yes. The RCKD series door can be mounted on the left or the right, and the screw-on hinges can be installed without needing access to the inside of the cabinet.
Does it come with a lock and keys?▾
Yes. RCKWD24UBK1 includes a swing handle key lock (FH333) with keys, plus two surface door hinges, two hinge cover plates and door mounting hardware. Hinge components hardware is shipped loose.
What is the window made of?▾
The window is 0.24 in (6 mm) smoked acrylic. In this series the window style combines the acrylic panel with venting.
Can an electronic lock be used instead of the supplied handle?▾
The door handle cutout is compatible with electronic locks.
Are solid or vented versions available in 24U?▾
Yes. The 24U solid door is RCKSD24UBK1 and the 24U vented mesh door is RCKVD24UBK1.
Related Products

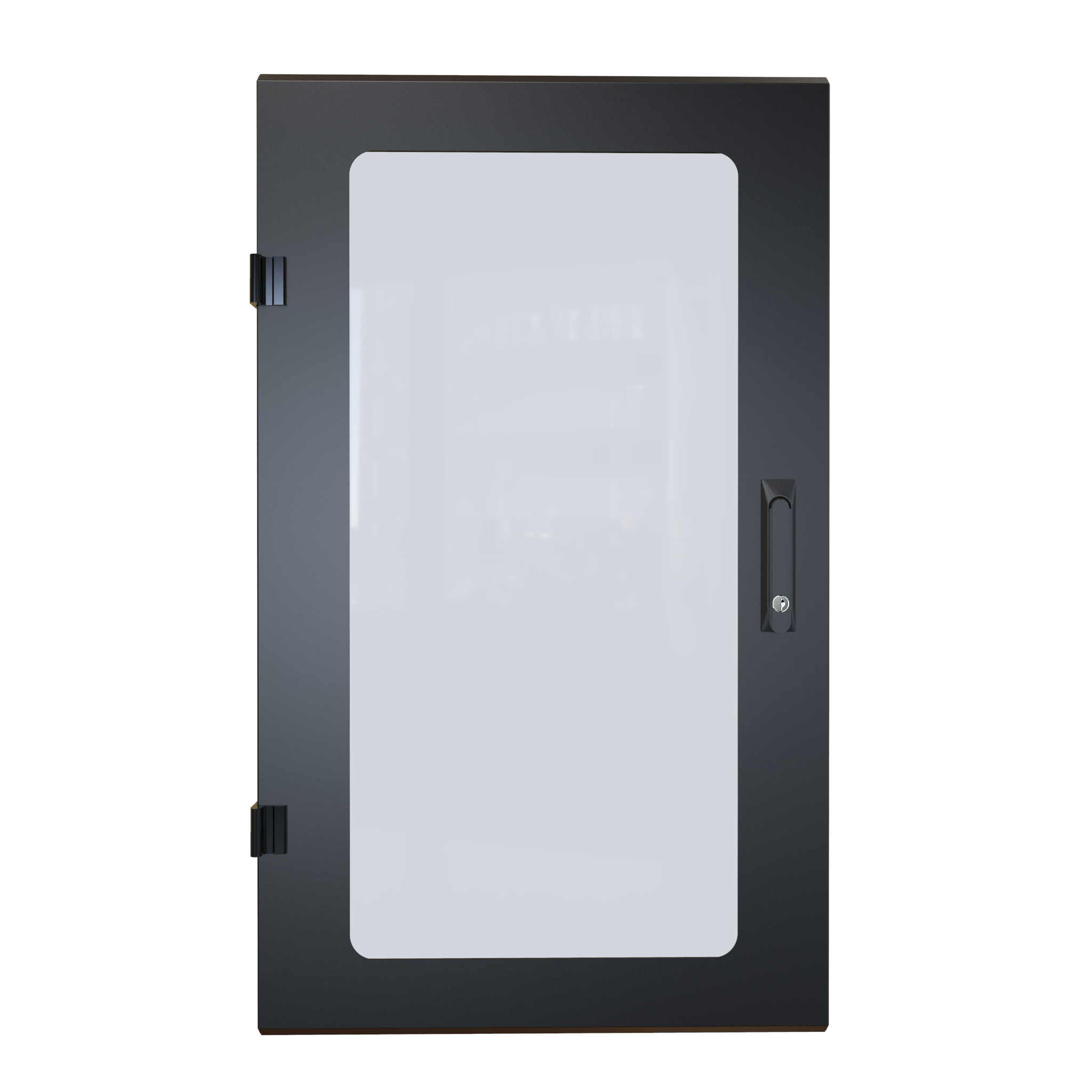

Save 35%RCKWD20UBK1 — 20U Window Door For Rck
Hammond Manufacturing · RCKWD20UBK1

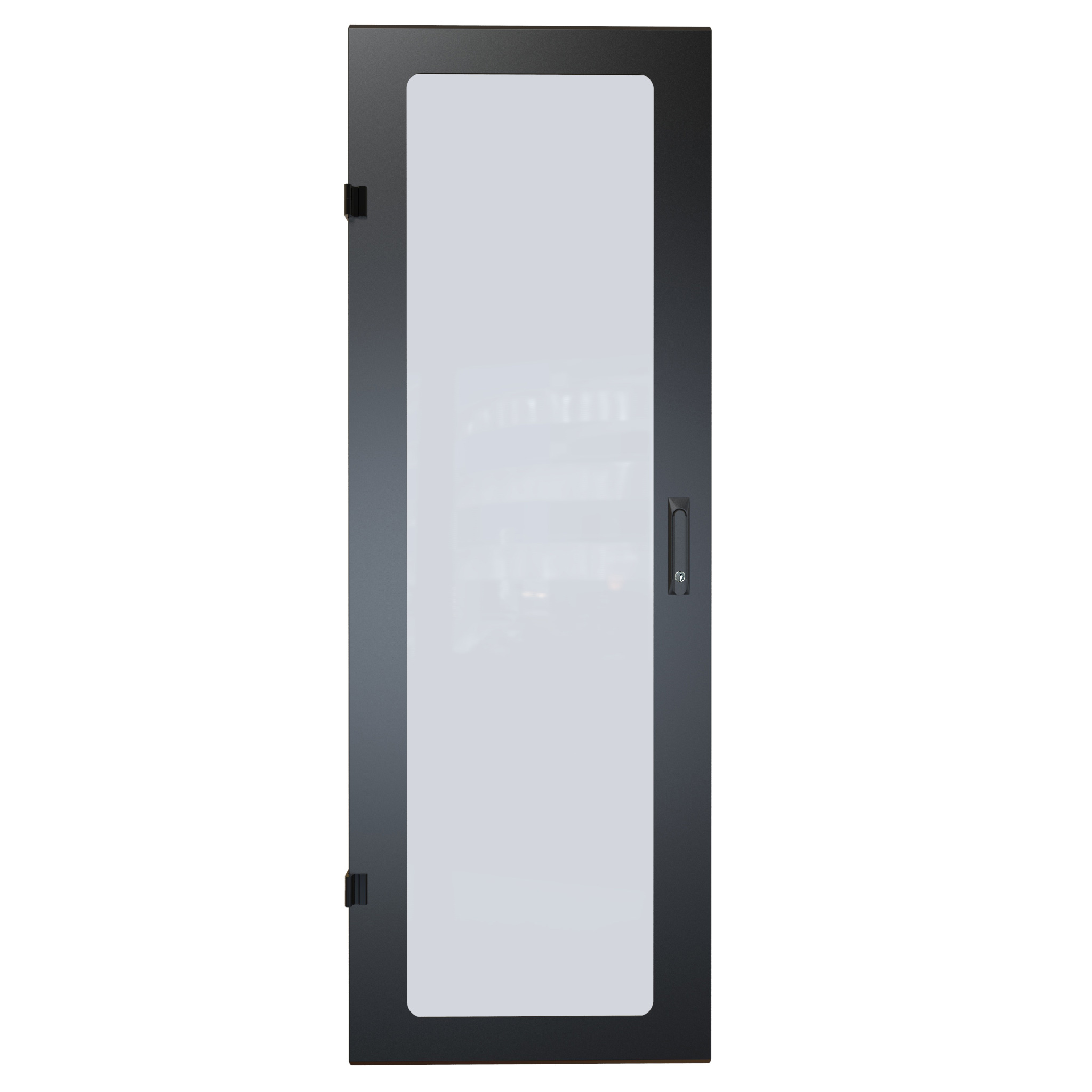

Save 35%RCKWD36UBK1 — 36U Window Door For Rck
Hammond Manufacturing · RCKWD36UBK1

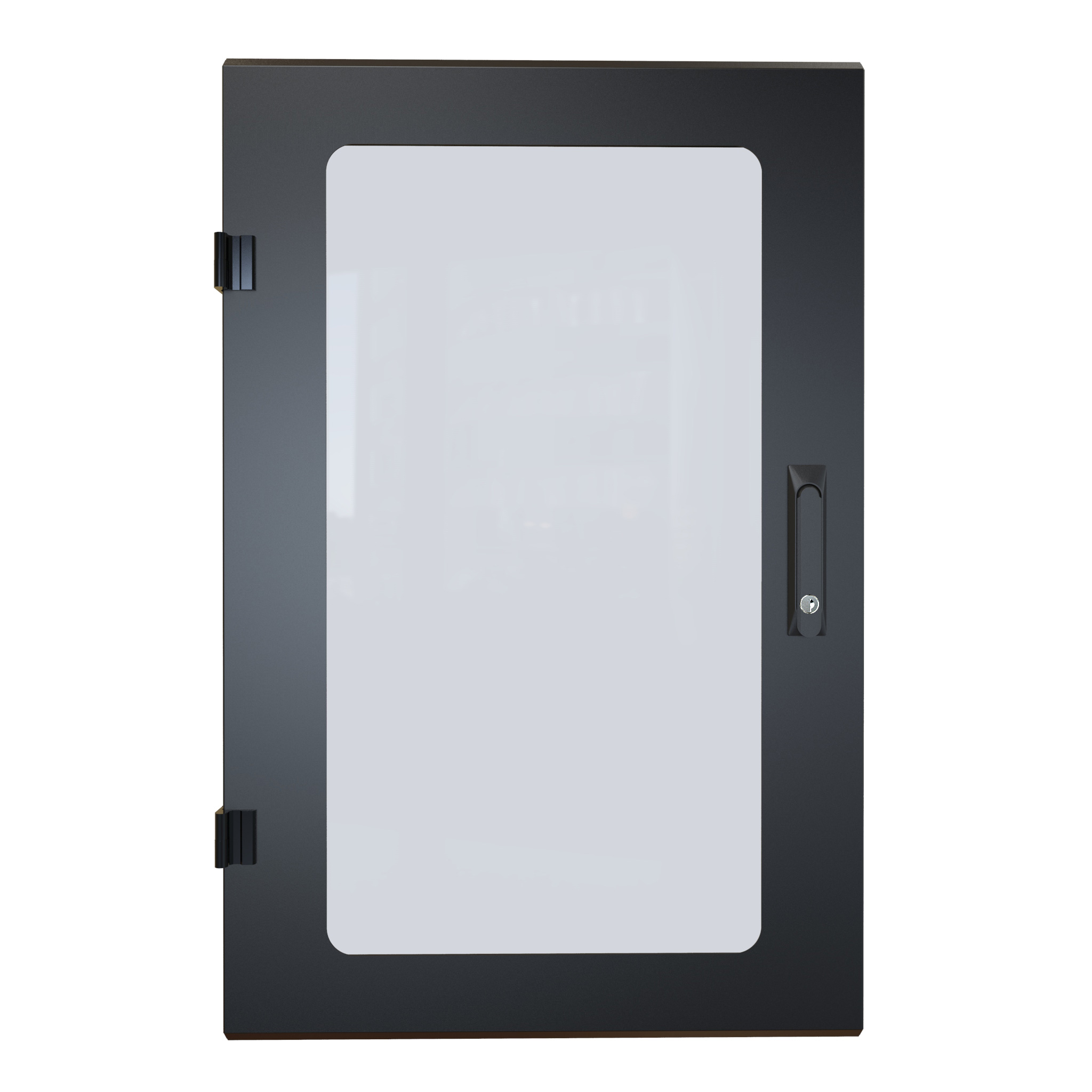

Save 35%RCKWD18UBK1 — 18U Window Door For Rck
Hammond Manufacturing · RCKWD18UBK1

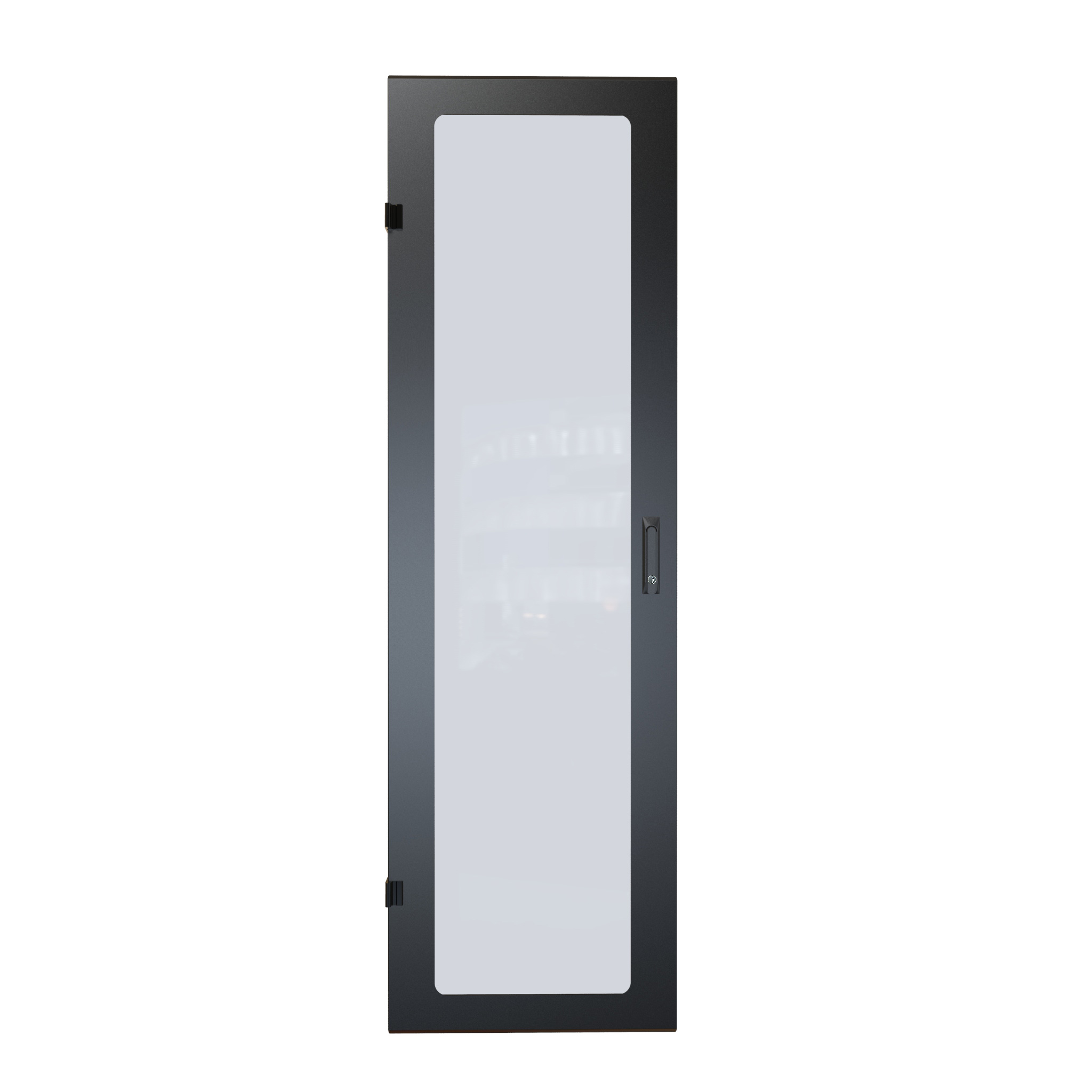

Save 35%RCKWD42UBK1 — 42U Window Door For Rck
