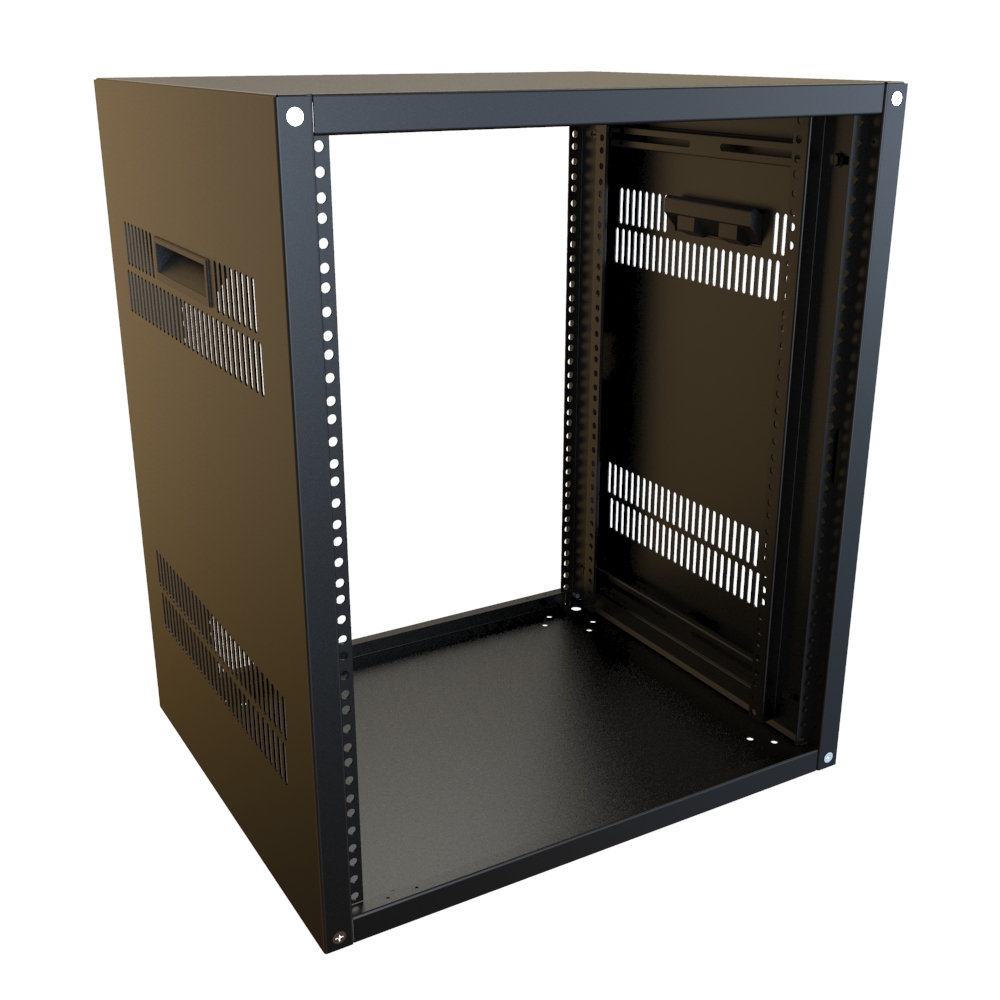

Hammond RCHV1902217BK1 13U Vented Rack Cabinet, 17.5 in Deep

The RCHV1902217BK1 is a 13U vented-side rack cabinet from the RCH knock-down series, built for AV and media installations, test and measurement benches, industrial control systems and small IT or lab equipment. It accepts standard 19-inch rack-mount gear and ships unassembled for easier handling into constrained spaces.

Construction is 16-gauge mild steel with an 800 lb load capacity, finished in textured RAL9005 black powder coat that is GREENGUARD, TSCA and RoHS compliant. The vented side panels support passive cooling, and the open-frame cabinet structure can be configured with optional panels and doors for additional ventilation or access control. Two black plastic lifting handles and PVC non-marking feet are included to aid placement and protect finished floors.

Overall dimensions are 24.75 in x 21 in x 17.5 in (629 mm x 533 mm x 445 mm), with usable mounting dimensions of 22.75 in (578 mm) high, 19.00 in (483 mm) wide and 16.25 in (413 mm) deep — 13U of rack space. Two pairs of adjustable-depth, EIA-310 compliant round-hole combo rails are supplied, along with a starter pack of 16 10-32 screws and clip nuts. Shipping weight is 53.99 lbs (24.49 kg).

Assembly is simple and self-squaring, using minimal hardware supplied with the cabinet (1/4-20 hex slot bolts, spring nuts and M6 screws). RCHV1902217BK1 is manufactured in Canada, is TAA- and USMCA-compliant and meets RoHS and REACH requirements, supporting government and regulated procurement. Note that this product is not designed nor intended to be wall mounted.
