Hammond RB-VFM45-4-1 45U Single-Sided 4in Vertical Cable Manager
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 45 rack units of mounting height — 78.75 in (2000 mm) — for full-height vertical cable routing in open frame racks
- Single-sided design, 4.00 in (102 mm) wide by 8.00 in (203 mm) deep, 80.40 in (2042 mm) overall height
- 16-gauge steel frame with UL94V-0 polycarbonate fingers for high-capacity routing and durability
- Removable aluminum cover/door included for cable concealment and a clean installation
- Rear cable pass-through openings allow flexible routing between rack sections
- Keyhole cutouts support tool-less PDU mounting; 61.25 in (1556 mm) PDU mounting dimension
- Black powder coat finish, GREENGUARD, TSCA and RoHS compliant
- TAA-compliant and manufactured in North America; ships flat packed with assembly and mounting hardware

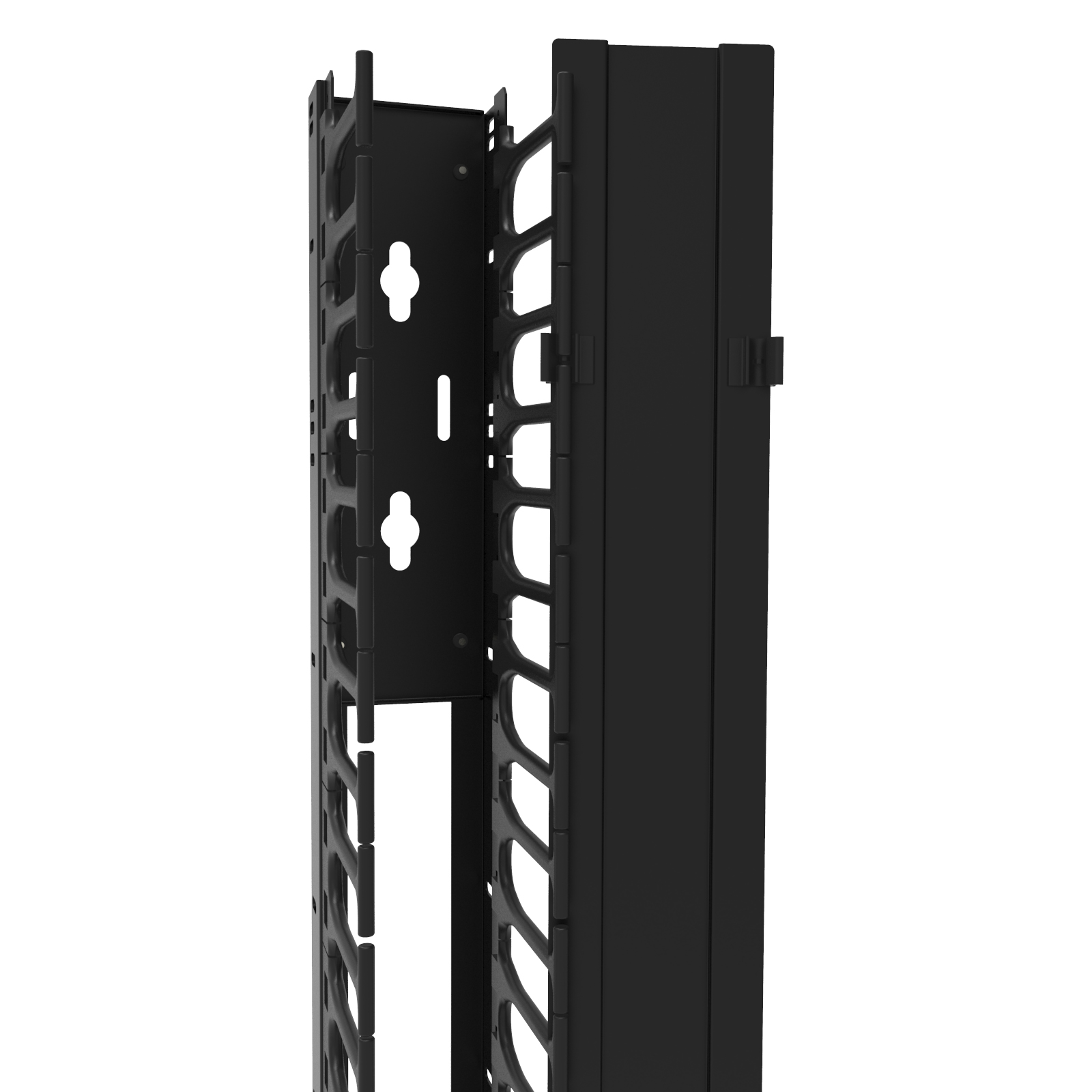

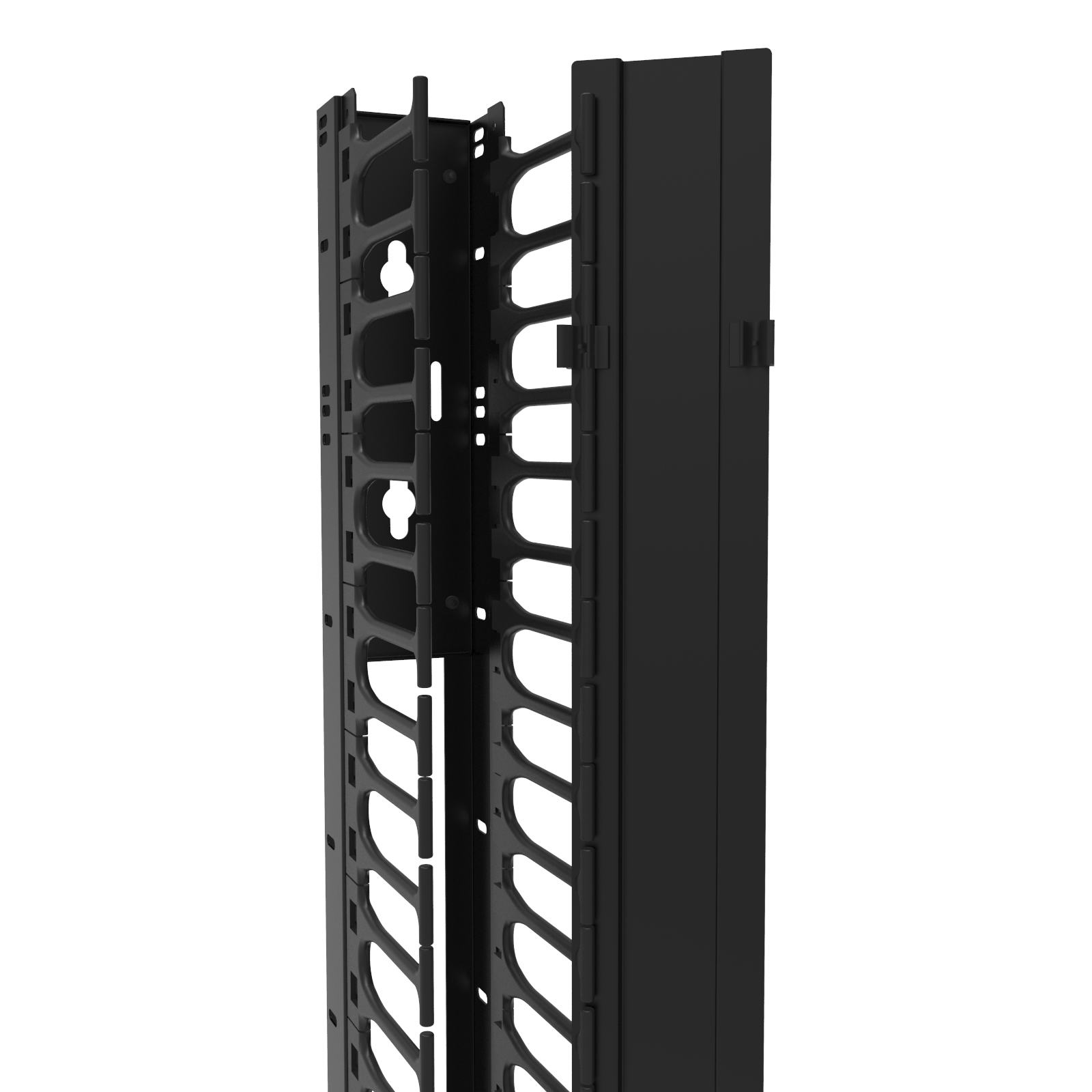

The RB-VFM45-4-1 is a 45U single-sided vertical finger cable manager with a removable cover, built for routing and concealing cable bundles along the full height of open frame rack systems. It suits data centers, IT rooms, network and telecom installations, and structured cabling environments where vertical pathways, airflow and serviceability matter.
Construction is a 16-gauge steel frame fitted with UL94V-0 polycarbonate fingers, so cables are guided into structured pathways and held securely over the long term. A removable aluminum cover (door) conceals the cable bundles for a clean, finished installation, and the black powder coat finish is GREENGUARD, TSCA and RoHS compliant to support indoor air quality and environmental requirements.
This 4 in wide single-sided version measures 80.40 in (2042 mm) high overall by 4.00 in (102 mm) wide by 8.00 in (203 mm) deep, with 78.75 in (2000 mm) of mounting height equal to 45 rack units. Shipping weight is 19.65 lbs (8.91 kg) and the unit ships flat packed with assembly hardware and mounting hardware included.
- Rear cable pass-through openings for routing between rack sections
- Keyhole cutouts for tool-less PDU mounting, with a 61.25 in (1556 mm) PDU mounting dimension
- Optional accessories such as cable spools, dividers and panels
RB-VFM45-4-1 is designed for compatibility with Hammond and third-party open frame racks, and is part of the Rack Basics line for simple, reliable and affordable installations. It is TAA-compliant and manufactured in North America, with USMCA, RoHS and REACH compliance for procurement documentation.
Ideal For
- Data centers and IT rooms
- Network and telecom installations
- High-density open frame rack deployments
- Structured cabling environments requiring vertical cable routing
- Routing large volumes of patch cables between rack-mounted equipment
Overview
| Series | RB-VFM — Vertical Cable Manager with Fingers and Cover for Open Frame Racks |
| Description | 45U 4W 1-Sided Finger Manager |
| Part Number | RB-VFM45-4-1 |
| Product Line | Rack Basics |
| Compatibility | Designed for compatibility with Hammond and third-party open frame racks |
| Configuration | Single-sided |
| Cover/Door Included | Yes |
Dimensions
| Rear Opening | 18.45 in (469 mm) |
| Overall Depth | 8.00 in (203 mm) |
| Overall Width | 4.00 in (102 mm) |
| Overall Height | 80.40 in (2042 mm) |
| Secondary Opening | 2.38 in (60 mm) |
| Nominal Size (Height) | 78.75 in |
Identifiers
| UPC | 623980013206 |
| UNSPSC | 43223305 |
| GTIN-14 | 00623980013206 |
| UPC W/o Check Digit | 62398001320 |
Rack Mounting
| Rack Units | 45 |
| PDU Mounting | 61.25 in (1556 mm); keyhole cutouts for tool-less PDU mounting |
| Mounting Height | 78.75 in (2000 mm) |
Packaging & Shipping
| Packaging | Shipped flat packed |
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 19.65 lbs (8.91 kg) |
| Country Of Origin | CA |
Construction & Finish
| Fingers | UL94V-0 polycarbonate |
| Hardware | Includes assembly hardware and mounting hardware |
| Cover Material | Removable aluminum |
| Frame Material | 16-gauge steel |
| Finish / Colour | Black powder coat (painted black) |
| Finish Compliance | GREENGUARD, TSCA, RoHS compliant |

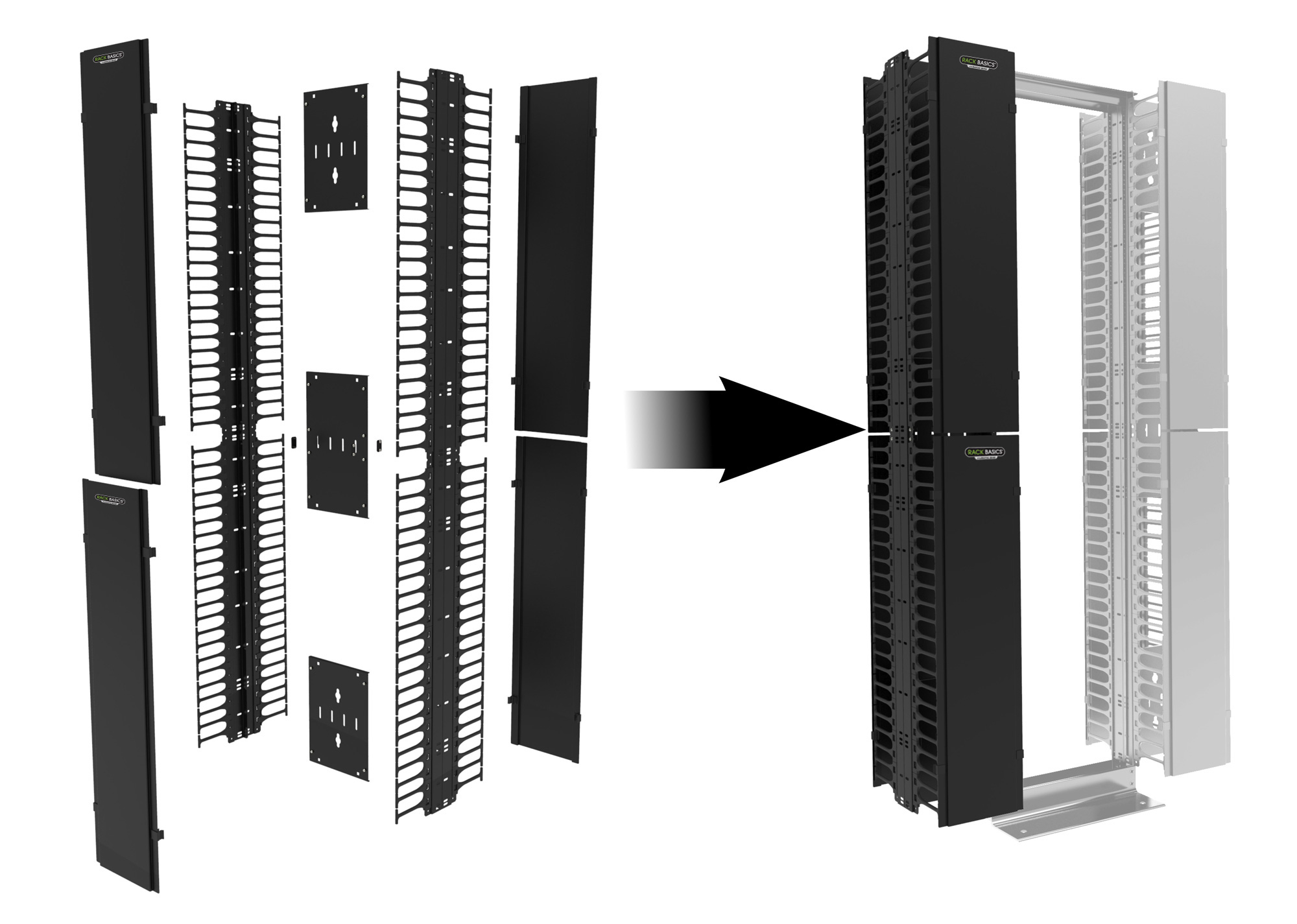

| Included Components | Finger bracket w/fingers assembly (4), RB-VFM end connector bracket (2), RB-VFM mid connector bracket (1), RB-VFM manager door w/clips (2), RB-VFM connector plate (2), 10-32 x 3/8 in black screws (20) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How tall is RB-VFM45-4-1 and how many rack units does it cover?▾
It provides 78.75 in (2000 mm) of mounting height, equal to 45 rack units, with an overall height of 80.40 in (2042 mm).
Is a cover included with RB-VFM45-4-1?▾
Yes. The door/cover is included. It is a removable aluminum cover that conceals cables for a clean installation. Replacement cover pieces are available in the series as RB-VFM45-4-COV.
Is this a single-sided or double-sided manager?▾
RB-VFM45-4-1 is the single-sided configuration, 4.00 in (102 mm) wide and 8.00 in (203 mm) deep. Double-sided versions in the series are 16.00 in deep.
Can I mount a PDU on it?▾
Yes. Keyhole cutouts support tool-less PDU mounting, with a PDU mounting dimension of 61.25 in (1556 mm) shown on the drawing.
What is it made of and what is the finish?▾
A 16-gauge steel frame with UL94V-0 polycarbonate fingers and a removable aluminum cover, finished in black powder coat that is GREENGUARD, TSCA and RoHS compliant.
Does RB-VFM45-4-1 meet government procurement requirements?▾
It is TAA-compliant and manufactured in North America, with country of origin CA, and is USMCA, RoHS and REACH compliant with ECCN EAR99.
