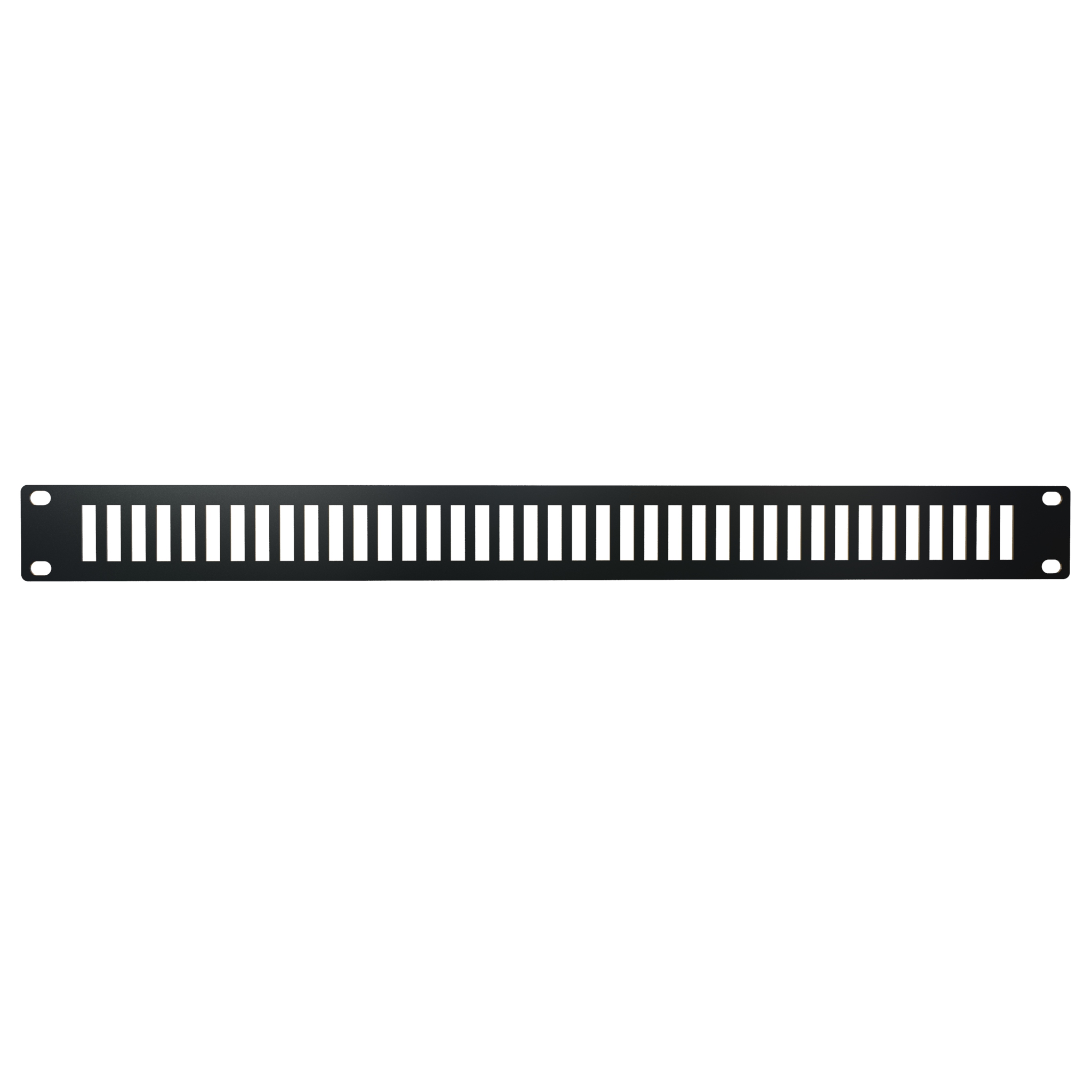

Hammond PVSS19001BK 1U Slotted Steel Vented Rack Panel, 29% Airflow
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 1U panel with 1.75 in (44 mm) usable mounting height and 9.70 in (246 mm) open space
- Slotted design allows approximately 29% airflow, improving cooling versus standard perforated panels
- 14-gauge mild steel construction for durable rack space coverage
- Slot pattern of 0.25 in x 1.0 in supports directional airflow and cable visibility
- Fits standard 19 in EIA-compliant rack rails for universal compatibility
- RAL9005 Black Matte smooth powder coat; GREENGUARD, TSCA and RoHS compliant finish
- TAA compliant, made in North America in an ISO 9001 certified facility
- Light shipping weight of 0.4 lbs (0.18 kg)
The PVSS19001BK is a 1U slotted steel vented rack panel built to cover unused space in a 19 in rack while letting air keep moving. It suits IT and data centre teams, telecom installers, AV integrators and facilities staff who need to tidy open rack gaps without shutting down ventilation to active equipment.
Construction is 14-gauge mild steel with a smooth powder coat finish in RAL9005 Black Matte. The powder coat is GREENGUARD, TSCA and RoHS compliant, and the panel is manufactured in North America in an ISO 9001 certified facility. The part is TAA compliant, USMCA compliant, and both RoHS and REACH compliant.
This 1U size provides 1.75 in (44 mm) of usable mounting height and 9.70 in (246 mm) of open space, and fits standard 19 in EIA-compliant rack rails for universal compatibility. The slot pattern measures 0.25 in x 1.0 in, delivering approximately 29% airflow — more than standard perforated panels — while still supporting directional airflow and cable visibility. Shipping weight is 0.4 lbs (0.18 kg).
- 1U height, 1.75 in (44 mm) usable mounting dimension
- Approximately 29% open airflow through 0.25 in x 1.0 in slots
- 14-gauge steel with black matte powder coat
Installed in unused rack space, PVSS19001BK helps balance airflow and containment strategies, maintains rack organization and separation, and improves thermal performance without leaving open gaps. A light gray semi-gloss version, PVSS19001LG2, covers the same 1U size when a lighter finish is specified.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments needing increased airflow through unused spaces
- Installations using active cooling and containment strategies
- Covering unused rack space while maintaining ventilation
Overview
| Series | PVSS Series - Slotted Steel Rack Panels, 14-Gauge High Airflow |
| Part Number | PVSS19001BK |
| Short Description | 1U SLOTTED STEEL VENTED PANEL |
| Matching Light Gray Part | PVSS19001LG2 (RAL 7035 Light Gray Semi-Gloss) |
Dimensions
| Slot Pattern | 0.25 in x 1.0 in |
| Airflow Open Area | Approximately 29% |
| Usable Mounting Height | 1.75 in (44 mm) |
| Open Space (Cubic Units) | 9.70 in (246 mm) |
Identifiers
| UPC | 623980013497 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980013497 |
| UPC W/o Check Digit | 62398001349 |
Rack Mounting
| Rack Units | 1U |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
Packaging & Shipping
| Tariff Code | 9403.10.0040 |
| Shipping Weight | 0.4 lbs (0.18 kg) |
| Country Of Origin | CA |
Construction & Finish
| Color | RAL9005 Black Matte |
| Gauge | 14-gauge steel |
| Finish | Smooth powder coat |
| Material | Mild Steel |
Environmental & Protection
| Powder Coat Compliance | GREENGUARD, TSCA, RoHS compliant |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| Manufacturing | Made in North America in an ISO 9001 certified facility |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PVSS19001BK cover?▾
It is a 1U panel with a usable mounting height of 1.75 in (44 mm) and 9.70 in (246 mm) of open space.
How much airflow does this slotted panel allow?▾
The slotted design allows approximately 29% airflow, which improves cooling efficiency compared to standard perforated panels. The slots measure 0.25 in x 1.0 in.
What racks does it fit?▾
It fits standard 19 in EIA-compliant rack rails for universal compatibility.
What is it made of and what colour is it?▾
PVSS19001BK is 14-gauge mild steel with a smooth powder coat finish in RAL9005 Black Matte.
Is this part TAA and RoHS compliant?▾
Yes. It is TAA compliant, RoHS compliant, REACH compliant and USMCA compliant, with country of origin CA and ECCN EAR99. The powder coat is GREENGUARD, TSCA and RoHS compliant.
Is a light gray version available in the same size?▾
Yes, PVSS19001LG2 is the 1U panel in RAL 7035 Light Gray Semi-Gloss.
Related Products

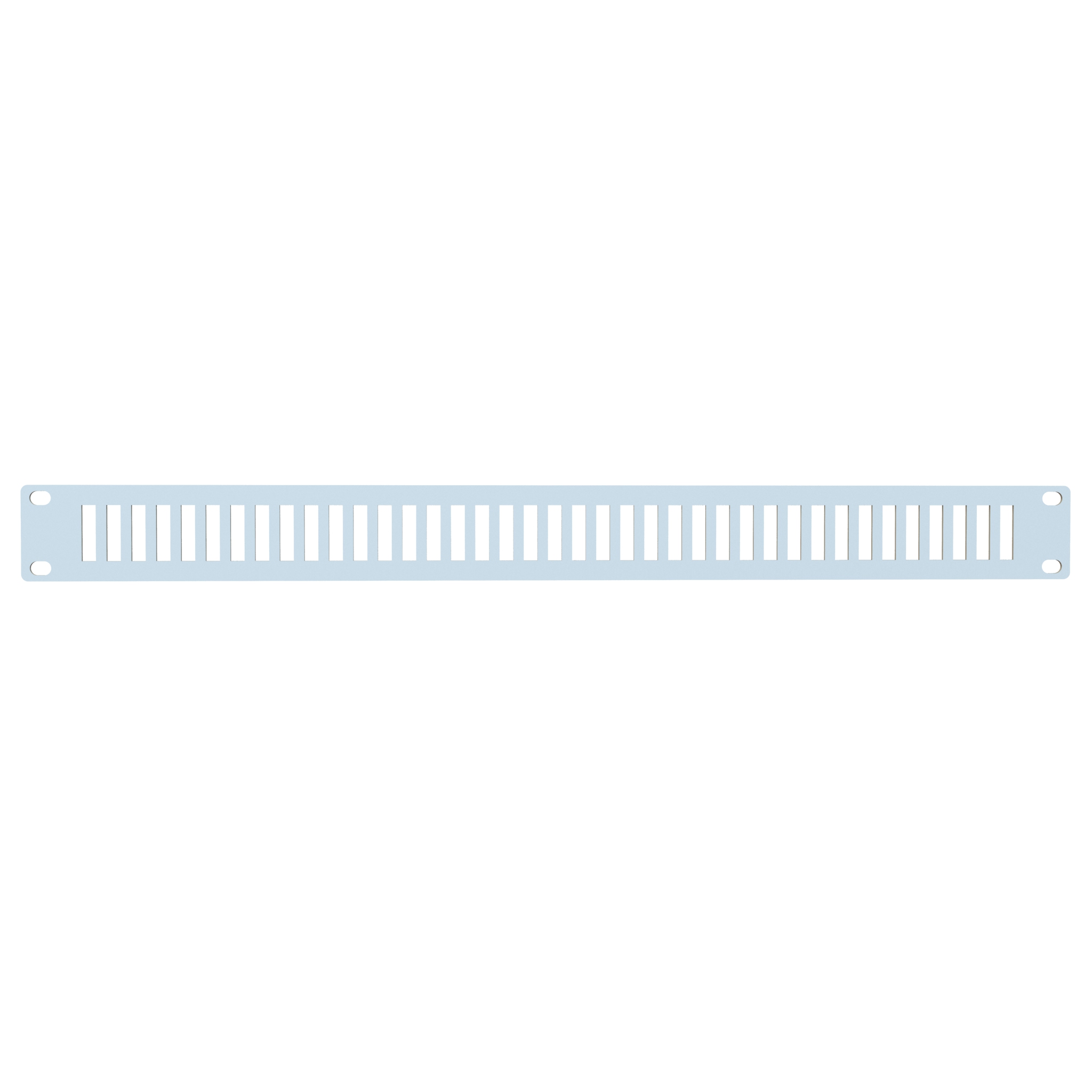

Save 35%PVSS19001LG2 — 1U Slotted Steel Vented Panel
Hammond Manufacturing · PVSS19001LG2

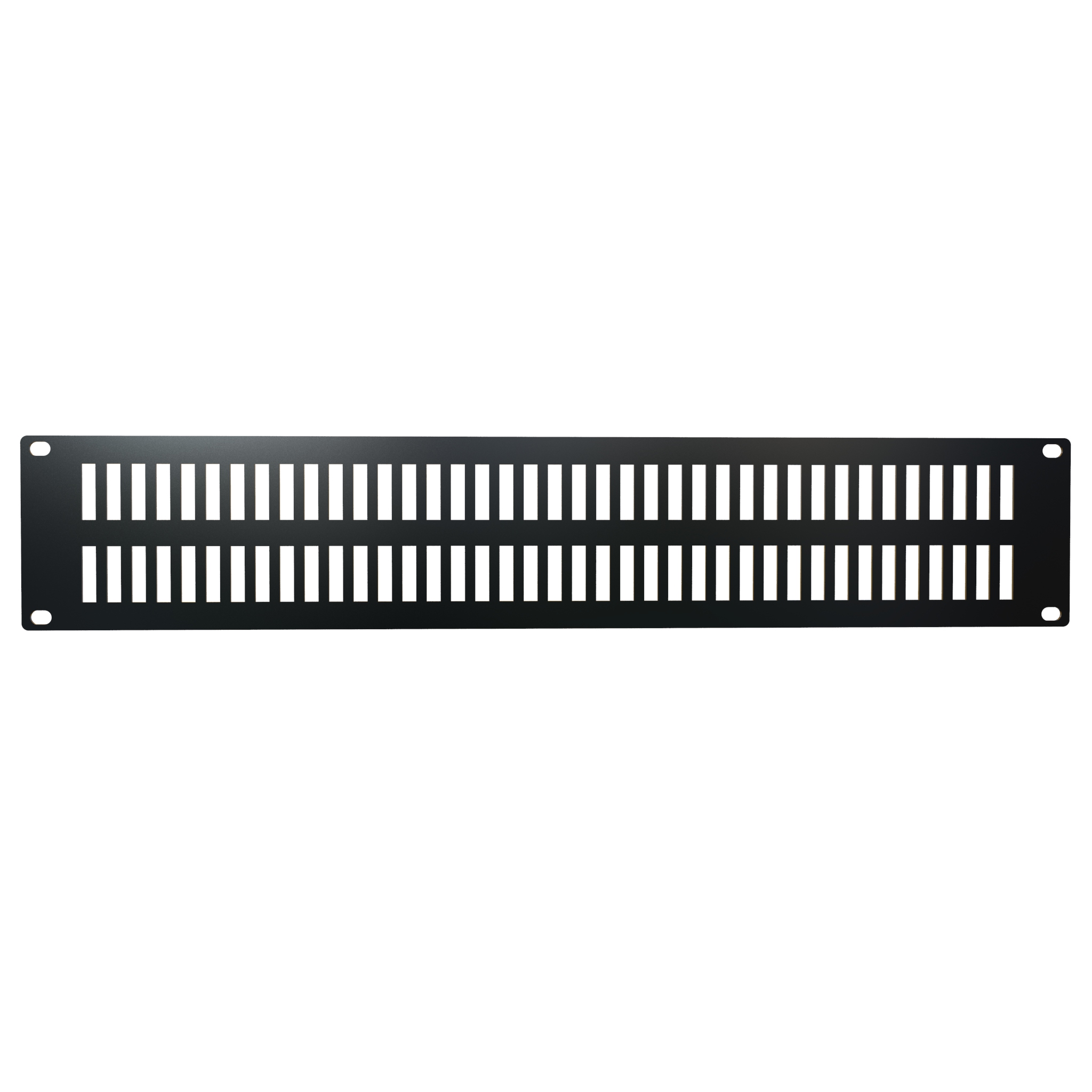

Save 35%PVSS19003BK — 2U Slotted Steel Vented Panel
Hammond Manufacturing · PVSS19003BK

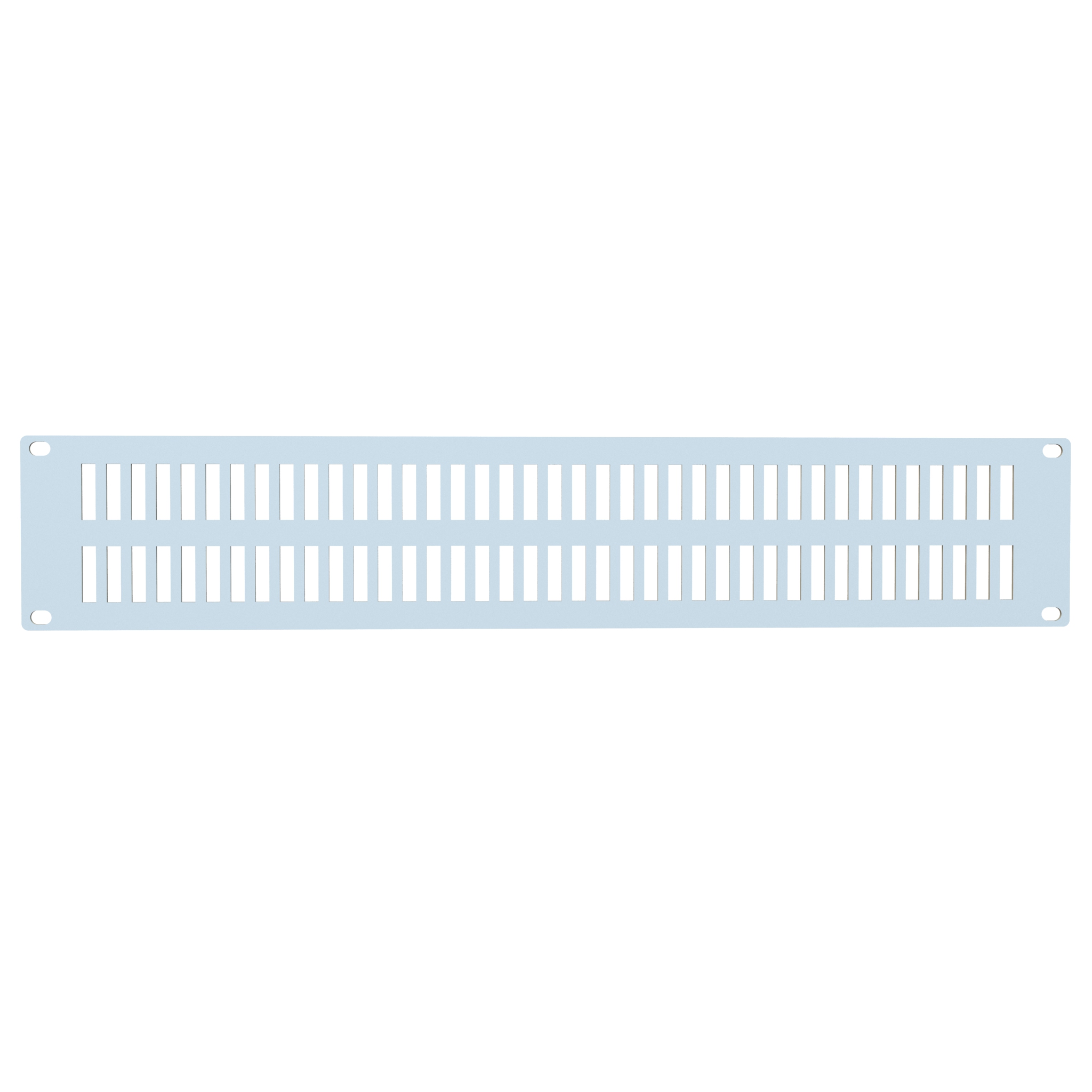

Save 35%PVSS19003LG2 — 2U Slotted Steel Vented Panel
