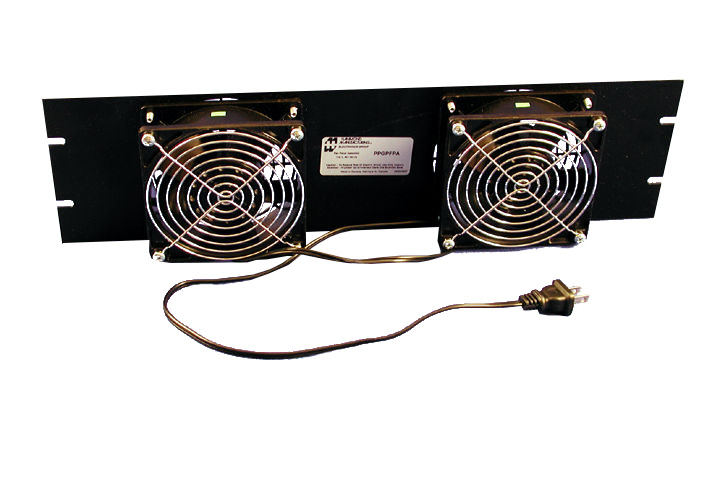

Hammond PPGPFPA 3U 2-Fan Exhaust Panel, 210 CFM, 115 VAC

The PPGPFPA is a pre-assembled 3U rack mount fan panel with two factory-installed 115 VAC fans, built to provide active exhaust cooling for server cabinets, network racks and telecom enclosures. It is a ready-to-install option for IT and AV integrators, telecom technicians and industrial control panel builders who need to move heat out of enclosed rack equipment without building a custom assembly.

The panel is formed from mild steel with a black powder coat finish that is GREENGUARD, TSCA and RoHS compliant. The front panel is punched to provide integral finger protection, and the rear of each fan carries a metal safety guard. A 72 in daisy-chain power cord is included, and the 115 VAC version ships with a plug for direct connection.

Mounting dimensions are 3U / 5.25 in (133 mm) high, and the panel measures 482.60 mm [19.000 in] wide by 132.54 mm [5.218 in] high with a 45.08 mm [1.775 in] depth and 2.08 mm [0.082 in] material thickness. It fits standard 19 in EIA-compliant rack rails. Shipping weight is 7 lbs (3.18 kg).

The two-fan configuration of the PPGPFPA delivers 210 CFM at a noise level of 60 dB, drawing 48 W at 50 Hz and 44 W at 60 Hz; each fan is rated 22 W - 0.57 A at 115 VAC. The assembly can be used on its own as an exhaust panel or as part of a push-pull airflow strategy when paired with the Hammond PPGP Fan Grill Panel and intake filters, and it is compatible with Hammond thermostats for automatic temperature-controlled operation.

PPGPFPA is TAA-compliant and manufactured in North America in an ISO 9001 certified facility.
