Hammond PMB110127KIT2 127 mm Large Clamp 15" Pole Mount Kit, 110
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Large clamp covers poles 1.5 in to 15 in (3.8 cm to 38.1 cm) in diameter
- Fits 15 listed 1554/1555, 1555RF, 1590Z and 1590ZGRP enclosures
- Includes 2 brackets, 2 clamps and hardware, all stainless steel
- M4-0.7 x 20mm and M6-1.0 x 40mm hardware for different enclosure families
- Replacement packs SCPMB1-20 and SCPMB3-20
- Can also be mounted to square or rectangular shapes
- RoHS and REACH compliant
PMB110127KIT2 pairs the 110–127 mm stainless steel brackets with the large clamp (HCLAMP2), giving a pole diameter range of 1.5 in to 15 in (3.8 cm to 38.1 cm). It is intended for installers who need to mount the listed 1554/1555, 1555RF, 1590Z and 1590ZGRP enclosures on wide poles, and the drawing notes it can also be mounted to square or rectangular shapes.

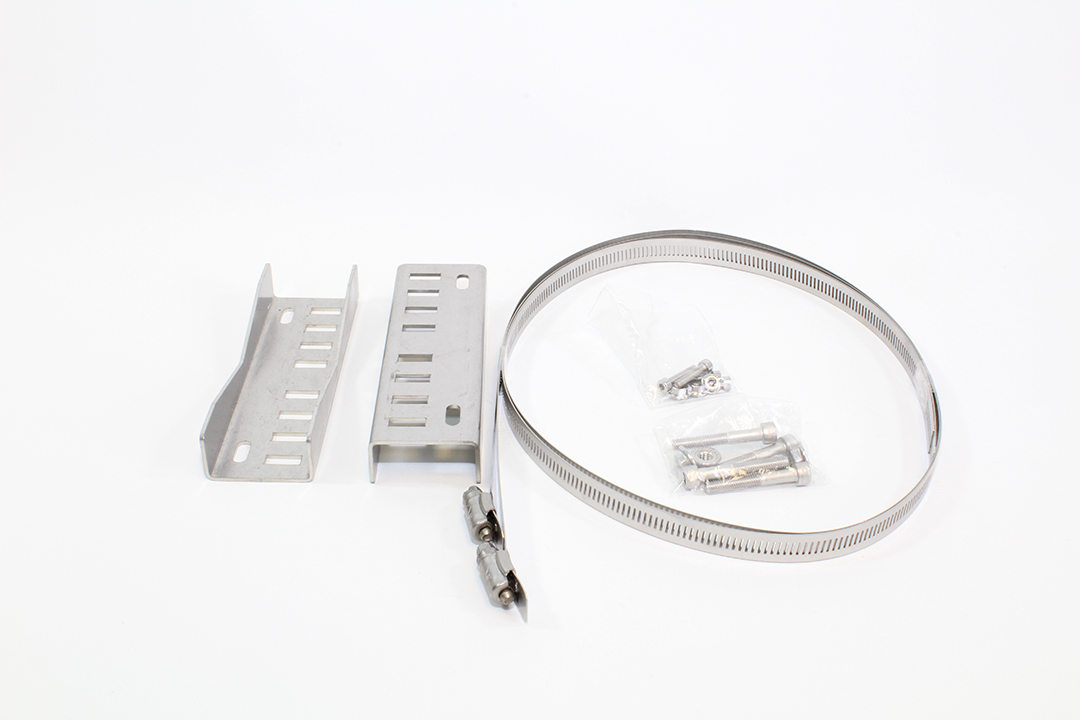

The kit contains 2 brackets, 2 clamps and hardware, all in stainless steel. Two hardware options are covered: M4-0.7 x 20mm screws for the listed 1554/1555 and 1555RF enclosures, replaceable with SCPMB1-20 (20 M4-0.7 x 20mm SHCS plus 20 M4-0.7 serrated flange lock nuts), and M6-1.0 x 40mm screws for the listed 1590Z and 1590ZGRP enclosures, replaceable with SCPMB3-20 (20 M6-1 x 40mm SHCS plus 20 M6-1.0 serrated flange lock nuts).
Listed enclosures: non-flanged 1554/55Q, QA, R, S, V, VA, VAL and VB; flanged 1555RF; 1590Z160, 1590Z162 and 1590Z166; and 1590ZGRP161, 1590ZGRP162 and 1590ZGRP163.
Use a 3 mm hex key with a 7 mm nut drive for M4 hardware, or a 5 mm hex key with a 10 mm nut drive for M6 hardware, torquing to 150 cN.m (13.5 lbf.in). Wrap the clamps around the pole, feed them back through the bracket, and while holding the enclosure against the pole tighten them with a 5/16 in (8 mm) nut drive.
The bracket measures 157.00 mm [6.18 in] overall on the drawing. PMB110127KIT2 ships in a bag at 1.27 lbs (0.58 kg) and is RoHS and REACH compliant. The 7 in small-clamp version is PMB110127KIT1.
Ideal For
- Mounting 1554/1555 Q through VB enclosures on poles up to 15 in
- Pole mounting 1590Z and 1590ZGRP enclosures on larger masts
- Mounting a 1555RF flanged enclosure
- Fixing enclosures to square or rectangular structural members
Overview
| Type | Pole Mounting Kit |
| Description | 15" pole mount kit for series 1554, 1555, 1555F, 1590Z, and 1590ZGRP |
| Kit Contents | 2 brackets, 2 clamps and hardware (multiple hardware packs) |
| Kit Designation | 110–127 mm Pole Mount Kit, Large Clamp |
| Short Description | 15" POLE MOUNT KIT |
Dimensions
| Size (L X W X H) | 11 in x 5.5 in x 1 in (279 mm x 140 mm x 25 mm) |
| Bracket Overall Length (Drawing) | 157.00 mm [6.18 in] |
Identifiers
| UPC | 623980580487 |
| UNSPSC | 39121301 |
Compatibility
| Small-Clamp Equivalent | PMB110127KIT1 |
| Compatible 1590Z Enclosures | 1590Z160, 1590Z162, 1590Z166 |
| Replacement Screw Pack (M4) | SCPMB1-20 (M4-0.7 x 20mm SHCS [20pkg], M4-0.7 serrated flange lock nut [20pkg]) |
| Replacement Screw Pack (M6) | SCPMB3-20 (M6-1 x 40mm SHCS [20pkg], M6-1.0 serrated flange lock nut [20pkg]) |
| Screw Type (1590Z, 1590ZGRP) | M6-1.0 x 40mm |
| Compatible 1590ZGRP Enclosures | 1590ZGRP161, 1590ZGRP162, 1590ZGRP163 |
| Screw Type (1554/1555, 1555RF) | M4-0.7 x 20mm |
| Compatible 1555F Enclosure (Flanged) | 1555RF |
| Compatible 1554/1555 Enclosures (Non-Flanged) | 1554/55Q, 1554/55QA, 1554/55R, 1554/55S, 1554/55V, 1554/55VA, 1554/55VAL, 1554/55VB |
Pole Mounting
| Clamp | Large clamp (HCLAMP2) |
| Assembly Torque | 150 cN.m (13.5 lbf.in) |
| M4 Hardware Tools | 3 mm hex key and 7 mm nut drive |
| M6 Hardware Tools | 5 mm hex key and 10 mm nut drive |
| Pole Diameter Range | 1.5 in to 15 in (3.8 cm to 38.1 cm) |
| Clamp Tightening Tool | 5/16 in (8 mm) nut drive |
| Other Mounting Shapes | Can also be mounted to square or rectangular shapes |
| Recommended Hardware Torque | 11.5–13.5 lbf-in (130–150 cN-m) |
Packaging & Shipping
| Packaging Type | Bag |
| Shipping Weight | 1.27 lbs (0.58 kg) |
Construction & Finish
| Material | Stainless Steel (all parts) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What pole sizes does PMB110127KIT2 support?▾
Poles from 1.5 in to 15 in (3.8 cm to 38.1 cm) in diameter using the large clamp (HCLAMP2).
Does it fit 1590ZGRP enclosures?▾
Yes: 1590ZGRP161, 1590ZGRP162 and 1590ZGRP163 are listed, along with 1590Z160, 1590Z162 and 1590Z166. These use M6-1.0 x 40mm screws.
Which 1554/1555 sizes are listed?▾
Non-flanged 1554/55Q, QA, R, S, V, VA, VAL and VB, plus the flanged 1555RF, all with M4-0.7 x 20mm screws.
Is replacement hardware available?▾
The replacement screw packs are SCPMB1-20 for the M4 screws and SCPMB3-20 for the M6 x 40mm screws.
What is the kit made from?▾
All parts, including the 2 brackets and 2 clamps, are stainless steel.
