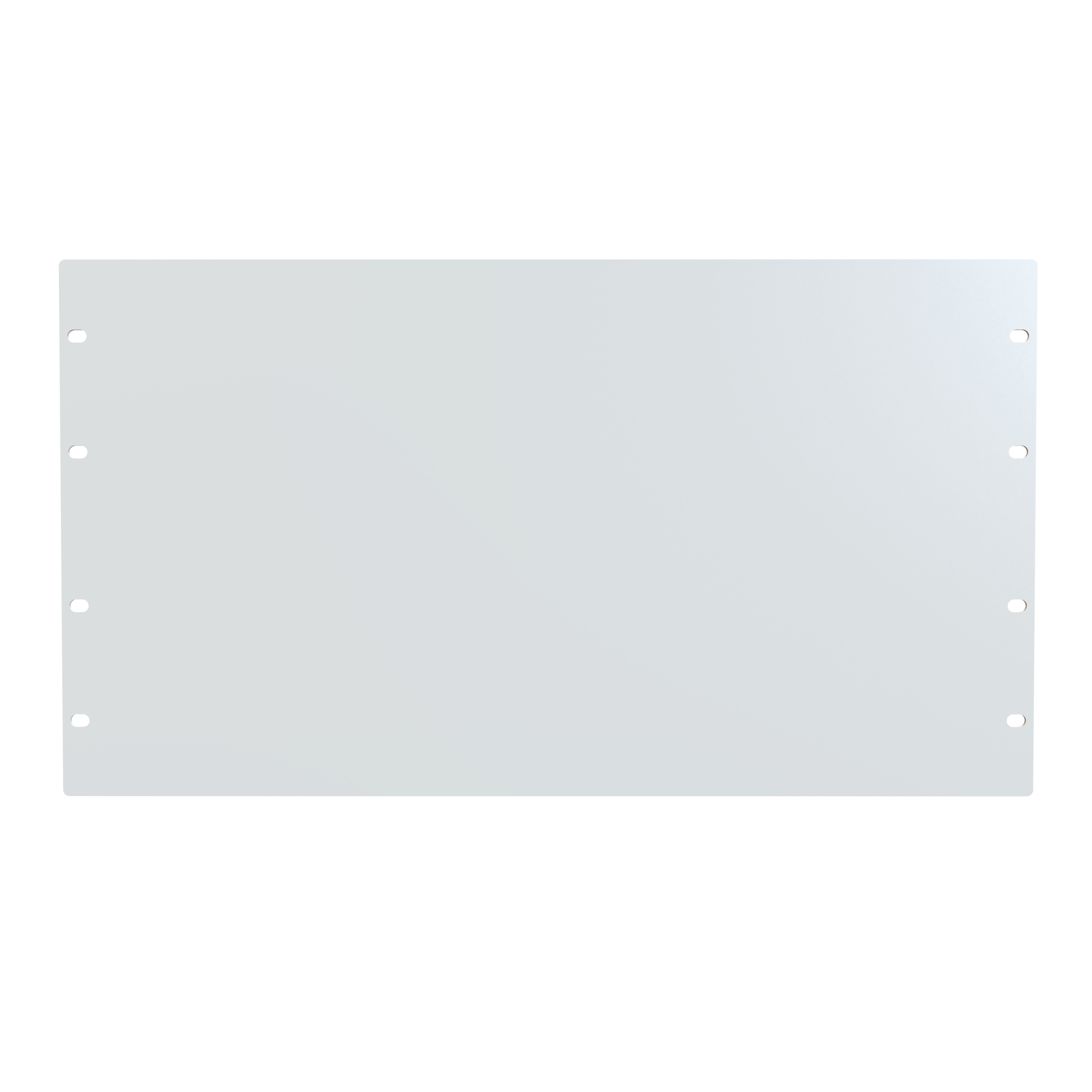

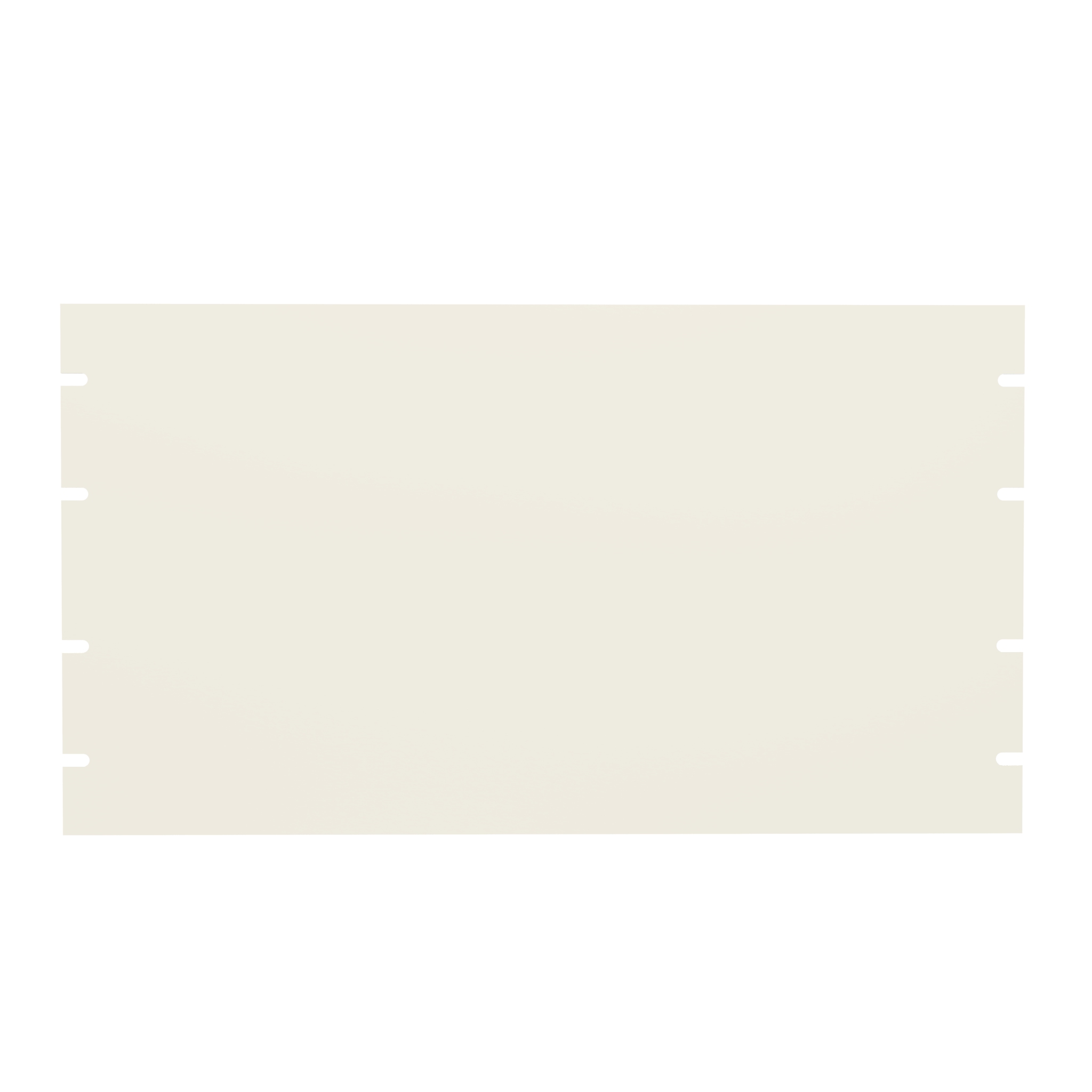

Hammond PBPS19010WH 6U Solid Steel Rack Blanking Panel, Matte White

The PBPS19010WH is a 6U solid steel rack blanking panel finished in RAL9003 matte white, intended for IT and network teams, AV integrators and facilities staff who need to close off unused rack space. Covering open rack units keeps hot and cold air from mixing, so the panel supports proper front-to-rear cooling as well as a tidier, more organized rack front.

Construction is 14-gauge mild steel (0.072 in) with a smooth powder coat finish for a clean, professional appearance. The powder coat finish is GREENGUARD, TSCA and RoHS compliant, and the part is RoHS, REACH and USMCA compliant, TAA-compliant, and manufactured in North America in an ISO 9001 certified facility.

This size occupies 6 rack units, with a panel height of 10.50 in (267 mm) and an overall drawing height of 10.47 in (266 mm). The panel is 19.00 in (483 mm) wide overall and fits standard 19 in EIA-compliant rack rails, with a 18.32 in (465 mm) dimension across the mounting flanges. Shipping weight is 4.2 lbs (1.91 kg).

PBPS19010WH is secured through 8 mounting points using 0.250 x 0.375 in slots, which allow some vertical adjustment as the panel is aligned to the rack rail hole pattern. Mounting hardware is not included, so specify rack screws or cage nut hardware to suit your rails.

Matching heights from 1U through 10U and additional colors (matte black, dark gray, light gray) are offered in the PBPS series, making it straightforward to blank off mixed gaps in data center, telecom and wall mount or floor-standing rack installations.
