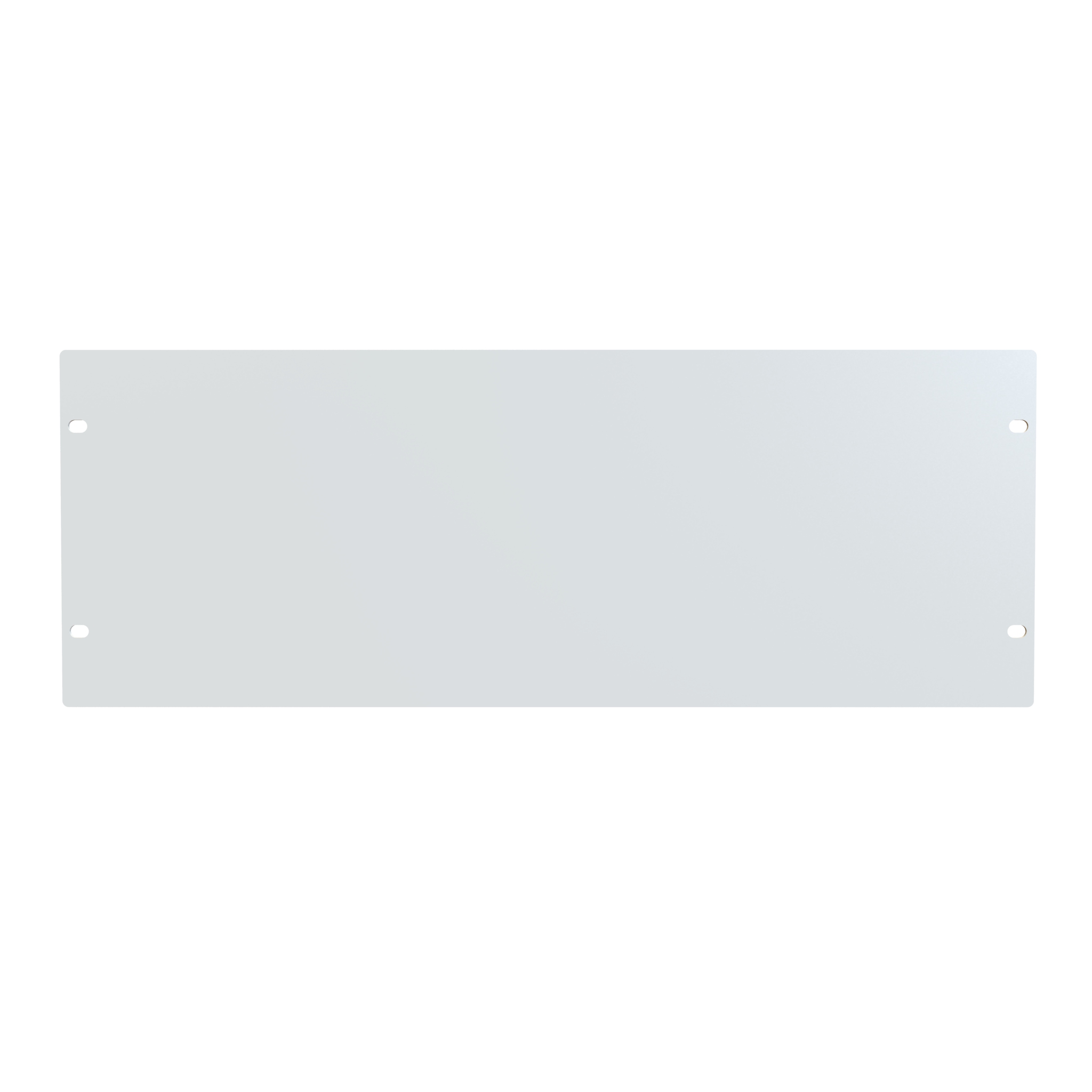

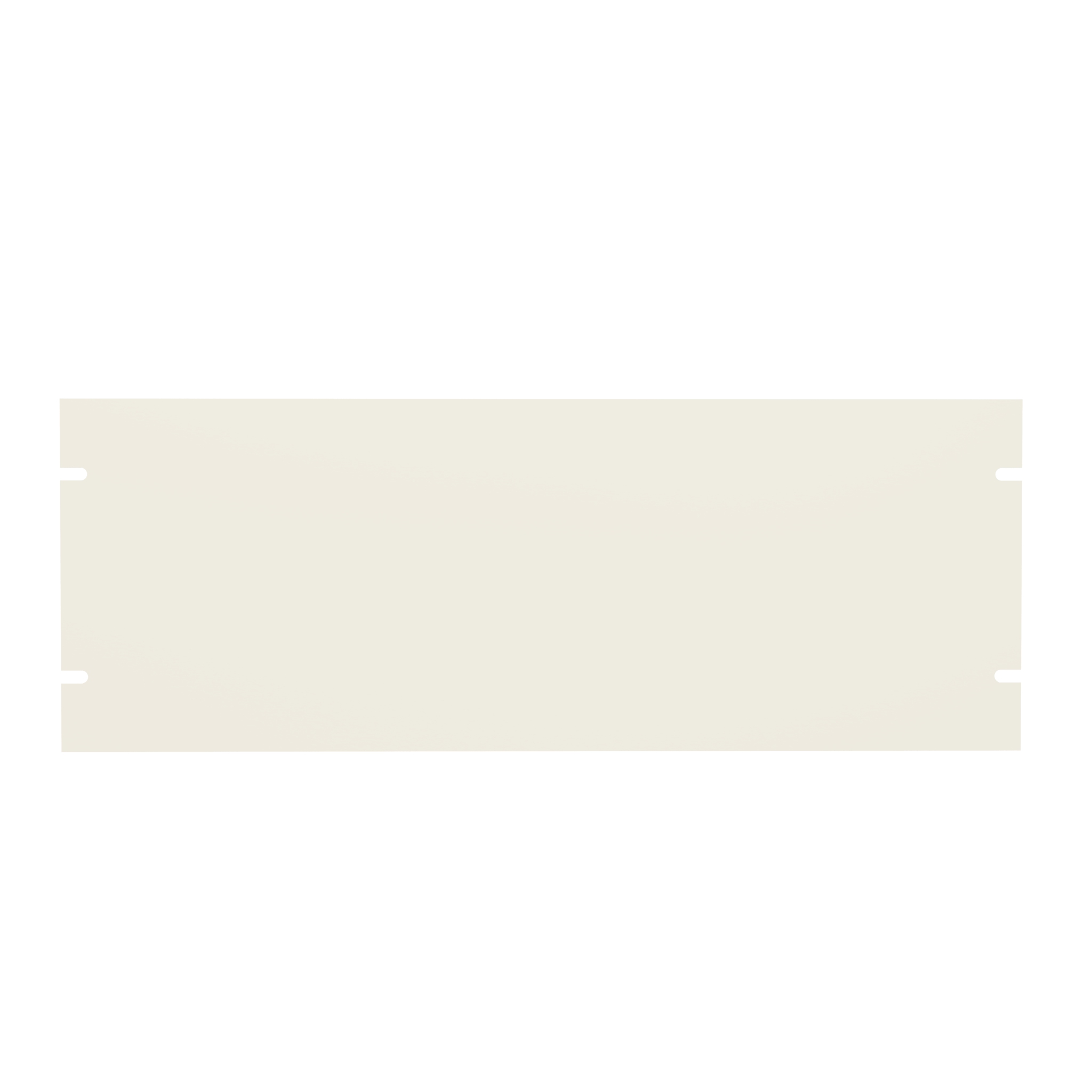

Hammond PBPS19007WH 4U Solid Steel Blanking Panel, Matte White

The PBPS19007WH is a 4U solid steel rack blanking panel finished in RAL9003 matte white, made to cover unused rack space in 19 in EIA-compliant racks and cabinets. It is intended for IT and network teams, data center operators, AV integrators and OEM engineers who need to close open rack units so cooling air follows the intended front-to-rear path instead of recirculating around installed equipment.

Construction is 14-gauge mild steel with a smooth powder coat finish, giving a durable, flat surface that stands up to repeated handling in high-density rack environments. The powder coat finish is GREENGUARD, TSCA and RoHS compliant, and the part is TAA-compliant and manufactured in North America in an ISO 9001 certified facility.

This panel occupies 4 rack units with a 7.00 in (178 mm) panel height and a 19.00 in (483 mm) overall width for standard rack rail mounting. The drawing shows an 18.32 in (465 mm) slot-to-slot width across four 0.250 x 0.375 in mounting slots, a 4.00 in (102 mm) spacing dimension, a 6.97 in (177 mm) height dimension, 1.48 in (38 mm) on the isometric view and 0.12 in (3 mm) corner radii. Shipping weight is 3 lbs (1.36 kg).

PBPS19007WH mounts at 4 mounting points using rack hardware appropriate to your rails (mounting hardware is not described in the supplied data). The solid panel design blocks airflow gaps, making it suitable for hot aisle / cold aisle containment strategies as well as general rack tidy-up in wall mount and floor-standing racks. Additional colours in the same 4U height include matte black, dark gray and light gray versions of this panel.
