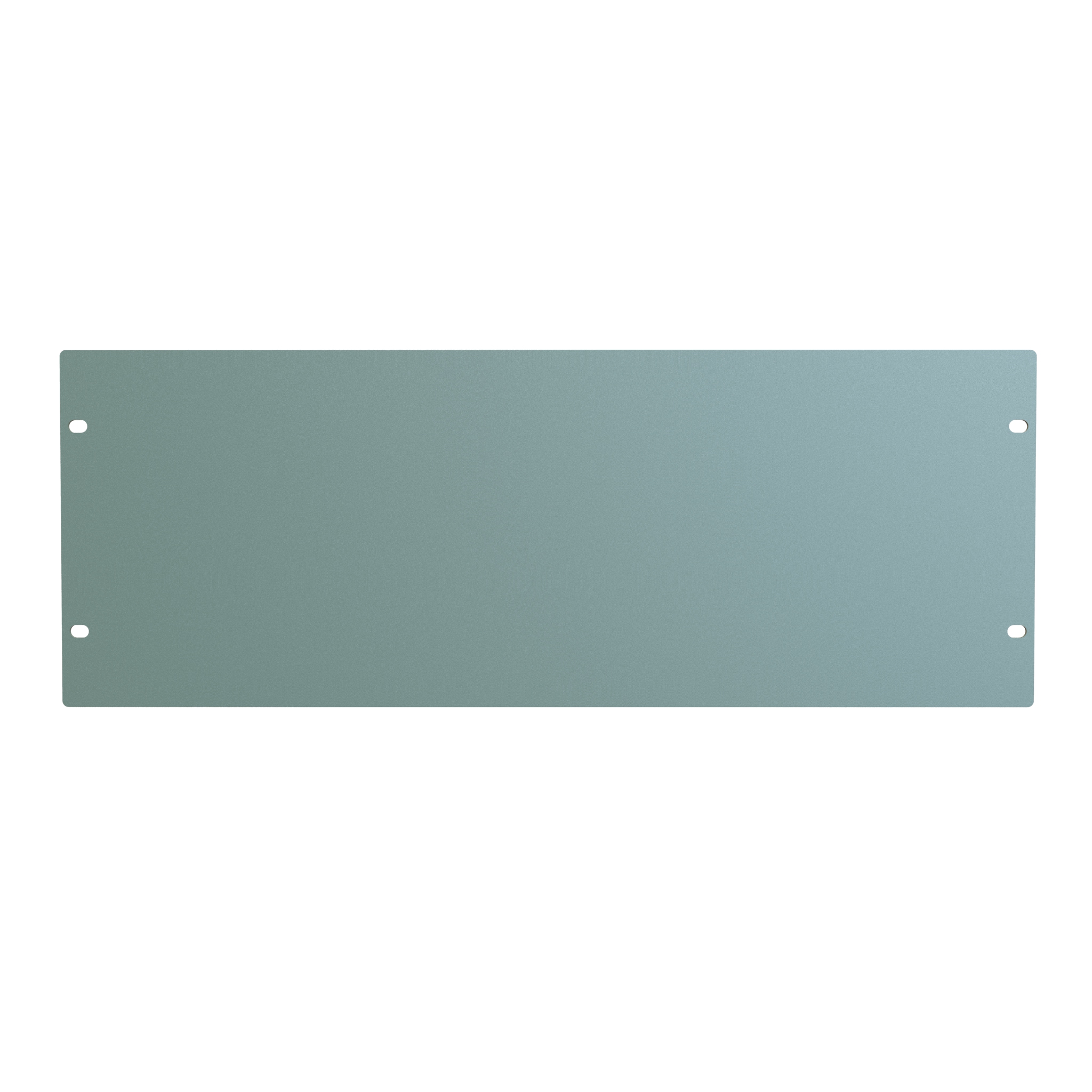

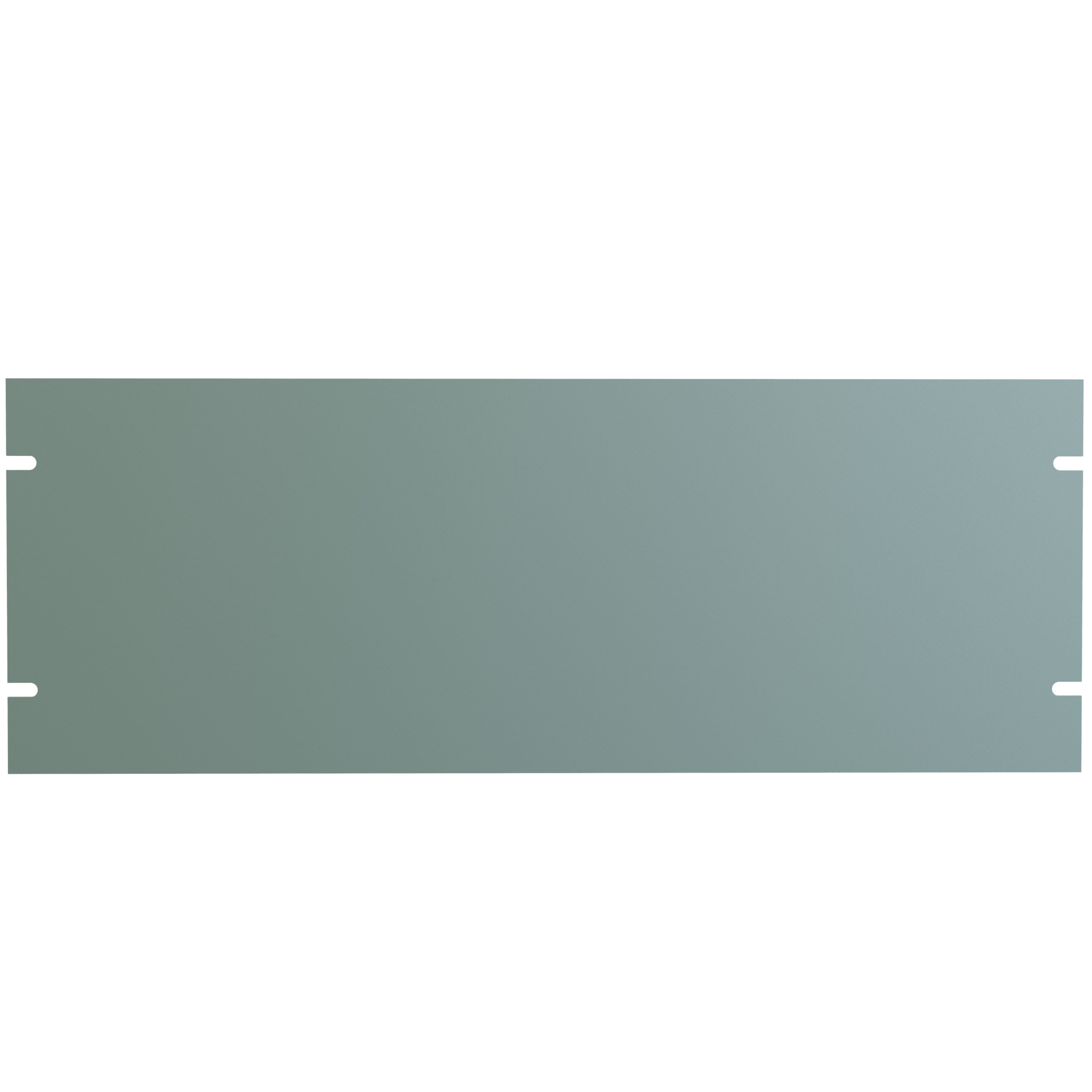

Hammond PBPS19007GY2 4U Solid Steel Rack Blanking Panel, Dark Gray

The PBPS19007GY2 is a 4U solid steel rack blanking panel finished in ANSI61 dark gray powder coat. It is designed to cover unused rack space in 19 in EIA-compliant rack rails, making it a straightforward airflow-management item for data center, telecom and network installers who need to close open rack units and keep cool supply air separated from hot exhaust.

The panel is formed from 14-gauge mild steel, which provides durable rack space coverage and airflow control in high-density environments. The solid, flat face blocks airflow gaps so front-to-rear cooling paths stay intact, and the smooth powder coat finish gives a clean, professional appearance. The finish is GREENGUARD, TSCA and RoHS compliant, and the part is RoHS, REACH and USMCA compliant as well as TAA-compliant, manufactured in North America in an ISO 9001 certified facility.

This part occupies 4 rack units with a panel height of 7.00 in (178 mm) and a 19.00 in (483 mm) overall width for standard rack rail mounting. The drawing shows an overall face width of 18.32 in (465 mm), a 6.97 in (177 mm) panel face height and a 1.48 in (38 mm) depth dimension, with 4X 0.250 x 0.375 in mounting slots and 4X 0.12 in (3 mm) corner radii. Shipping weight is 2.75 lbs (1.25 kg).

Installation uses the four mounting points along the rack rails; rack mounting hardware is listed by the manufacturer as a separate accessory, as is a 23 to 19 inch rack rail reducer panel. PBPS19007GY2 suits wall mount and floor-standing racks, hot aisle / cold aisle containment builds, and any rack where thermal management and tidy presentation matter. Other heights from 1U to 10U and Matte Black, Light Gray and Matte White finishes are offered in the same PBPS series.
