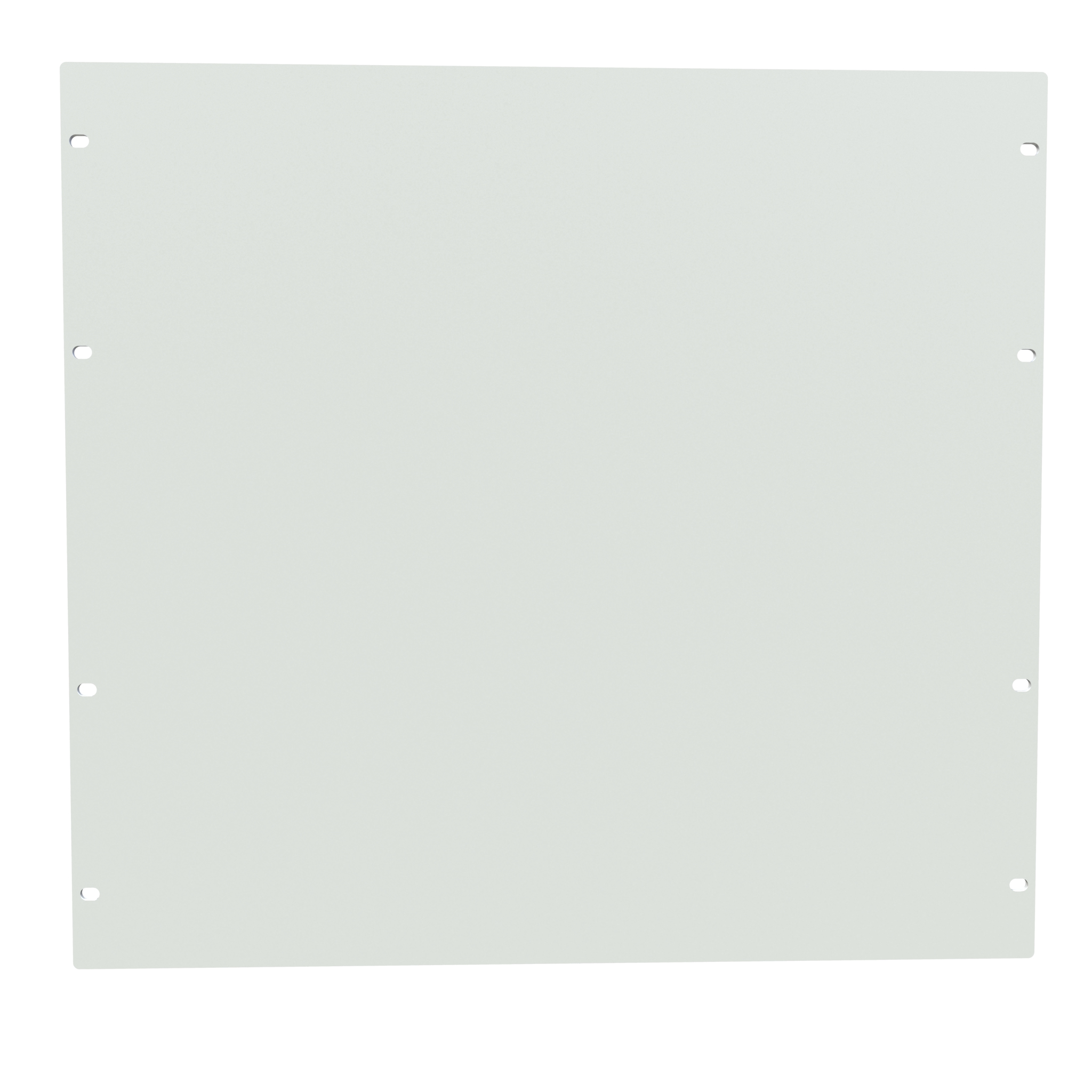

Hammond PBPA19017LG2 10U Light Gray Aluminum Rack Blanking Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 10U blanking panel with 17.50 in (445 mm) panel height and 19.00 in (483 mm) width for standard 19 in EIA rack rails
- 8-gauge (0.125 in) 5052-H32 aluminum construction for lightweight durability and corrosion resistance
- Eight 0.250 x 0.375 in slots give 8 mounting points to secure a large panel opening
- Light gray RAL7035 smooth powder coat for a clean, professional rack appearance
- Covers unused rack space to improve cooling efficiency and prevent air recirculation
- Lighter than steel panels of comparable size, simplifying handling and installation; shipping weight 4.01 lbs (1.82 kg)
- TAA compliant and made in Canada, plus RoHS, REACH and USMCA compliance for regulated procurement
- Mounting hardware not included, so rack screws can be matched to the existing rails
The PBPA19017LG2 is a 10U flat aluminum rack panel finished in RAL7035 light gray, used to close off unused rack space in 19 in EIA-compliant racks and cabinets. It suits data center, telecom and network installers, facilities teams and OEM engineers who need a lightweight blanking panel that helps separate hot and cold air rather than letting it recirculate through open rack openings.
Construction is 8-gauge (0.125 in) 5052-H32 aluminum, which gives the panel durability and corrosion resistance while keeping it noticeably lighter than steel panels of the same size for easier handling during installation. The smooth powder coat finish in light gray provides a clean, professional appearance across the rack face, and finish options in this series are GREENGUARD, TSCA and RoHS compliant.
This size covers 10 rack units: panel height is 17.50 in (445 mm) with a 19.00 in (483 mm) overall width for standard rack rails. The panel body measures 17.47 in (444 mm) high in the drawing, and it is secured through eight 0.250 x 0.375 in mounting slots, giving 8 mounting points for a large-opening panel. Mounting hardware is not included, so specify rack screws or cage nut hardware to match your rails. Shipping weight is 4.01 lbs (1.82 kg).
PBPA19017LG2 is manufactured in Canada, is TAA compliant and USMCA compliant, and is RoHS and REACH compliant with ECCN EAR99 — useful details for government and regulated procurement. It is part of the PBPA Series, offered as part of a long-running legacy portfolio, and is also available for private label.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments
- Wall mount and floor-standing racks
- Covering large unused rack openings to improve airflow
Overview
| Series | PBPA Series (Aluminum Rack Blanking Lightweight Rack Panels) |
| Rack Units | 10U |
| Description | 10U flat aluminum rack panel |
| Part Number | PBPA19017LG2 |
Dimensions
| Panel Width | 19.00 in (483 mm) |
| Panel Height | 17.50 in (445 mm) |
| Material Thickness | 0.125 in aluminum (8-gauge) |
| Panel Body Height (Drawing) | 17.47 in (444 mm) |
Identifiers
| UPC | 623980700120 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980700120 |
| UPC W/o Check Digit | 62398070012 |
Rack Mounting
| Mounting Hardware | Not included |
| Rack Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 8 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 4.01 lbs (1.82 kg) |
Construction & Finish
| Finish | RAL7035 Light Gray, smooth powder coat |
| Material | Aluminum, 5052-H32 |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Finish Option Compliance | GREENGUARD, TSCA, RoHS compliant |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBPA19017LG2 cover?▾
It covers 10 rack units, with a panel height of 17.50 in (445 mm) and a width of 19.00 in (483 mm) for standard 19 in EIA-compliant rack rails.
What color and material is this panel?▾
It is 8-gauge (0.125 in) 5052-H32 aluminum with a smooth RAL7035 light gray finish. Other finishes in the series include RAL9005 matte black, ANSI61 dark gray, RAL9003 matte white and unfinished.
Is mounting hardware supplied?▾
No. The drawing notes that mounting hardware is not included. The panel has eight 0.250 x 0.375 in slots, giving 8 mounting points.
Is this panel suitable for government or TAA-restricted projects?▾
The part is listed as TAA compliant and USMCA compliant, with a country of origin of Canada (North American manufacture), plus RoHS and REACH compliance and ECCN EAR99.
Why use an aluminum blanking panel instead of steel?▾
The lightweight aluminum design simplifies handling and installation compared to steel panels while providing corrosion resistance; this 10U panel has a shipping weight of 4.01 lbs (1.82 kg).
How does a blanking panel help cooling?▾
Installed in unused rack space, it prevents hot and cold air from mixing or recirculating, supporting thermal management and improving cooling efficiency.
