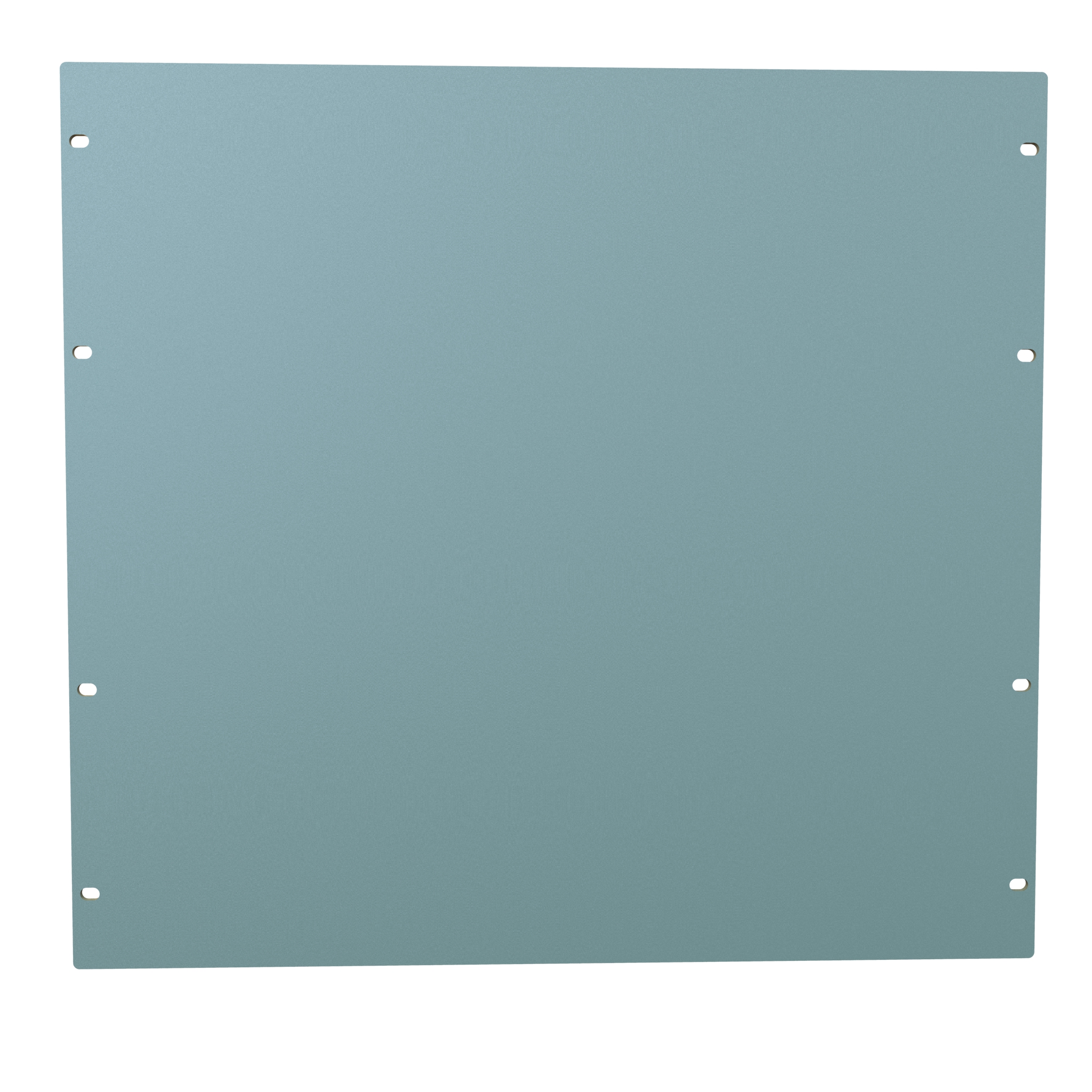

Hammond PBPA19017GY2 10U Flat Aluminum Rack Blanking Panel, Dark Gray
Ships from and sold by A5 IT
Available on backorder — ships as soon as stock arrives
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 10U panel height: 17.50 in (445 mm), for 19 in EIA-compliant rack rails
- 8-gauge (0.125 in) 5052-H32 aluminum for lightweight durability and corrosion resistance
- ANSI61 dark gray powder coat with a smooth, professional appearance
- 8 mounting points with 8X 0.250 x 0.375 slots for secure, flat mounting
- Blocks hot and cold air recirculation through unused rack space
- Only 4.01 lbs (1.82 kg) shipping weight; easier to handle than steel panels
- TAA-compliant and USMCA-compliant, made in Canada; RoHS and REACH compliant
- Mounting hardware not included
PBPA19017GY2 is a 10U flat aluminum blanking panel for standard 19 in EIA-compliant rack rails, finished in ANSI61 dark gray. It is intended for IT, telecom and AV installers who need to close off unused rack space so cooling air moves through equipment rather than recirculating around it. Part of the PBPA Series of lightweight aluminum rack panels.
The panel is formed from 8-gauge (0.125 in) 5052-H32 aluminum, giving lightweight durability and corrosion resistance in rack environments, while the smooth powder coat finish keeps the rack front looking clean and consistent. Compared with steel panels of the same height, the aluminum construction simplifies handling on a ladder or in a crowded aisle; shipping weight is 4.01 lbs (1.82 kg).
This is the tallest panel height in the series: 10U, 17.50 in (445 mm) panel height, with a 19.00 in (483 mm) wide mounting flange and an overall drawing envelope of 18.32 in (465 mm) by 17.47 in (444 mm). Eight mounting points are provided, using 8X 0.250 x 0.375 slots so the panel can be secured along its full height and stays flat across the large opening. Mounting hardware is not included.
- Covers large vertical gaps in one piece instead of stacking several small blanks.
- Slotted holes allow for minor alignment variation between rack rails.
PBPA19017GY2 is manufactured in Canada, TAA-compliant and USMCA-compliant, and is listed as RoHS and REACH compliant, which supports government and enterprise procurement requirements.
Ideal For
- Covering unused rack space to improve airflow in data centers and server rooms
- Preventing hot and cold air recirculation in high-density racks
- Telecom and network equipment installations
- Blanking large openings in wall mount and floor-standing racks
- Thermal management and rack appearance cleanup
Overview
| Series | PBPA Series — Aluminum Rack Blanking Lightweight Rack Panels |
| Panel Type | Flat blanking / filler panel |
| Description | 10U Flat Aluminum Rack Panel |
| Part Number | PBPA19017GY2 |
Dimensions
| Panel Height | 17.50 in (445 mm) |
| Corner Radius | 4X R 0.12 in (3 mm) |
| Material Thickness | 0.125 in (8-gauge) |
| Overall Width (Drawing) | 18.32 in (465 mm) |
| Overall Height (Drawing) | 17.47 in (444 mm) |
| Panel Width (Mounting Flange) | 19.00 in (483 mm) |
Identifiers
| UPC | 623980525150 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980525150 |
| UPC W/o Check Digit | 62398052515 |
Rack Mounting
| Rack Units | 10U |
| Mounting Slots | 8X 0.250 x 0.375 slot |
| Mounting Hardware | Not included |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 8 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 4.01 lbs (1.82 kg) |
Construction & Finish
| Finish | ANSI61 Dark Gray powder coat |
| Material | Aluminum, 5052-H32 |
| Drawing Material Note | 0.125" Aluminum |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBPA19017GY2 cover?▾
It covers 10U of rack space, with a panel height of 17.50 in (445 mm) and a 19.00 in (483 mm) wide mounting flange for 19 in EIA-compliant rack rails.
Is mounting hardware included?▾
No. The drawing states that mounting hardware is not included. The panel has 8 mounting points using 0.250 x 0.375 slots.
What material and finish is used?▾
8-gauge (0.125 in) 5052-H32 aluminum, finished in ANSI61 dark gray powder coat.
Is this panel available in other colors?▾
Yes. The same 10U panel is offered as PBPA19017BK (RAL9005 matte black), PBPA19017LG2 (RAL7035 light gray), PBPA19017WH (RAL9003 matte white) and PBPA19017UNF (unfinished).
Does it meet government procurement requirements?▾
The panel is listed as TAA-compliant and USMCA-compliant, with a country of origin of Canada, and is RoHS and REACH compliant.
How heavy is it?▾
Shipping weight is 4.01 lbs (1.82 kg), lighter than comparable steel panels of the same height.
Related Products
Save 35%PBPA19017BK — 10U Aluminum Blanking Panel
Hammond Manufacturing · PBPA19017BK
Save 35%PBPA19017LG2 — 10U Flat Aluminum Rack Panel
Hammond Manufacturing · PBPA19017LG2
Save 35%PBPA19015WH — 9U Aluminum Blanking Panel
Hammond Manufacturing · PBPA19015WH

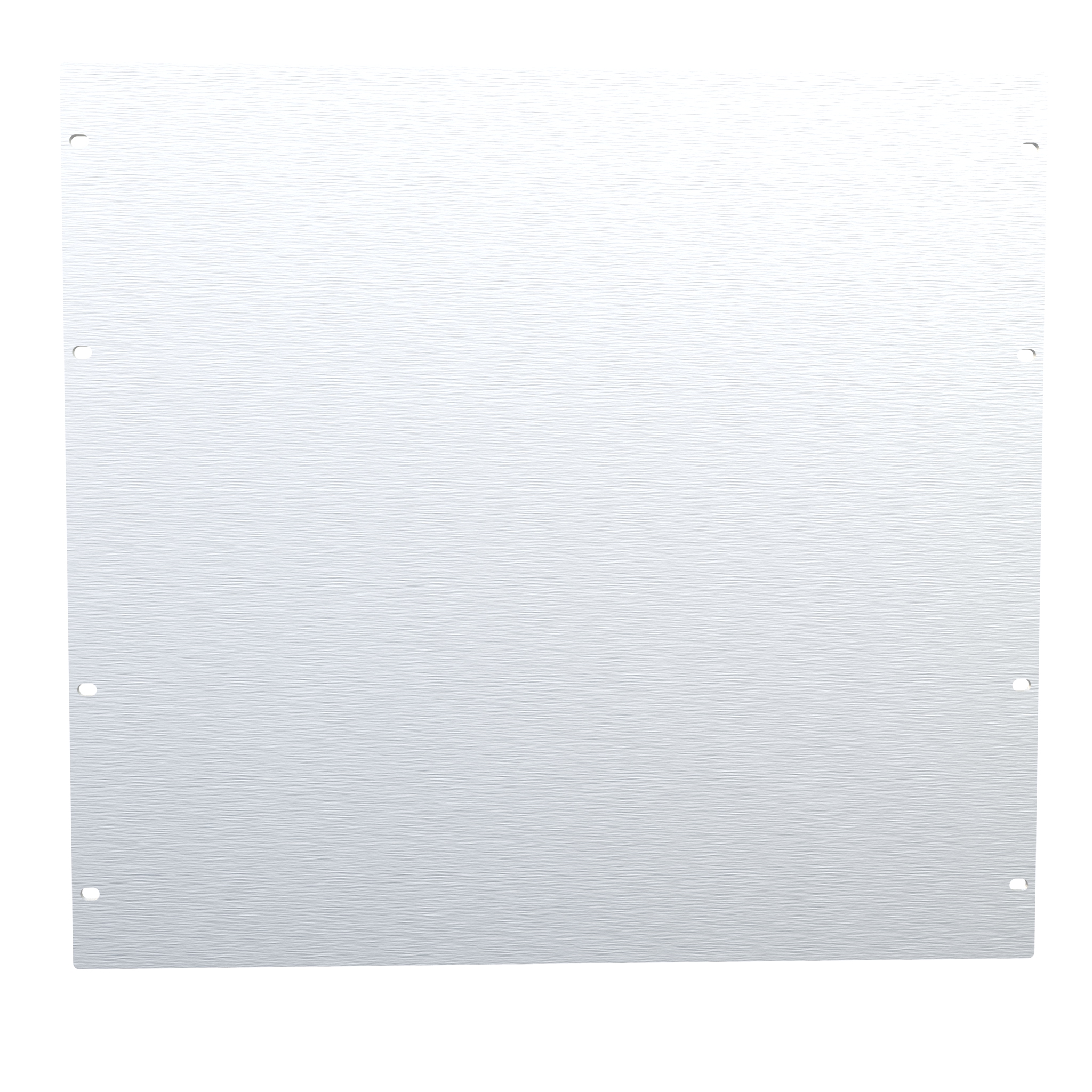

Save 35%PBPA19017UNF — 10U Flat Aluminum Rack Panel
