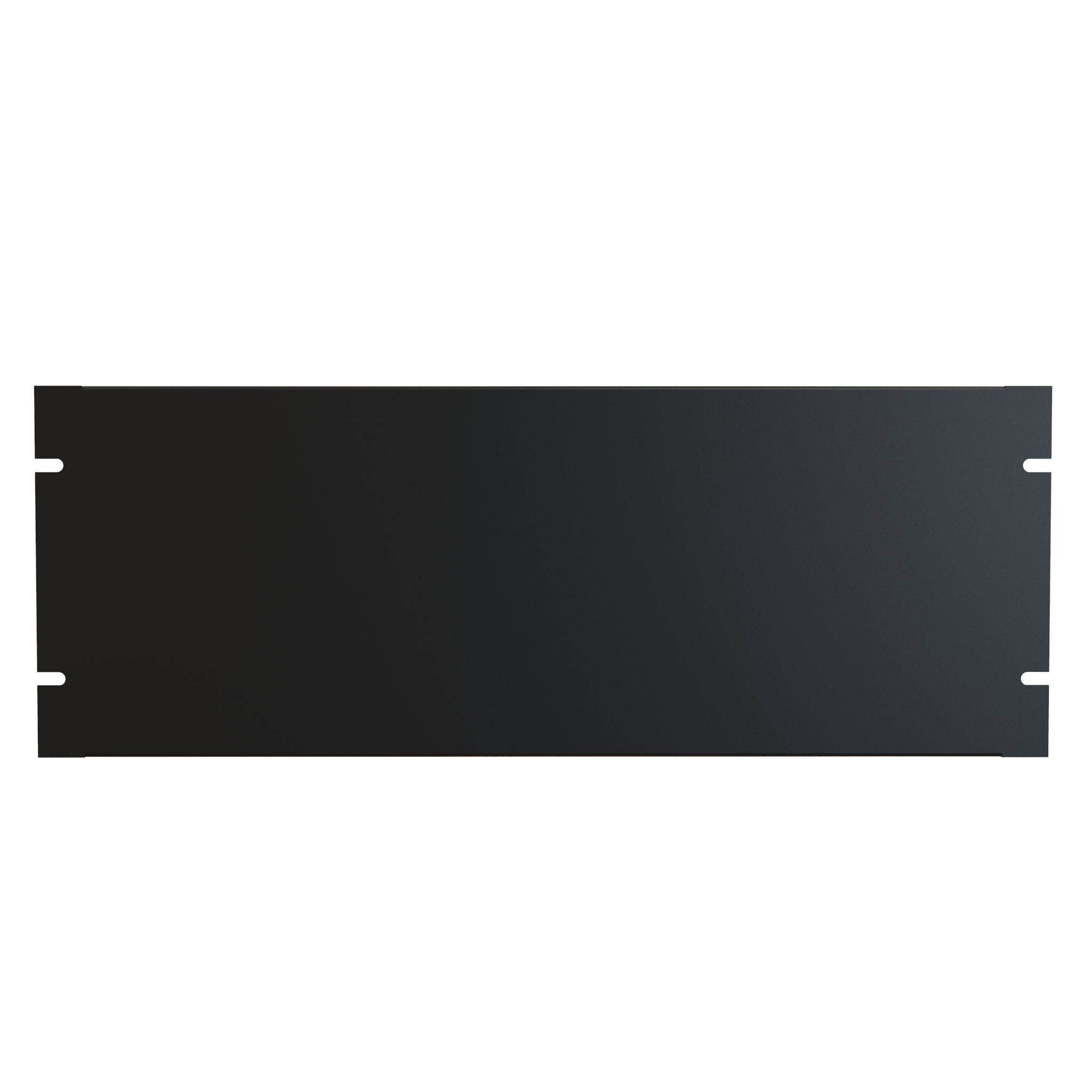

Hammond PBFS19007BK 4U Formed Steel Rack Filler Panel, Matte Black
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 4U panel height of 7.00 in (178 mm) for 19.00 in (483 mm) wide EIA-compliant rack rails
- 16-gauge formed steel construction (0.057 in mild steel) for durable rack space coverage
- Flanged (formed) design adds rigidity while reducing weight versus flat steel panels
- Four 0.250 x 0.375 in slots provide 4 mounting points
- Smooth RAL9005 matte black powder coat finish; GREENGUARD, TSCA and RoHS compliant
- Covers unused rack space to improve cooling efficiency and prevent air recirculation
- TAA-compliant, manufactured in North America; USMCA, RoHS and REACH compliant
- Light 3 lbs (1.36 kg) shipping weight; mounting hardware not included
The PBFS19007BK is a 4U formed steel rack panel used to close off unused rack space in 19 in EIA-compliant rack rails. It suits IT and AV integrators, telecom technicians and facilities teams who need a simple, durable blanking panel to tidy a rack front and control airflow between equipment zones.
The panel is made from 16-gauge mild steel (0.057 in) with formed, flanged edges. The flanged design adds rigidity while keeping the panel lighter than a flat steel panel of the same size, and it is finished in a smooth RAL9005 matte black powder coat for a clean, consistent appearance. The powder coat finish is GREENGUARD, TSCA and RoHS compliant.
Dimensionally, PBFS19007BK occupies 4 rack units with a panel height of 7.00 in (178 mm) and a 19.00 in (483 mm) mounting width, with a front panel face of 18.32 in (465 mm) and a 6.97 in (177 mm) formed face height. Four 0.250 x 0.375 in mounting slots give 4 mounting points at standard EIA rail spacing. Shipping weight is 3 lbs (1.36 kg).
Installed over open rack space, the panel helps prevent hot and cold air from mixing, supporting cooling performance in data centers, server rooms and high-density rack environments, as well as in wall mount and floor-standing racks. Mounting hardware is not included, so specify rack screws separately.
- Also available in ANSI61 Dark Gray (PBFS19007GY2), RAL7035 Light Gray (PBFS19007LG2) and RAL9003 Matt White (PBFS19007WH).
- TAA-compliant and manufactured in North America; USMCA, RoHS and REACH compliant.
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments
- Wall mount and floor-standing racks
- Thermal management and airflow separation
Overview
| Series | PBFS Series Formed Steel Rack Panels (16-Gauge Flanged Rack Filler Panels) |
| Application | Covering unused rack space to improve airflow and prevent hot/cold air recirculation |
| Description | 4U Formed Steel Rack Panel |
| Part Number | PBFS19007BK |
Dimensions
| Flange Depth | 0.50 in (13 mm) |
| Panel Height | 7.00 in (178 mm) |
| Overall Width | 19.00 in (483 mm) |
| Front Panel Face Width | 18.32 in (465 mm) |
| Front Panel Face Height | 6.97 in (177 mm) |
Identifiers
| UPC | 623980608211 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980608211 |
| UPC W/o Check Digit | 62398060821 |
Rack Mounting
| Rack Units | 4U |
| Mounting Slots | 4X 0.250 x 0.375 in slot |
| Mounting Hardware | Not included |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 4 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 3 lbs (1.36 kg) |
| Country Of Origin | CA |
Construction & Finish
| Color | RAL9005 Matte Black |
| Finish | Smooth powder coat |
| Material | Mild Steel |
| Construction | Formed (flanged) steel panel |
| Material Gauge | 16 ga. steel (0.057 in) |
| Finish Compliance | Powder coat is GREENGUARD, TSCA and RoHS compliant |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBFS19007BK cover?▾
It is a 4U panel with a panel height of 7.00 in (178 mm) and fits standard 19 in EIA-compliant rack rails.
Are mounting screws included?▾
No. The drawing notes state mounting hardware is not included. The panel has four 0.250 x 0.375 in slots providing 4 mounting points.
What material and thickness is the panel?▾
It is formed from 16-gauge mild steel (0.057 in) with flanged edges for added rigidity and reduced weight compared with flat steel panels.
What colors are available for this 4U size?▾
PBFS19007BK is RAL9005 Matte Black. The same 4U size is also offered as PBFS19007GY2 (ANSI61 Dark Gray), PBFS19007LG2 (RAL7035 Light Gray) and PBFS19007WH (RAL9003 Matt White).
Is this panel TAA compliant?▾
Yes. The PBFS Series is TAA-compliant and manufactured in North America, with a country of origin of CA, and is USMCA, RoHS and REACH compliant.
Why use a blanking panel in a rack?▾
Installing panels over unused rack space helps improve cooling efficiency by preventing hot and cold air from recirculating, and it tidies the rack front.
