Hammond PBFS19005WH 3U Flanged Steel Rack Panel in Matt White
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 3U formed steel rack filler panel, 5.25 in (133 mm) panel height, for 19 in EIA-compliant rack rails
- 16-gauge mild steel construction (0.057 in) for durable rack space coverage and airflow control
- Flanged (formed) design adds rigidity while reducing weight compared with flat steel panels
- RAL9003 matt white smooth powder coat finish; GREENGUARD, TSCA and RoHS compliant coating
- 4 mounting points with 4X 0.250 x 0.375 in slots; 19.00 in (483 mm) overall width
- Blocks air recirculation between hot and cold zones to support cooling efficiency
- TAA-compliant and manufactured in North America; USMCA, RoHS and REACH compliant
- Light 2 lb (0.91 kg) shipping weight; mounting hardware not included

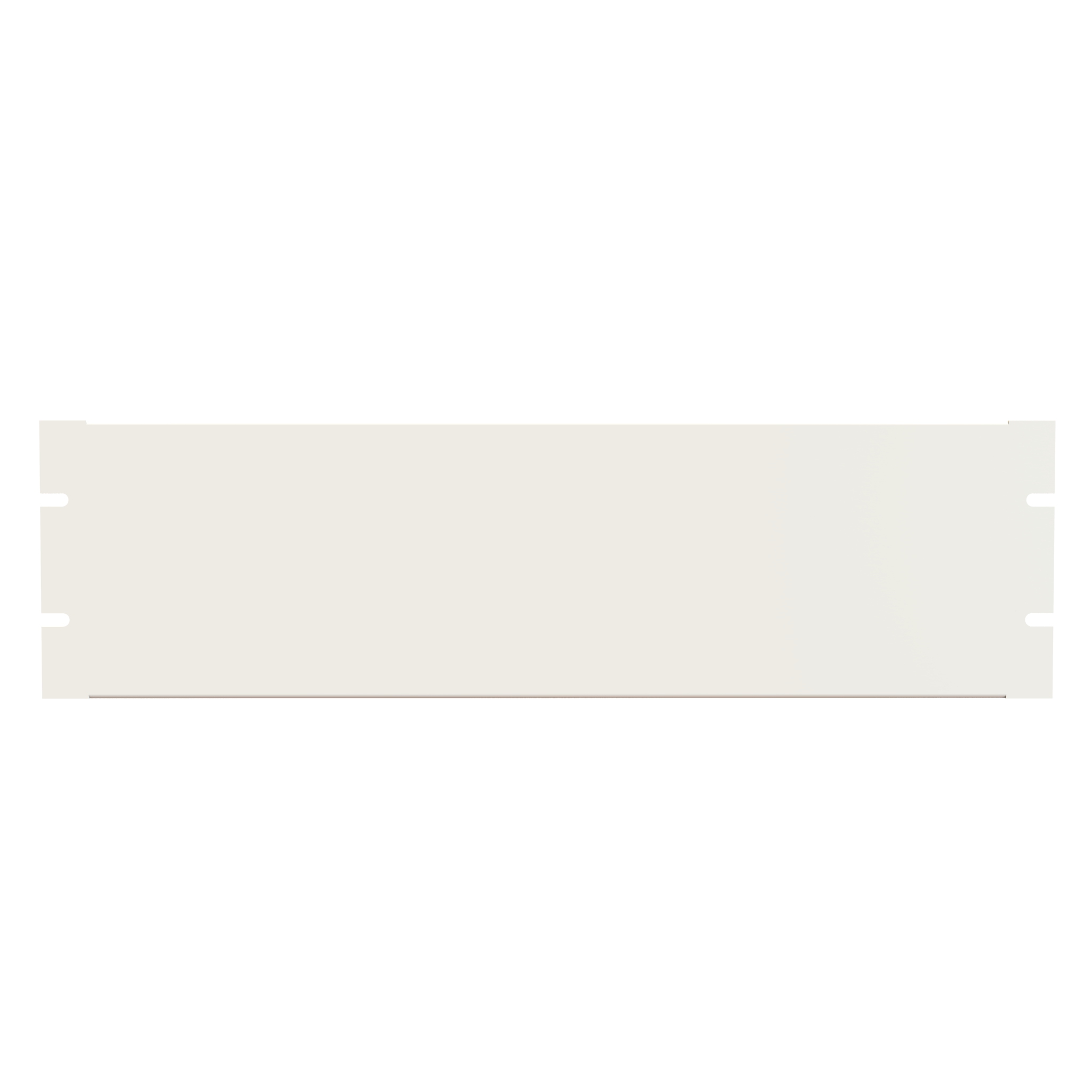

The PBFS19005WH is a 3U formed steel rack panel finished in RAL9003 matt white, designed to cover unused rack space in 19 in EIA-compliant rack rails. It suits IT and AV integrators, data center and telecom technicians, and facilities teams who need to close open rack openings to control airflow and tidy up equipment layouts.
Construction is 16-gauge mild steel (0.057 in) with flanged edges. The formed design adds rigidity while reducing weight compared with flat steel panels, and the smooth powder coat finish gives a clean, professional appearance. The powder coat finish is GREENGUARD, TSCA and RoHS compliant.
This panel measures 19.00 in (483 mm) wide overall with a panel height of 5.25 in (133 mm), equal to 3 rack units; the drawing shows an overall height of 5.22 in (133 mm). It mounts at 4 points using 4 slots of 0.250 x 0.375 in, and the flange depth is 0.50 in (13 mm). Shipping weight is 2 lbs (0.91 kg). Mounting hardware is not included.
Installed in unused rack space, PBFS19005WH helps prevent hot and cold air from mixing, supporting cooling performance and thermal management strategies in data centers, server rooms, telecom rooms, high-density racks, and both wall mount and floor-standing racks. It also helps separate equipment zones for clearer rack organization.
- 3U height, 5.25 in (133 mm) panel height
- RAL9003 matt white powder coat; matching black, dark gray and light gray versions are available in the series
- TAA-compliant and manufactured in North America for government procurement requirements
Ideal For
- Data centers and server rooms
- Telecom and network installations
- High-density rack environments
- Wall mount and floor-standing racks
- Covering unused rack space to improve airflow and prevent hot/cold air recirculation
Overview
| Series | PBFS Series Formed Steel Rack Panels |
| Description | 3U FLANGED STEEL PANEL WHITE |
| Part Number | PBFS19005WH |
| Product Type | Rack filler / blanking panel |
Dimensions
| Flange Depth | 0.50 in (13 mm) |
| Corner Radius | R 0.12 in (3 mm) |
| Overall Width | 19.00 in (483 mm) |
| Overall Height (Drawing) | 5.22 in (133 mm) |
Identifiers
| UPC | 623980046600 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980046600 |
| UPC W/o Check Digit | 62398004660 |
Rack Mounting
| Rack Units | 3U |
| Panel Height | 5.25 in (133 mm) |
| Mounting Slots | 4X 0.250 x 0.375 in slot |
| Mounting Hardware | Not included |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 4 |
Packaging & Shipping
| Shipping Weight | 2 lbs (0.91 kg) |
Construction & Finish
| Color | RAL9003 Matt White |
| Design | Formed (flanged) panel |
| Finish | Smooth powder coat |
| Material | Mild Steel |
| Material Thickness | 16 ga. Steel (0.057 in) |
Environmental & Protection
| Powder Coat Compliance | GREENGUARD, TSCA, RoHS compliant |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| Tariff Code | 8538.10.0000 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Country Of Origin | CA |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBFS19005WH cover?▾
It covers 3 rack units, with a panel height of 5.25 in (133 mm), and an overall width of 19.00 in (483 mm) for standard 19 in EIA-compliant rack rails.
Is mounting hardware included with this panel?▾
No. The drawing notes state mounting hardware is not included. The panel provides 4 mounting points with 4X 0.250 x 0.375 in slots.
What is the panel made of and how is it finished?▾
It is made of mild steel, 16 ga. (0.057 in), with a smooth powder coat finish in RAL9003 Matt White. The powder coat is GREENGUARD, TSCA and RoHS compliant.
Why choose a flanged panel instead of a flat one?▾
The formed (flanged) design improves panel rigidity while reducing weight compared to flat steel panels, and gives a clean installation in rack systems.
Is this part suitable for government projects?▾
It is TAA-compliant and manufactured in North America, which supports government procurement requirements. Country of origin is CA and the ECCN is EAR99.
What other colors are offered in this size?▾
The 3U size is also offered as PBFS19005BK (RAL9005 Matte Black), PBFS19005GY2 (ANSI61 Dark Gray) and PBFS19005LG2 (RAL7035 Light Gray).
