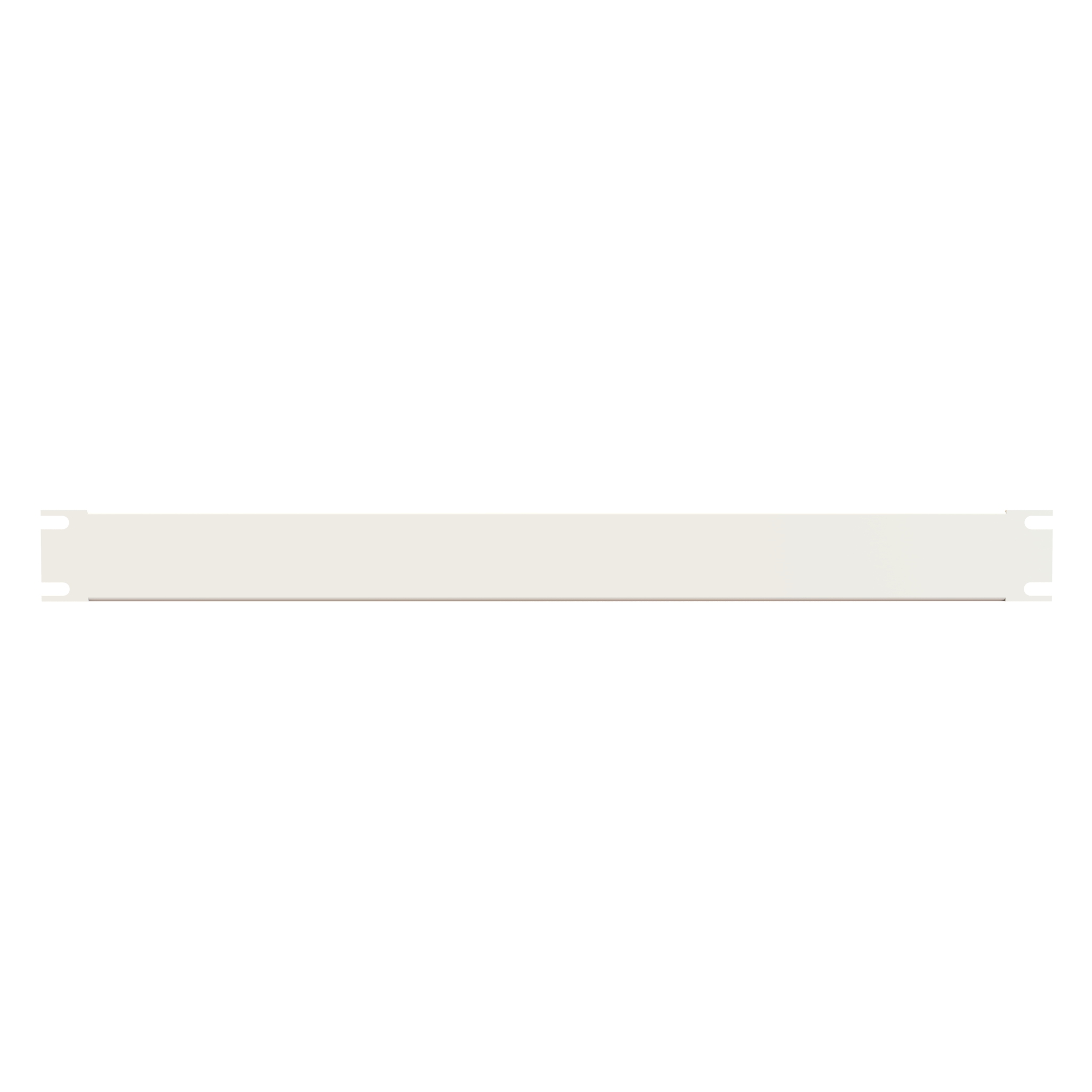

Hammond PBFS19001WH 1U Flanged Steel Rack Panel, Matt White
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 1U flanged rack filler panel, 1.75 in (44 mm) panel height, 19.00 in (483 mm) overall width
- 16-gauge formed steel (0.057 in) mild steel construction for durable rack space coverage
- Flanged design adds rigidity while reducing weight compared to flat steel panels
- Fits standard 19 in EIA-compliant rack rails; 4 mounting slots (0.250 x 0.375 in), 4 mounting points
- RAL9003 matt white powder coat finish; GREENGUARD, TSCA and RoHS compliant coating
- Blanks unused rack space to improve cooling efficiency and prevent hot/cold air recirculation
- TAA-compliant and manufactured in North America; RoHS, REACH and USMCA compliant
- Mounting hardware not included; also available in matte black, dark gray and light gray
The PBFS19001WH is a 1U formed steel rack panel finished in RAL9003 matt white, designed to cover unused rack space in 19 in EIA-compliant rack rails. It suits IT and network teams, AV integrators, telecom technicians and facilities staff who need to close open rack openings to keep cooling air where it belongs and give a finished look to a partially populated rack.
Construction is 16-gauge formed steel (0.057 in) in mild steel, with flanged edges that add rigidity while keeping the panel lighter than an equivalent flat steel plate. Corners and formed edges are radiused (R .12 in / 3 mm), and the panel carries a smooth powder coat finish that is GREENGUARD, TSCA and RoHS compliant for a clean, durable appearance.
The panel measures 19.00 in (483 mm) wide overall with a 1U panel height of 1.75 in (44 mm) and a .50 in (13 mm) formed return. Four 0.250 x 0.375 in mounting slots line up with standard 19 in EIA rack rail hole patterns, giving 4 mounting points per panel. Mounting hardware is not included, so specify rack screws or cage nuts to match your rails. Shipping weight is 0.82 lbs (0.37 kg).
PBFS19001WH is RoHS and REACH compliant, USMCA compliant, TAA-compliant and made in Canada, which supports government and public-sector procurement requirements. Matching 1U panels are offered in matte black, dark gray and light gray, and the series spans heights from 1/2U through 10U so multiple openings can be blanked with a consistent finish.
Ideal For
- Covering unused rack space to improve airflow in data centers and server rooms
- Preventing hot and cold air recirculation in high-density racks
- Telecom and network equipment installations
- Wall mount and floor-standing rack build-outs
- Supporting thermal management and tidy rack organization
Overview
| Series | PBFS Series Formed Steel Rack Panels |
| Rack Units | 1U |
| Description | 1U Flanged Steel Panel, White |
| Part Number | PBFS19001WH |
| Product Type | Rack filler / blanking panel |
Dimensions
| Panel Height | 1.75 in (44 mm) |
| Overall Width | 19.00 in (483 mm) |
| Formed Flange Depth | 0.50 in (13 mm) |
| Corner / Bend Radius | R .12 in (3 mm) |
| Panel Height (Drawing) | 1.72 in (44 mm) |
Identifiers
| UPC | 623980046587 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980046587 |
| UPC W/o Check Digit | 62398004658 |
Rack Mounting
| Mounting Slots | 4X 0.250 x 0.375 in slot |
| Mounting Hardware | Not included |
| Rack Rail Compatibility | Standard 19 in EIA-compliant rack rails |
| Quantity Of Mounting Points | 4 |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 0.82 lbs (0.37 kg) |
Construction & Finish
| Color | RAL9003 Matt White |
| Finish | Smooth powder coat |
| Material | Mild Steel |
| Construction | Formed (flanged) steel panel |
| Material Gauge | 16 ga. steel (0.057 in) |
| Other Colors In 1U Height | PBFS19001BK (RAL9005 Matte Black), PBFS19001GY2 (ANSI61 Dark Gray), PBFS19001LG2 (RAL7035 Light Gray) |
Environmental & Protection
| Powder Coat Compliance | GREENGUARD, TSCA, RoHS compliant |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How much rack space does PBFS19001WH cover?▾
It covers 1U of rack space, with a panel height of 1.75 in (44 mm) and an overall width of 19.00 in (483 mm) for standard 19 in EIA rack rails.
Does the panel include mounting screws?▾
No. The drawing notes state mounting hardware is not included. The panel has four 0.250 x 0.375 in slots providing 4 mounting points, so supply rack screws or cage nuts to match your rails.
What material and finish are used?▾
PBFS19001WH is formed from 16-gauge mild steel (0.057 in) and finished in a smooth powder coat in RAL9003 matt white. The powder coat is GREENGUARD, TSCA and RoHS compliant.
Is this panel suitable for government projects?▾
It is TAA-compliant and manufactured in North America (country of origin Canada), and it is USMCA, RoHS and REACH compliant, which supports government procurement requirements.
Why choose a flanged panel instead of a flat one?▾
The formed (flanged) design improves panel rigidity while reducing weight compared to flat steel panels, and the 0.50 in (13 mm) return gives a clean installed edge.
Is this panel available in other colors or heights?▾
Yes. The same 1U height is offered as PBFS19001BK (matte black), PBFS19001GY2 (dark gray) and PBFS19001LG2 (light gray), and the PBFS Series covers heights from 1/2U to 10U.
