Hammond H1TRR52U30BK 52U Tapped 10-32 Rack Rails for 30in Cabinets

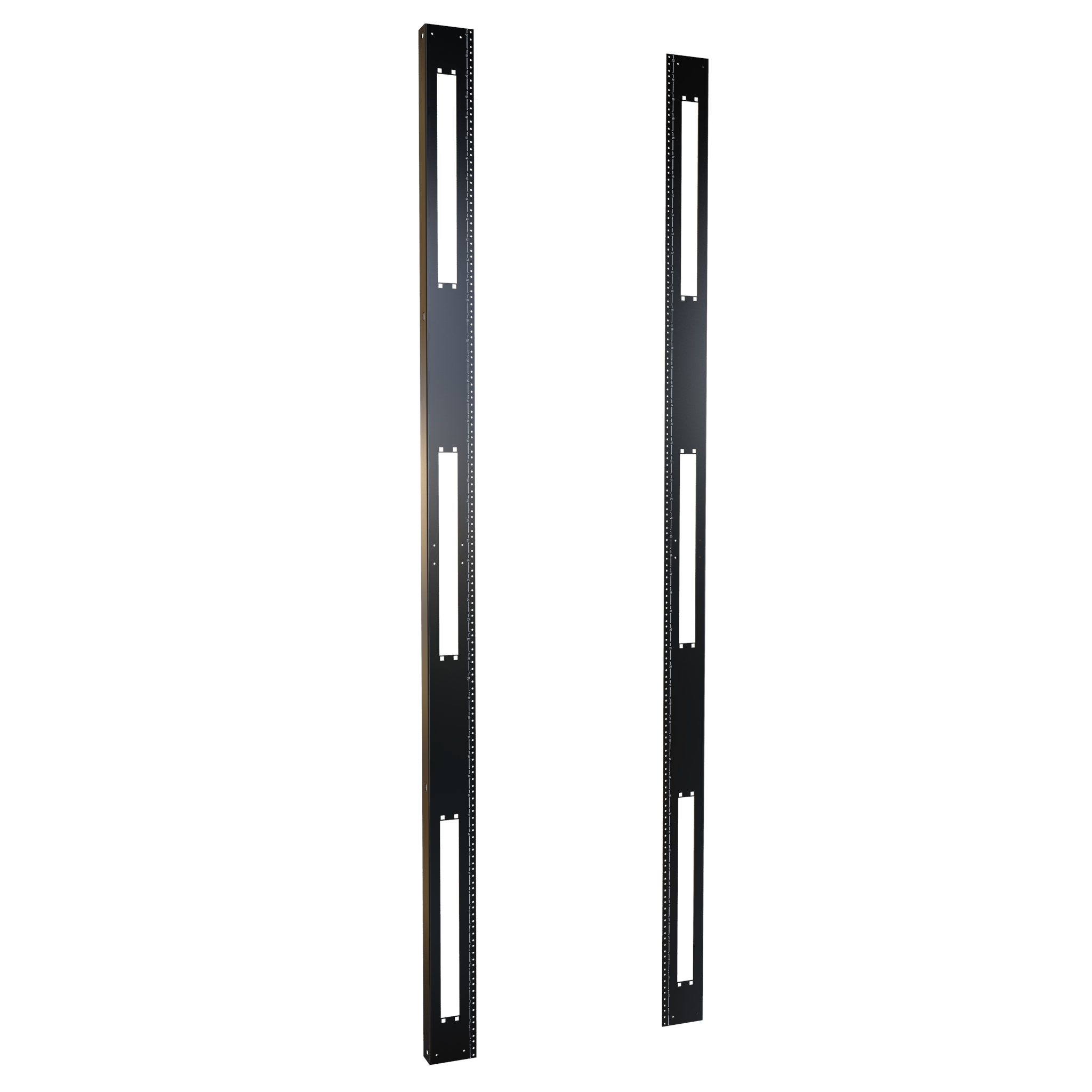

The H1TRR52U30BK is a matched pair of 52U, 19-inch mounting rack rails with #10-32 UNF tapped holes on EIA spacing, sized for 30.00 in (762 mm) wide cabinets. It is intended for IT, telecommunications, industrial and AV teams who need to replace damaged rails, add mounting positions, or reconfigure an existing H1, HWF, RCK or NWC cabinet rather than replace the cabinet itself.

Rails in the H1R Series are manufactured from heavy-duty 12-gauge mild steel, providing a rigid mounting platform for rack-mounted servers, network equipment, AV systems and industrial electronics. The finish is a textured black powder coat (painted thin film black), which is RoHS compliant and gives a durable, professional appearance. Silkscreened 1U markings run the length of the rail to simplify equipment alignment, installation and future expansion.

This pair delivers 52U of usable mounting height, 91.00 in (2311 mm), with an overall rail length of 91.03 in (2312 mm) and a 19-inch mounting width of 18.35 in (466 mm) on the standard 1.75 in (44 mm) rack unit pitch. Four 0.44 x 0.75 in slots are provided in the rail flange for strut attachment, and all required strut mounting hardware is included, so H1TRR52U30BK installs into a compatible cabinet without additional parts.

The tapped 10-32 pattern is EIA-310 compliant and accepts standard 19-inch rack equipment such as servers, switches, patch panels, UPS systems and AV components. If square-hole mounting is preferred, the equivalent rail in this size is H1SRR52U30BK. H1TRR52U30BK is made in Canada, is TAA compliant, USMCA compliant, RoHS compliant and REACH compliant, and is produced in North America in an ISO 9001 certified facility.
