Hammond EN4SD363010S16 36x30x10 Type 4X 316 Stainless Wallmount Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 36 x 30 x 10 in (914 x 762 x 254 mm) 316 stainless enclosure
- 34.49 x 28.49 in door opening, 10.70 in inside depth (drawing)
- UL 508A / CSA Type 3R, 4, 4X, 12; NEMA 4X; IP 66
- EP3630 inner panel required to maintain UL/CSA at 30 in width
- Type A stainless slotted quarter turns, hidden hinges
- 34.00 x 28.00 in clear space on door (drawing)
- Shipping weight 84 lbs (38.10 kg)
The EN4SD363010S16 is a large 36 x 30 x 10 in (914 x 762 x 254 mm) Eclipse Series wallmount enclosure in 316 stainless steel. It is designed to enclose electrical and electronic equipment and protect it against harsh industrial environments, offering panel builders a big mounting area in a corrosion-resistant grade.
The body is formed 14 gauge 316 stainless steel with continuously welded seams ground smooth, a formed lip that excludes flowing liquids and contaminants, and a seamless poured-in-place gasket. The hinged door uses hidden hinges with stainless steel hinge pins and Type A stainless steel slotted quarter turns. Cover and enclosure have a natural, smooth brushed stainless finish.
The drawing lists a 34.49 x 28.49 in door opening, 10.70 in inside depth, 10.87 in depth including the door, 34.00 x 28.00 in of clear space on the door and 0.50 in rear mounting holes on 34.50 x 28.50 in spacing. Because this enclosure is wider than 24 in (600 mm), an inner panel is required to maintain UL/CSA; the EP3630 panel (34.20 x 28.20 in) mounts on collar studs provided.
Ratings are UL 508A and CSA Type 3R, 4, 4X and 12, with compliance to NEMA 3R, 4, 4X, 12 and 13 and IEC 60529 IP 66. A mounting foot kit is required to maintain UL/CSA external mounting requirements. A hardware kit with panel mounting nuts and sealing washers for the wall holes is included. Shipping weight is 84 lbs (38.10 kg). EN4SD363010SS is the 304 version.
Ideal For
- Large wallmount control enclosures
- 316 stainless housings for corrosive industrial environments
- Type 4X electrical and electronic equipment enclosures
- Panels built on the EP3630 inner panel
Overview
| Series | Eclipse Series Type 4X Stainless Steel Wallmount Enclosure |
| Mounting | Wallmount |
| Door Style | Hinge door with quarter turn/handle latching (series) |
| Latch Type | Type A – stainless steel slotted quarter turns |
| Description | N4X Eclipse encl. - 36 x 30 x 10 - 316 SS |
| 304 SS Equivalent | EN4SD363010SS |
| Short Description | TYPE4X 316SS 36X30X10NO PANEL |
Dimensions
| Enclosure Depth | 10.00 in (254 mm) |
| Enclosure Width | 30.00 in (762 mm) |
| Enclosure Height | 36.00 in (914 mm) |
| Size (H X W X D) | 36 in x 30 in x 10 in (914 mm x 762 mm x 254 mm) |
| Door Width (Drawing) | 29.97 in |
| Door Height (Drawing) | 35.97 in |
| Inside Depth (Drawing) | 10.70 in |
| Depth Incl. Door (Drawing) | 10.87 in |
| Door Opening Width (Drawing) | 28.49 in |
| Door Opening Height (Drawing) | 34.49 in |
| Mounting Hole Diameter (Drawing) | 0.50 in |
| Clear Space On Door, Width (Drawing) | 28.00 in |
| Clear Space On Door, Height (Drawing) | 34.00 in |
| Rear Mounting Hole Spacing, Vertical (Drawing) | 34.50 in |
| Rear Mounting Hole Spacing, Horizontal (Drawing) | 28.50 in |
Identifiers
| UPC | 623980042350 |
| UNSPSC | 39121324 |
| Part Number | EN4SD363010S16 |
Optional Inner Panel
| Inner Panel Width | 28.20 in (716 mm) |
| Inner Panel Height | 34.20 in (869 mm) |
Packaging & Shipping
| Packaging Type | Box |
| Shipping Weight | 84 lbs (38.10 kg) |
Construction & Finish
| Door | Removable and interchangeable; swing reversible with adapter kit EHLLSAK (ordered separately) |
| Gauge | 14 gauge (series: 24x24" and larger) |
| Seams | Continuously welded, ground smooth |
| Finish | Natural stainless steel, smooth brushed finish (cover and enclosure) |
| Gasket | Seamless poured-in-place gasket |
| Hinges | Hidden hinges; stainless steel hinge pins |
| Material | 316 stainless steel |
| Grounding | Bonding stud on door, grounding stud installed in enclosure |
| Formed Lip | Formed lip on enclosure to exclude flowing liquids and contaminants |
| Included Hardware | Hardware kit with panel mounting nuts and sealing washers for wall mounting holes |
| Inner Panel Mounting | Collar studs provided for mounting inner panel |
Compliance & Certifications
| UL | UL 508A Type 3R, 4, 4X and 12 |
| CSA | CSA Type 3R, 4, 4X and 12 |
| NEMA | Complies with NEMA 3R, 4, 4X, 12 and 13 |
| IP Rating | IEC 60529, IP 66 |
| UL File # | E65324 |
| CSA Cert. # | LR21001 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| UL/CSA Mounting Requirement | Mounting foot kit required to maintain UL/CSA external mounting requirements |
| EU Declaration Of Conformity | Low Voltage Directive 2014/35/EU (EN 60204-1, EN 60529) |
| UL/CSA Inner Panel Requirement | Sizes >24" (600 mm) wide require inner panel to maintain UL/CSA |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the EN4SD363010S16 dimensions?▾
36 in high x 30 in wide x 10 in deep (914 x 762 x 254 mm).
Is an inner panel required?▾
Sizes wider than 24 in (600 mm) require an inner panel to maintain UL/CSA. The matching panel is EP3630, 34.20 x 28.20 in.
What stainless grade?▾
316 stainless steel; the 304 version is EN4SD363010SS.
What is the rear mounting hole pattern?▾
0.50 in diameter holes on 34.50 x 28.50 in spacing, per the drawing.
What does it weigh?▾
84 lbs (38.10 kg).
Related Products
Save 55%EN4SD36248SS — N4X Eclipse encl. - 36 x 24 x 8 - 304 SS
Hammond Manufacturing · EN4SD36248SS
Save 55%EN4SD363010SS — N4X Eclipse encl. - 36 x 30 x 10 - 304 SS
Hammond Manufacturing · EN4SD363010SS
Save 55%EN4SD36248S16 — N4X Eclipse encl. - 36 x 24 x 8 - 316 SS
Hammond Manufacturing · EN4SD36248S16

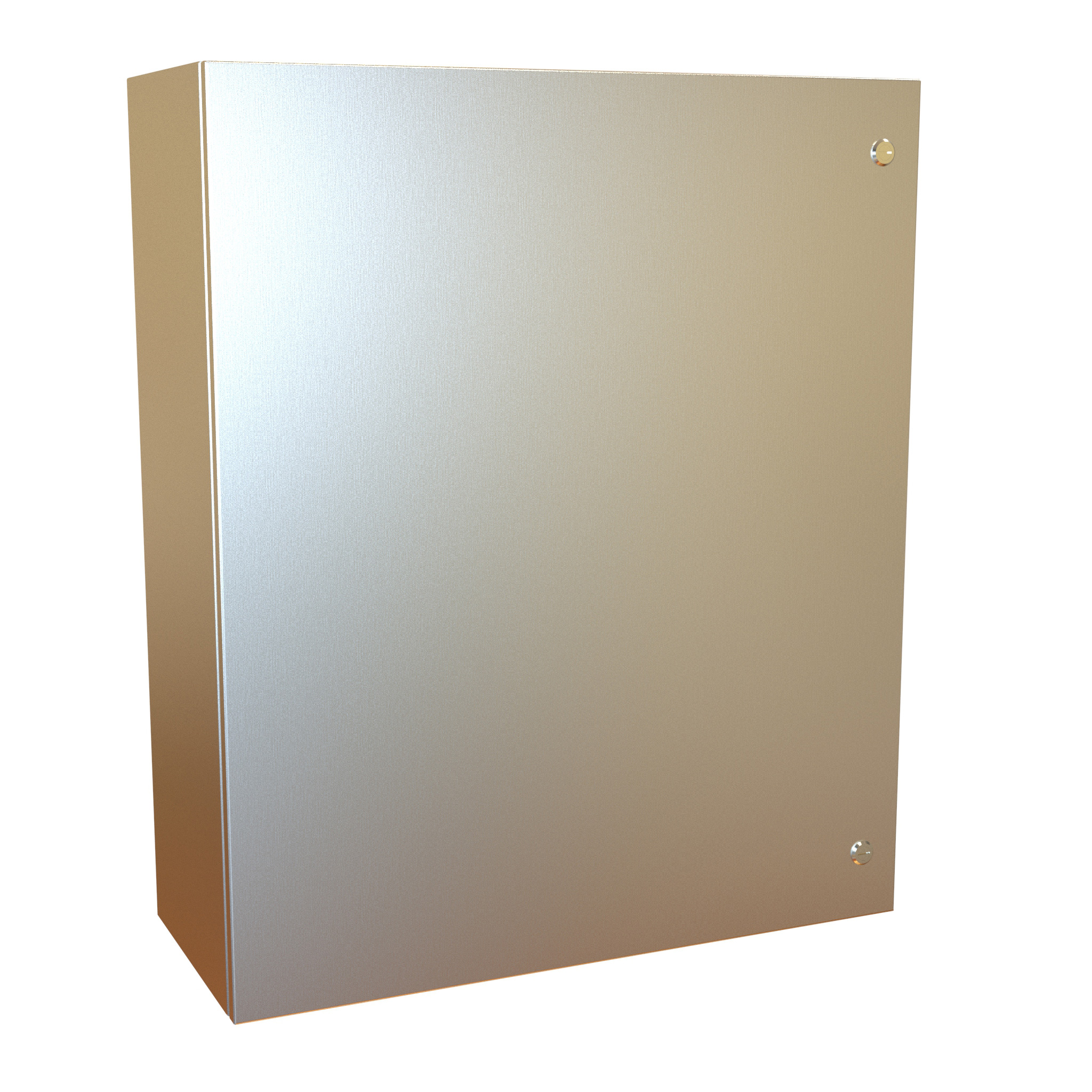

Save 55%EN4SD363012S16 — N4X Eclipse encl. - 36 x 30 x 12 - 316 SS
