Hammond CPR42SZPL 24U Square Hole Rack Mounting Rail Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Sold as a pair of 24U rails with 42.00 in (1067 mm) mounting height and 41.50 in (1054 mm) EIA spacing
- EIA compliant 0.375" square hole punch accepts 10-32, 12-24 or M6 cage nuts
- Constructed in 12-gauge steel and finished in zinc steel plate
- Stamped and silkscreened numbered "U" markings in 1U (1.75") increments on the front face
- Compatible with both 19" and 24" rack mounting in C2 and REFK Series cabinets
- Rail side usable for rear support or accessory mounting; compatible with server slides
- Mounting hardware included: strut hardware for both rails plus 25 10-32 cage nuts
- RoHS, REACH, USMCA and TAA compliant; made in Canada
The CPR42SZPL is a pair of 24U square hole punched mounting rails from the Hammond CPR Series, designed to add or replace vertical mounting planes inside C2 and REFK Series cabinets. It suits IT and AV integrators, data centre and facilities teams, and OEM engineers who need EIA-standard square hole mounting for switches, servers, patch panels and rack accessories.
Each rail is constructed in 12-gauge steel and finished in zinc steel plate, with mild steel listed as the base material. The mounting face is EIA compliant square hole punched using 0.375" square punches at typical EIA spacing, so you can choose cage nuts for 10-32, 12-24 or M6 threads. Rails come stamped and numbered in 1U (1.75") increments, with silkscreened numbered "U" markings on the front face to speed up layout and equipment alignment.
CPR42SZPL provides 24U of mounting space over a 42.00 in (1067 mm) mounting height, with an overall rail length of 42.03 in (1068 mm) and 41.50 in (1054 mm) of EIA spacing. Five 0.438" x 0.750" obround mounting holes are provided for adjustment during installation. Shipping weight for the pair is 6 lbs (2.72 kg).
The rails bolt vertically in the cabinet and are compatible with both 19" and 24" rack mounting. The side of the rail can be used for rear support or accessory mounting and is compatible with server slides. Mounting hardware is included: strut mounting hardware for both rails plus a starter quantity of 25 10-32 cage nuts.
CPR42SZPL is RoHS, REACH and USMCA compliant, TAA compliant, classified ECCN EAR99, and made in Canada.
Ideal For
- Adding or replacing mounting rails in C2 Series cabinets
- Rear support rails for server slides in REFK Series cabinets
- 19" or 24" equipment mounting in data centre cabinets
- Accessory and patch panel mounting planes in network enclosures
Overview
| Series | CPR Series Square Hole Punched Mounting Rail |
| Quantity | Sold in pairs |
| Rail Type | Square Hole L-Rail |
| Description | 24U Pair of Square Hole Mounting Rails |
| Part Number | CPR42SZPL |
| Short Description | 24U SQUARE HOLE C2 RACK RAIL |
Dimensions
| Overall Rail Length | 42.03 in (1068 mm) |
| Obround Mounting Holes | 5X 0.438" x 0.750" obround |
Identifiers
| UPC | 623980305813 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980305813 |
| Tariff Code | 7326.90.8688 |
| Country Of Origin | CA |
Rack Mounting
| Rack Units | 24U |
| U Markings | Stamped and silkscreened numbered "U" markings in 1U (1.75") increments on front face |
| EIA Spacing | 41.50 in (1054 mm) |
| Orientation | Bolts vertically in cabinets |
| Hole Pattern | EIA compliant square hole punched (accepts 10-32, 12-24 or M6 thread cage nuts) |
| Mounting Height | 42.00 in (1067 mm) |
| Secondary Mounting | Side of rail for rear support or accessory mounting (compatible with server slides) |
| Cabinet Compatibility | C2 and REFK Series cabinets |
| Rack Width Compatibility | 19" and 24" rack mounting |
Included Hardware
| Cage Nuts | Starter quantity (25) of 10-32 cage nuts |
| Mounting Hardware | Strut mounting hardware (for both rails) |
Packaging & Shipping
| Shipping Weight | 6 lbs (2.72 kg) |
Construction & Finish
| Gauge | 12-gauge steel |
| Finish | Zinc steel plate (zinc plated) |
| Material | Mild Steel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is CPR42SZPL sold individually or as a pair?▾
CPR Series rails are sold in pairs, so CPR42SZPL supplies two 24U square hole mounting rails.
What cage nuts can I use with these square hole rails?▾
The rails are EIA compliant square hole punched with 0.375" square punches, allowing a choice of 10-32, 12-24 or M6 thread cage nuts. A starter quantity of 25 10-32 cage nuts is included.
Which cabinets does CPR42SZPL fit?▾
The rails bolt vertically in cabinets and are compatible with Hammond C2 and REFK Series cabinets, for both 19" and 24" rack mounting.
What is the mounting height and usable rack space?▾
CPR42SZPL provides 24U of mounting space with a 42.00 in (1067 mm) mounting height, 41.50 in (1054 mm) of EIA spacing and an overall rail length of 42.03 in (1068 mm).
Is mounting hardware included?▾
Yes. Strut mounting hardware for both rails is included, along with a starter quantity of 25 10-32 cage nuts.
Can the rails support server slides?▾
Yes. The side of the rail can be used for rear support or accessory mounting and is compatible with server slides.
Related Products
Save 35%CPR35SZPL — 20U Pair of Square Hole Mounting Rails
Hammond Manufacturing · CPR35SZPL
Save 35%CPR49SZPL — 28U Pair of Square Hole Mounting Rails
Hammond Manufacturing · CPR49SZPL
Save 35%CPL19436LG1 — Plinth For 36D C2-C4 Cabinet
Hammond Manufacturing · CPL19436LG1

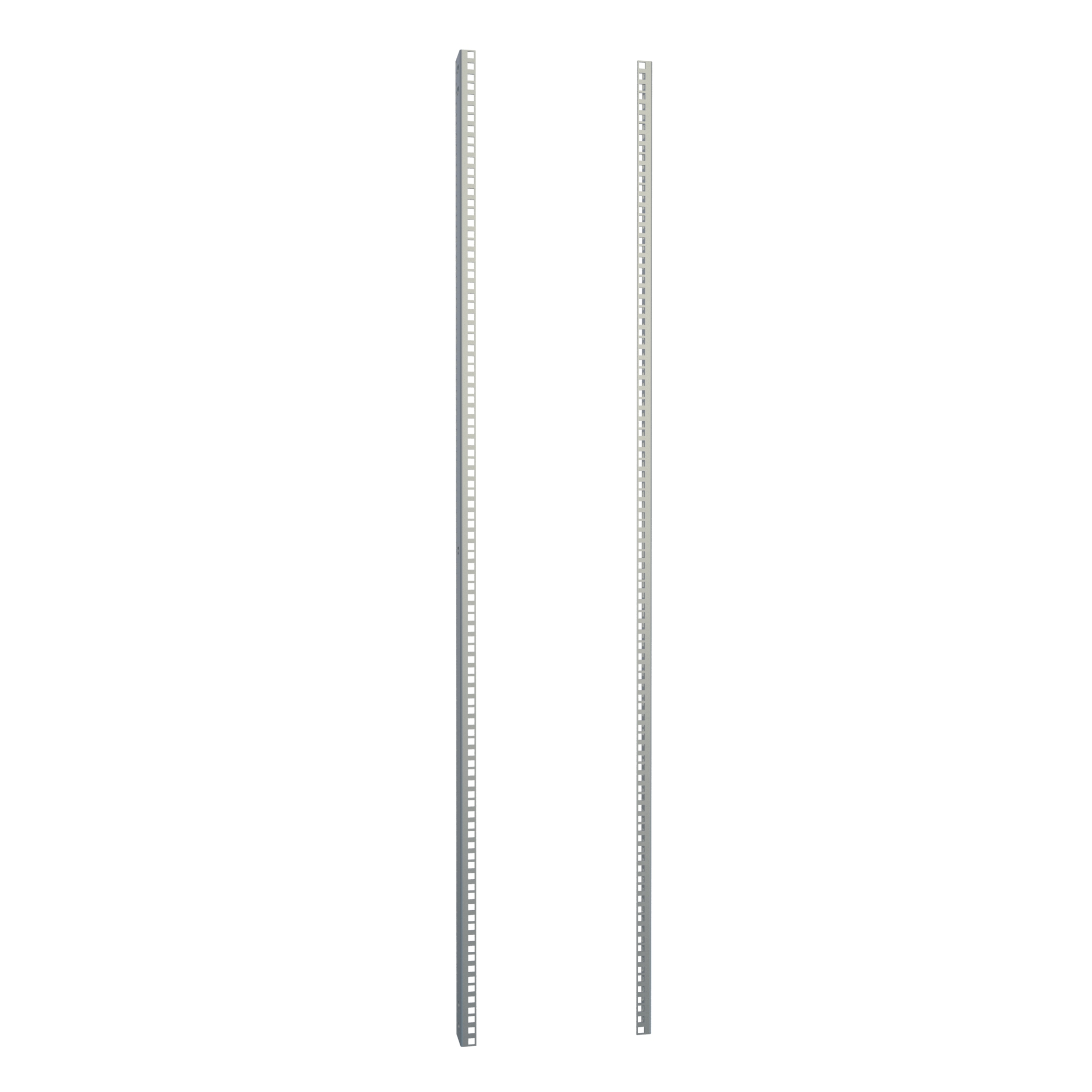

Save 35%CPR56SZPL — 32U Pair of Square Hole Mounting Rails
