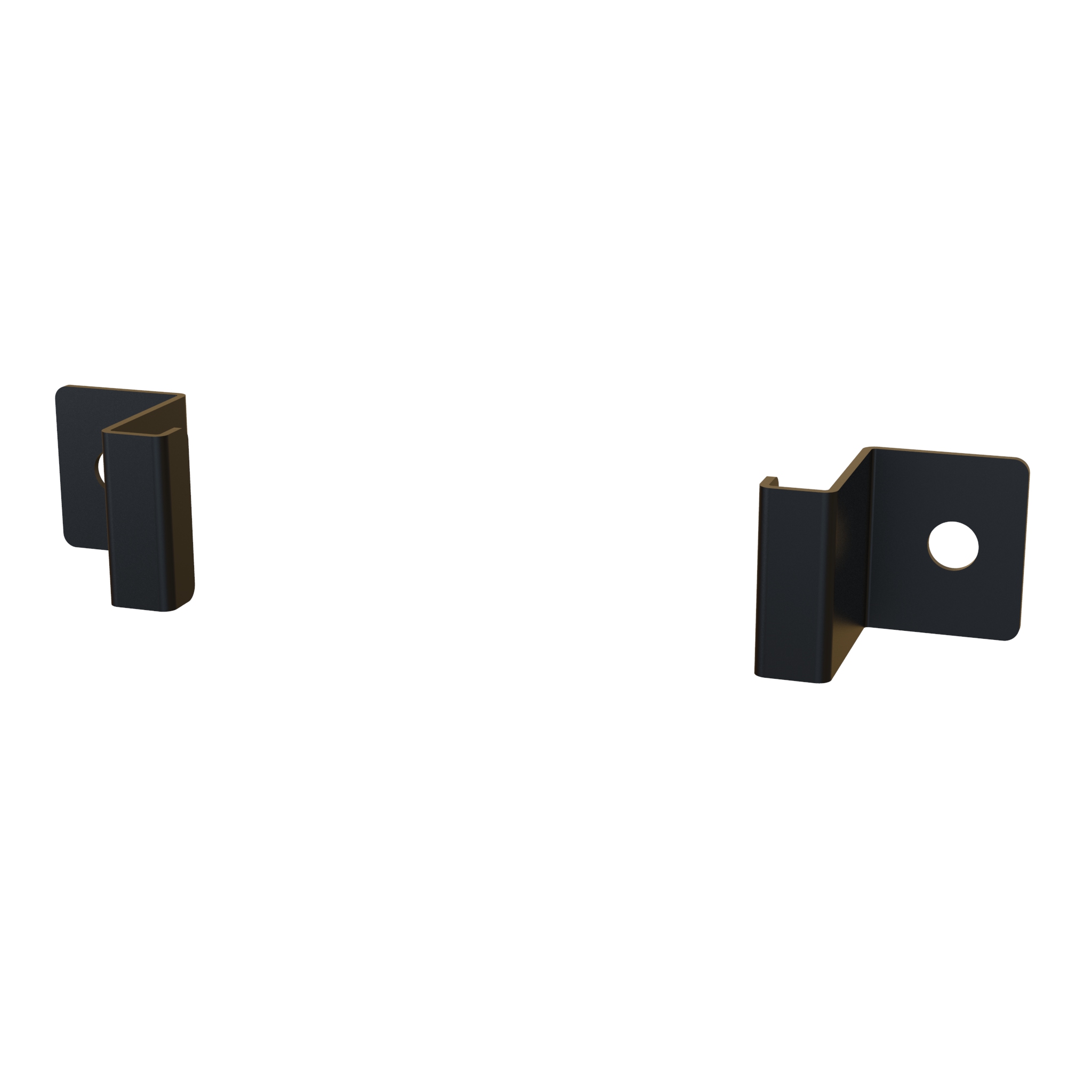

Hammond CLWMB 16-Gauge Steel Ladder Rack Wall Mount Bracket, Pair

The CLWMB is a ladder rack wall mount bracket used to attach cable ladder rack and cable runway directly to a wall surface. It is aimed at structured cabling contractors, telecom technicians and data center facilities teams who need a simple, repeatable way to terminate or support an overhead cable pathway at a wall without adding extra hardware kits. The part is supplied in pairs so both stringers of a ladder rack section can be supported for a balanced installation.

Construction is 16-gauge steel finished in black powder coat, providing durable structural support for ladder rack wall mounting. The finish is stated as GREENGUARD, TSCA and RoHS compliant, and the part itself is listed as RoHS and REACH compliant. CLWMB is made in Canada, is USMCA compliant and TAA-compliant, which supports government and public-sector procurement requirements.

The bracket is compact: the drawing shows a 1.84 in (47 mm) front-view dimension, a 1.50 in (38 mm) top-view dimension, a 1.53 in (39 mm) and 1.31 in (33 mm) side profile, and a 0.41 in (10 mm) diameter mounting hole. Shipping weight is 0.25 lbs (0.11 kg).

The direct mount design eliminates the need for butt splice kits, reducing part count, cost and installation time, and simplifying alignment steps on site. The universal design fits many ladder rack brands, so it can be deployed across mixed pathway systems. Note that wall mounting hardware is not included, allowing the installer to select fasteners appropriate to the wall type — concrete, block, masonry or stud framing.

• Sold in pairs (quantity 2 per drawing item list)
• Black powder coat, painted black per the part drawing
• Hardware not included
