Hammond CDF1935LLG1 20U Louver Vented Door, Light Gray Steel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Fits C2 Series cabinets rated 20U with a 35.00 in (889 mm) height
- Louver vented steel panel for passive airflow through a closed cabinet
- Overall size 19.33 in (491 mm) W x 34.75 in (883 mm) H
- Constructed in 16-gauge mild steel
- Textured RAL 7035 light gray powder coat meeting Greenguard indoor air quality guidelines
- Installs using integrated spring pin at top and bottom of the door
- Includes formed plastic handle, quarter-turn lock with .531 H cam and two hinge pins
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
The CDF1935LLG1 is a 20U louver vented front or rear door from the CDF Series, made exclusively for use with Hammond C2 Series cabinets. It suits IT and AV integrators, facilities teams and OEM engineers who need airflow through a closed cabinet while keeping installed equipment covered and lockable. The louvered panel allows passive ventilation across the full door face.
Construction is 16-gauge steel (mild steel), finished in a textured RAL 7035 light gray powder coat that complies with the Greenguard guidelines for indoor air quality. The door measures 19.33 in (491 mm) wide by 34.75 in (883 mm) high overall and is listed as a 20U 23W door for cabinets with a 35.00 in (889 mm) height. Shipping weight is 24 lbs (10.89 kg).
The door installs into C2 Series cabinets using an integrated spring pin at the top and bottom, so no separate frame hardware is required for hanging. Each CDF1935LLG1 ships with a formed black plastic handle, a quarter-turn lock complete with a .531 H cam (DWS220-9208) and two 1/4 in x 4-1/2 in long hinge pins to mount on the cabinet.
For procurement, CDF1935LLG1 is TAA-compliant for GSA Schedule purchases, USMCA compliant, and both RoHS and REACH compliant, with ECCN EAR99 and tariff code 9403.10.0040. It is manufactured in North America, with Canada listed as the country of origin.
Series accessories referenced by Hammond include a Door Adapter Kit, a Cabinet Door Replacement Lock and a Partial Height Door Support.
Ideal For
- Ventilated front or rear door for 20U C2 Series network cabinets
- Passive airflow for enclosed server and switch equipment
- Lockable access control for IT and AV equipment cabinets
- Replacement or retrofit door for existing C2 cabinet frames
- TAA-compliant cabinet build-outs for GSA Schedule projects
Overview
| Series | CDF Series (C2 Doors) |
| Door Type | Louver Vented Door |
| Description | 20U Louvered Door for C2 Frame |
| Part Number | CDF1935LLG1 |
| Compatibility | Exclusively for use with the C2 Cabinet Series |
| Short Description | 20U 23W C2 LOUVERED DOOR |
Dimensions
| Nominal Size | 20U, 23 in wide (per short description) |
| Overall Width | 19.33 in (491 mm) |
| Overall Height | 34.75 in (883 mm) |
Identifiers
| UPC | 623980565729 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980565729 |
| Category | Rack Accessories - Doors |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (manufactured in North America) |
| UPC W/o Check Digit | 62398056572 |
Rack Mounting
| Mounting Method | Integrated spring pin at top and bottom of the door |
| Use With Cabinet - Height | 35.00 in (889 mm) |
| Use With Cabinet - Rack Units | 20U |
Packaging & Shipping
| Shipping Weight | 24 lbs (10.89 kg) |
Construction & Finish
| Gauge | 16-gauge steel |
| Finish | Textured RAL 7035 light gray powder coat |
| Material | Mild Steel |
| Lock Type | Quarter-turn lock |
| Included Hardware | Black plastic handle (1), lock c/w .531 H cam DWS220-9208 (1), hinge pin 1/4 in x 4-1/2 in long (2), C2 louvered door 19x35 panel (1) |
Environmental & Protection
| Ventilation | Louver vented door panel |
| Indoor Air Quality | Finish complies with the Greenguard guidelines for indoor air quality |
Compliance & Certifications
| TAA | TAA-compliant for GSA Schedule purchases |
| ECCN | EAR99 |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinets does CDF1935LLG1 fit?▾
It is made exclusively for the C2 Cabinet Series, specifically cabinets rated 20U with a 35.00 in (889 mm) height.
What is included with the door?▾
Each door includes a formed black plastic handle, a quarter-turn lock complete with a .531 H cam (DWS220-9208) and two 1/4 in x 4-1/2 in long hinge pins to mount on the cabinet.
How is the door installed?▾
It installs into C2 Series cabinets using the integrated spring pin at the top and bottom of the door, with the supplied hinges mounted on the cabinet.
What is the difference between CDF1935LLG1 and CDF1935LBK1?▾
They are the same 20U louver vented door; CDF1935LLG1 is painted textured RAL 7035 light gray and CDF1935LBK1 is painted textured black.
Is this door suitable for government purchases?▾
Yes. CDF1935LLG1 is TAA-compliant for GSA Schedule purchases and is also RoHS, REACH and USMCA compliant, with ECCN EAR99.
What accessories are offered for CDF Series doors?▾
Hammond lists a Door Adapter Kit, a Cabinet Door Replacement Lock and a Partial Height Door Support as accessories for the CDF Series.
Related Products
Save 35%CDF1935LBK1 — 20U Louvered Door for C2 Frame
Hammond Manufacturing · CDF1935LBK1

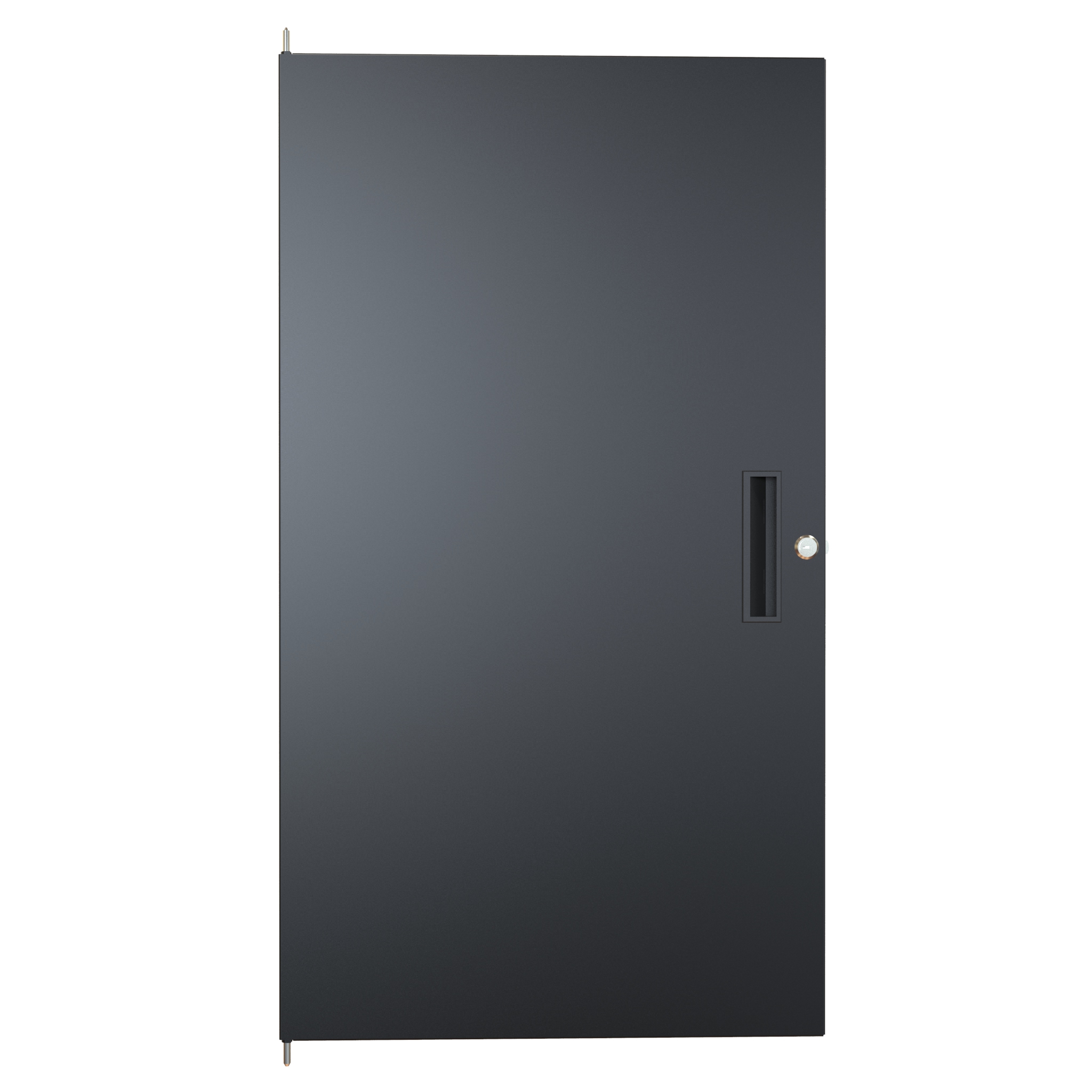

Save 35%CDF1935SBK1 — 20U Solid Door for C2 Frame
Hammond Manufacturing · CDF1935SBK1
Save 35%CCR85TZPL — 49U Pair of Tapped 10-32 Combination Rails
Hammond Manufacturing · CCR85TZPL

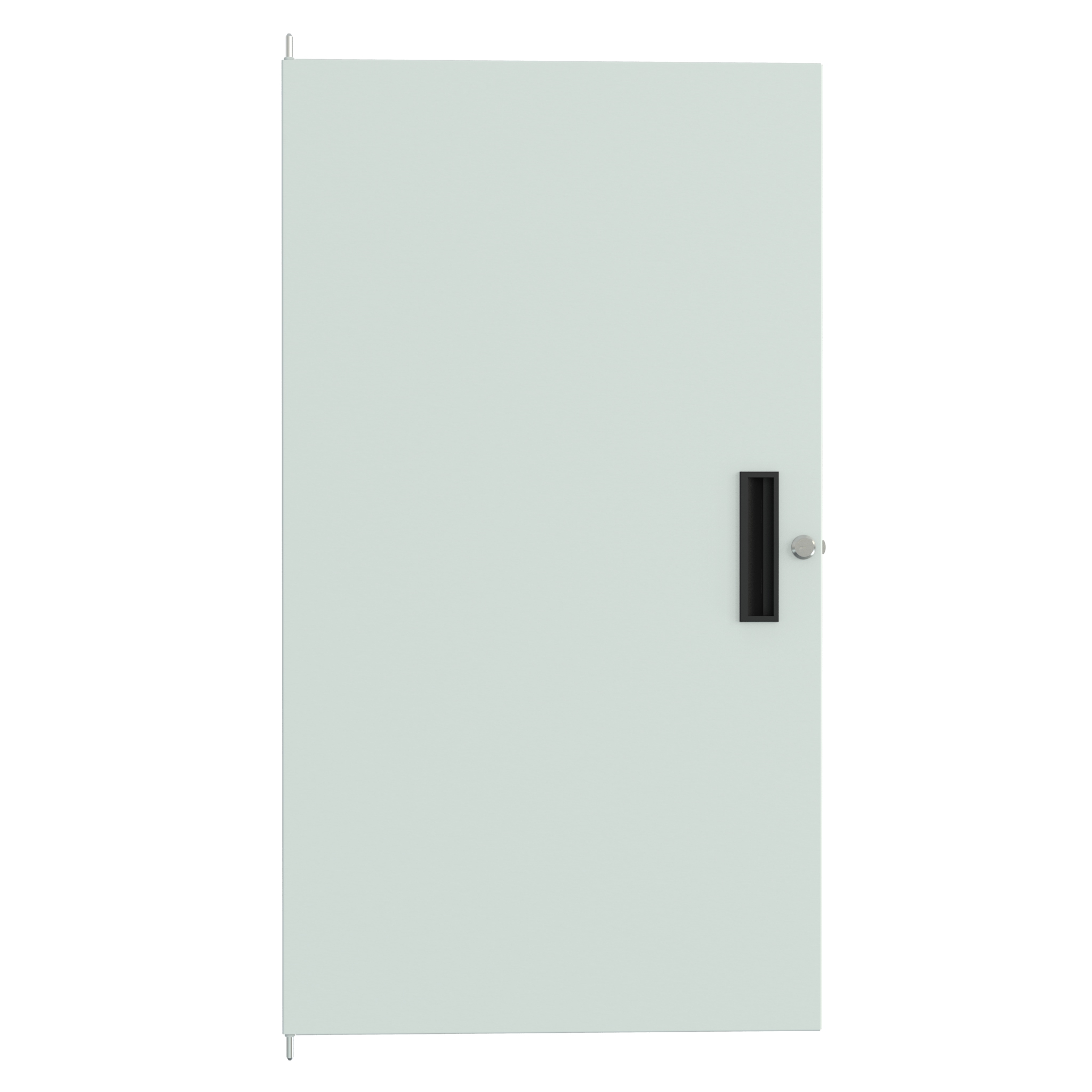

Save 35%CDF1935SLG1 — 20U Solid Door for C2 Frame
