Hammond C4PR2442SZPL 24U 19-Inch Square-Hole Rack Rail Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 24U capacity with 19.00 in (483 mm) mounting width and 42.00 in (1067 mm) mounting height
- EIA-310 square-hole pattern accepts 10-32, 12-24, 1/4-20 and M6 cage nuts
- 12-gauge mild steel square-hole rail construction for rigid equipment support
- Zinc-plated finish for corrosion resistance and improved grounding continuity
- Silkscreened 1U rack unit markings simplify equipment layout and expansion
- Sold in pairs with all required strut mounting hardware included
- Fits C4, C4RR_S, C4RR_A and C4RR_D cabinets 24.00 in (610 mm) wide
- TAA-compliant, RoHS and REACH compliant; made in North America
The C4PR2442SZPL is a pair of 24U square-hole rack mount rails built as factory-engineered replacement and expansion rails for Hammond C4, C4RR and DCZ4 cabinet systems. This version is configured for a 19.00 in (483 mm) mounting width and a 42.00 in (1067 mm) mounting height, making it suited to IT, telecom and industrial teams who need to replace damaged rails, add mounting positions, or convert a cabinet from threaded to square-hole mounting.
Square-hole rails in the C4PR Series are manufactured from 12-gauge steel for a rigid mounting platform for servers, switches, storage equipment, UPS systems and other rack-mounted devices. The mild steel rails carry a zinc-plated finish that provides corrosion resistance while improving electrical grounding continuity through the cabinet. Silkscreened 1U markings run the length of each rail so equipment positions and future expansion are easy to plan.
Hole pattern follows EIA-310 square-hole mounting and accepts 10-32, 12-24, 1/4-20 and M6 cage nuts, so the rails work with virtually all modern rack equipment. The drawing shows an overall rail height of 42.03 in (1068 mm) covering 24 rack units. C4PR2442SZPL is compatible with C4 cabinets 24.00 in (610 mm) wide; it is not listed as compatible with DCZ4 cabinets.
- Sold in matched pairs and supplied with all required strut mounting hardware.
- Shipping weight 7 lbs (3.18 kg).
Manufactured in North America (country of origin CA), the C4PR2442SZPL is RoHS compliant, REACH compliant, USMCA compliant and TAA-compliant for GSA Schedule purchases.
Ideal For
- Replacing damaged rack rails in existing C4 cabinets
- Converting a cabinet from threaded to square-hole mounting
- Expanding cabinet mounting capacity for servers and switches
- Enterprise data center, colocation and telecommunications cabinets
- Industrial control, broadcast and AV rack infrastructure
Overview
| Series | C4PR Series Rack Mount Rails for C4 Cabinets |
| Sold As | Matched pairs |
| Description | 24U Square Hole Rack Rail |
| Part Number | C4PR2442SZPL |
| Included Hardware | All required strut mounting hardware |
Dimensions
| Rail Section (Top View) | 1.50 in (38 mm) x 1.39 in (35 mm) |
| Overall Rail Height (Drawing) | 42.03 in (1068 mm) — 24U |
Identifiers
| UPC | 623980041346 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980041346 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA (manufactured in North America) |
| UPC W/o Check Digit | 62398004134 |
Rack Mounting
| Hole Type | EIA-310 square hole |
| Rack Units | 24U |
| Mounting Width | 19.00 in (483 mm) |
| Mounting Height | 42.00 in (1067 mm) |
| Rack Unit Markings | Silkscreened U markings |
| Cage Nut Compatibility | 10-32, 12-24, 1/4-20 and M6 cage nuts |
| DCZ4 Cabinet Compatible | No |
| Compatible Cabinet Series | C4, C4RR_S, C4RR_A, C4RR_D |
| Compatible C4 Cabinet Width | 24.00 in (610 mm) |
Packaging & Shipping
| Shipping Weight | 7 lbs (3.18 kg) |
Construction & Finish
| Gauge | 12-gauge steel (square-hole rails) |
| Finish | Zinc plate |
| Material | Mild steel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant; EIA-310 square-hole mounting |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How many rails come with C4PR2442SZPL?▾
The C4PR2442SZPL is sold in matched pairs and includes all required strut mounting hardware.
Which cabinets does this rail fit?▾
It is designed for Hammond C4, C4RR_S, C4RR_A and C4RR_D cabinets with a 24.00 in (610 mm) cabinet width. It is not listed as compatible with DCZ4 cabinets.
What hole pattern and fasteners does it use?▾
It uses EIA-310 square-hole mounting and supports 10-32, 12-24, 1/4-20 and M6 cage nuts.
What is the mounting width and height?▾
19.00 in (483 mm) mounting width and 42.00 in (1067 mm) mounting height, providing 24 rack units. The drawing shows an overall rail height of 42.03 in (1068 mm).
Does this rail include cable management features?▾
Integrated cable tie slots and cable pass-through openings are offered on the 30-inch cabinet rail options in the C4PR Series; C4PR2442SZPL is the 24.00 in cabinet width version.
Is C4PR2442SZPL suitable for government purchases?▾
It is TAA-compliant for GSA Schedule purchases and is manufactured in North America, with country of origin listed as CA.
Related Products
C4F307748BK1 — 44U 30W 48D C4 Frame Only
Hammond Manufacturing · C4F307748BK1
Save 35%C4PR2473SZPL — 42U Square Hole Rack Rail
Hammond Manufacturing · C4PR2473SZPL
Save 35%C4F307742BK1 — 44U 30W 42D C4 Frame Only
Hammond Manufacturing · C4F307742BK1

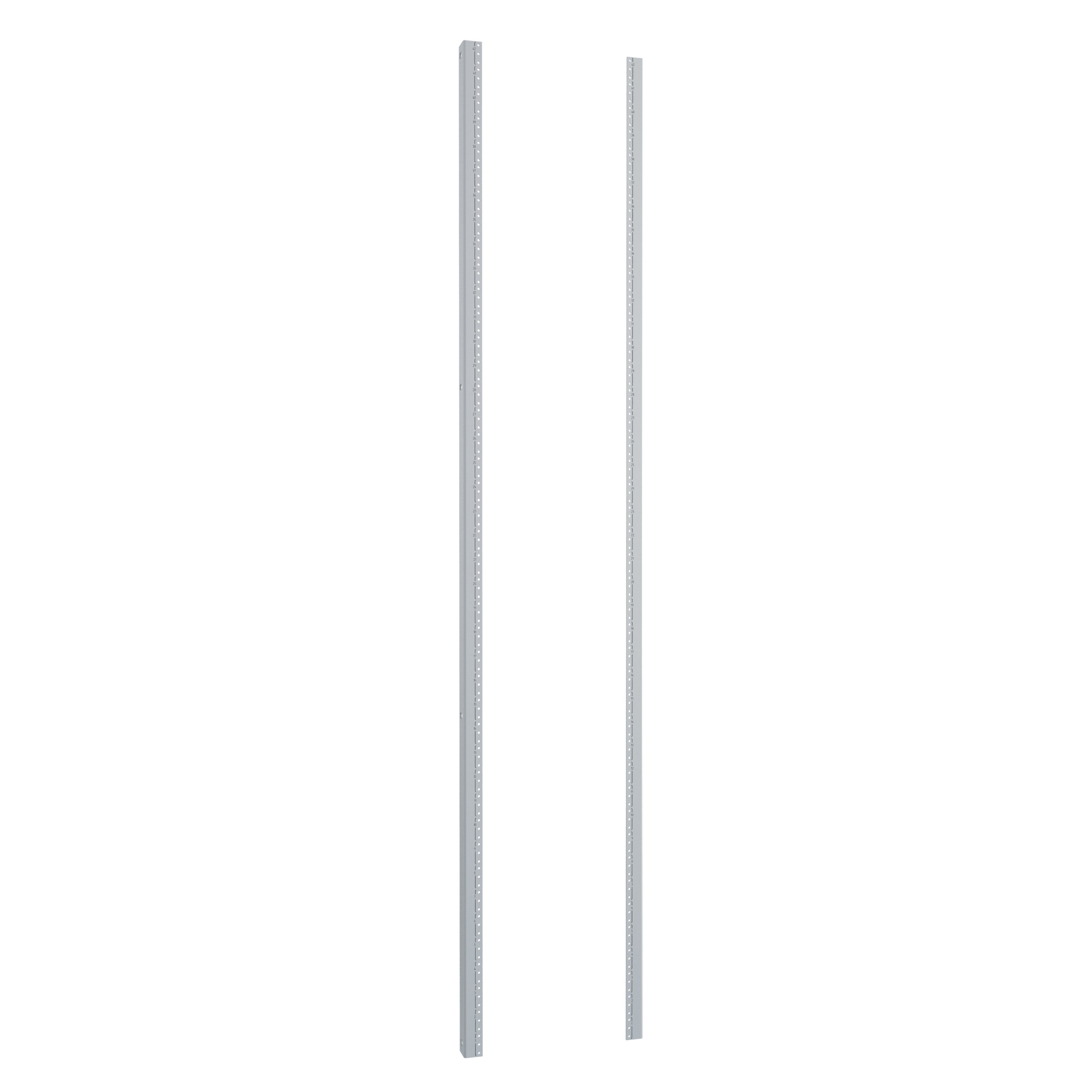

Save 35%C4PR2473TZPL — 42U Tapped 10-32 Rack Rail
