Hammond C4F307742BK1 44U 30in Wide 42in Deep Server Cabinet Frame
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Frame only, 44U: no mounting rails, doors or side panels included, so the cabinet can be configured to the application.
- 83.58 in (2123 mm) H x 30.00 in (762 mm) W x 42.00 in (1067 mm) D overall; height includes leveling feet.
- 77.00 in (1956 mm) usable mounting height and 40.00 in (1016 mm) usable mounting depth.
- 14-gauge steel frame with 12-gauge reinforced corner brackets; welded assembly in mild steel, RAL9005 Black.
- UL2416 listed to 3000 lb and seismic rated to 1200 lb dynamic load when assembled by Hammond as a complete cabinet.
- 30 in wide frame gives extra cabling space and supports up to four optional vertical cable managers.
- Four 3.50 in (89 mm) top cable entry holes with cable entry plugs included.
- Four leveling feet (5/16-18), caster mounting pattern and lagging points; four threads for optional eye-bolts.
The C4F307742BK1 is a 44U open cabinet frame from the C4 modular server rack cabinet system, built for data center, enterprise IT and network infrastructure teams that want to configure a cabinet from the frame up rather than buy a fixed assembly. It is supplied as a frame only, with no mounting rails, doors or panels, so integrators can specify the rail style, door style, side panels and top panel that suit the deployment.
Construction is a welded assembly in mild steel: a 14-gauge steel cabinet frame with 12-gauge reinforced corner brackets, finished in RAL9005 Black powder coat. Assembled as a complete Hammond cabinet, the platform is a UL2416 listed rack with a 3000 lb load rating and is seismic rated to a 1200 lb dynamic load (IBC, CBC, NBC, ASCE standards); individual components are not UL2416 or seismic rated on their own. The frame carries cULus and Zone 4 standards references under UL file E474597 and is TAA compliant, manufactured in North America.
Overall size is 83.58 in (2123 mm) high including leveling feet by 30.00 in (762 mm) wide by 42.00 in (1067 mm) deep, with 77.00 in (1956 mm) of usable mounting height and 40.00 in (1016 mm) of usable mounting depth. Shipping weight is 154 lbs (69.85 kg). The 30 in wide frame provides extra generous cabling space and supports up to four optional vertical cable managers, and four 3.50 in (89 mm) cable entry holes are provided on top with cable entry plugs included.
Four leveling feet with 5/16-18 threads are provided, along with a caster mounting pattern, lagging points and 1/4-20 collar studs for panel attachment. Mounting depth is infinitely adjustable using C-channel struts, and grounding and bonding provisions are included throughout the frame for compliant installation of C4F307742BK1.
Ideal For
- Data centers and enterprise IT environments
- High-density server and storage deployments
- Network infrastructure installations
- Colocation and cloud environments
- Custom-configured cabinets needing square hole rails and sliding rail support
Overview
| Series | C4 Series Modular Server Rack Cabinet System (3000 lb) |
| Rack Type | Cabinet |
| Rail Type | Frame Only - No Rails |
| Rack Units | 44 |
| Part Number | C4F307742BK1 |
| Short Description | 44U 30W 42D C4 FRAME ONLY |
Dimensions
| Overall Depth | 42.00 in (1067 mm) |
| Overall Width | 30.00 in (762 mm) |
| Overall Height | 83.58 in (2123 mm) — includes leveling feet |
| Cable Entry Holes | 4x 3.50 in (89 mm) diameter on top; cable entry plugs included |
| Top Panel Opening | 25.92 in (658 mm) |
| Bottom Panel Opening | 36.00 in (914 mm) x 24.00 in (610 mm) |
| Frame Height Per Drawing | 82.81 in (2103 mm) |
| Nominal Size (H X W X D) | 83.5 in x 30 in x 42 in (2,121 mm x 762 mm x 1,067 mm) |
Electrical
| Grounding | Grounding and bonding provisions throughout frame, doors and panels |
Identifiers
| UPC | 623980007335 |
| ECCN | EAR99 |
| UNSPSC | 43223306 |
| GTIN-14 | 00623980007335 |
| Tariff Code | 9403.10.0040 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398000733 |
Rack Mounting
| Baying | Baying capability and containment compatibility for row-based deployments |
| Leveling | Four (4) leveling feet, 5/16-18 thread; supports optional casters |
| Rail Standard | Square hole mounting rails are EIA-310 compliant, 12-gauge steel, and support sliding rail kits |
| Caster Pattern | 4x 0.31 in (8 mm) holes |
| Lagging Points | 3x 0.56 in (14 mm) holes |
| Lifting Provisions | Four (4) threads for optional eye-bolts |
| Usable Mounting Depth | 40.00 in (1016 mm) |
| Panel Attachment Studs | 1/4-20 collar studs: 4 on top, 2 on bottom |
| Usable Mounting Height | 77.00 in (1956 mm) / 44U |
| Compatible 19" Rail Pairs | Square hole: C4PR77SZPL; Tapped 10-32: C4PR77TZPL (sold separately) |
| Compatible 23" Rail Pairs | Square hole: C4PR7723SZPL; Tapped 10-32: C4PR7723TZPL (sold separately) |
| Hardware Noted On Drawing | 1/2-13 nut |
| Mounting Depth Adjustment | Infinitely adjustable using C-channel struts |
Packaging & Shipping
| Shipping Weight | 154 lbs (69.85 kg) |
Construction & Finish
| Assembly | Welded assembly |
| Material | Mild Steel |
| Frame Gauge | 14-gauge steel with 12-gauge reinforced corner brackets |
| Paint Color | RAL9005 Black |
| Finish Compliance | Powder coat finish is GREENGUARD, TSCA and RoHS compliant |
| Door And Panel Gauge | 16-gauge (doors and panels, sold separately) |
Compliance & Certifications
| Standards | cULus, zone4, TAA-compliant |
| UL File # | E474597 |
| Load Rating | 3000 lb UL2416 listed rack when assembled by Hammond as a complete cabinet |
| Component Note | Individual components are not UL2416 or seismic rated independently; must be assembled as a complete cabinet to meet certification requirements |
| RoHS Compliant | Yes |
| Seismic Rating | 1200 lb dynamic load (IBC, CBC, NBC, ASCE standards) when assembled by Hammond |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Are mounting rails included with C4F307742BK1?▾
No. This is a frame-only part with no rails. For 19 in rails use C4PR77SZPL (square hole) or C4PR77TZPL (tapped 10-32); for 23 in rails use C4PR7723SZPL or C4PR7723TZPL. Rail pairs are ordered separately.
What is the load capacity?▾
The C4 platform is a UL2416 listed rack with a 3000 lb load rating and is seismic rated to a 1200 lb dynamic load when assembled by Hammond. Individual components such as this frame are not UL2416 or seismic rated on their own and must be assembled as a complete cabinet to meet the certification.
How much usable mounting space does the 44U frame provide?▾
77.00 in (1956 mm) of usable mounting height, equal to 44U, and 40.00 in (1016 mm) of usable mounting depth. Mounting depth is infinitely adjustable using C-channel struts.
Does the overall 83.58 in height include the leveling feet?▾
Yes. Overall height includes the four leveling feet, which use a 5/16-18 thread. The frame also has a caster mounting pattern for optional casters and four threads for optional eye-bolts.
What are the benefits of the 30 in wide frame?▾
The 30 in wide frame provides extra generous cabling space and supports up to four optional vertical cable managers, which suits high-density and side-access cable routing requirements.
Does the frame have top cable entry?▾
Yes. The drawing shows four 3.50 in (89 mm) cable entry holes on the top, and cable entry plugs are included.
Related Products
Save 35%C4F307736BK1 — 44U 30W 36D C4 Frame Only
Hammond Manufacturing · C4F307736BK1
C4F307748BK1 — 44U 30W 48D C4 Frame Only
Hammond Manufacturing · C4F307748BK1
Save 35%C4F307731BK1 — 44U 30W 31.5D C4 Frame Only
Hammond Manufacturing · C4F307731BK1

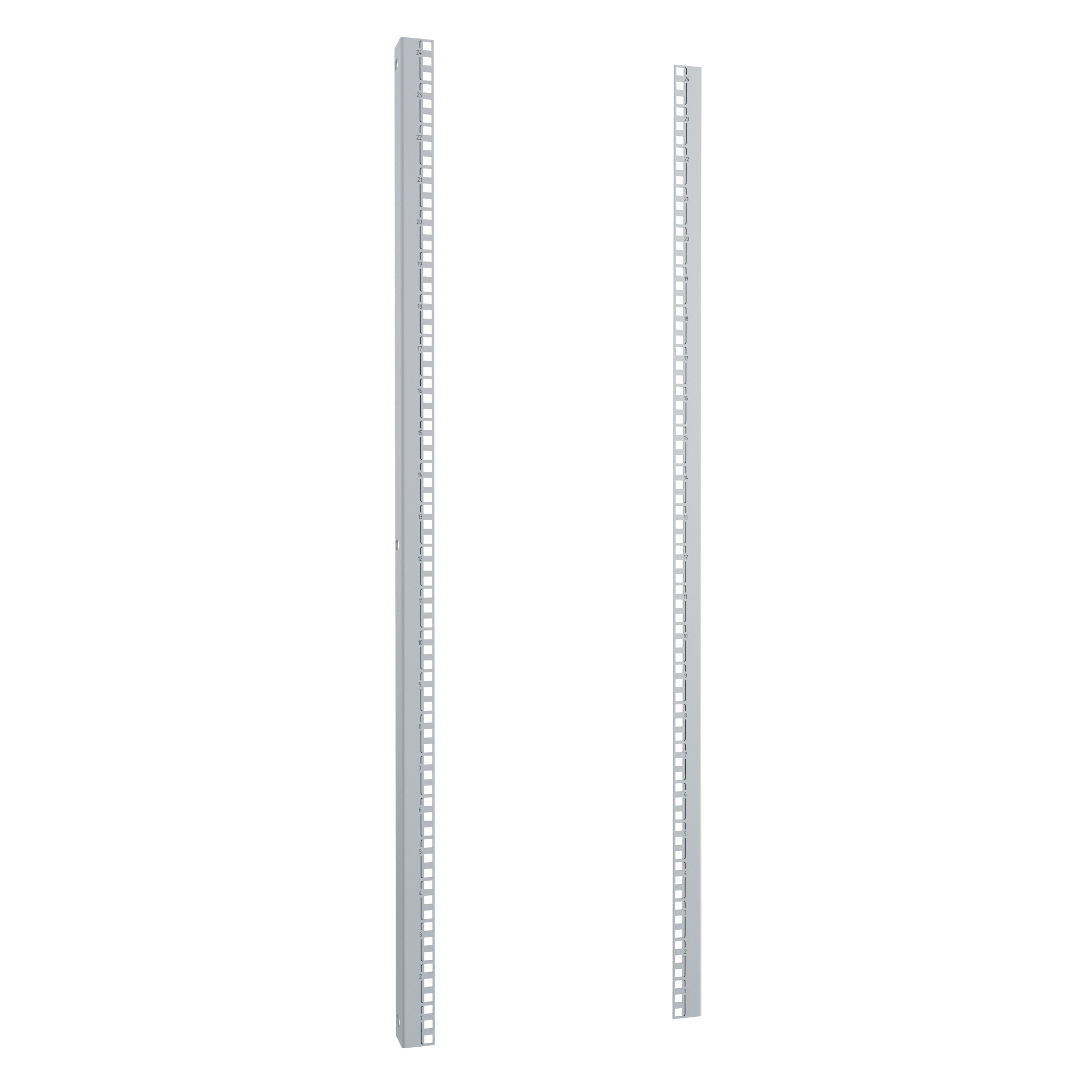

Save 35%C4PR2442SZPL — 24U Square Hole Rack Rail
