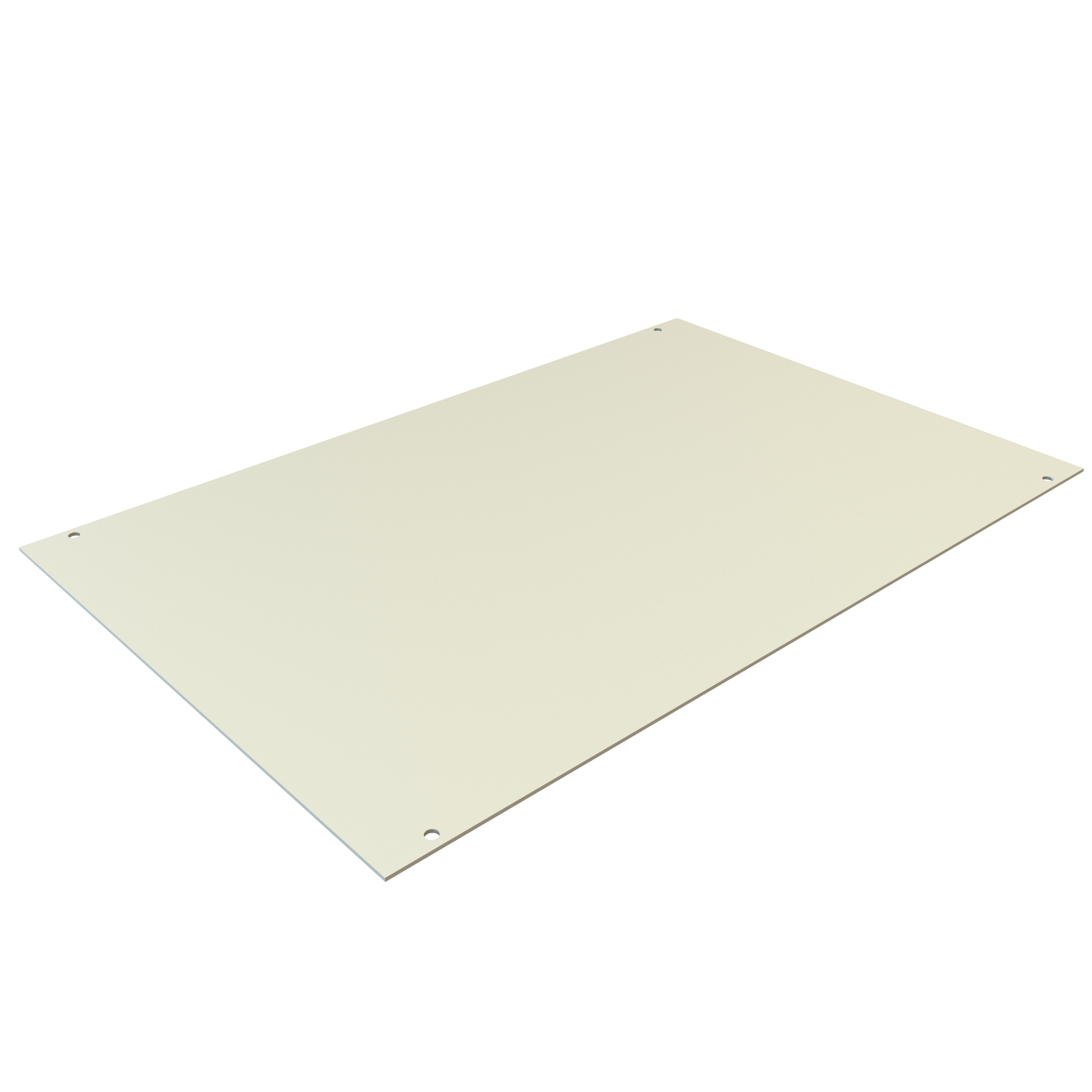

Hammond C2BPS1931LG1 Solid Steel Bottom Panel for 31 in Deep C2 Cabinet
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid bottom panel for C2 and C2RR cabinet series, encloses the cabinet base for airflow management
- Listed for use with C2F19xx31xx and C2F19xx36xx cabinet frames
- 14 gauge mild steel construction
- RAL7035 light gray textured powder paint coat; paint complies with Greenguard indoor air quality guidelines
- Mounting hardware included: 6 x 8-32 clip nuts and 6 x 8-32 x 0.5 in machine screws (replacement kit CLPKIT832-6)
- Four Ø.22 in (6 mm) mounting holes; overall 18.50 x 18.00 in (470 x 457 mm)
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America
The C2BPS1931LG1 is a solid bottom panel designed specifically for Hammond C2 cabinet frames. It closes off the base of the cabinet so that airflow through the enclosure can be managed and directed, making it a practical finishing component for IT, AV and network integrators building out C2 and C2RR cabinet systems.
Construction is 14 gauge mild steel, finished in RAL7035 light gray textured powder paint coat. The paint finish complies with the Greenguard guidelines for indoor air quality, and the panel is RoHS and REACH compliant, TAA-compliant for GSA Schedule purchases, USMCA compliant and manufactured in North America.
Per the drawing, the panel measures 18.50 in (470 mm) by 18.00 in (457 mm) overall, with 17.69 in (449 mm) and 15.75 in (400 mm) reference dimensions and four Ø.22 in (6 mm) mounting holes. Shipping weight is 7 lbs (3.18 kg).
C2BPS1931LG1 is listed for use with C2F19xx31xx and C2F19xx36xx cabinet frames. Cabinet mounting hardware is included in the box: six 8-32 clip nuts in black oxide finish and six 8-32 x 0.5 in zinc plated machine screws, with CLPKIT832-6 listed as the replacement hardware part number. A black version of the same panel is offered as C2BPS1931BK1 for installations that require RAL9005 black.
Ideal For
- Enclosing the base of C2 and C2RR server cabinets
- Airflow management in data centre and network cabinets
- TAA-compliant GSA Schedule cabinet build-outs
- Retrofitting or replacing a bottom panel on 31 in and 36 in deep C2 cabinet frames
Overview
| Series | C2B Series Bottom Panels |
| Function | Encloses cabinets for airflow management |
| Panel Type | Solid |
| Description | C2 Solid Bottom Panel |
| Part Number | C2BPS1931LG1 |
Dimensions
| Overall Depth | 18.00 in (457 mm) |
| Overall Width | 18.50 in (470 mm) |
| Mounting Holes | 4X Ø .22 in (6 mm) |
| Reference Dimension | 15.75 in (400 mm) |
Identifiers
| UPC | 623980120348 |
| UNSPSC | 43201611 |
| GTIN-14 | 00623980120348 |
| Tariff Code | 8538.10.0000 |
| Country Of Origin | CA |
| UPC W/o Check Digit | 62398012034 |
| Manufacturing Location | Manufactured in North America |
Rack Mounting
| Use With Cabinet Frame | C2F19xx31xx, C2F19xx36xx |
| Compatible Cabinet Series | C2 and C2RR |
Included Items
| Bottom Panel | 1 |
| 8-32 Clip Nut (Black Oxide Finish) | 6 (replacement part CLPKIT832-6) |
| 8-32 X 0.5 In Machine Screw (Zinc Plated) | 6 (replacement part CLPKIT832-6) |
Packaging & Shipping
| Shipping Weight | 7 lbs (3.18 kg) |
Construction & Finish
| Finish | RAL7035 Light Gray textured powder paint coat |
| Material | Mild Steel, 14 gauge |
| Black Equivalent Part | C2BPS1931BK1 (RAL9005 black) |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant for GSA Schedule purchases |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
| Indoor Air Quality | Paint finish complies with Greenguard guidelines |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinet frames does C2BPS1931LG1 fit?▾
It is listed for use with C2F19xx31xx and C2F19xx36xx cabinet frames, part of the C2 and C2RR cabinet series.
Is mounting hardware included?▾
Yes. The box includes the bottom panel, six 8-32 clip nuts with black oxide finish and six 8-32 x 0.5 in zinc plated machine screws. The replacement hardware part number is CLPKIT832-6.
What colour and material is this panel?▾
It is 14 gauge mild steel finished in RAL7035 light gray textured powder paint coat. A RAL9005 black version is available as C2BPS1931BK1.
Is this panel vented or solid?▾
C2BPS1931LG1 is a solid bottom panel. It encloses the cabinet base for airflow management. Brushed (C2BBCE) and microcell (C2BPCE) bottom panel styles are listed separately in the C2B series.
Is this part TAA compliant for government purchases?▾
Yes, the C2B series is TAA-compliant for GSA Schedule purchases, and this panel is also RoHS, REACH and USMCA compliant.
What are the overall dimensions and weight?▾
The drawing shows 18.50 in (470 mm) by 18.00 in (457 mm) with four Ø.22 in (6 mm) mounting holes. Shipping weight is 7 lbs (3.18 kg).
