Hammond C2BPS1923LG1 Solid Bottom Panel, 14 Gauge Steel, Light Gray
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Solid bottom panel for C2 and C2RR cabinet frames, for use with C2F19xx23xx cabinet frames
- 14 gauge mild steel construction
- Finished in RAL7035 light gray powder paint coat, painted light gray texture
- Encloses the cabinet base to support airflow management
- Mounting hardware included: 6 x 8-32 clip nuts and 6 x 8-32 x 0.5 in machine screws (CLPKIT832-6)
- Paint finish complies with Greenguard guidelines for indoor air quality
- TAA-compliant for GSA Schedule purchases; RoHS, REACH and USMCA compliant
- Manufactured in North America; 5 lbs (2.27 kg) shipping weight

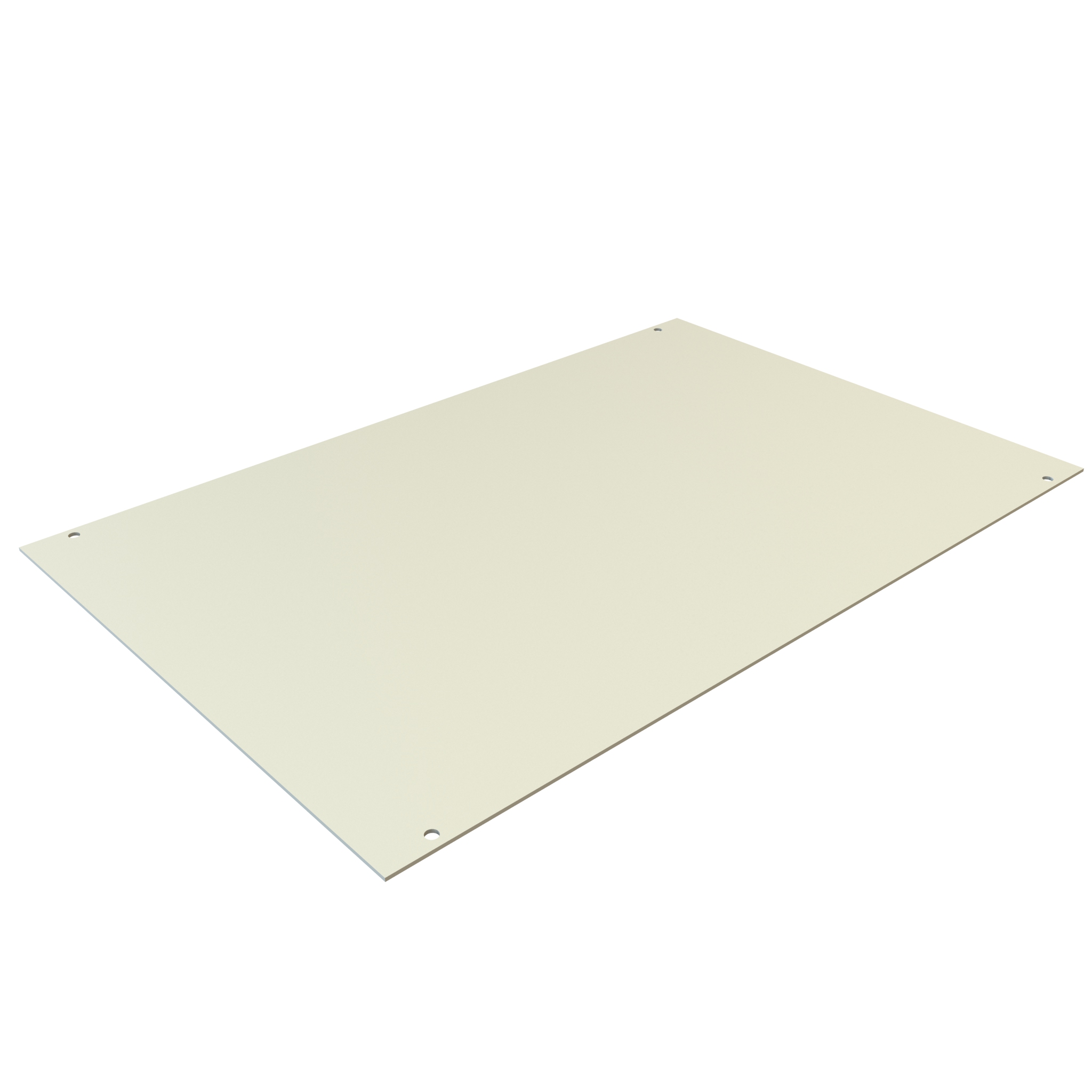

The C2BPS1923LG1 is a solid bottom panel from the C2B Series, designed specifically for C2 and C2RR cabinet frames. It closes off the base of the cabinet so that airflow can be directed and managed inside the enclosure, making it a practical finishing component for IT and AV integrators, electricians and facilities teams building out cabinet frames on site.
Construction is 14 gauge mild steel, finished in a RAL7035 light gray powder paint coat with a textured appearance. The paint finish complies with the Greenguard guidelines for indoor air quality, and the part is RoHS and REACH compliant, USMCA compliant and TAA-compliant for GSA Schedule purchases. It is manufactured in North America.
Overall panel dimensions from the drawing are 17.69 in (449 mm) by 15.75 in (400 mm), with additional 11.50 in (292 mm) and 11.00 in (279 mm) features shown in the top view and four 0.22 in (6 mm) diameter holes. Shipping weight is 5 lbs (2.27 kg). The nominal size designation 1923 corresponds to use with C2F19xx23xx cabinet frames; the same C2BPS1923LG1 solid panel is also offered in RAL9005 black as C2BPS1923BK1.
Mounting hardware is included in the box: one bottom panel, six 8-32 clip nuts with black oxide finish and six 8-32 x 0.5 in zinc plated machine screws. That hardware is also available as replacement kit CLPKIT832-6, so spares can be ordered separately if fasteners are lost during installation.
Ideal For
- Closing the base of C2 and C2RR cabinet frames
- Airflow management in server and network cabinets
- Data centre and IT cabinet build-outs
- TAA-compliant GSA Schedule cabinet projects
Overview
| Series | C2B Series Bottom Panels |
| Function | Encloses cabinets for airflow management |
| Panel Type | Solid Bottom Panel |
| Part Number | C2BPS1923LG1 |
| Nominal Size | 1923 (C2BPS1923) |
| Short Description | C2 SOLID BOTTOM PANEL |
Dimensions
| Overall Width | 15.75 in / 400 mm |
| Overall Length | 17.69 in / 449 mm |
| Top View Dimension | 11.00 in / 279 mm |
Identifiers
| UPC | 623980120324 |
| UNSPSC | 43201611 |
| GTIN-14 | 00623980120324 |
| UPC W/o Check Digit | 62398012032 |
Rack Mounting
| Use With Cabinet Frame | C2F19xx23xx |
| Compatible Cabinet Series | C2 and C2RR cabinet series |
Included Items
| Bottom Panel | 1 |
| Mounting Hardware | Included |
| 8-32 Clip Nut (Black Oxide Finish) | 6 (replacement part CLPKIT832-6) |
| 8-32 X 0.5" Machine Screw (Zinc Plated) | 6 (replacement part CLPKIT832-6) |
Packaging & Shipping
| Tariff Code | 8538.10.0000 |
| Shipping Weight | 5 lbs (2.27 kg) |
| Country Of Origin | CA (Manufactured in North America) |
Construction & Finish
| Gauge | 14 gauge steel |
| Material | Mild Steel |
| Finish / Colour | RAL7035 Light Gray powder paint coat (painted light gray texture) |
| Black Equivalent Part | C2BPS1923BK1 (RAL9005 black) |
Environmental & Protection
| Indoor Air Quality | Paint finish complies with Greenguard guidelines |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant (for GSA Schedule purchases) |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which cabinet frames does C2BPS1923LG1 fit?▾
It is listed for use with C2F19xx23xx cabinet frames and is intended for the C2 and C2RR cabinet series.
What colour and finish is this panel?▾
C2BPS1923LG1 is finished in RAL7035 light gray powder paint coat with a painted light gray texture. The same panel in RAL9005 black is C2BPS1923BK1.
Is mounting hardware included?▾
Yes. The box contains one bottom panel, six 8-32 clip nuts (black oxide finish) and six 8-32 x 0.5 in zinc plated machine screws. That hardware set is also sold as CLPKIT832-6.
What are the panel dimensions?▾
The drawing shows overall dimensions of 17.69 in (449 mm) by 15.75 in (400 mm), with 11.50 in (292 mm) and 11.00 in (279 mm) features in the top view and four 0.22 in (6 mm) diameter holes.
Is this panel suitable for government purchases?▾
It is TAA-compliant for GSA Schedule purchases, and is RoHS, REACH and USMCA compliant. Country of origin is Canada.
Is this a solid panel or a vented one?▾

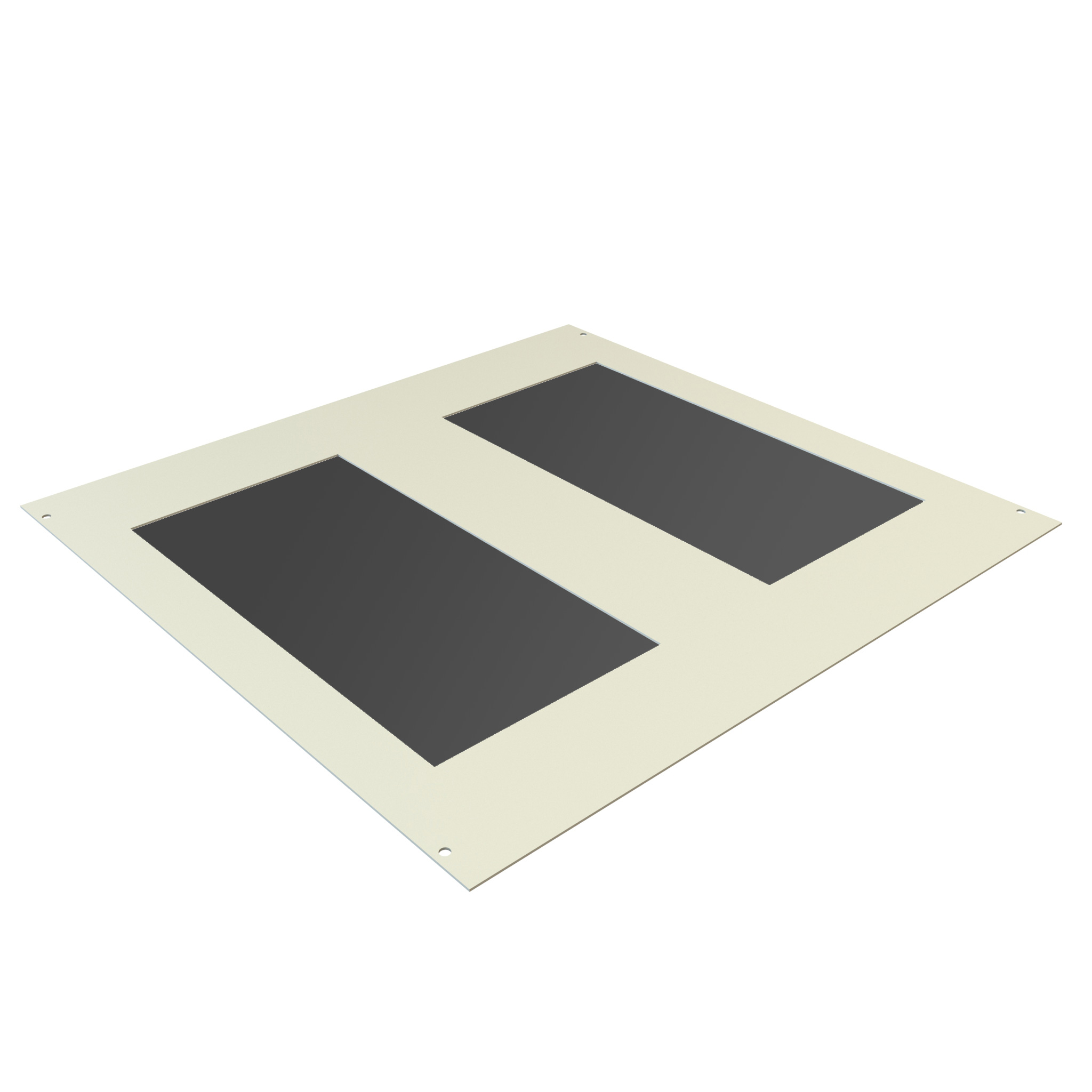

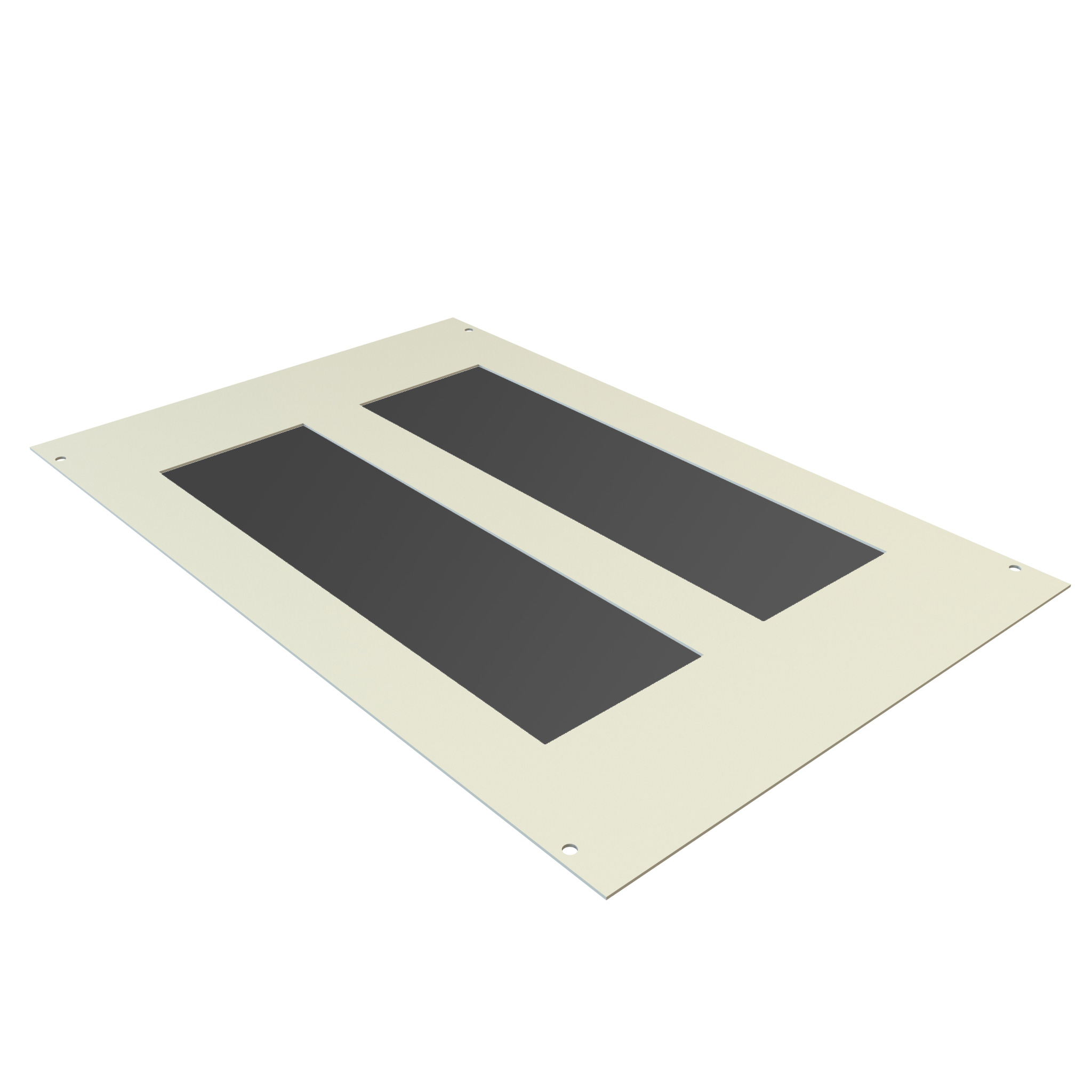

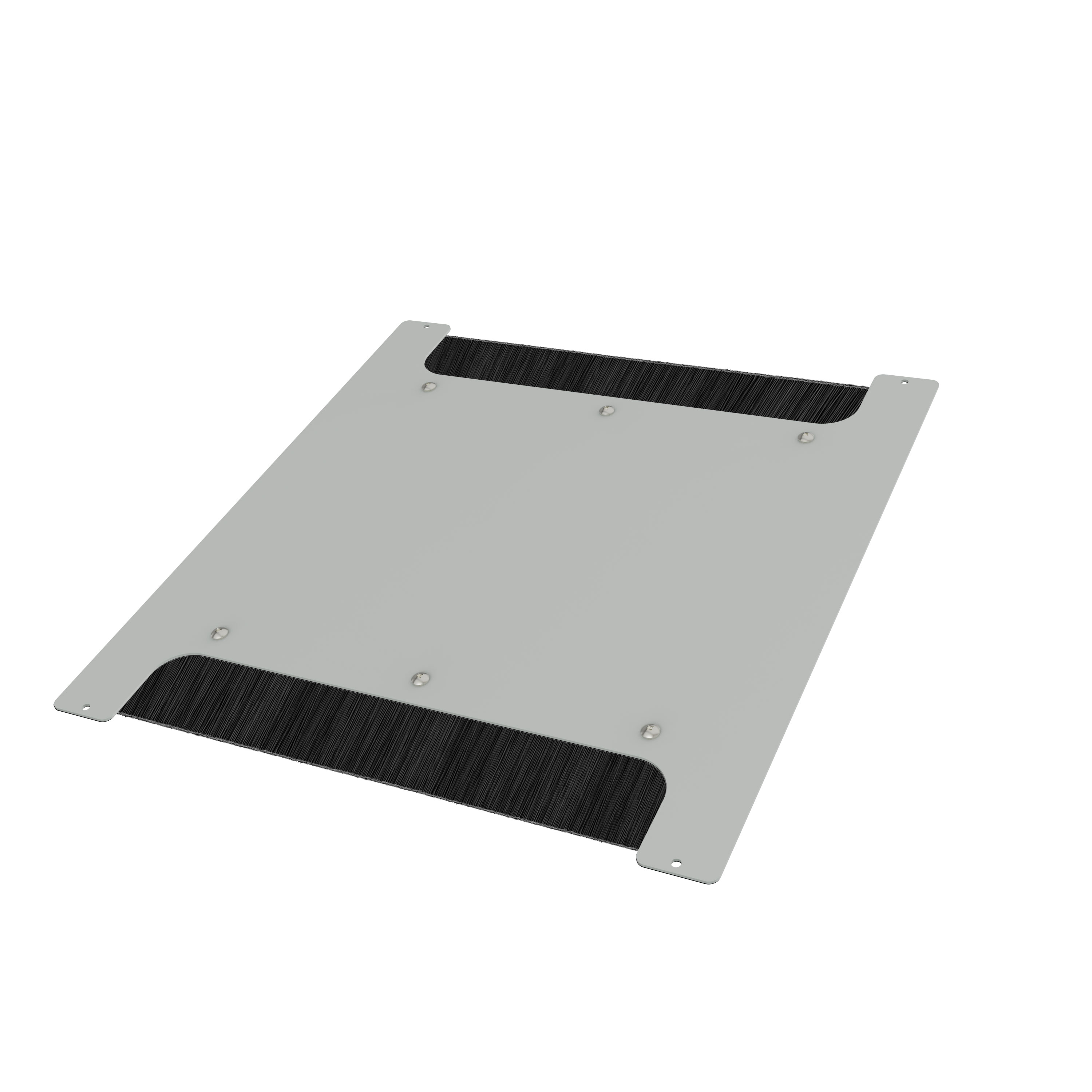

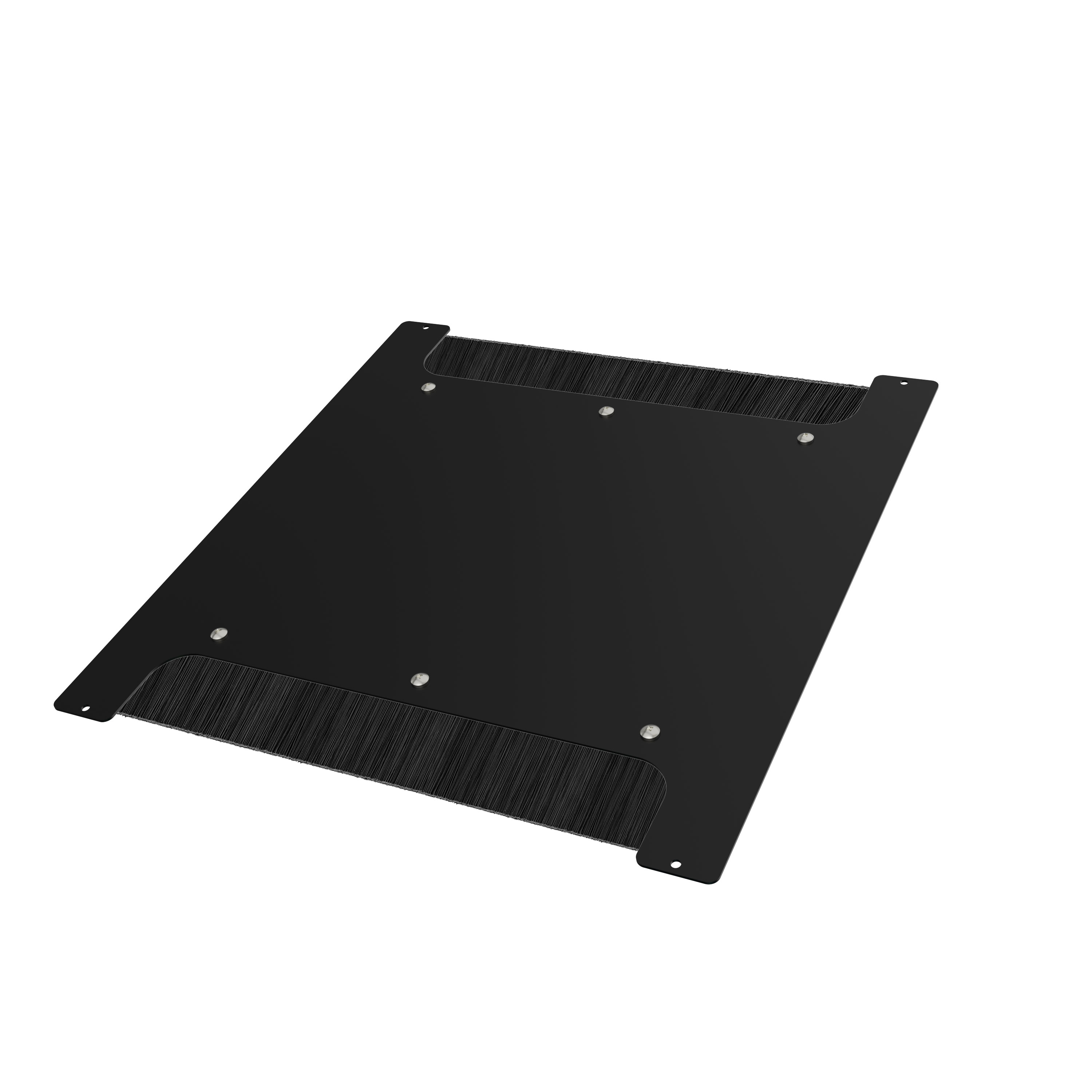

C2BPS1923LG1 is a solid bottom panel. The C2B Series also lists brushed (C2BBCE) and microcell (C2BPCE) bottom panel versions.
Related Products

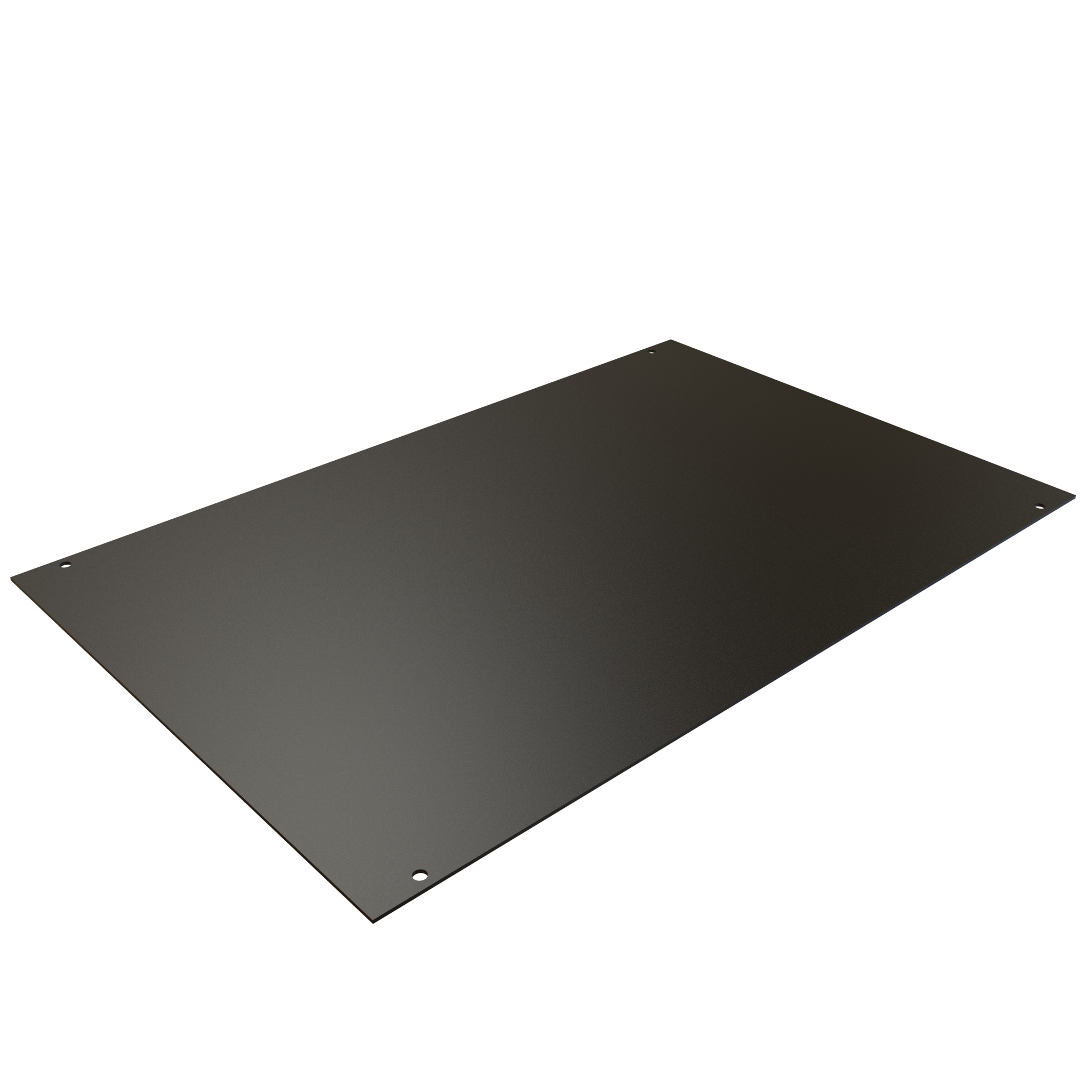

Save 35%C2BPS1923BK1 — C2 Solid Bottom Panel
Hammond Manufacturing · C2BPS1923BK1

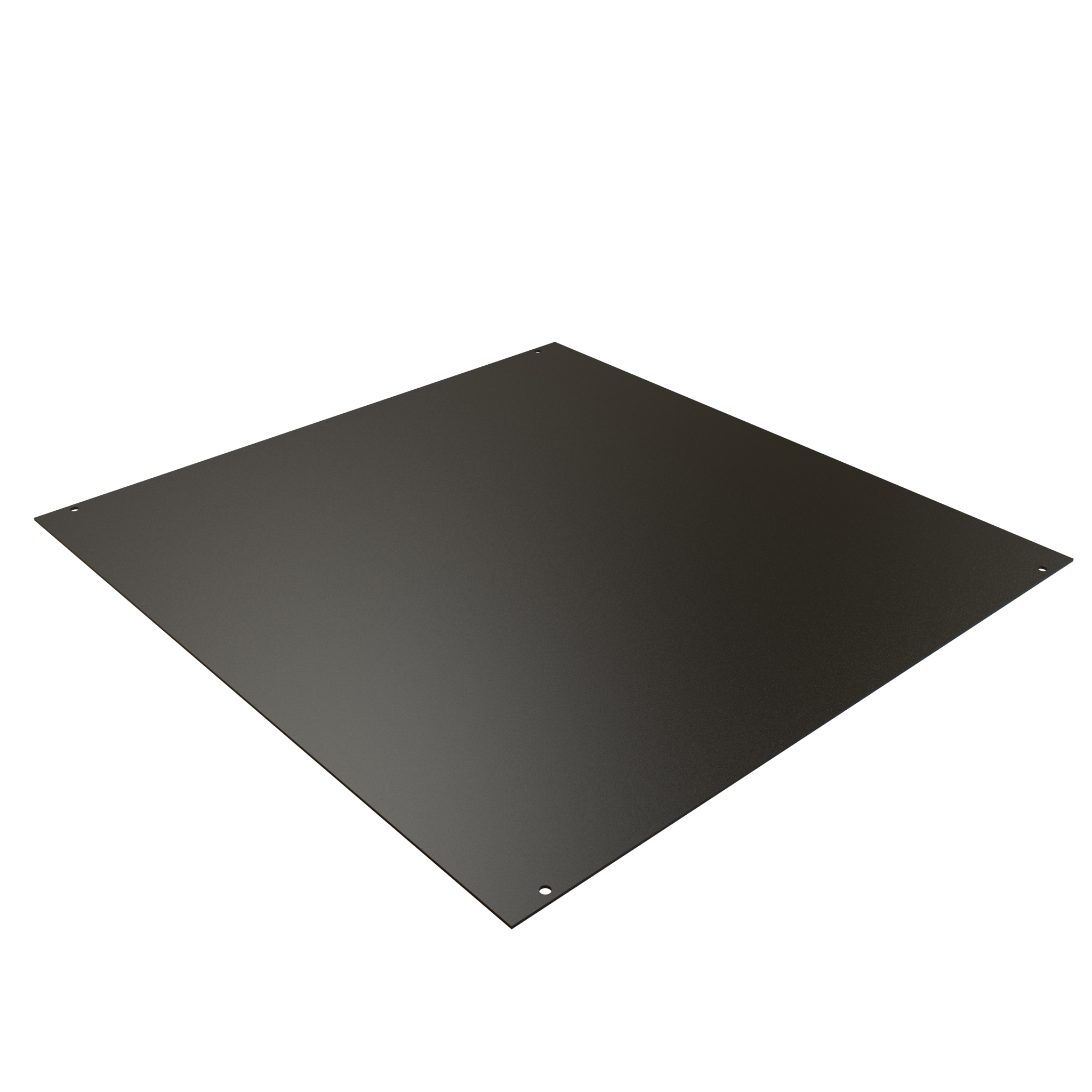

Save 35%C2BPS1931BK1 — C2 Solid Bottom Panel
Hammond Manufacturing · C2BPS1931BK1

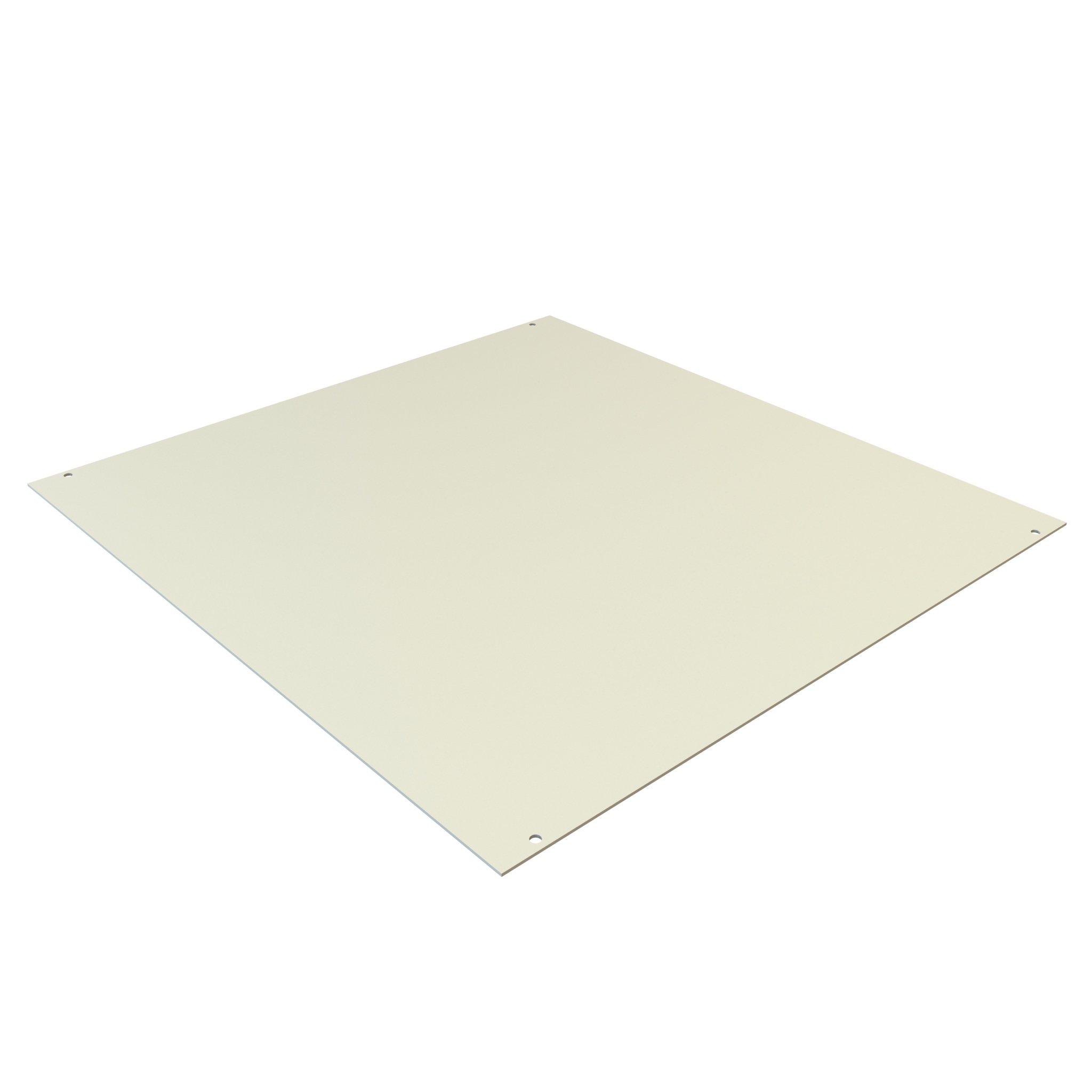

Save 35%C2BPS1931LG1 — C2 Solid Bottom Panel
Hammond Manufacturing · C2BPS1931LG1

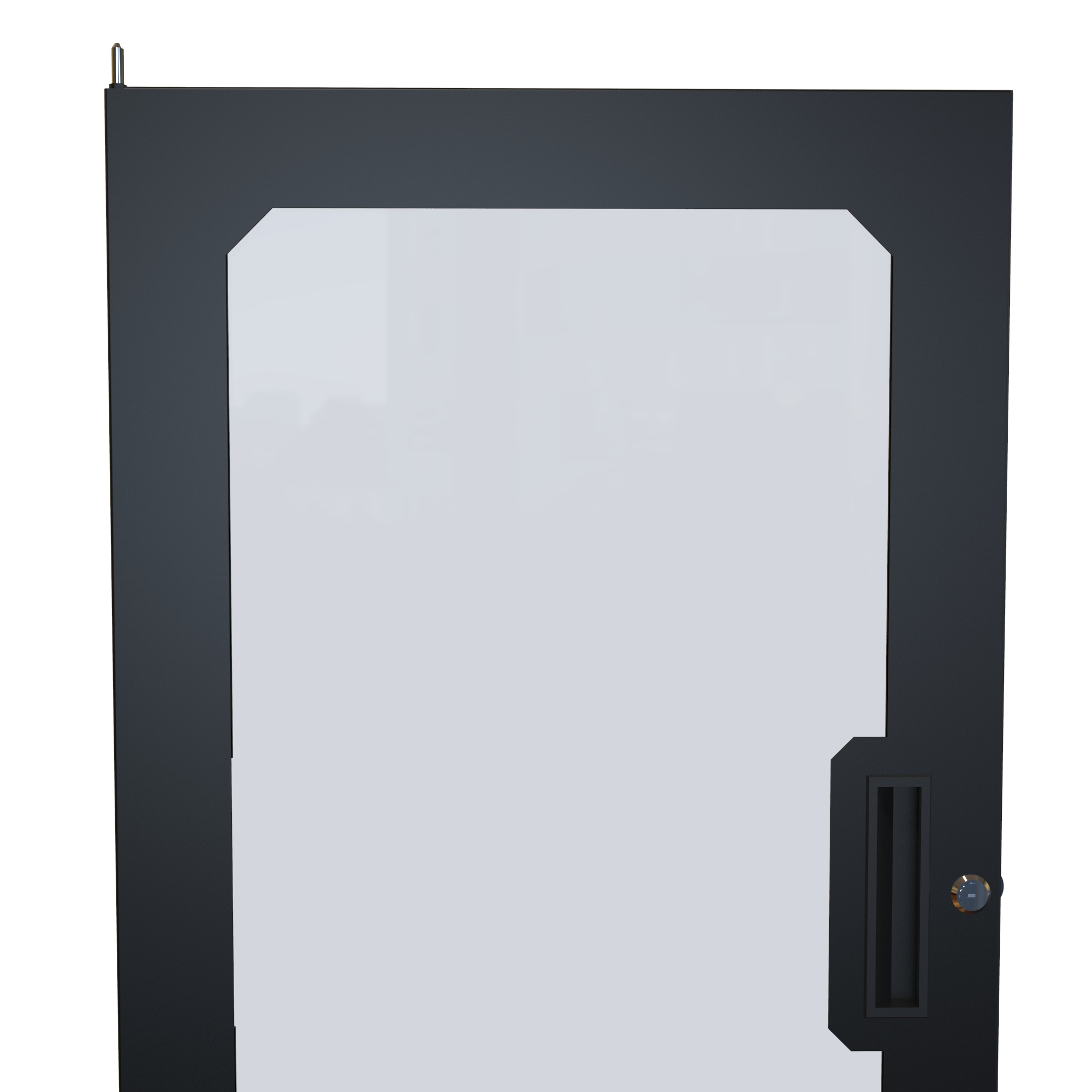

Save 35%C2DF1935PBK1 — 20U Window Door for C2 Frame
