Hammond ADSV2536BK 1U Vented Adjustable Shelf, 25-36 in Depth

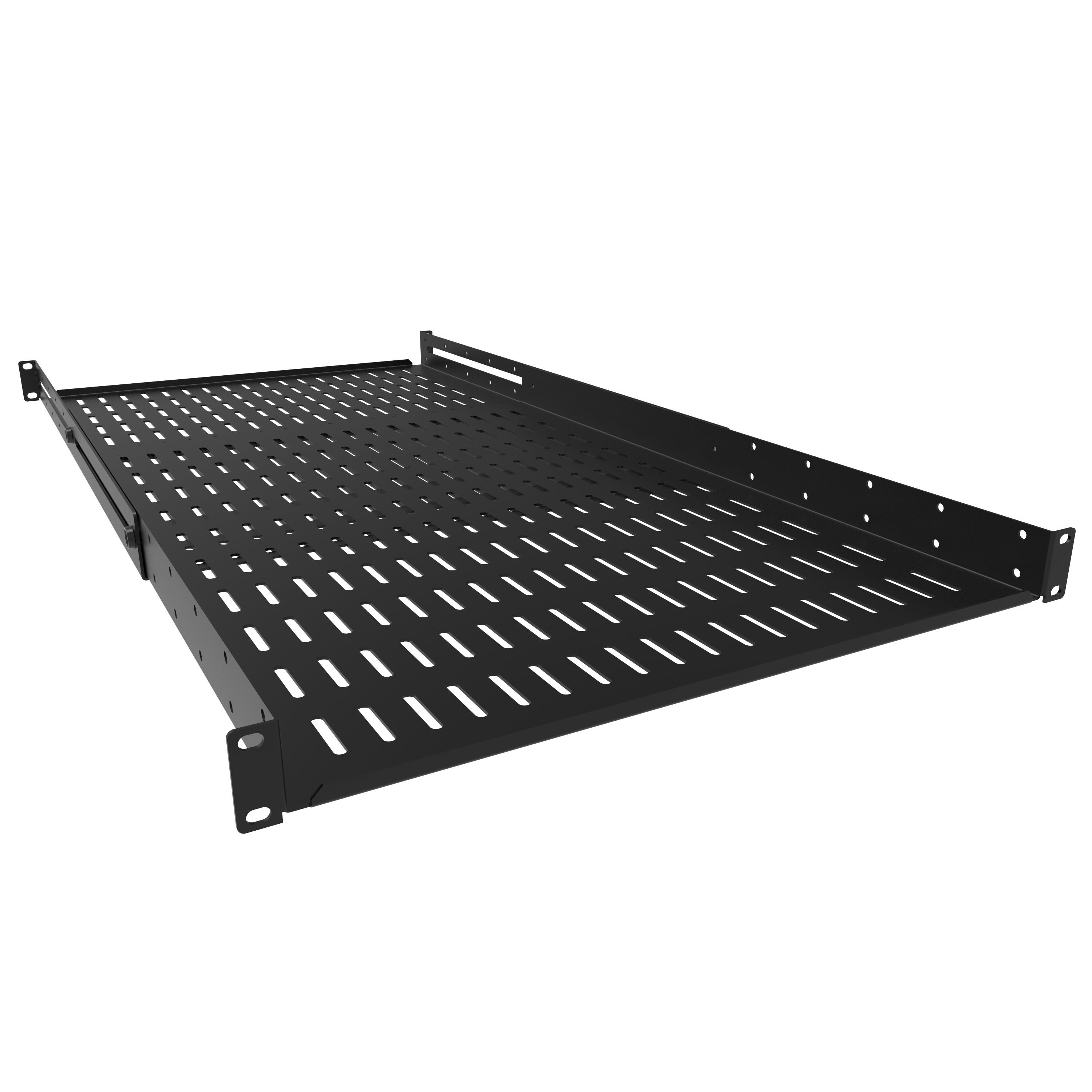

The ADSV2536BK is a 1U vented, adjustable-depth server rack shelf from the ADS Series, built to support heavy rack-mounted and non-rackmount equipment in standard 4-post racks and cabinets. Its telescoping front and rear trays adjust from 25.00 in (635 mm) to 36.00 in (914 mm) of depth, so a single shelf can be fitted to a wide range of cabinet depths without additional hardware. The vented tray is chosen when airflow around the supported equipment matters.

Construction is 14-gauge steel with a black powder coat finish described as painted black textured. The material is mild steel, and the finish is stated as GREENGUARD, TSCA and RoHS compliant. The part is manufactured in North America in an ISO 9001 certified facility and is TAA-compliant, with country of origin listed as Canada.

Overall dimensions are 1.72 in (44 mm) high by 19.00 in (483 mm) wide, occupying 1U of rack space (1.25 in). The drawing shows a 19 in mounting width of 18.31 in (465 mm) and an inside width of 17.40 in (442 mm), with 0.24 in x 1.50 in (6 mm x 38 mm) mounting slots. Nominal listed size is 1.75 in x 19 in x 36 in (44 mm x 483 mm x 914 mm), and shipping weight is 21.2 lbs (9.62 kg).

Maximum weight load for ADSV2536BK is 350 lbs (158 kg). The ADS Series states that shelves support up to 550 lb (250 kg) when used with the optional ADSB Heavy Duty Support Bar, which also adds stability for dynamic or segmented loads such as battery systems. The shelf ships fully assembled and can be installed tray-down or inverted for extra clearance; mounting hardware is not included.
