Hammond ADSB Heavy Duty Support Bar Pair for Adjustable Rack Shelves
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Increases ADS Series shelf capacity to 550 lb (250 kg); shelves alone are rated to 330 lb (150 kg)
- Sold as a pair with 2 ADSB spacer plates and mounting hardware included
- Adds stability for dynamic or segmented loads, including battery systems
- Mild steel construction with painted black thin film finish
- Compact 1.5 in x 17 in x 0.5 in (38 mm x 432 mm x 13 mm) profile; 4.41 lbs (2.00 kg)
- Listed as the optional support bar for all ADSU and ADSV 1U adjustable shelves
- Made in Canada, TAA-compliant, USMCA, RoHS and REACH compliant

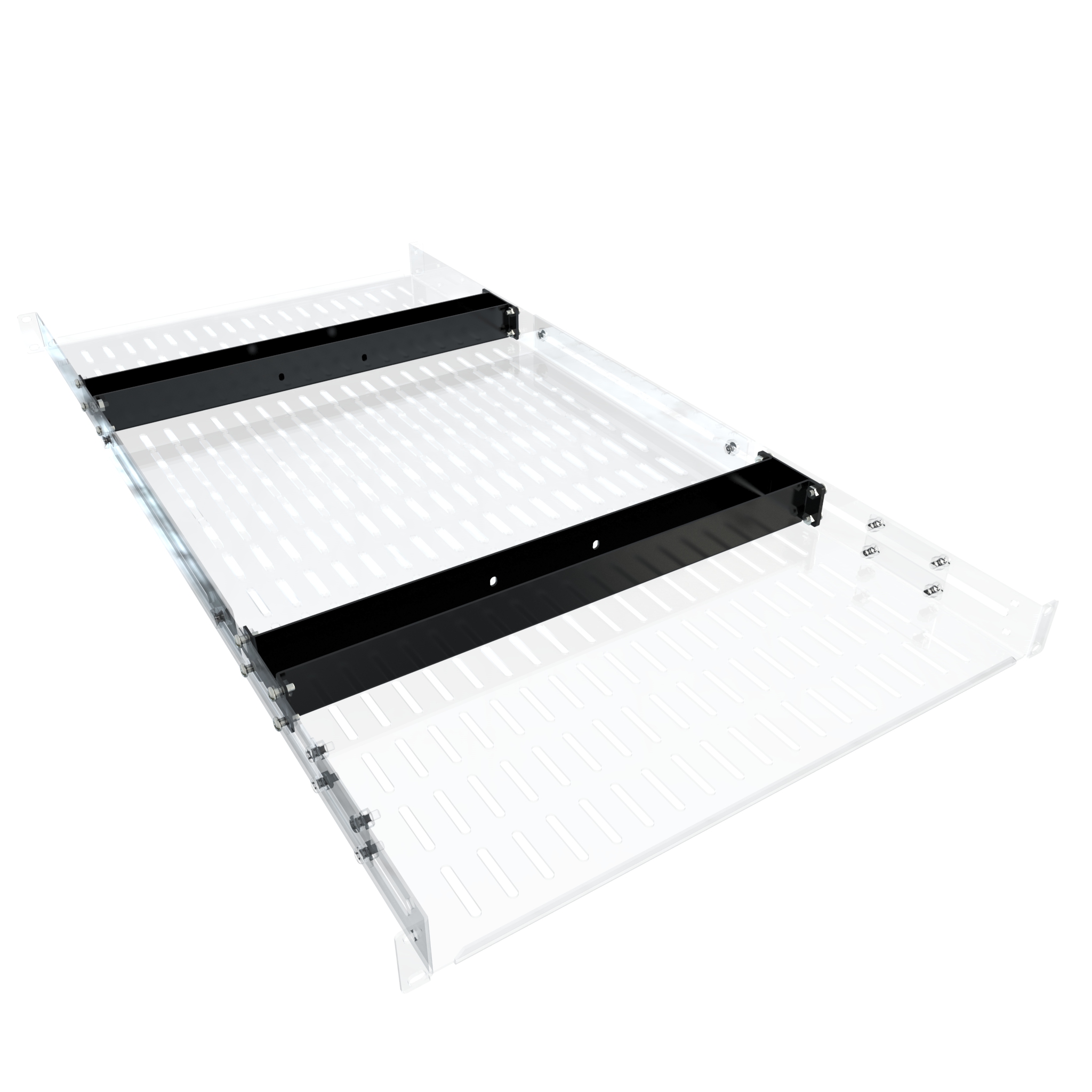

The ADSB is a heavy duty support bar kit for Hammond ADS Series adjustable server rack shelves. It is sold as a pair, complete with two spacer plates, and is intended for IT, telecom, industrial and AV installers who need to place servers, storage arrays, UPS units, battery equipment or other non-rackmount gear on a 1U adjustable shelf without exceeding the shelf's standalone rating.
Fitted to an ADS Series shelf, the ADSB increases the assembly's weight load rating to 550 lb (250 kg); without the support bar, the shelves support up to 330 lb (150 kg). It also adds stability for dynamic or segmented loads such as battery systems, making it useful where load is concentrated rather than evenly spread across the tray.
Each ADSB bar measures 1.5 in x 17 in x 0.5 in (38 mm x 432 mm x 13 mm), with the drawing showing a 17.36 in (441 mm) bar length, and the kit ships at 4.41 lbs (2.00 kg). Construction is mild steel with a painted black thin film finish, matching the black powder coat appearance of the ADS Series shelves. Mounting hardware is included, and the drawing notes the bar is for use with ADSV shelves to increase the weight load rating.
The kit is made in Canada, is USMCA compliant, TAA-compliant, and is RoHS and REACH compliant, with ECCN EAR99 and tariff code 7326.90.8688. The ADSB is listed as the optional support bar for ADSU1825BK, ADSV1825BK, ADSU2536BK, ADSV2536BK, ADSU3642BK and ADSV3642BK adjustable shelves. Consult the Hammond website for detailed weight load increases.
Ideal For
- Supporting heavy servers and storage arrays on adjustable rack shelves
- Mounting UPS systems and battery equipment in 4-post racks
- Stabilizing dynamic or segmented shelf loads
- Enterprise data center and telecommunications room installations
- Industrial automation and edge computing equipment racks
Overview
| Sold As | Pair, with 2 spacers |
| Function | For use with ADSV to increase weight load rating |
| Description | Support bar for ADS Series |
| Part Number | ADSB |
| Kit Contents | 2 x ADSB Support Bar, 2 x ADSB Spacer Plate, mounting hardware included |
| Product Type | Rack shelf accessory / heavy duty support bar |
| Long Description | Support bar for ADSV Series |
Dimensions
| Depth | 0.5 in (13 mm) |
| Width | 17 in (432 mm) |
| Height | 1.5 in (38 mm) |
| Size H X W X D | 1.5 in x 17 in x 0.5 in (38 mm x 432 mm x 13 mm) |
| Spacer Plate Detail | 1.55 in (39 mm) x 2.36 in (60 mm); 0.94 in (24 mm) |
| Bar Length (Drawing) | 17.36 in (441 mm) |
| Front View Height Detail | 1.44 in (37 mm) |
| Bar Width (Drawing, Top View) | 2.90 in (74 mm) |
Identifiers
| UPC | 623980605074 |
| UNSPSC | 43201618 |
| GTIN-14 | 00623980605074 |
| UPC W/o Check Digit | 62398060507 |
Load Rating
| Note | See Hammond website for weight load increases |
| Shelf Capacity With ADSB | Up to 550 lb (250 kg) |
| Shelf Capacity Without ADSB | Up to 330 lb (150 kg) |
Compatibility
| Shelf Rack Units | 1U |
| Compatible Shelves | ADSU1825BK, ADSV1825BK, ADSU2536BK, ADSV2536BK, ADSU3642BK, ADSV3642BK |
Packaging & Shipping
| Tariff Code | 7326.90.8688 |
| Shipping Weight | 4.41 lbs (2.00 kg) |
| Country Of Origin | CA |
Construction & Finish
| Finish | Painted black thin film |
| Material | Mild Steel |
Compliance & Certifications
| ECCN | EAR99 |
| Standards | TAA-compliant |
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
| USMCA Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does the ADSB support bar do?▾
It is a heavy duty support bar for ADS Series adjustable rack shelves. Used with the shelf, it increases the supported load to 550 lb (250 kg); without it the shelves support up to 330 lb (150 kg).
Is the ADSB sold individually or as a pair?▾
The drawing states it is sold as a pair with 2 spacers: 2 x ADSB Support Bar and 2 x ADSB Spacer Plate.
Is mounting hardware included?▾
Yes, the drawing notes that mounting hardware is included.
Which shelves does the ADSB fit?▾
It is listed as the optional heavy duty support bar for the ADS Series 1U adjustable shelves: ADSU1825BK, ADSV1825BK, ADSU2536BK, ADSV2536BK, ADSU3642BK and ADSV3642BK. The drawing notes use with ADSV to increase the weight load rating.
What are the ADSB dimensions and weight?▾
The listed size is 1.5 in x 17 in x 0.5 in (38 mm x 432 mm x 13 mm), with a drawing bar length of 17.36 in (441 mm). Shipping weight is 4.41 lbs (2.00 kg).
Is the ADSB TAA compliant?▾
Yes. It is TAA-compliant, made in Canada (North America), USMCA compliant, and RoHS and REACH compliant, with ECCN EAR99.
