Hammond 1590Z235PL 330x230mm Enclosure Galvanized Steel Inner Panel
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 16 gauge galvanized steel panel for 1590Z235, 1590Z235BK and 1590Z235GY
- 317 x 218 x 2 mm (12.47 x 8.57 x 0.06 in)
- 316.74 x 217.73 mm outline per drawing
- Mounts on the enclosure's internal mounting shelf
- Pairs with SCGM6-20 extra panel screws
- RoHS and REACH compliant; shrink wrapped

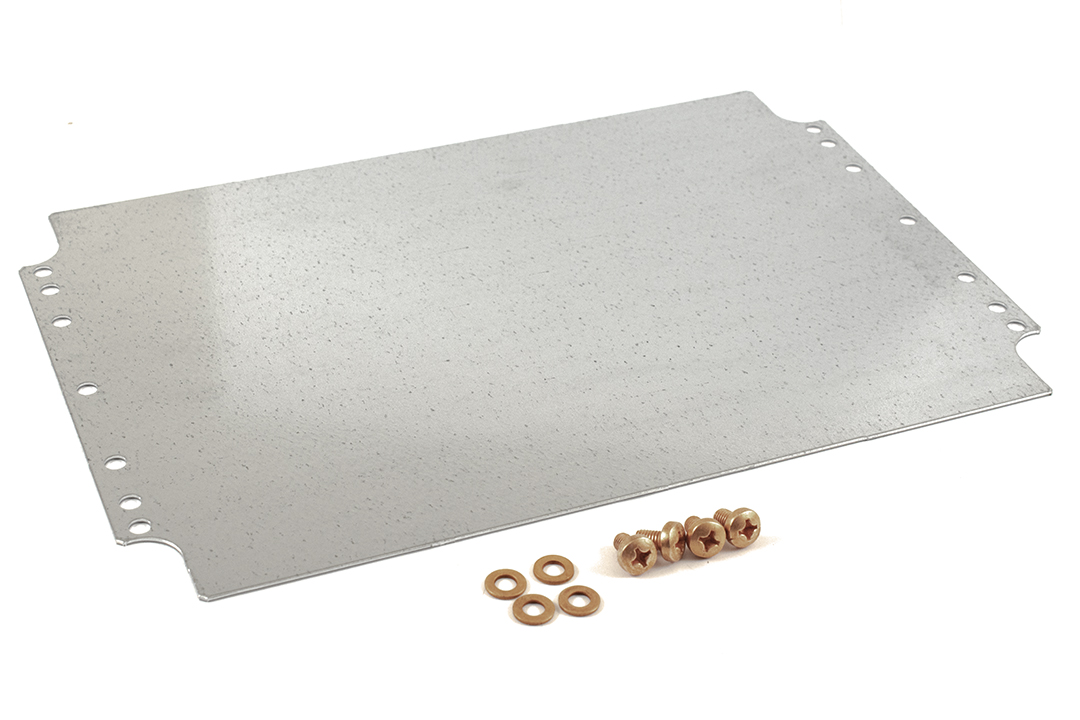

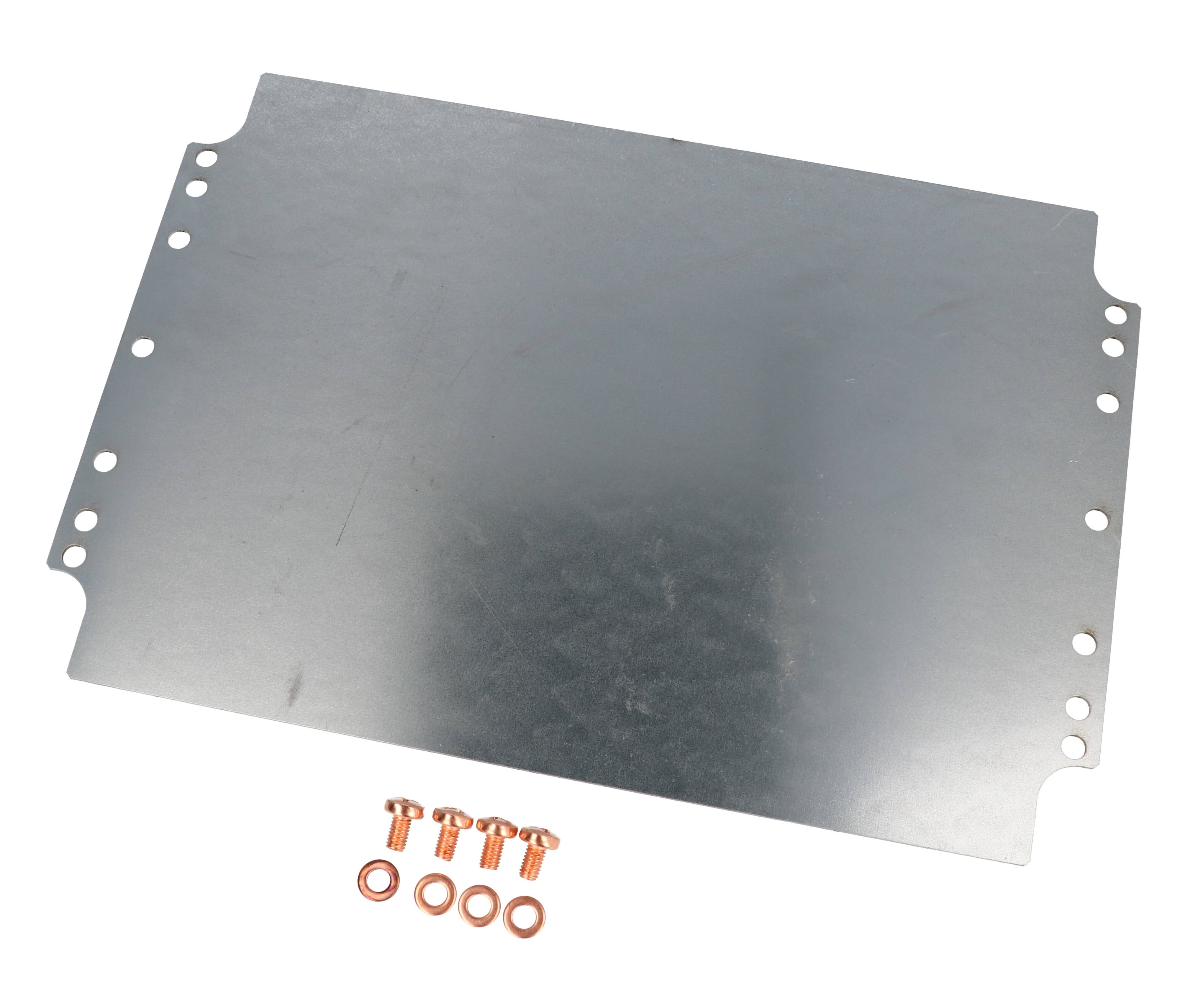

The 1590Z235PL is the optional inner mounting panel for the 330 x 230 mm 1590Z235 diecast aluminum enclosures, including 1590Z235BK (black) and 1590Z235GY (gray). It gives OEM assemblers a removable plate for boards and components inside the sealed enclosure.
Material is 16 gauge galvanized steel. The part page lists 12.47 in x 8.57 in x 0.06 in (317 mm x 218 mm x 2 mm), and the drawing's 316.74 x 217.73 mm outline corresponds to the enclosure's listed maximum P.C. board size.

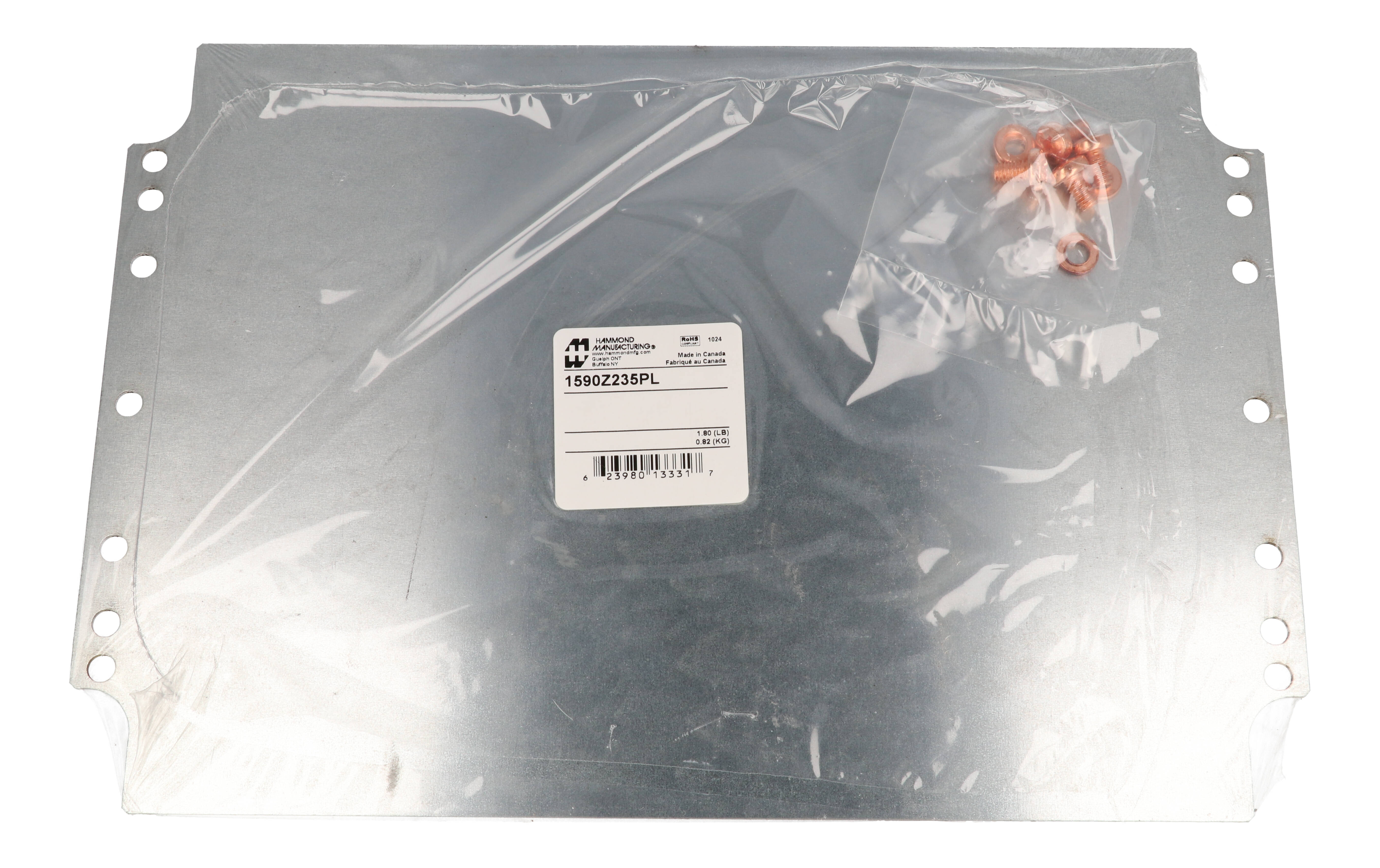

The panel seats on the 1590Z235 internal mounting shelf and uses SCGM6-20 extra panel screws per the series ordering table. It ships in shrink wrap with a shipping weight of 1.8 lbs (0.82 kg).
The drawing notes that enclosures can be factory modified and solid models are available in STEP or IGES. RoHS and REACH compliant. The 1590Z235 enclosure it fits is cUL and UL listed (File E65324), rated IP68 and NEMA 4, 4X, 6, 6P, 12 & 13, and its drawing shows 318.36 x 218.21 mm inside dimensions with 103.80 mm inside depth, leaving room above the panel for components.
Ideal For
- Component mounting plate for 1590Z235 enclosures
- Large PCB and terminal assemblies
- Bench pre-wiring of sealed electronics
Overview
| Type | Inner Panel |
| CAD Models | Solid models available in STEP or IGES |
| Product Type | Inner mounting panel |
| Fits Enclosures | 1590Z235, 1590Z235BK, 1590Z235GY |
| Short Description | 1590Z235 INNER PANEL |
Dimensions
| Size (L X W X H) | 12.47 in x 8.57 in x 0.06 in (317 mm x 218 mm x 2 mm) |
| Outline (Drawing) | 316.74 mm x 217.73 mm [12.47 in x 8.57 in] |
Identifiers
| UPC | 623980133317 |
| UNSPSC | 39121301 |
| Part Number | 1590Z235PL |
Installation
| Panel Screws | SCGM6-20 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 1.8 lbs (0.82 kg) |
Construction & Finish
| Material | 16 gauge galvanized steel |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does it fit?▾
1590Z235, 1590Z235BK and 1590Z235GY.
What are the panel dimensions?▾
12.47 in x 8.57 in x 0.06 in (317 mm x 218 mm x 2 mm).
What is it made of?▾
16 gauge galvanized steel, per the drawing.
How is it installed?▾
On the enclosure's internal mounting shelf, using SCGM6-20 extra panel screws per the ordering table.
Related Products

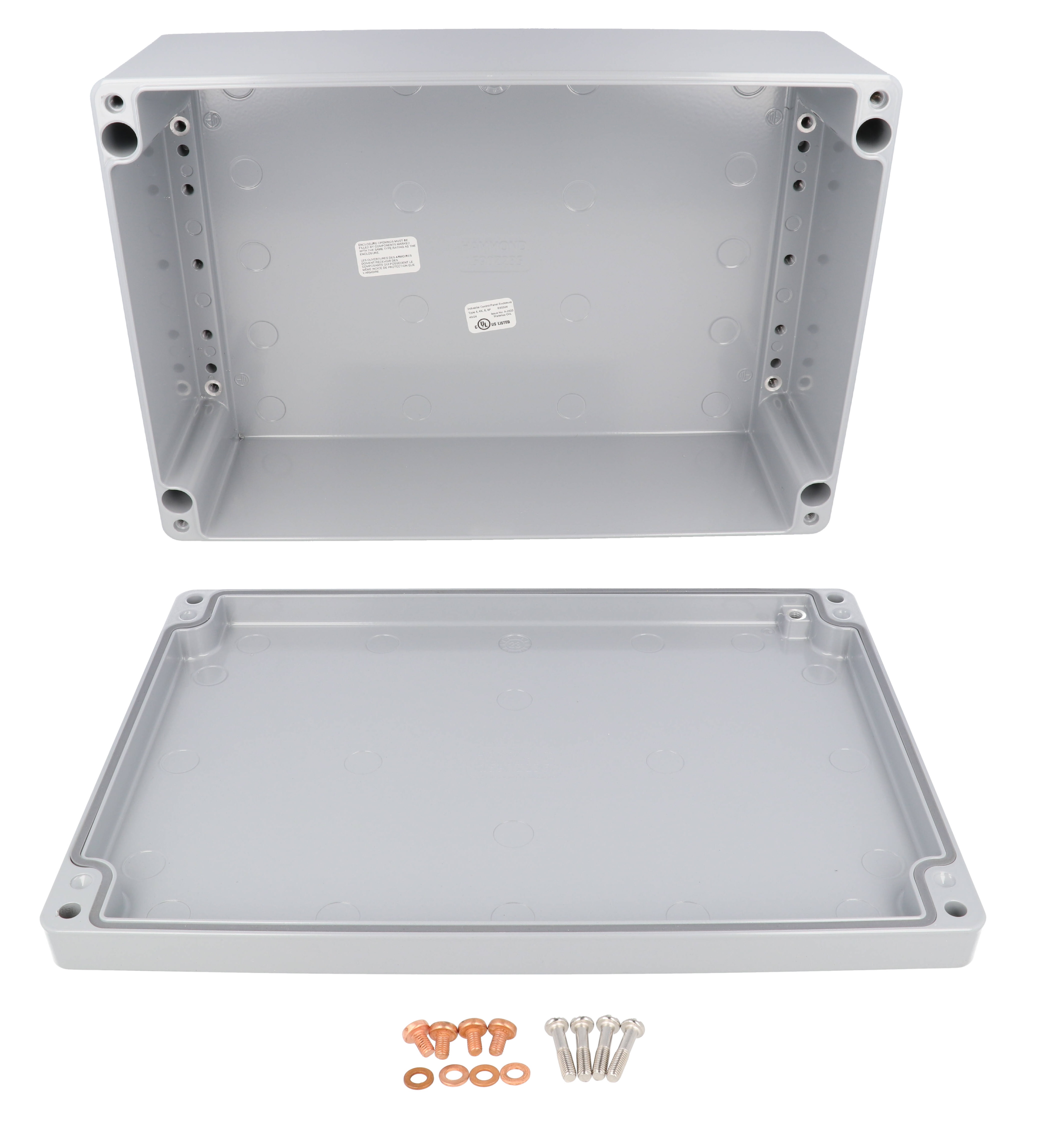

Save 52%1590Z235GY — enclosure - diecast
Hammond Manufacturing · 1590Z235GY

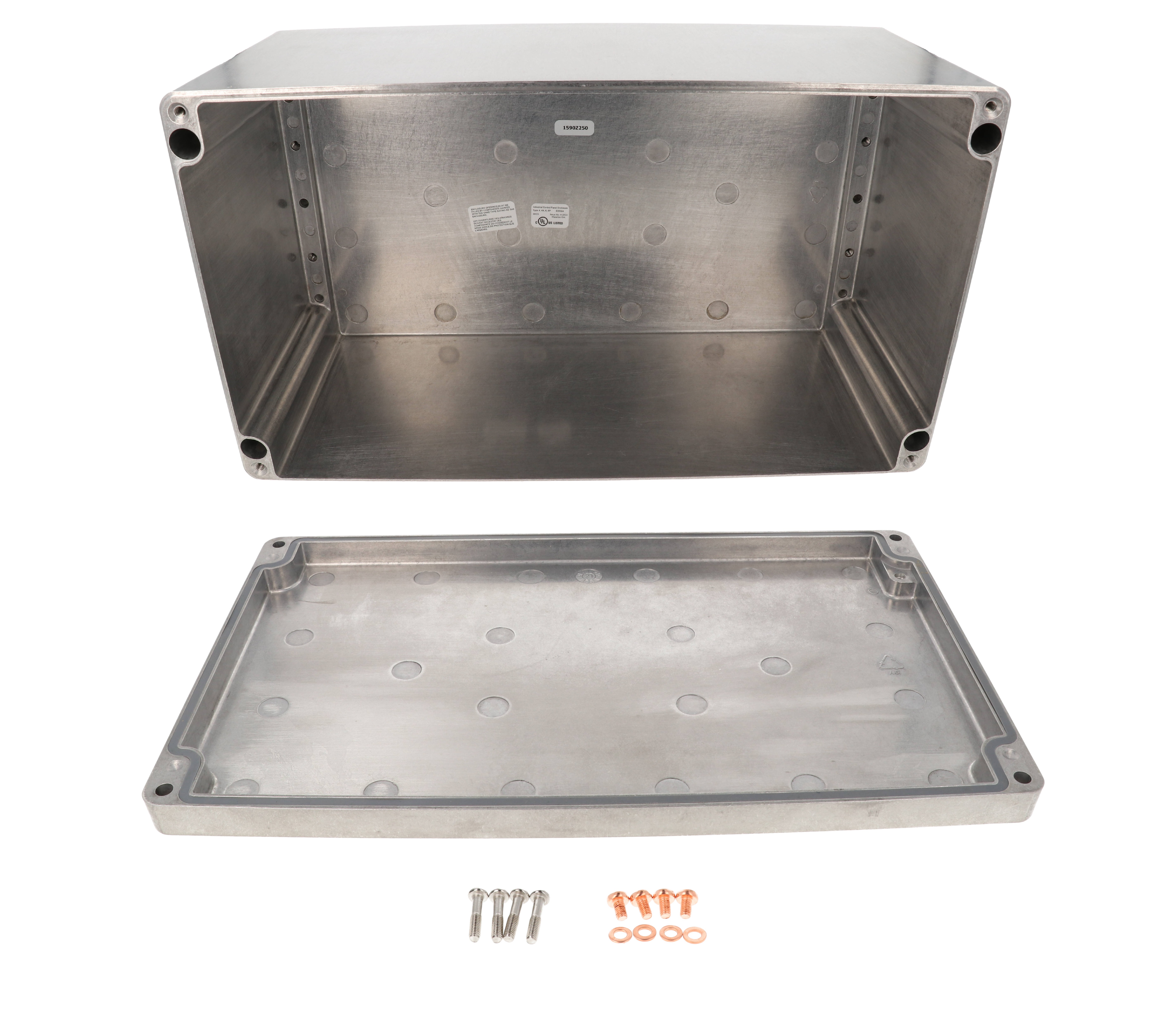

Save 52%1590Z250 — enclosure - diecast
Hammond Manufacturing · 1590Z250

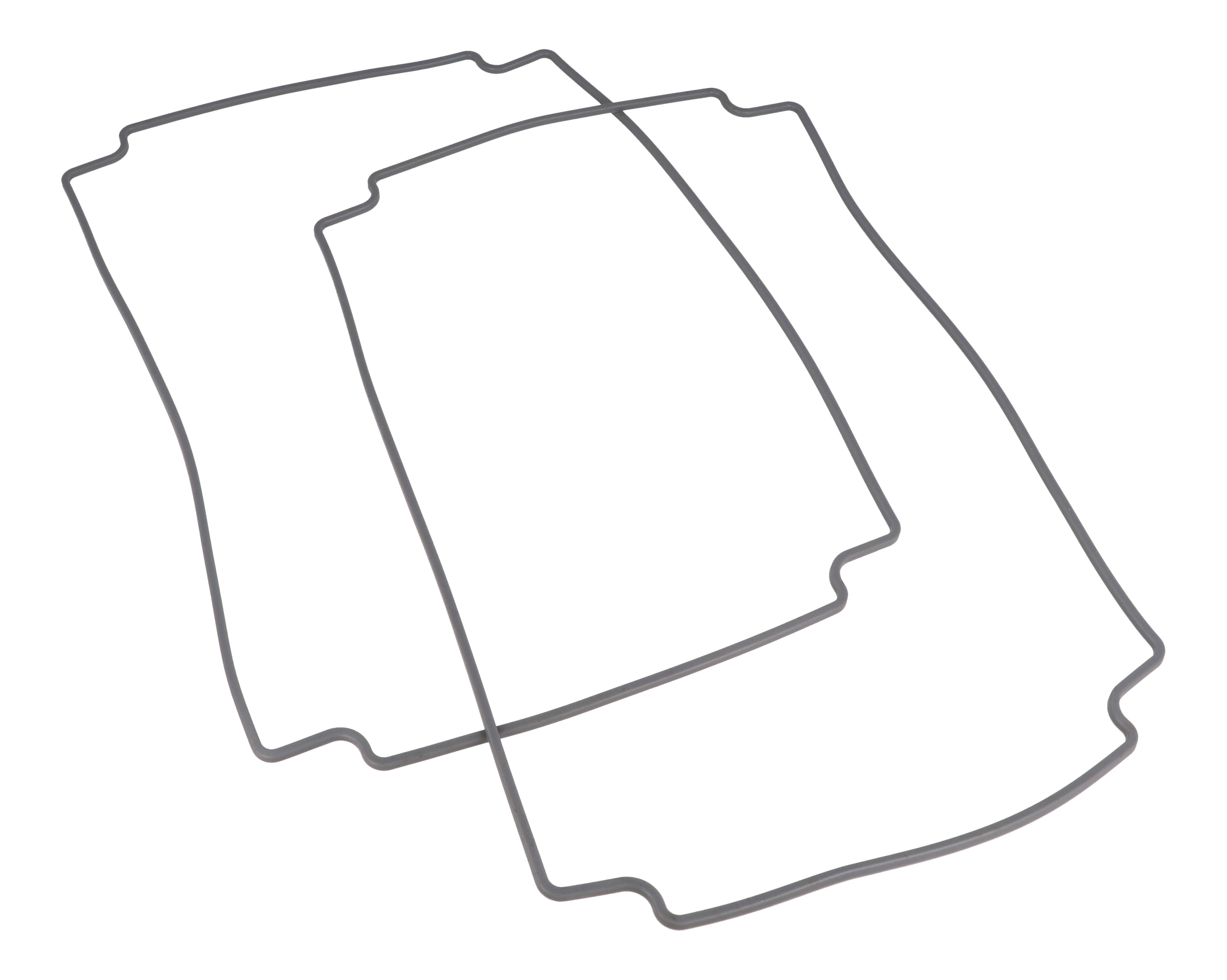

Save 52%1590Z235G — replacement gasket for 1590Z235 enclosures
Hammond Manufacturing · 1590Z235G

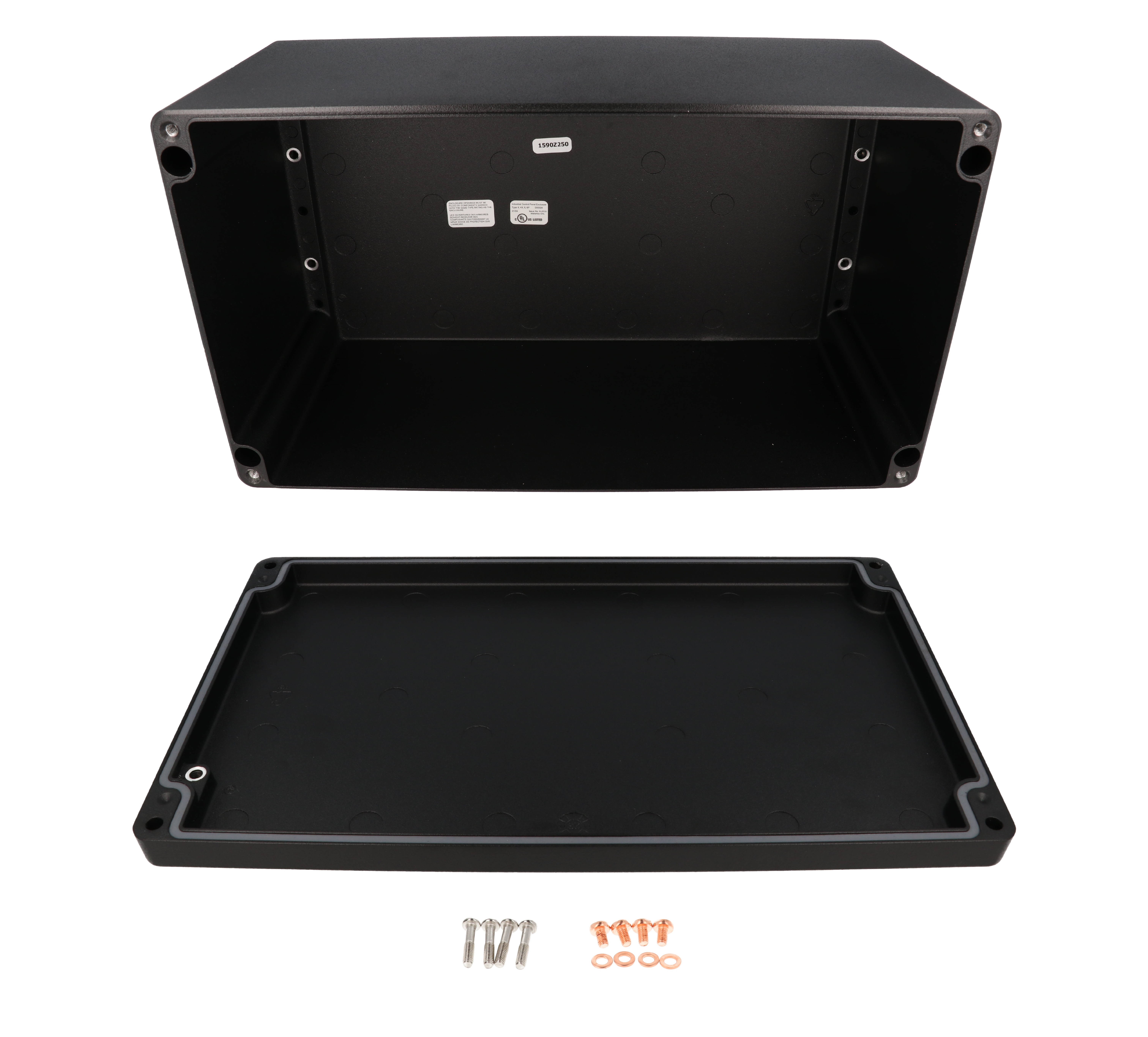

Save 52%1590Z250BK — enclosure - diecast
Hammond Manufacturing · 1590Z250BK

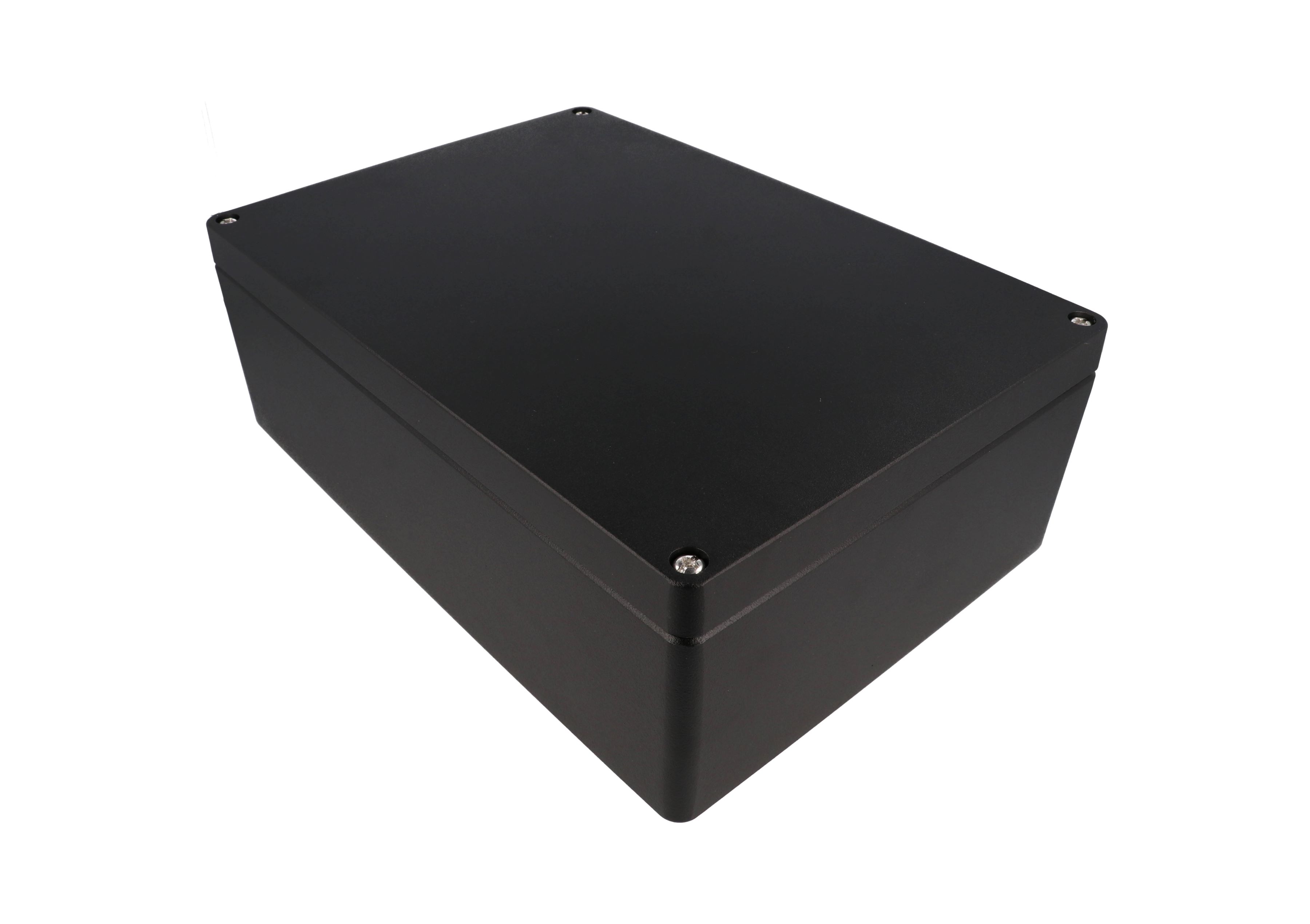

Save 52%1590Z235BK — enclosure - diecast
