Hammond 1590Z231G 200x230mm Enclosure Silicone Gasket, 2-Pack
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Two silicone gaskets for 1590Z231, 1590Z231BK and 1590Z231GY
- 223 x 197 x 4 mm (8.78 x 7.74 x 0.14 in) listed size
- Rated -40C to +150C (-40F to 302F)
- Fits the 1590Z tongue and groove joint as a one piece seal
- Shin-Etsu KE-931U / KE-941U 1:1 alternate material per drawing
- IP66 listed; RoHS and REACH compliant; bagged

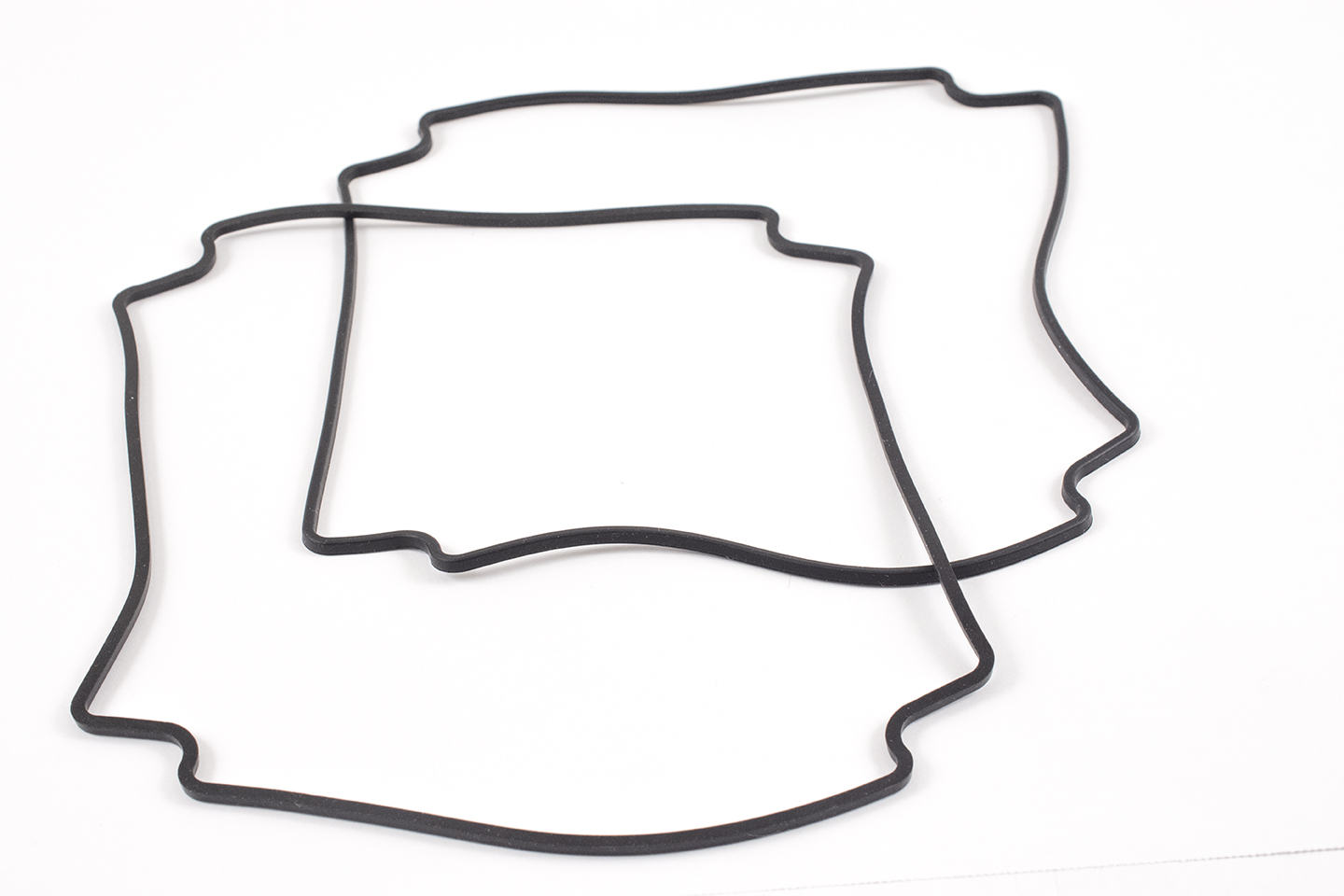

The 1590Z231G supplies two replacement silicone gaskets for the 1590Z231 family of 200 x 230 x 110 mm diecast aluminum enclosures: natural 1590Z231, black 1590Z231BK and gray 1590Z231GY. Keep a pack on the shelf for maintenance, for enclosures that are opened frequently, or for boxes that have been modified in the field.
The gasket is the replaceable one piece silicone rubber seal that fits the tongue and groove joint of the 1590Z series, protecting against dust and water ingress, with a temperature rating of -40C to +150C (-40F to 302F). The drawing (reference G231) specifies silicone rubber, with an alternate material of Shin-Etsu KE-931U & KE-941U in a 1:1 mixture. The part page lists an IP66 rating.

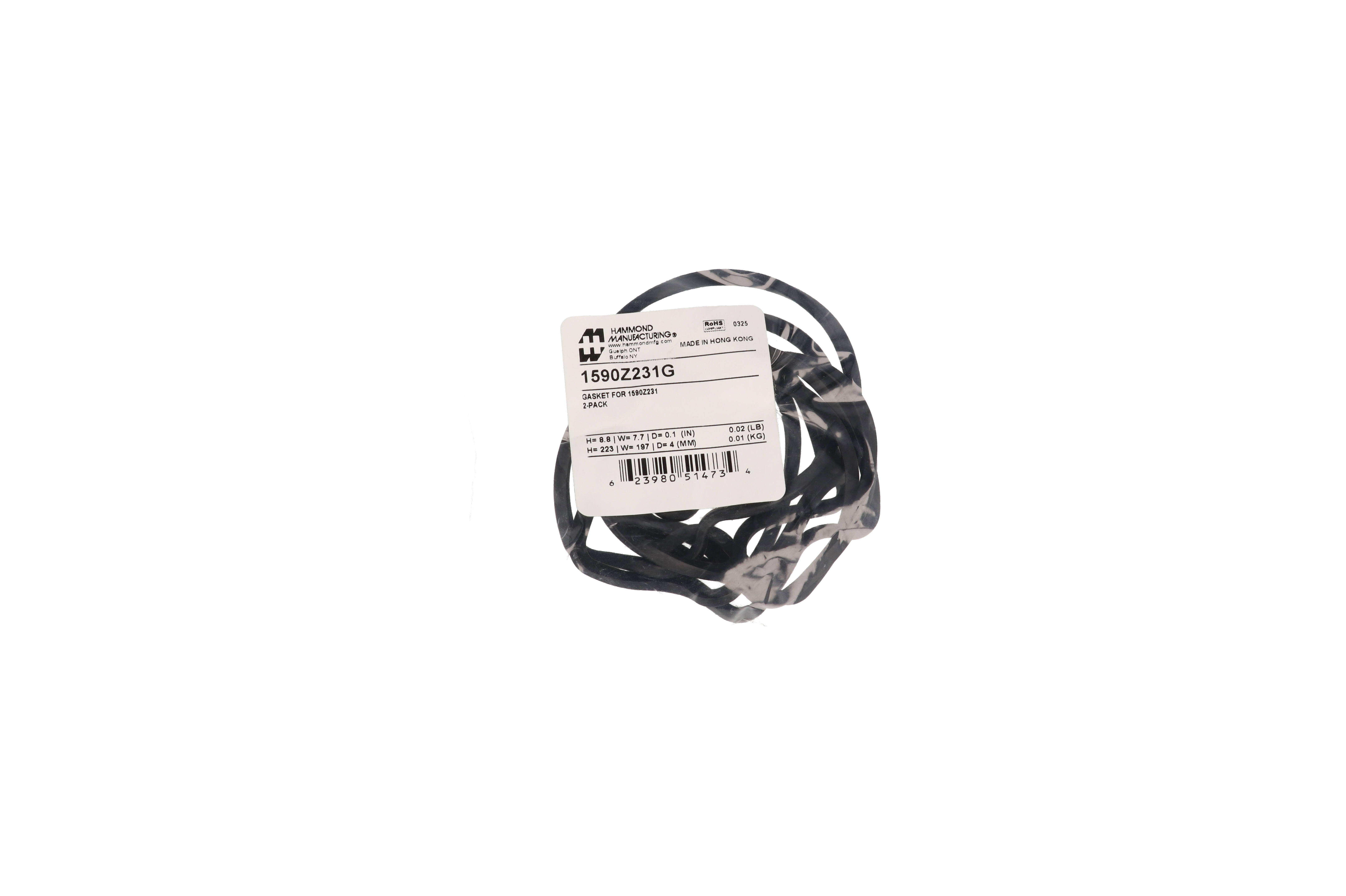

Listed size is 8.78 in x 7.74 in x 0.14 in (223 mm x 197 mm x 4 mm). The drawing gives 8.775 in [222.88 mm] by 7.741 in [196.63 mm] outside, with a section of 0.138 in [3.50 mm] by 0.148 in [3.75 mm]. Each pack ships in a bag, with a shipping weight of 0.02 lbs (0.01 kg).
The 1590Z231G is RoHS and REACH compliant. Other spares for the same enclosure are SC564-12 lid screws, the 1590Z231PL inner panel and SCGM6-20 panel screws.
Ideal For
- Resealing 1590Z231 enclosures
- Maintenance spares for frequently opened enclosures
- Gasket replacement after enclosure modification
Overview
| Type | Gasket |
| Product Type | Replacement gasket (pack of 2) |
| Fits Enclosures | 1590Z231, 1590Z231BK, 1590Z231GY |
| Short Description | 2x GASKET FOR 1590Z231 |
Dimensions
| Size (L X W X H) | 8.78 in x 7.74 in x 0.14 in (223 mm x 197 mm x 4 mm) |
| Section (Drawing) | 0.138 in [3.50 mm] x 0.148 in [3.75 mm] |
| Outside Size (Drawing) | 8.775 in [222.88 mm] x 7.741 in [196.63 mm] |
Identifiers
| UPC | 623980514734 |
| UNSPSC | 39121301 |
| Part Number | 1590Z231G |
| Drawing Reference | G231 |
Packaging & Shipping
| Pack Quantity | 2 |
| Packaging Type | bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Material | Silicone |
| Gasket Style | Replaceable one piece silicone rubber gasket |
| Alternate Material (Drawing) | Shin-Etsu KE-931U & KE-941U (1:1) mixture |
Environmental & Protection
| IP Rating | IP66 |
| Temperature Rating | -40C to +150C (-40F to 302F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What does 1590Z231G fit?▾
The replacement gasket listed for 1590Z231, 1590Z231BK and 1590Z231GY enclosures.
How many are in a pack?▾
Two ("2x GASKET FOR 1590Z231").
What size is the gasket?▾
Listed at 8.78 in x 7.74 in x 0.14 in (223 mm x 197 mm x 4 mm); the drawing shows 222.88 x 196.63 mm outside.
What temperatures can it handle?▾
The 1590Z series gasket is rated -40C to +150C (-40F to 302F).
