Hammond 1590Z160G 156 mm Square Silicone Rubber Gasket Pair
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pack of 2 square replacement gaskets
- 156 x 156 x 4 mm (6.16 x 6.16 x 0.14 in)
- Silicone rubber; alternate SHIN-ETSU KE-931U & KE-941U (1:1)
- IP66 rating attribute
- Fits 1590Z160, 1590Z160BK and 1590Z160GY
- RoHS and REACH compliant

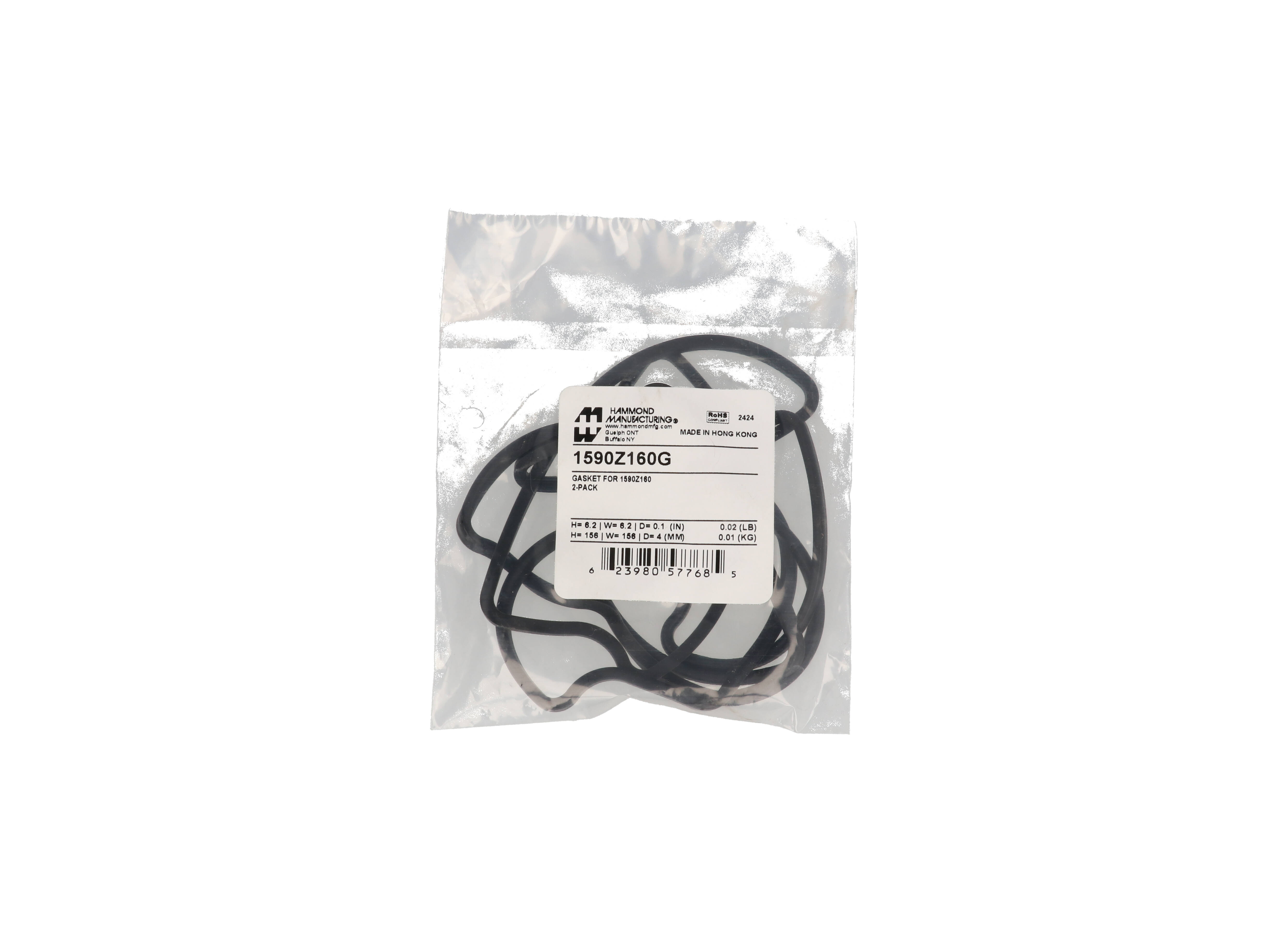

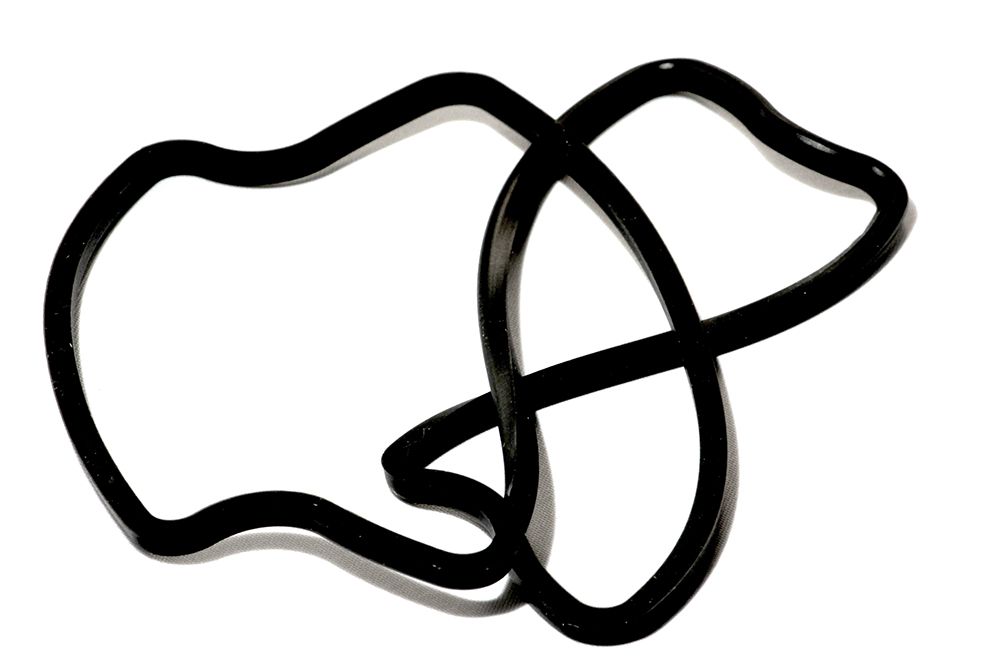

The 1590Z160G is a pack of two square replacement gaskets for the 160 x 160 mm 1590Z160 diecast aluminum enclosures. It is the part to order when resealing an enclosure after service or stocking spares for installations that are opened regularly.
Each gasket is 156 mm x 156 mm x 4 mm (6.16 x 6.16 x 0.14 in); the drawing (reference G160) shows 6.156 in [156.36 mm] square with a 0.138 in [3.50 mm] height. Material is silicone rubber, with an alternate material of SHIN-ETSU Type KE-931U & KE-941U (1:1) mixture. The part carries an IP66 rating attribute, and the 1590Z series gasket is rated -40C to +150C (-40F to 302F).
The 1590Z160G fits the natural 1590Z160, textured black 1590Z160BK and smooth gray 1590Z160GY enclosures, seating in the tongue and groove joint between box and lid.
It is RoHS and REACH compliant, ships in a bag and has a shipping weight of 0.02 lbs (0.01 kg). Other accessories for the same enclosures include the 1590Z160PL steel inner panel, SC564-12 stainless steel cover screws (M6 - 1.0 x 35mm, 12 pkg) and SCGM6-20 copper ground hardware.
Ideal For
- Resealing 1590Z160 enclosures
- Spare seals for outdoor square enclosures
- Field maintenance kits
Overview
| Type | Gasket |
| Series | 1590Z Series (Type 4X/ 6P Diecast Aluminum Enclosures) |
| Quantity | Pack of 2 |
| Product Type | Replacement gasket |
| Fits Enclosures | 1590Z160, 1590Z160BK, 1590Z160GY |
| Short Description | 2x GASKET FOR 1590Z160 |
| Gasket Drawing Reference | G160 |
| Manufacturer Description | replacement gasket for 1590Z160 enclosures |
Dimensions
| Size (L X W X H) | 6.16 in x 6.16 in x 0.14 in (156 mm x 156 mm x 4 mm) |
| Gasket Height (Drawing) | 0.138 in [3.50 mm] |
| Gasket Length X Width (Drawing) | 6.156 in [156.36 mm] x 6.156 in [156.36 mm] |
Identifiers
| UPC | 623980577685 |
| UNSPSC | 39121301 |
| Part Number | 1590Z160G |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Material | Silicone rubber |
| Alternate Material | Manufactured by SHIN-ETSU, Type KE-931U & KE-941U (1:1) mixture |
Environmental & Protection
| IP Rating | IP66 |
| Gasket Temperature Rating | -40C to +150C (-40F to 302F) (1590Z series gasket) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Which enclosures does the 1590Z160G fit?▾
1590Z160, 1590Z160BK and 1590Z160GY.
How many gaskets are in a pack?▾
Two ("2x GASKET FOR 1590Z160").
What are the gasket dimensions?▾
6.16 in x 6.16 in x 0.14 in (156 mm x 156 mm x 4 mm).
What is the gasket temperature rating?▾
The 1590Z series gasket is rated -40C to +150C (-40F to 302F).
Related Products

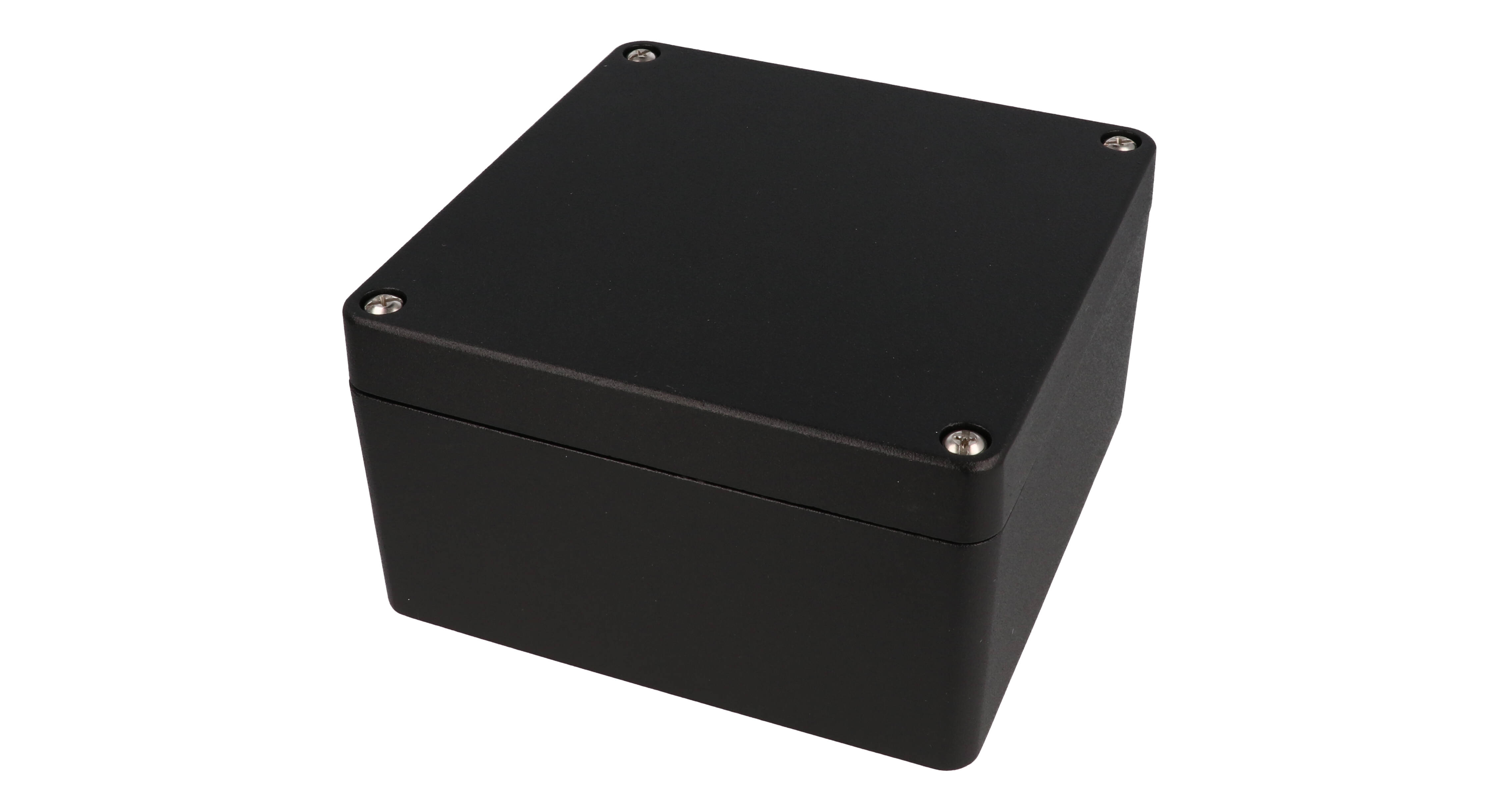

Save 52%1590Z160BK — enclosure - diecast
Hammond Manufacturing · 1590Z160BK
Save 52%1590Z160GY — enclosure - diecast
Hammond Manufacturing · 1590Z160GY

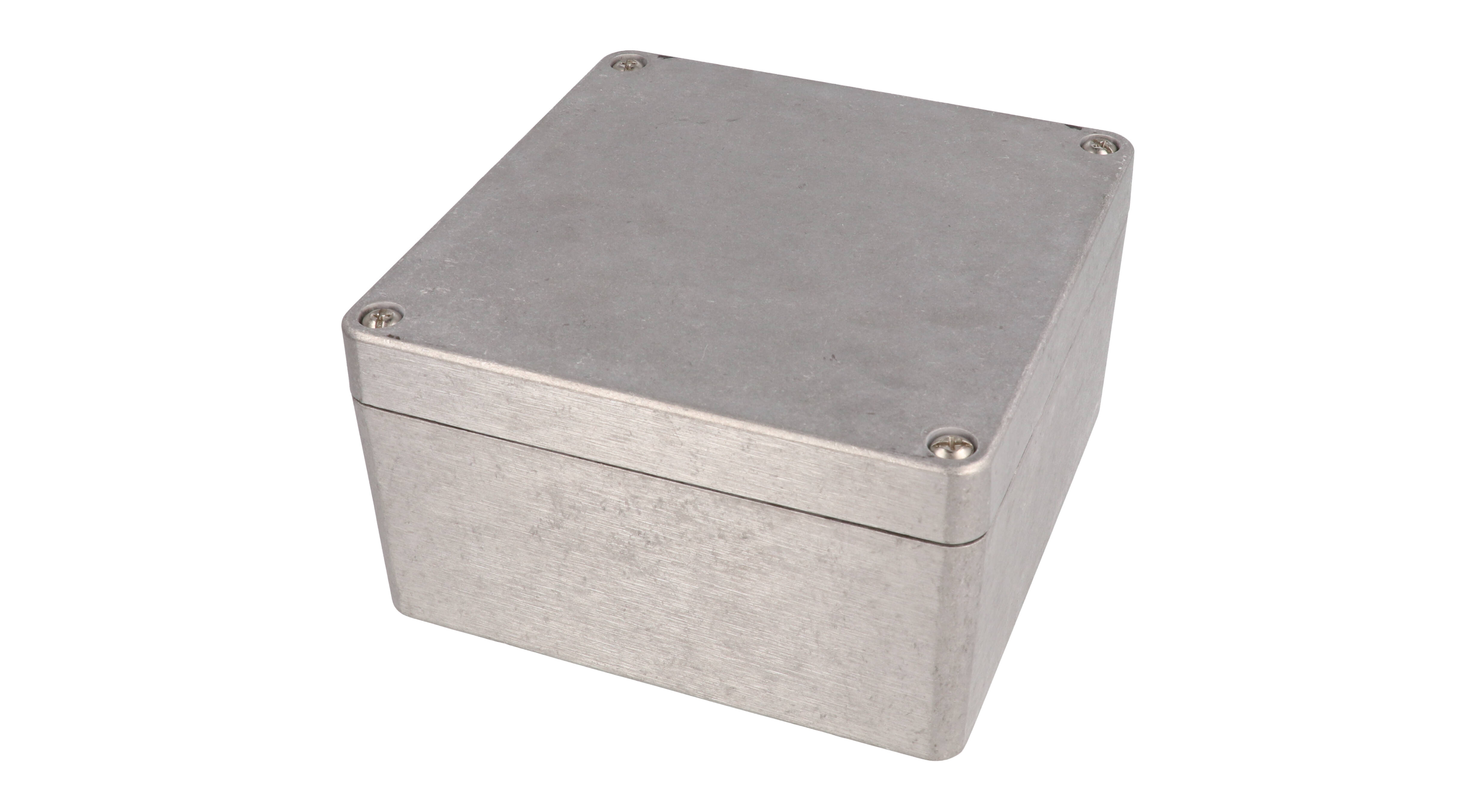

Save 52%1590Z160 — enclosure - diecast
