Hammond 1590Z150G Silicone Rubber Gasket Pair, 215 x 117 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Pair of replacement gaskets for 1590Z150 and 1590Z155
- Silicone rubber; alternate SHIN-ETSU KE-931U & KE-941U (1:1)
- 215 x 117 x 5 mm (8.48 x 4.61 x 0.18 in)
- Fits natural, BK and GY versions of both enclosures
- Series gasket rating -40C to +150C (-40F to 302F)
- RoHS and REACH compliant

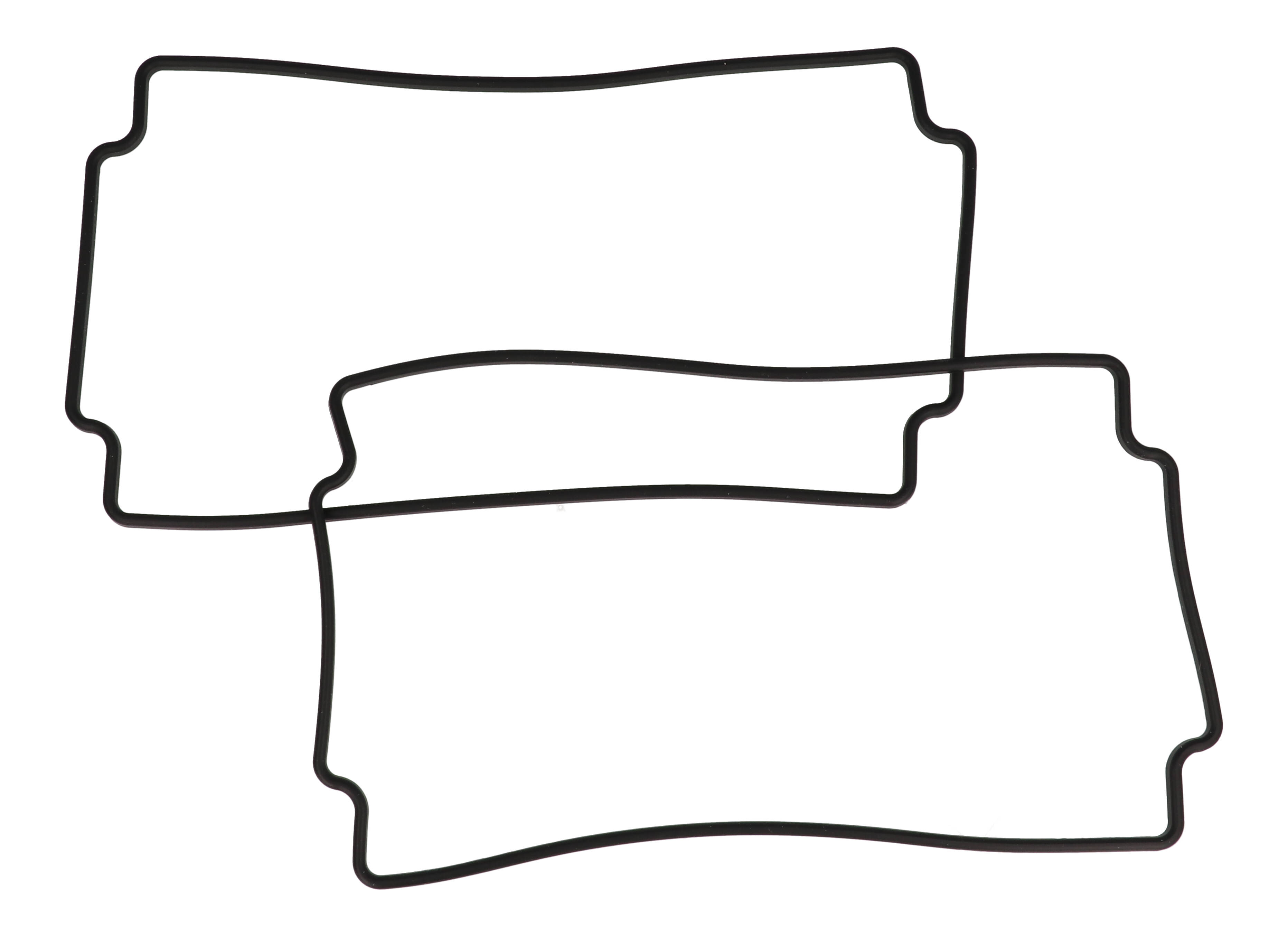

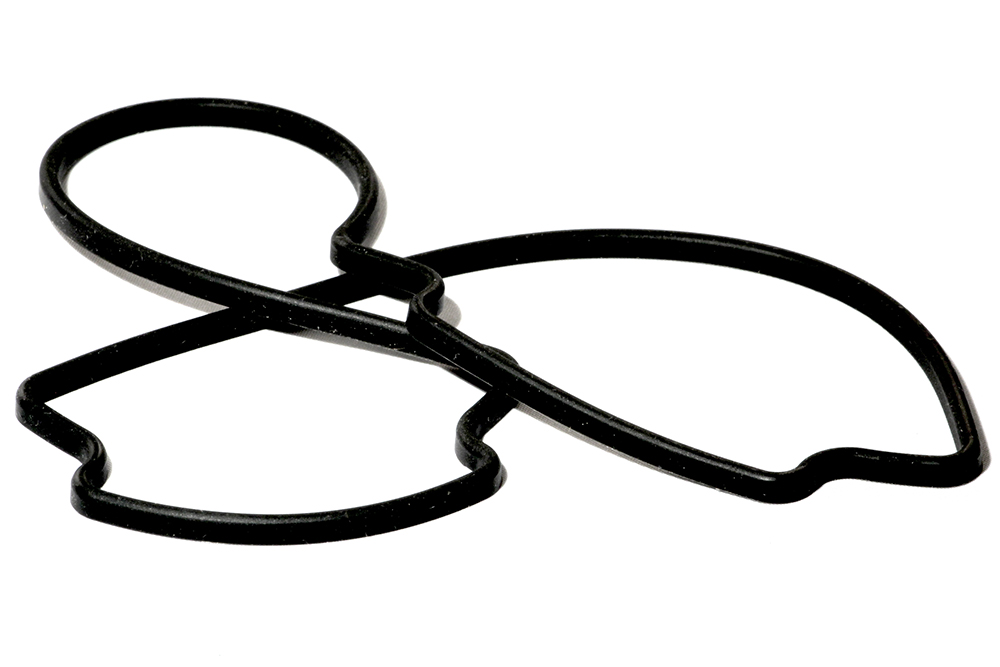

The 1590Z150G is a replacement pair of silicone rubber gaskets shared by two 1590Z enclosure families: the 1590Z150 and the deeper 1590Z155. Both use the same 221 x 121 mm footprint, so one spare gasket part covers either enclosure in any of its three finishes.
Each gasket measures 215 mm x 117 mm x 5 mm (8.48 x 4.61 x 0.18 in); the drawing (reference G150) dimensions it at 8.478 in [215.35 mm] by 4.608 in [117.05 mm] with a 0.177 in [4.50 mm] height. The material is silicone rubber, with an alternate material specified as SHIN-ETSU Type KE-931U & KE-941U (1:1) mixture. The 1590Z series gasket is rated -40C to +150C (-40F to 302F).
- 1590Z150, 1590Z150BK, 1590Z150GY
- 1590Z155, 1590Z155BK, 1590Z155GY

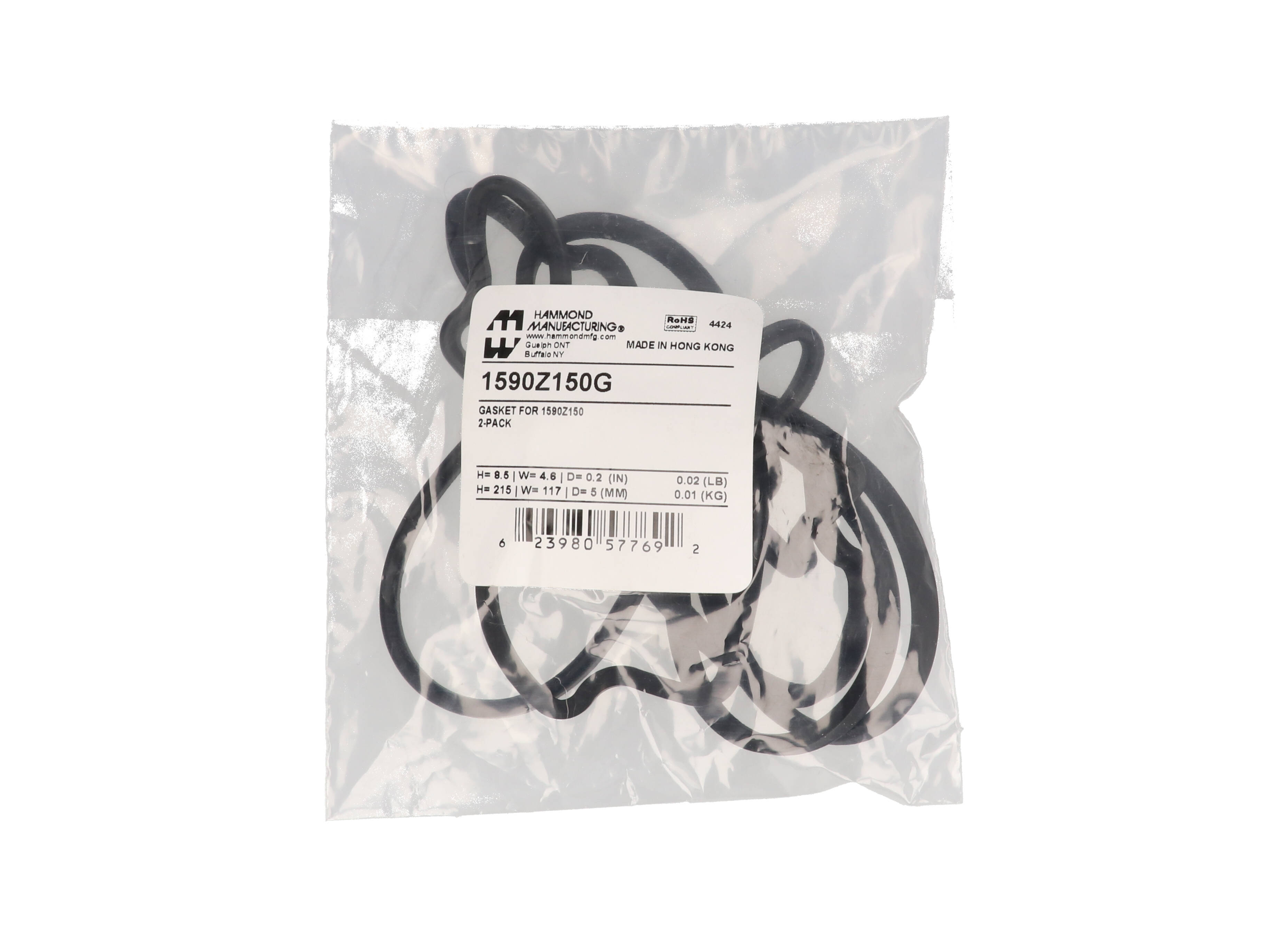

The 1590Z150G is RoHS and REACH compliant, ships in a bag and has a shipping weight of 0.02 lbs (0.01 kg). Keep a pair on hand for enclosures that are opened for service, since 1590Z gaskets are designed to be replaceable. On the enclosures it serves, the lid is held by four recessed stainless steel screws with a recommended torque of 15-17 lbf.in (150-170 cN.m), which should be observed when closing the lid over a new gasket.
Ideal For
- Resealing 1590Z150 and 1590Z155 enclosures
- Spare seals for serviced outdoor enclosures
- Maintenance stock for mixed 1590Z150/155 fleets
Overview
| Type | Gasket |
| Series | 1590Z Series (Type 4X/ 6P Diecast Aluminum Enclosures) |
| Quantity | Pack of 2 |
| Product Type | Replacement gasket |
| Fits Enclosures | 1590Z150, 1590Z150BK, 1590Z150GY, 1590Z155, 1590Z155BK, 1590Z155GY |
| Short Description | 2x GASKET FOR 1590Z150 |
| Gasket Drawing Reference | G150 |
| Manufacturer Description | replacement pair of gaskets for 1590Z150 enclosures |
Dimensions
| Size (L X W X H) | 8.48 in x 4.61 in x 0.18 in (215 mm x 117 mm x 5 mm) |
| Gasket Height (Drawing) | 0.177 in [4.50 mm] |
| Gasket Length X Width (Drawing) | 8.478 in [215.35 mm] x 4.608 in [117.05 mm] |
Identifiers
| UPC | 623980577692 |
| UNSPSC | 39121301 |
| Part Number | 1590Z150G |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.02 lbs (0.01 kg) |
Construction & Finish
| Material | Silicone rubber |
| Alternate Material | Manufactured by SHIN-ETSU, Type KE-931U & KE-941U (1:1) mixture |
Environmental & Protection
| Gasket Temperature Rating | -40C to +150C (-40F to 302F) (1590Z series gasket) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Does the 1590Z150G fit the 1590Z155?▾
Yes. The ordering table lists 1590Z150G as the replacement gasket for 1590Z150, 1590Z150BK, 1590Z150GY, 1590Z155, 1590Z155BK and 1590Z155GY.
How many gaskets are included?▾
Two; it is a replacement pair.
What is it made of?▾
Silicone rubber. The drawing also lists an alternate material: SHIN-ETSU Type KE-931U & KE-941U (1:1) mixture.
What are its dimensions?▾
8.48 in x 4.61 in x 0.18 in (215 mm x 117 mm x 5 mm).
Related Products

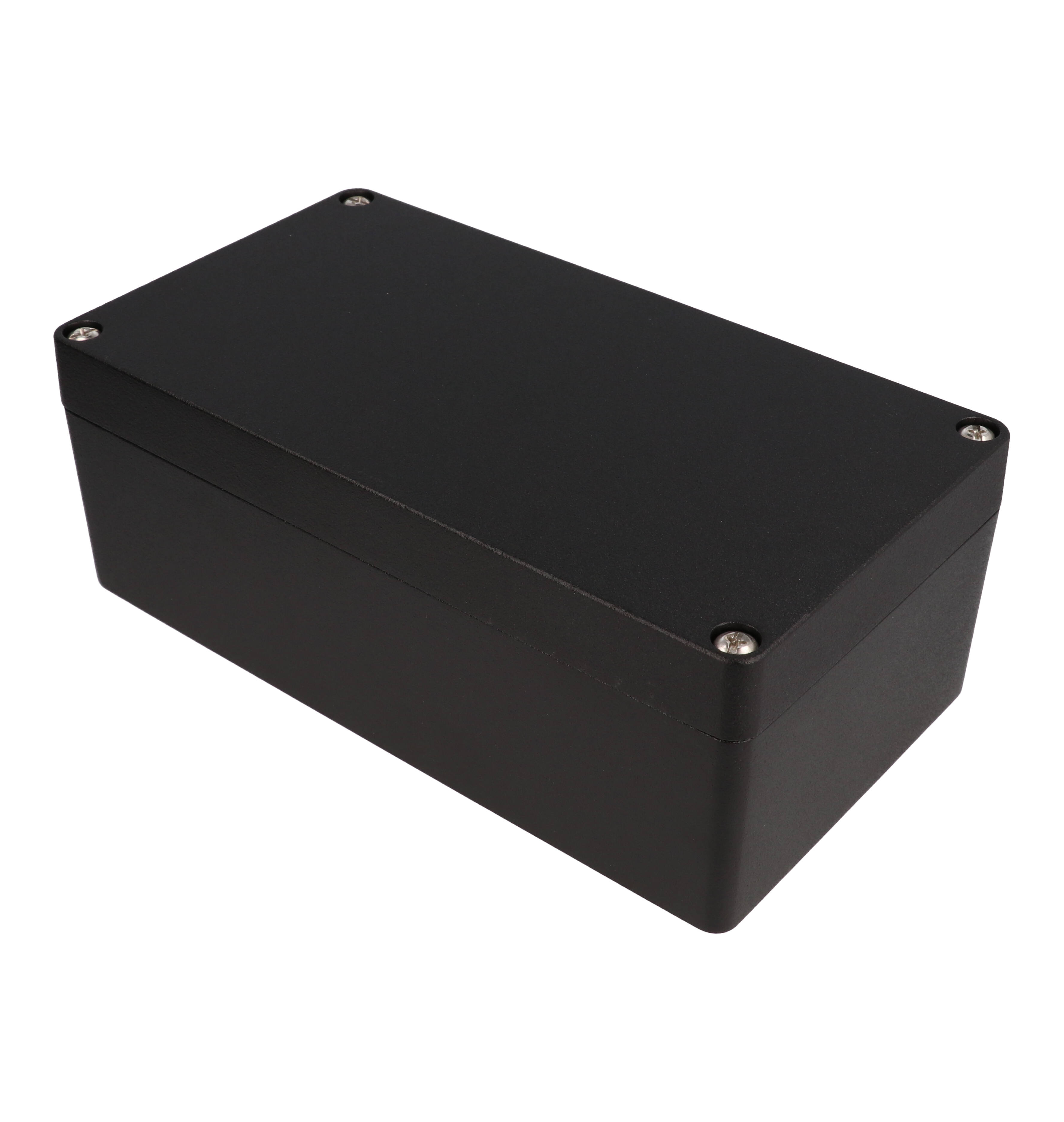

Save 52%1590Z150BK — enclosure - diecast
Hammond Manufacturing · 1590Z150BK

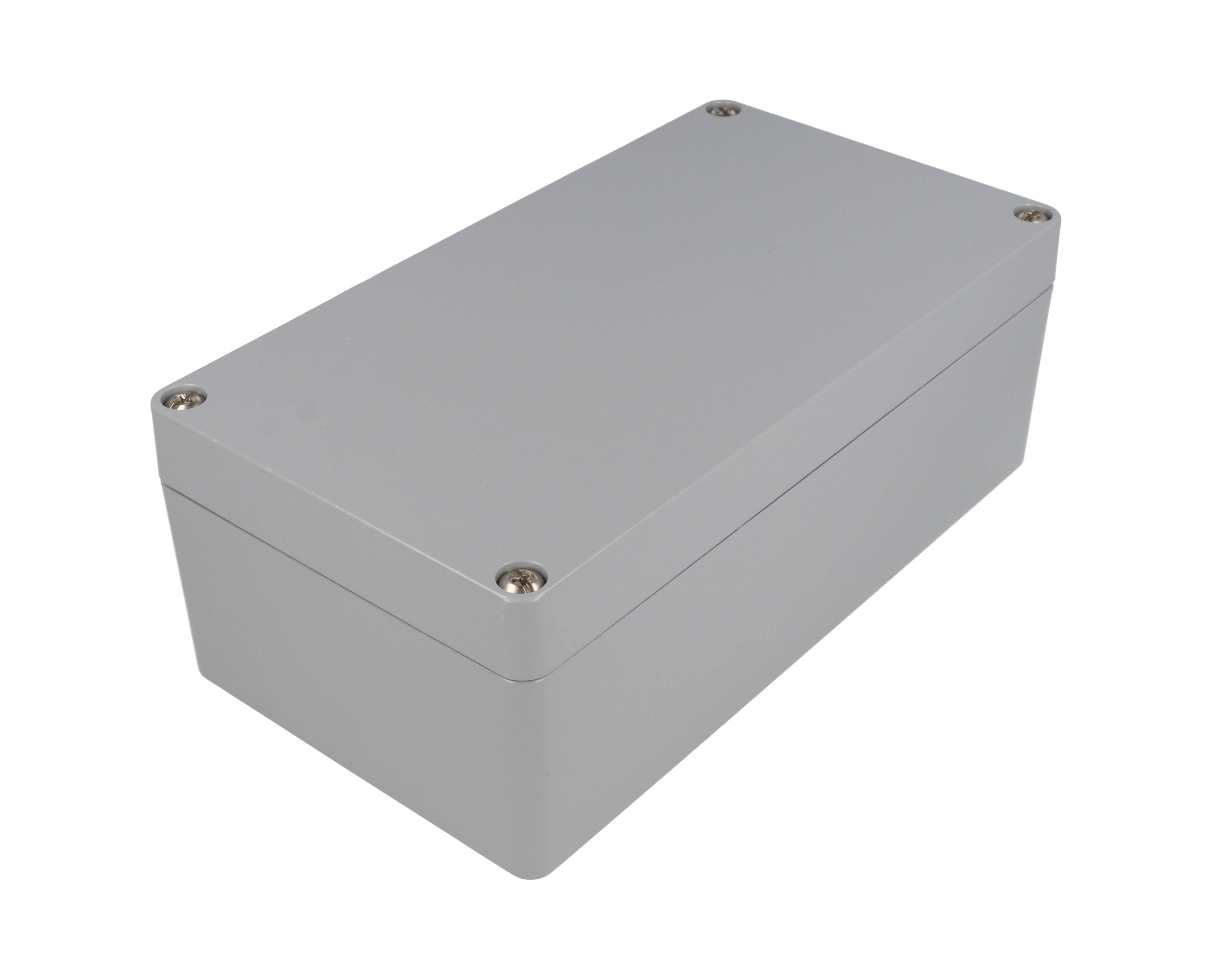

Save 52%1590Z150GY — enclosure - diecast
Hammond Manufacturing · 1590Z150GY

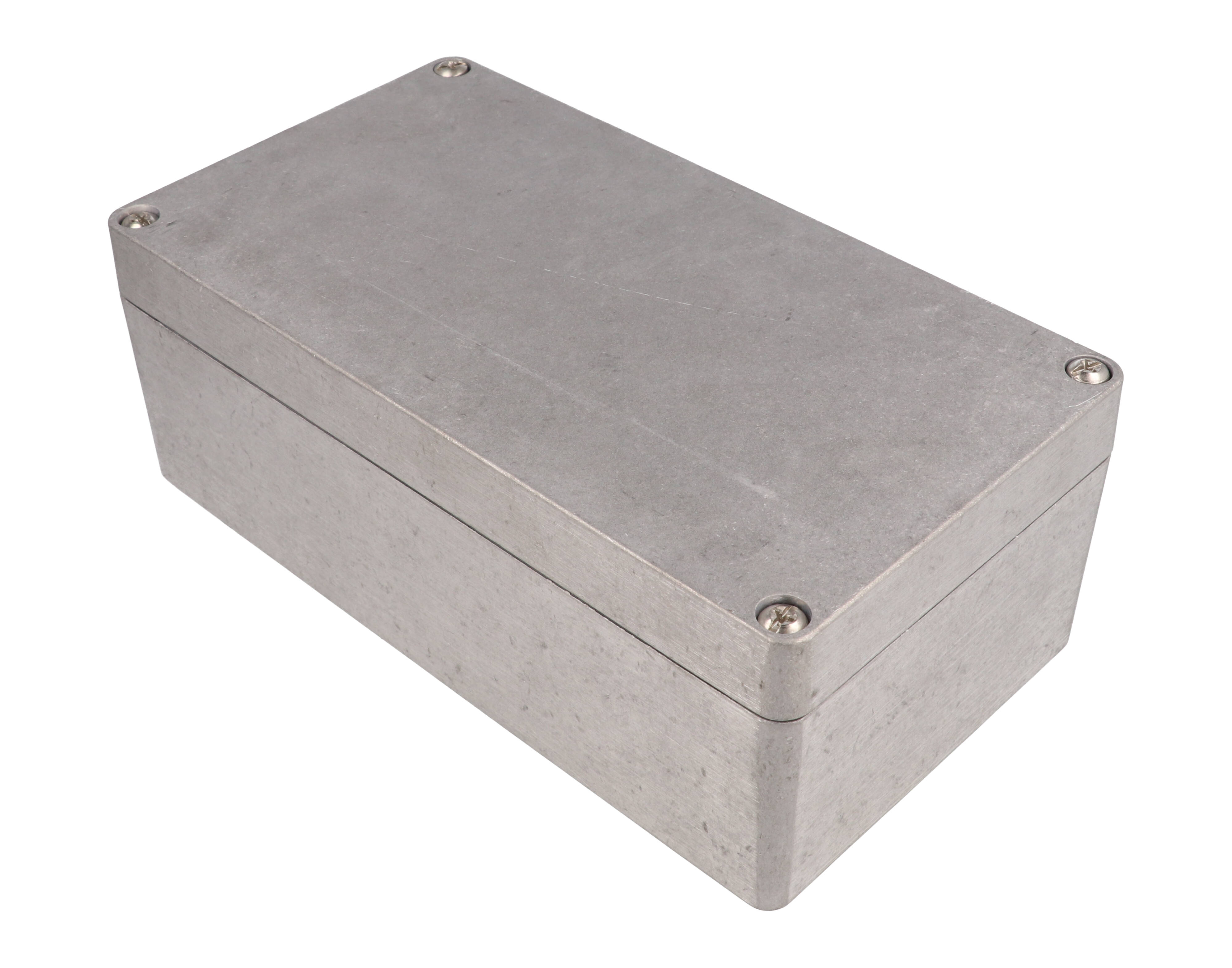

Save 52%1590Z150 — enclosure - diecast
Hammond Manufacturing · 1590Z150

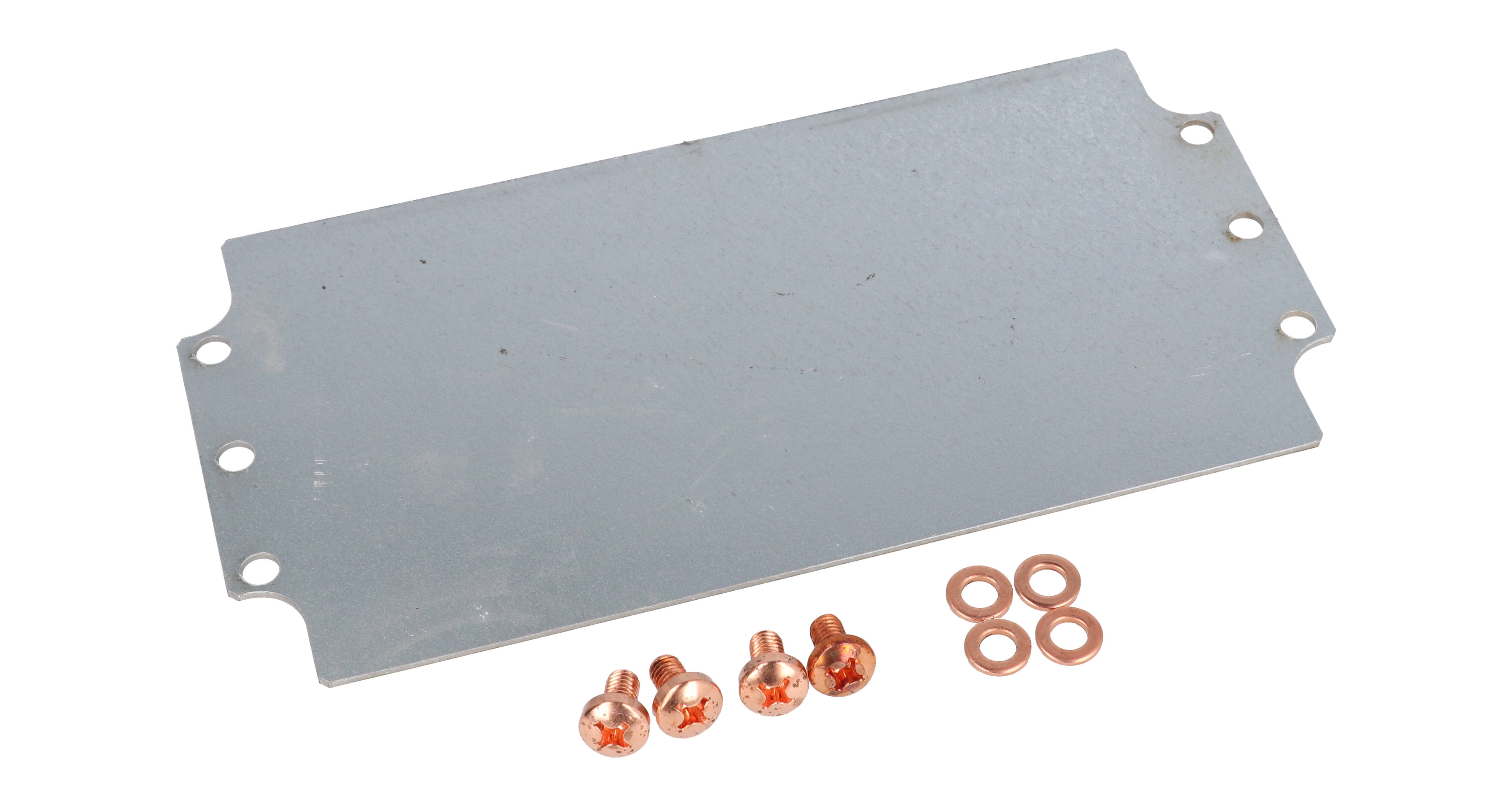

Save 52%1590Z150PL — inner mounting panel for 1590Z150, 1590Z155
Hammond Manufacturing · 1590Z150PL

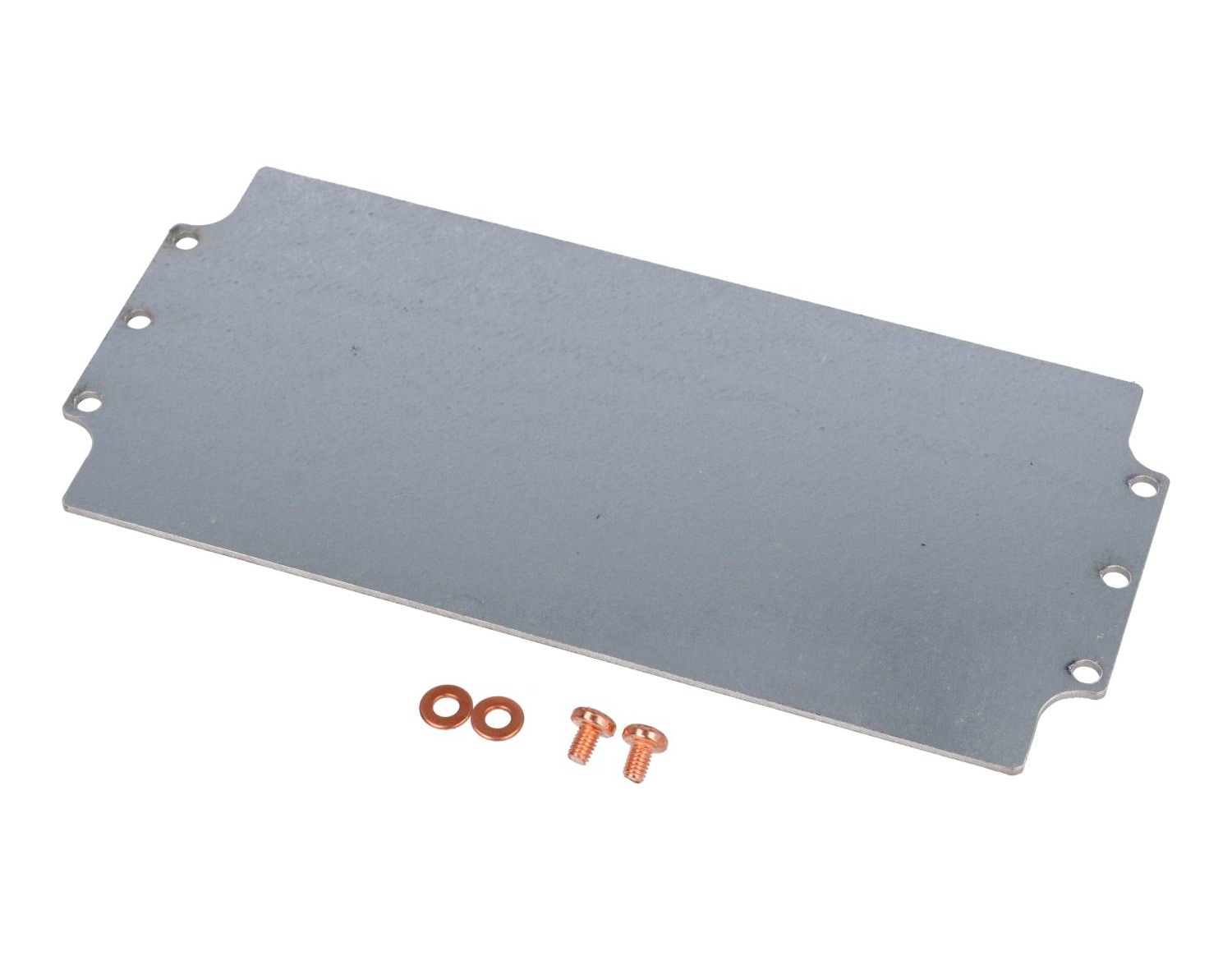

Save 52%1590Z145PL — inner mounting panel for 1590Z090 enclosures
