Hammond 1590YF Square Flanged-Bottom Diecast Box, 92x92 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Welded flanged bottom plate for surface mounting
- Square 92 x 92 x 42 mm box; 120.65 mm overall length
- Inside 85.17 x 85.17 x 36.30 mm
- P.C. boards up to 84.17 x 84.17 mm
- Designed to meet IP54; IP65 with 1590YGASKET
- Natural aluminum, vibra finished
- Four 6-32 UNC cover screws included

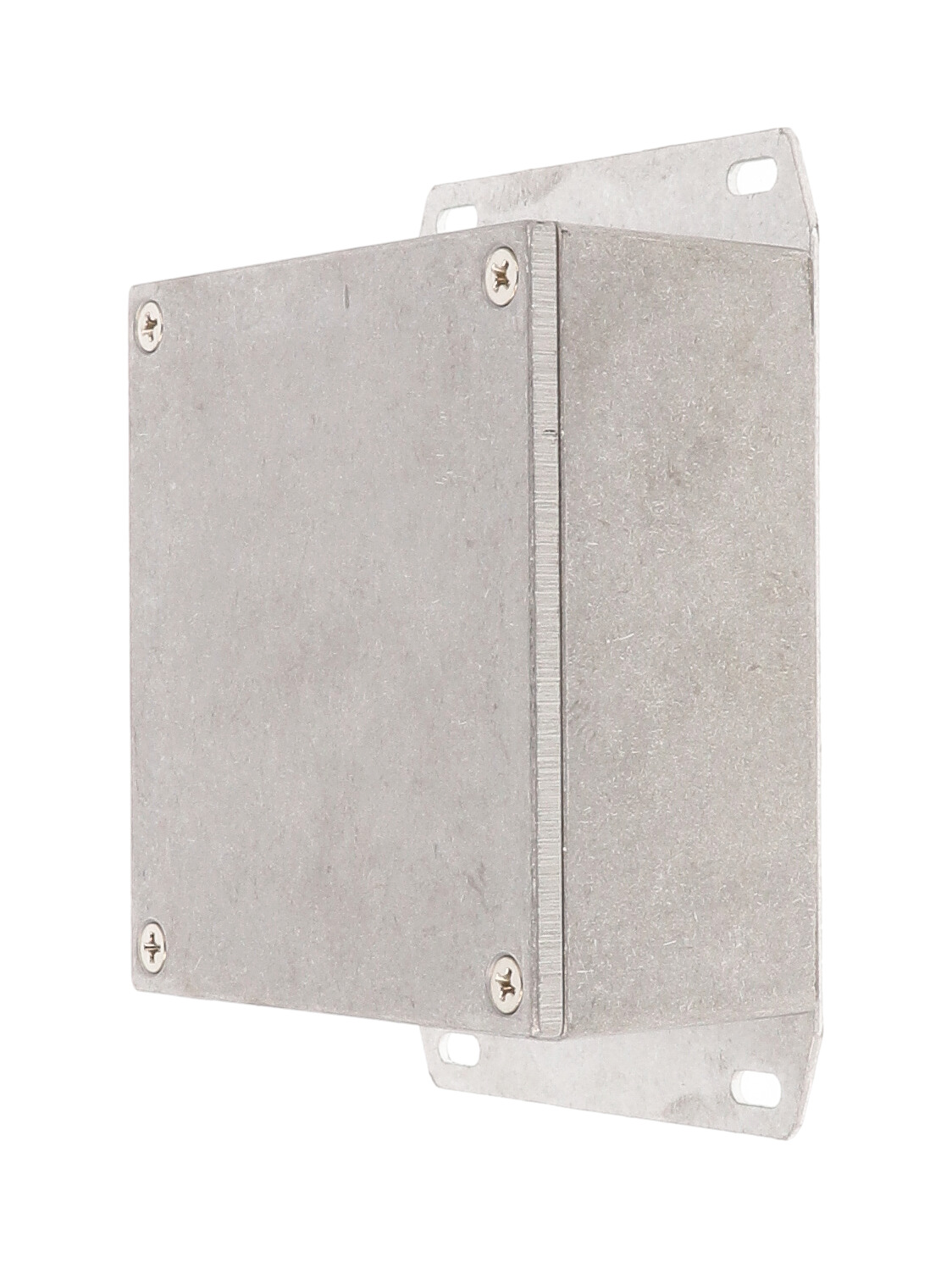

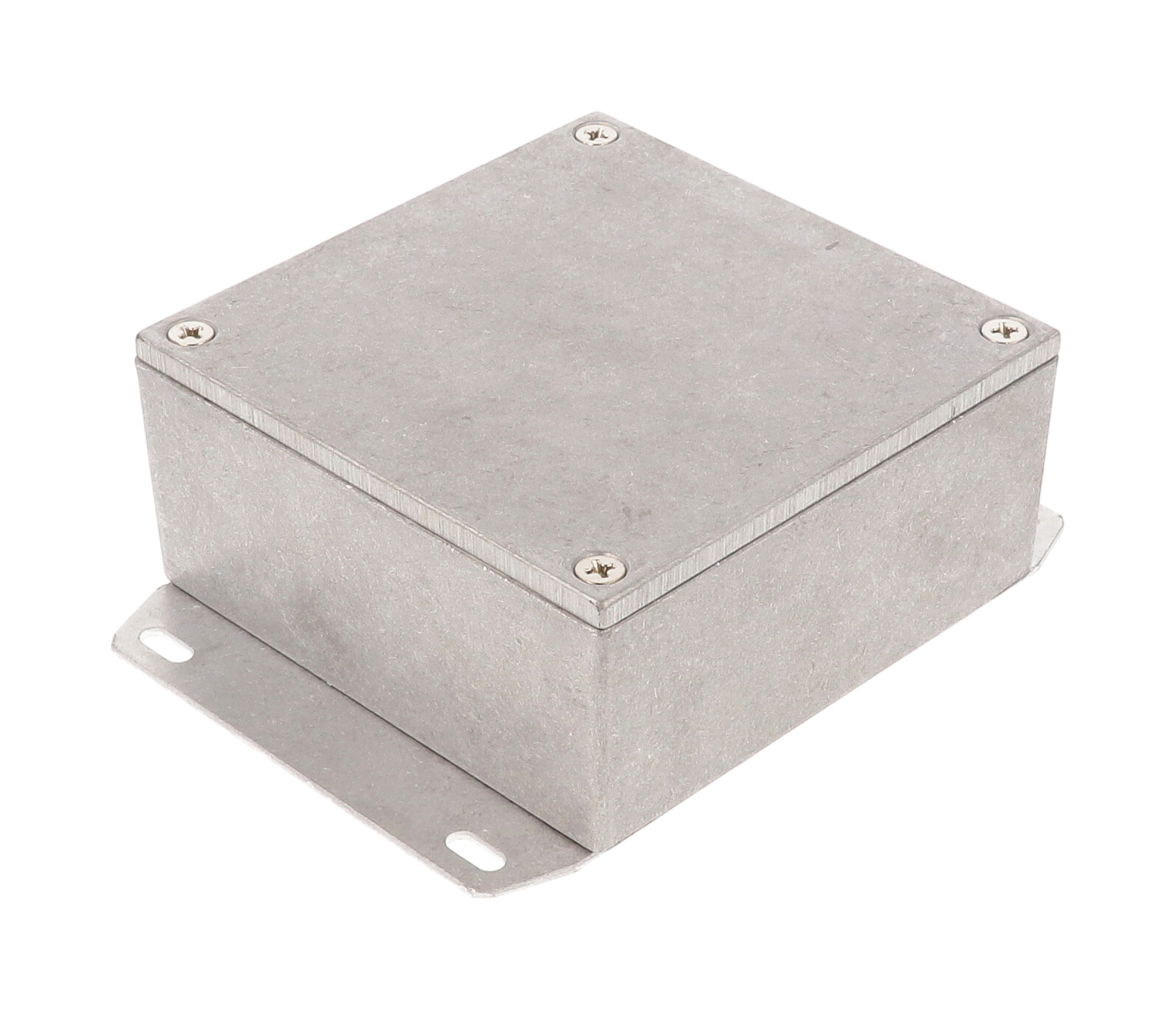

The 1590YF is the flanged-bottom version of the square 1590Y diecast aluminum enclosure. A welded flange on the base lets electricians and integrators bolt the 92 x 92 x 42 mm housing to a wall, panel or equipment frame while leaving the lid free to open.
Box and lid are diecast aluminum alloy in a natural finish, vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and this standard version is designed to meet IP54.

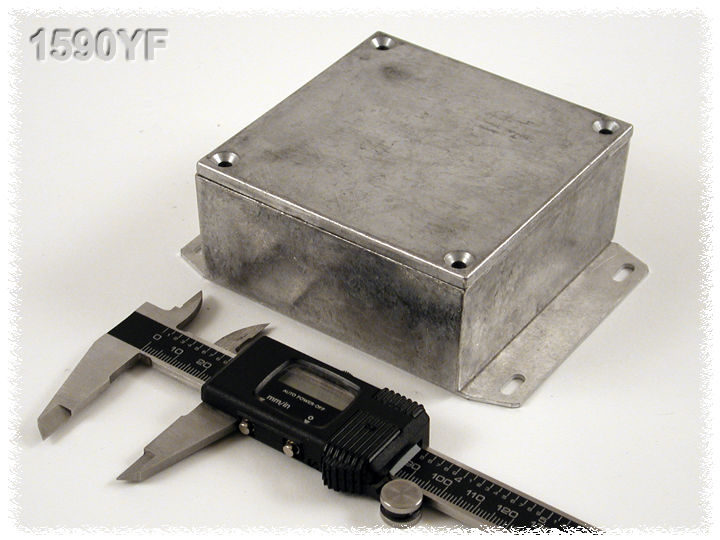

Nominal size is 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm). Including the bottom flange, the drawing shows 120.65 mm [4.750 in] overall length and 43.50 mm [1.713 in] overall height. Inside the box you get 85.17 x 85.17 mm and 36.30 mm of height, with room for a P.C. board up to 84.17 x 84.17 mm.

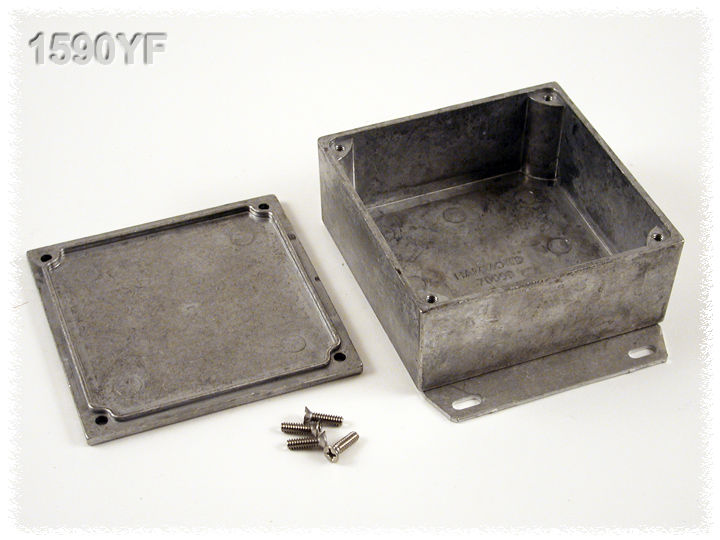

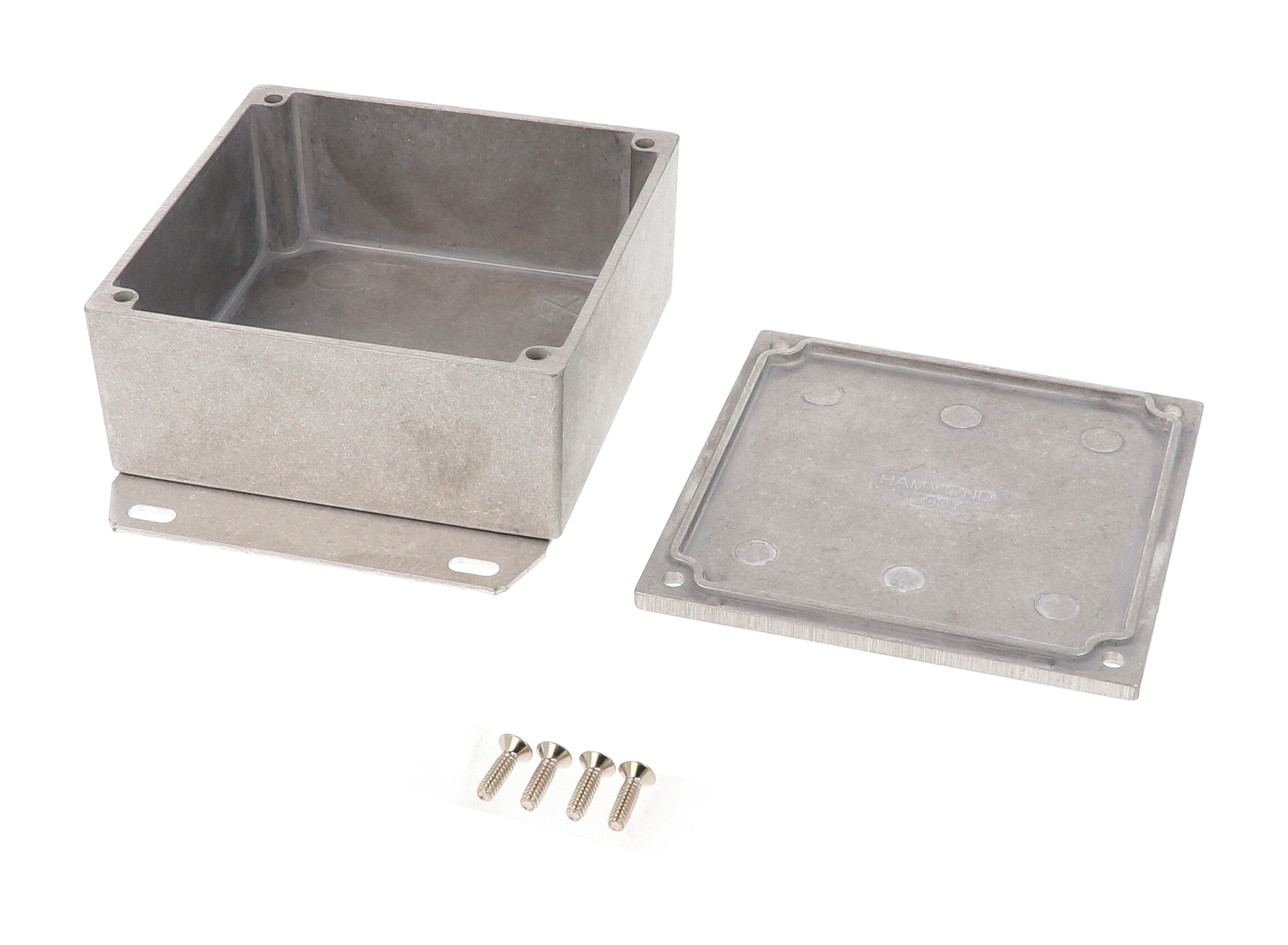

The 1590YF includes box, lid and four 6-32 UNC cover screws in factory-tapped holes, torqued to 50-55 cN.m (71-78 ozf.in). Add gasket kit 1590YGASKET for IP65 or choose the water-tight 1590WYF. Shipping weight is 0.64 lbs (0.29 kg) in shrink wrap; RoHS and REACH compliant.
Ideal For
- Surface-mounted small control electronics
- Wall-mounted small electronics housings
- Equipment-mounted junction or interface boxes
- Compact OEM enclosures needing a fixing flange
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box, flanged |
| Version | Standard |
| Part Number | 1590YF |
| Mounting Style | Flanged bottom plate |
| Long Description | enclosure - diecast; flanged bottom |
| Short Description | 92 X 92 X 42MM ALUM FLANGED |
| Replacement Gasket Kit (Optional) | 1590YGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.17 mm [3.353 in] |
| Inside Height | 36.30 mm [1.429 in] |
| Inside Length | 85.17 mm [3.353 in] |
| Size L X W X H | 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm) |
| Max. P.C. Board Width | 84.17 mm |
| Max. P.C. Board Length | 84.17 mm |
| Width (Ordering Table) | 3.62 in (92 mm) |
| Height (Ordering Table) | 1.65 in (42 mm) |
| Length (Ordering Table) | 3.62 in (92 mm) |
| Overall Width (Drawing) | 92.00 mm [3.622 in] |
| Overall Height (Drawing) | 43.50 mm [1.713 in] |
| Overall Length (Drawing, Box) | 92.00 mm [3.622 in] |
| Overall Length Incl. Bottom Flange | 120.65 mm [4.750 in] |
Identifiers
| UPC | 623980808901 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590Y |
| Flanged Lid, Standard | 1590YFL |
| No Flanges, Water-Tight | 1590WY |
| Flanged Lid, Water-Tight | 1590WYFL |
| Flanged Bottom Plate, Standard | 1590YF |
| Flanged Bottom Plate, Water-Tight | 1590WYF |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.64 lbs (0.29 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Natural aluminum; unpainted version is vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Bottom Flange | Welded (spot-welded bottom flange) |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Where is the mounting flange on the 1590YF?▾
On the bottom. The bottom flange is welded to the box, and overall length across it is 120.65 mm [4.750 in].
How tall is it with the flange?▾
The drawing shows 43.50 mm [1.713 in] overall height.
Is it watertight?▾
The standard 1590YF is designed to meet IP54. The water-tight version is 1590WYF, or you can fit gasket kit 1590YGASKET.
What is the black version?▾
1590YFBK is the textured black flanged-bottom version.
