Hammond 1590YBK 92x92x42 mm Black Square Diecast Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint; black screws included
- Square 92 x 92 x 42 mm, no mounting flanges
- Inside 85.17 x 85.17 x 36.30 mm
- P.C. boards up to 84.17 x 84.17 mm
- Designed to meet IP54; IP65 with 1590YGASKET
- Four 6-32 UNC cover screws in factory-tapped holes
- RoHS and REACH compliant

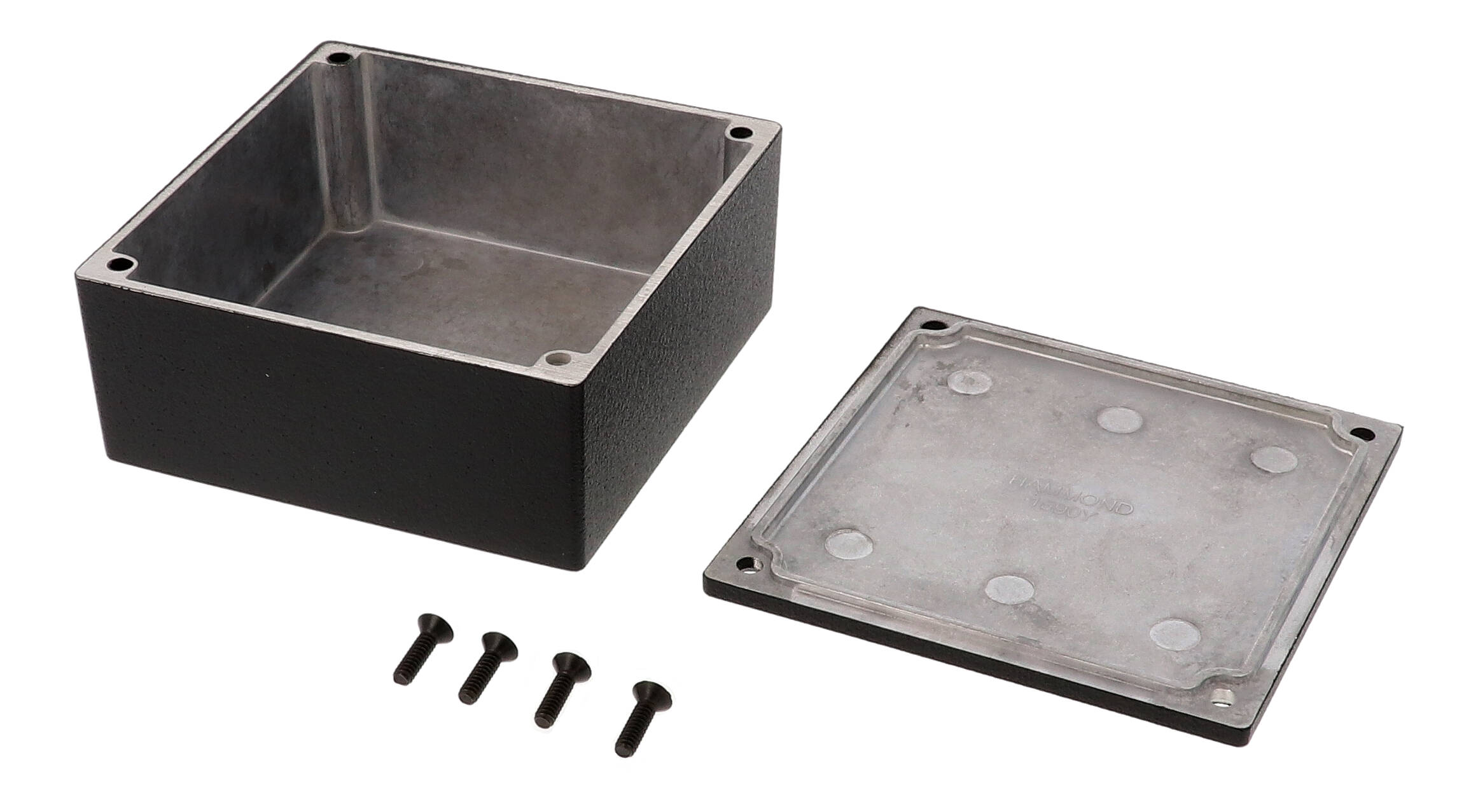

The 1590YBK is the textured black version of the square 1590Y diecast aluminum enclosure, 92 x 92 x 42 mm with no mounting flanges. It is well suited to compact electronics that will be seen and handled, such as control boxes and OEM modules.
The aluminum alloy casting is coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. A lap joint where the lid meets the box protects against dust and splashing water, with this standard version designed to meet IP54.
Nominal size is 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm), with 42.00 mm [1.654 in] overall height per the drawing. The inside is 85.17 mm [3.353 in] square and 36.30 mm [1.429 in] high, and the maximum P.C. board is 84.17 x 84.17 mm.
The 1590YBK includes box, lid and four 6-32 UNC cover screws in factory-tapped holes. Add gasket kit 1590YGASKET plus liquid resistant black screws (1590WMS100BK) for IP65, or choose the water-tight 1590WYBK. It weighs 0.55 lbs (0.25 kg) shipped in shrink wrap and is RoHS and REACH compliant.
Ideal For
- Black square electronics project enclosures
- Compact control and interface boxes
- Small circuit board housings
- OEM modules machined after finishing
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws (black screws) |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box |
| Version | Standard |
| Part Number | 1590YBK |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast; black; 3.62"x3.62"x1.50" |
| Short Description | 92 X 92 X 42MM BLACK ALUM BOX |
| Replacement Gasket Kit (Optional) | 1590YGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 85.17 mm [3.353 in] |
| Inside Height | 36.30 mm [1.429 in] |
| Inside Length | 85.17 mm [3.353 in] |
| Size L X W X H | 3.62 in x 3.62 in x 1.65 in (92 mm x 92 mm x 42 mm) |
| Max. P.C. Board Width | 84.17 mm |
| Max. P.C. Board Length | 84.17 mm |
| Width (Ordering Table) | 3.62 in (92 mm) |
| Height (Ordering Table) | 1.65 in (42 mm) |
| Length (Ordering Table) | 3.62 in (92 mm) |
| Overall Width (Drawing) | 92.00 mm [3.622 in] |
| Overall Height (Drawing) | 42.00 mm [1.654 in] |
| Overall Length (Drawing, Box) | 92.00 mm [3.622 in] |
Identifiers
| UPC | 623980808932 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590YBK |
| Flanged Lid, Standard | 1590YFLBK |
| No Flanges, Water-Tight | 1590WYBK |
| Flanged Lid, Water-Tight | 1590WYFLBK |
| Flanged Bottom Plate, Standard | 1590YFBK |
| Flanged Bottom Plate, Water-Tight | 1590WYFBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.55 lbs (0.25 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the 1590YBK finish?▾
Textured black polyester powder paint that keeps a lasting finish even after machining. Black screws are included.
What are the inside dimensions?▾
85.17 mm x 85.17 mm with 36.30 mm inside height.
Is there a watertight black version?▾
Yes, 1590WYBK. Alternatively, fit gasket kit 1590YGASKET to upgrade to IP65.
How much does it weigh?▾
0.55 lbs (0.25 kg) shipping weight.
