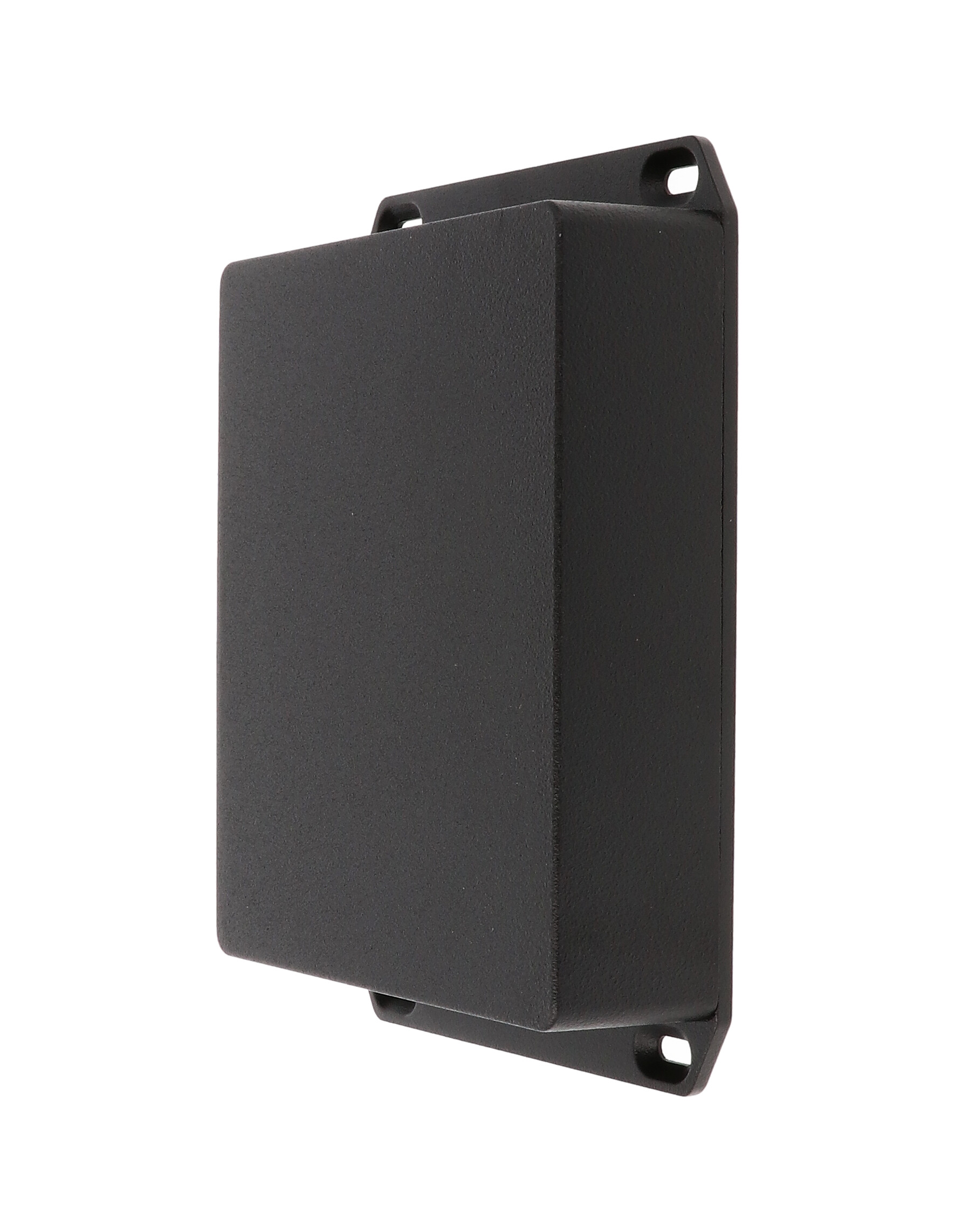

Hammond 1590XXFLBK Black Low-Profile Flanged-Lid Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black powder paint with black screws included
- Wall-mounting flange integrated into the lid, 175.20 mm overall
- Low-profile 145 x 121 x 39 mm body
- Inside 139.00 x 115.00 x 35.05 mm; PCB up to 114 x 138 mm
- Designed to meet IP54; IP65 with 1590XGASKET
- Four 6-32 UNC cover screws in factory-tapped holes
The 1590XXFLBK brings together the slim 1590XX body, a lid with an integrated wall-mounting flange and a textured black finish. It is intended for integrators and equipment makers who want a low-profile, surface-mounted diecast housing that looks finished out of the box.
The diecast aluminum alloy is coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. Lap joint construction where the lid meets the box protects against dust and splashing water, and this standard version is designed to meet IP54.
Nominal box size is 5.72 in x 4.77 in x 1.55 in (145 mm x 121 mm x 39 mm), 175.20 mm [6.898 in] long overall with the lid flange and 39.30 mm [1.547 in] high per the drawing. Inside there is 139.00 mm [5.472 in] x 115.00 mm [4.528 in] x 35.05 mm [1.380 in] of space, with listed maximum P.C. board dimensions of 114 mm and 138 mm.

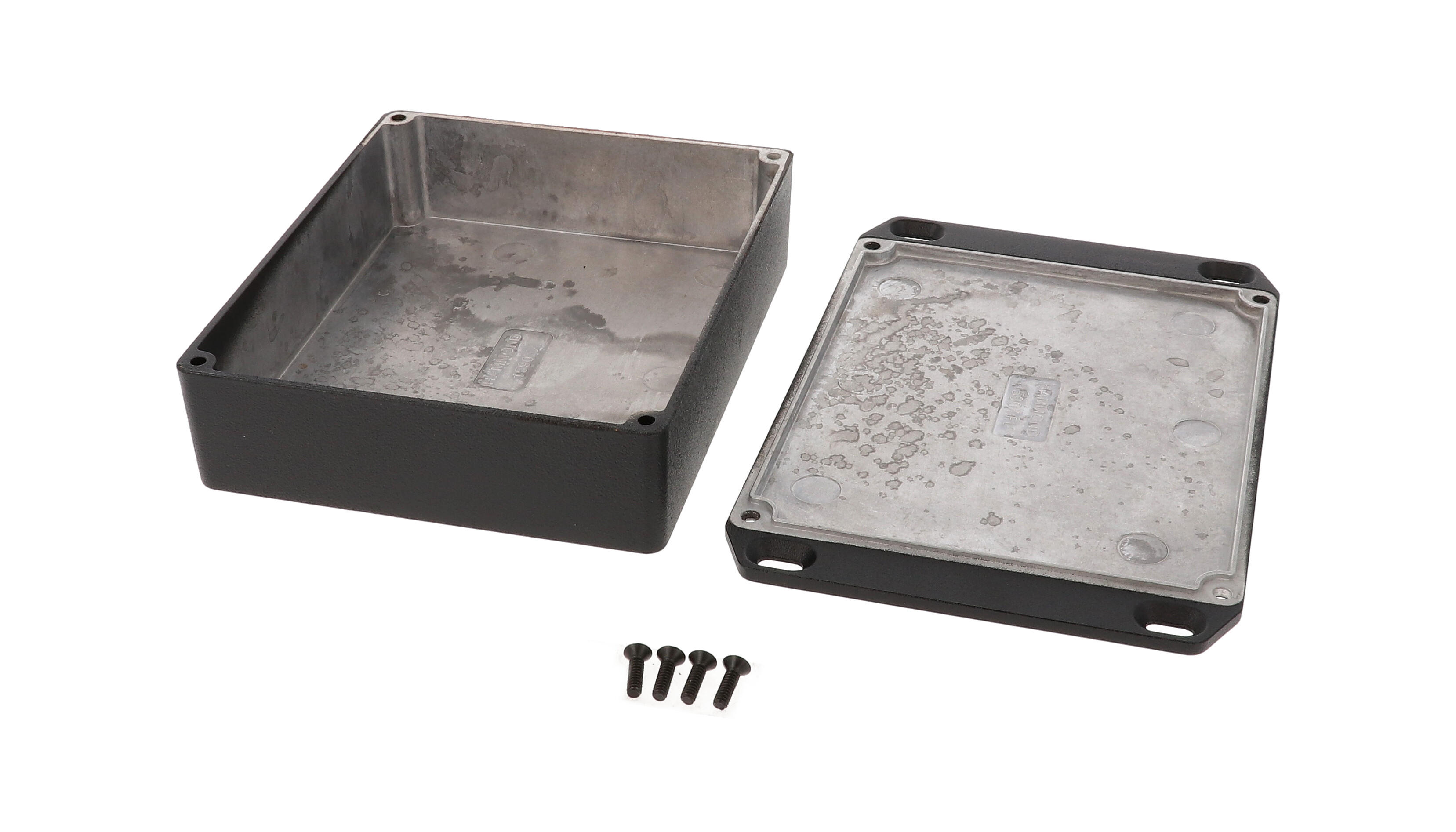

Each 1590XXFLBK includes box, lid and four 6-32 UNC cover screws. Gasket kit 1590XGASKET upgrades it to IP65, or choose the factory water-tight 1590WXXFLBK. Shipping weight is 0.79 lbs (0.36 kg) in shrink wrap; the part is RoHS and REACH compliant.
Ideal For
- Wall-mounted slim black control housings
- Surface-mounted interface electronics
- OEM electronics machined after painting
- Low-height circuit board enclosures
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws (black screws) |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box, flanged |
| Version | Standard |
| Part Number | 1590XXFLBK |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast |
| Short Description | DIECAST |
| Replacement Gasket Kit (Optional) | 1590XGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 115.00 mm [4.528 in] |
| Inside Height | 35.05 mm [1.380 in] |
| Inside Length | 139.00 mm [5.472 in] |
| Size L X W X H | 5.72 in x 4.77 in x 1.55 in (145 mm x 121 mm x 39 mm) |
| Max. P.C. Board Width | 138 mm |
| Max. P.C. Board Length | 114 mm |
| Width (Ordering Table) | 4.76 in (121 mm) |
| Height (Ordering Table) | 1.57 in (40 mm) |
| Length (Ordering Table) | 5.71 in (145 mm) |
| Overall Height (Drawing) | 39.30 mm [1.547 in] |
| Overall Length Incl. Lid Flange | 175.20 mm [6.898 in] |
Identifiers
| UPC | 623980036120 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590XXBK |
| Flanged Lid, Standard | 1590XXFLBK |
| No Flanges, Water-Tight | 1590WXXBK |
| Flanged Lid, Water-Tight | 1590WXXFLBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.79 lbs (0.36 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Box And Lid | Diecast aluminum alloy |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What is the water-tight version of the 1590XXFLBK?▾
1590WXXFLBK is the water-tight black flanged-lid version.
How long is it including the flange?▾
175.20 mm [6.898 in] overall, per the drawing.
What finish is used?▾
Textured black polyester powder paint, which gives a lasting finish even after machining.
What torque should I use with a gasket?▾
25-30 cN.m (36-43 ozf.in); without a gasket the drawing lists 50-55 cN.m (71-78 ozf.in).
