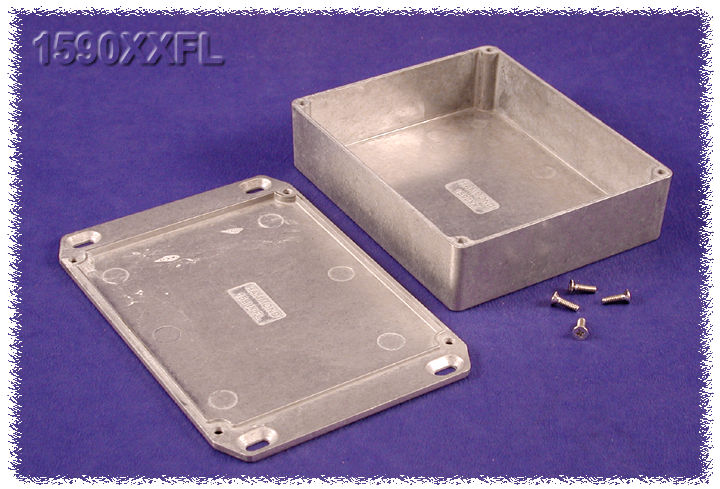

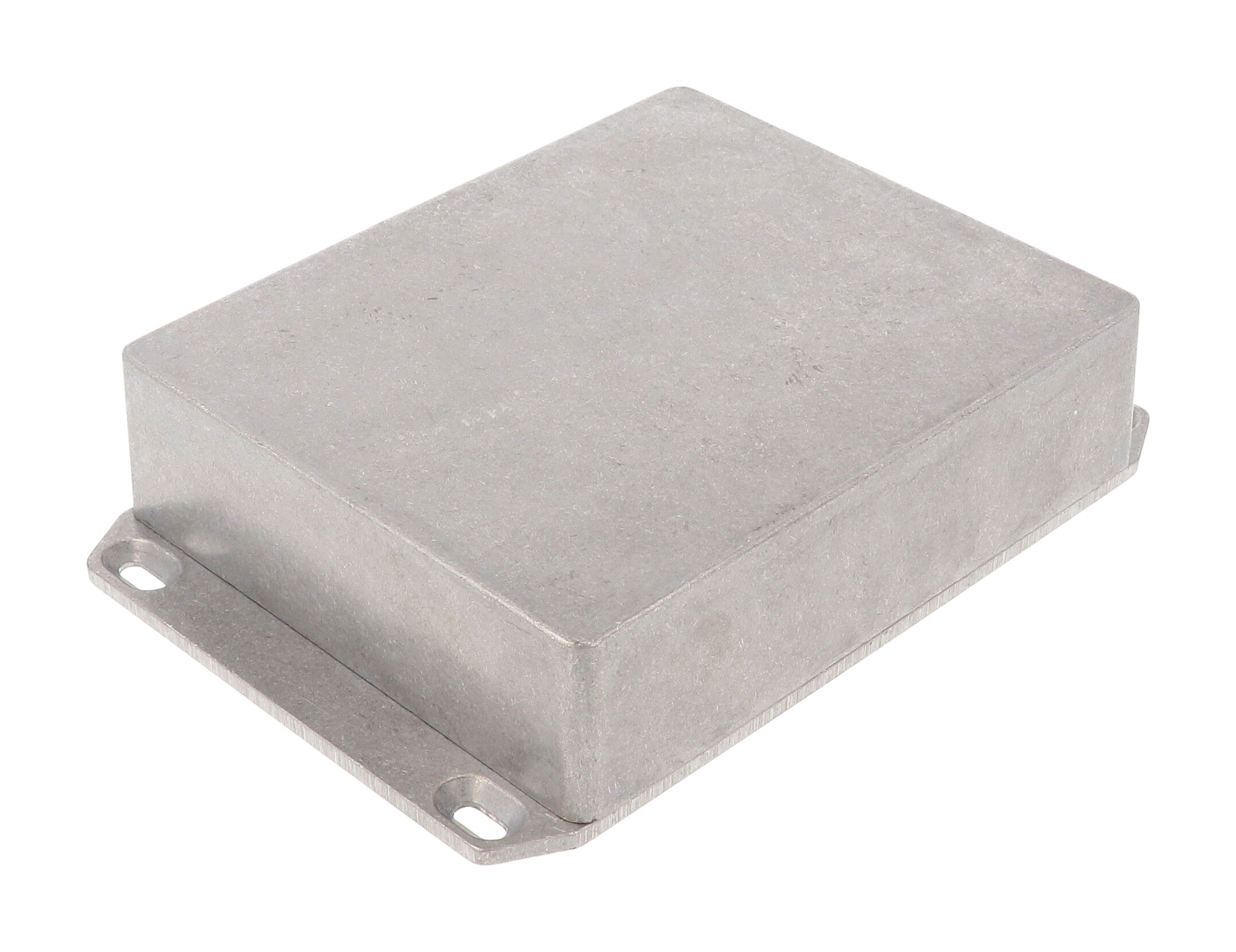

Hammond 1590XXFL Low-Profile Flanged-Lid Diecast Box, 145 x 121 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features

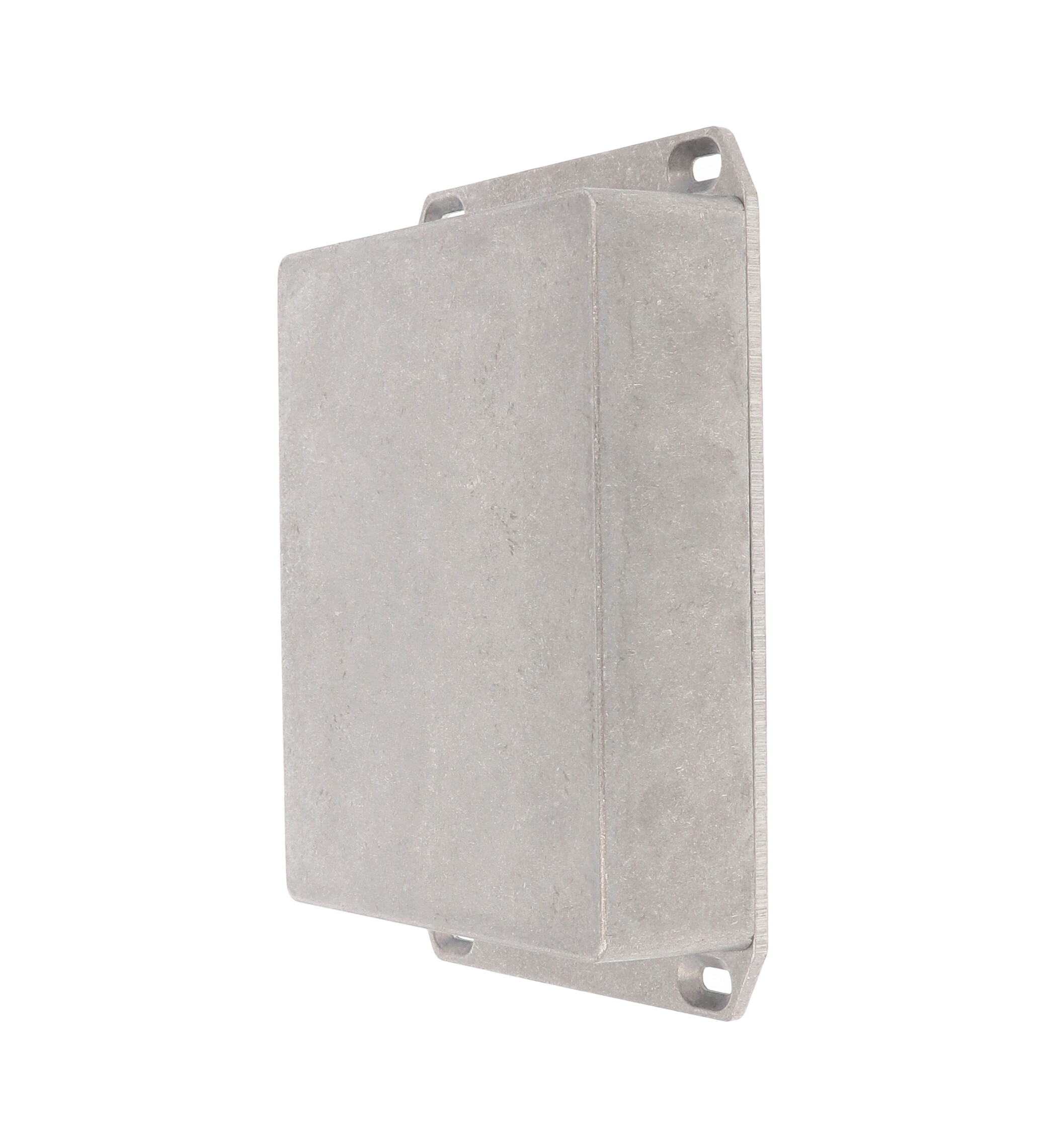

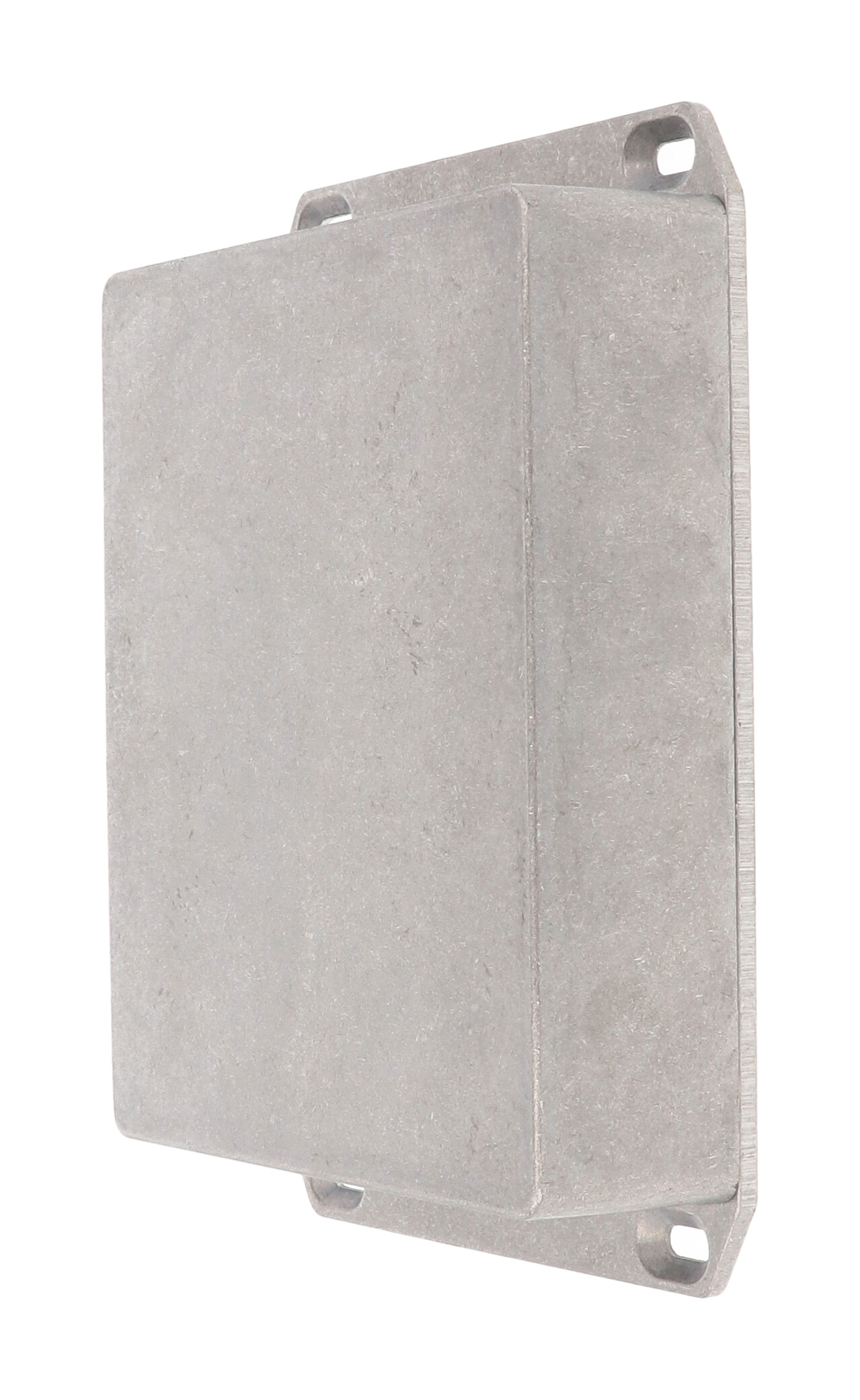

- Wall-mounting flange integrated into the lid
- Low-profile 145 x 121 x 39 mm box, 175.20 mm overall length
- Inside 139.00 x 115.00 x 35.05 mm
- P.C. boards up to 114 x 138 mm
- Designed to meet IP54; IP65 with gasket kit 1590XGASKET
- Natural aluminum, vibra finished
- Four 6-32 UNC cover screws included

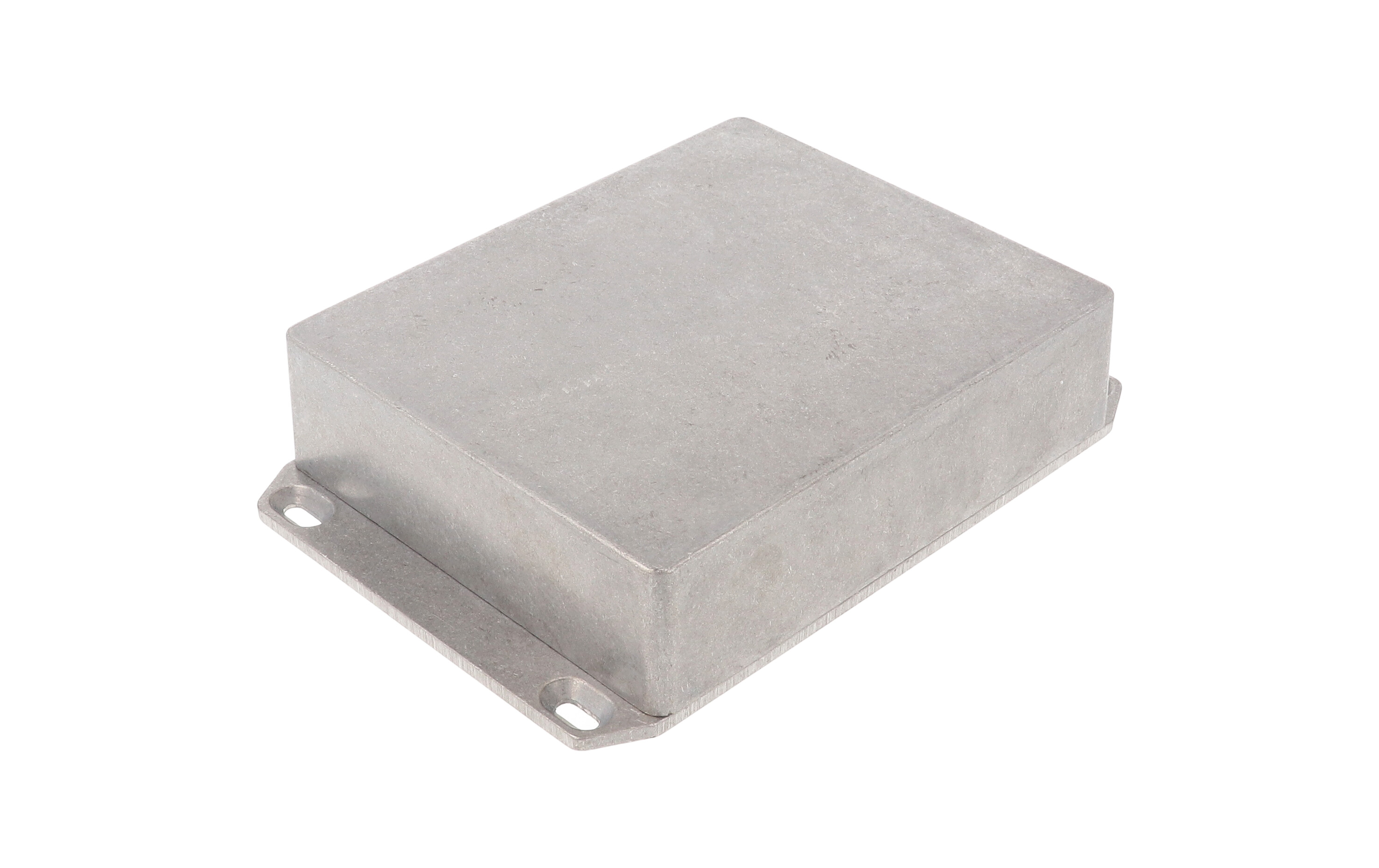

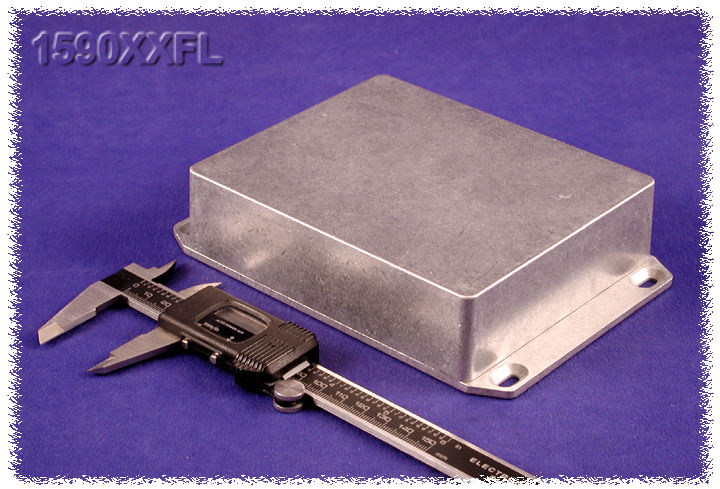

The 1590XXFL is the low-profile 1590XX diecast enclosure with a wall-mounting flange integrated into its lid. At 145 x 121 x 39 mm it gives installers a slim, surface-mountable metal housing for control, interface and OEM electronics.
Box and lid are diecast aluminum alloy, easy to machine and vibra finished in natural aluminum for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and this standard version is designed to meet IP54.
The box's nominal size is 5.72 in x 4.77 in x 1.55 in (145 mm x 121 mm x 39 mm). Across the lid flange the drawing gives 175.20 mm [6.898 in] overall length, with 39.30 mm [1.547 in] overall height. The interior measures 139.00 mm [5.472 in] by 115.00 mm [4.528 in] by 35.05 mm [1.380 in], and maximum P.C. board dimensions are listed as 114 mm and 138 mm.

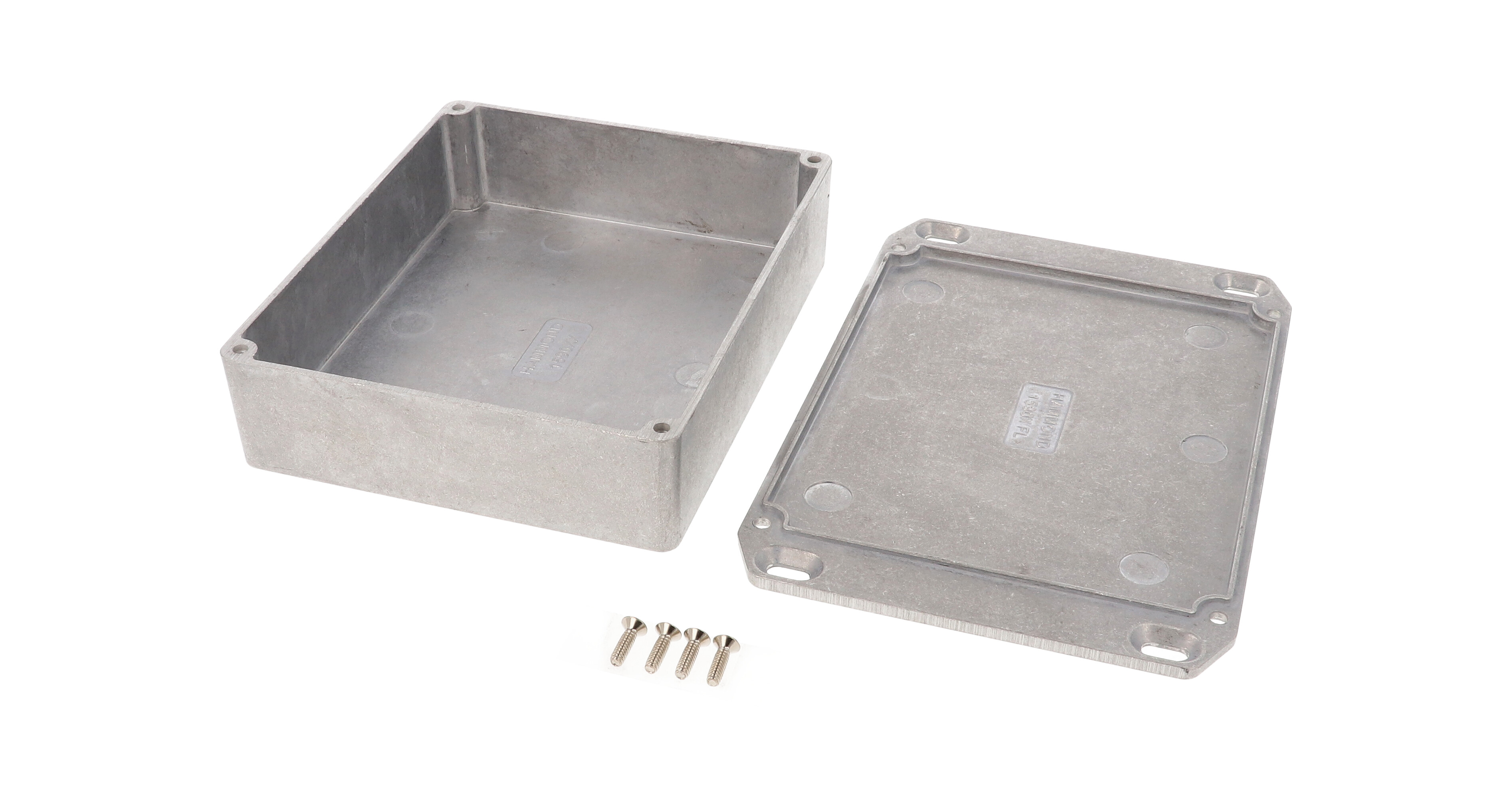

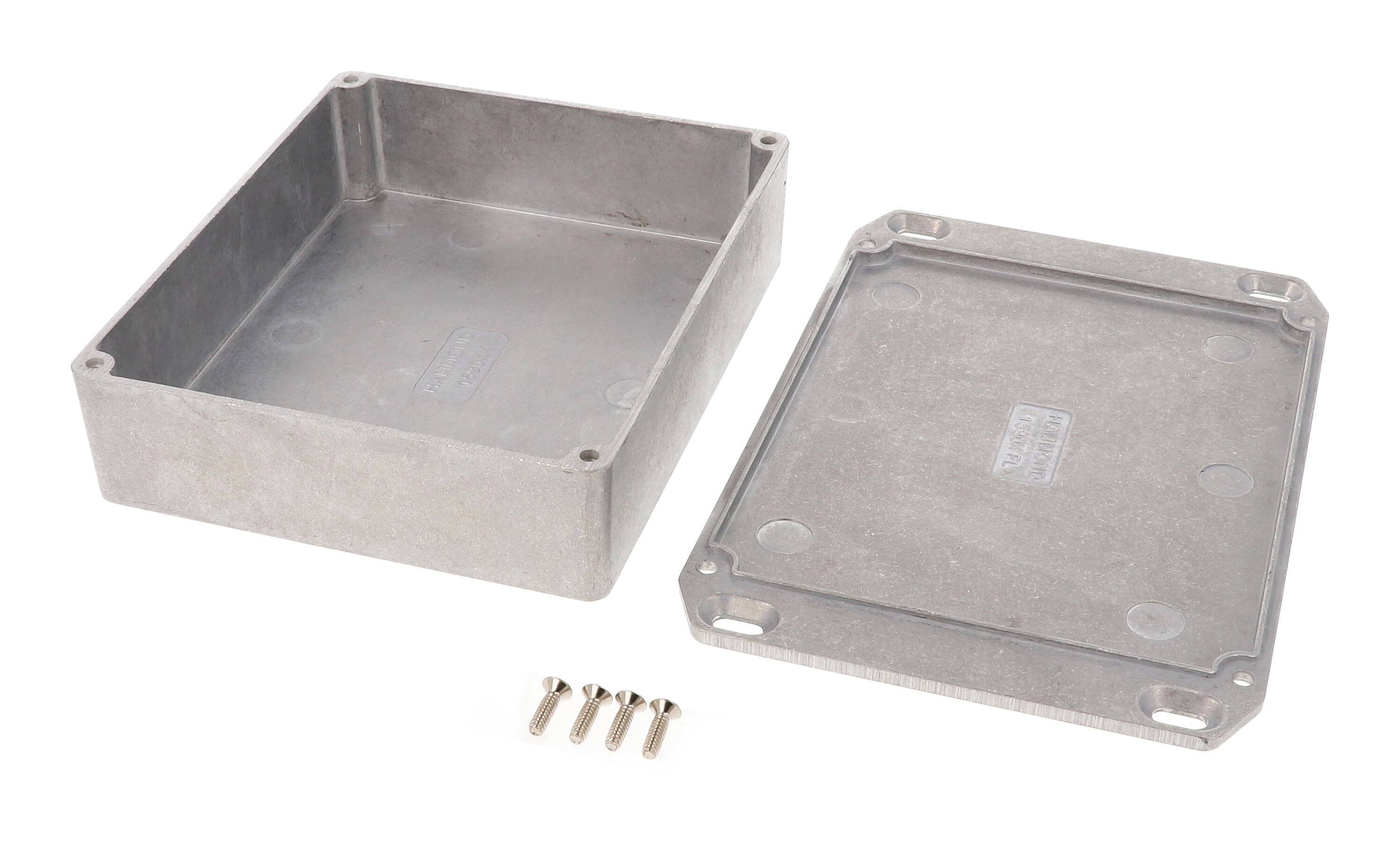

The 1590XXFL assembly includes box, lid and four 6-32 UNC cover screws, torqued to 50-55 cN.m (71-78 ozf.in). For IP65, fit gasket kit 1590XGASKET or choose the factory water-tight 1590WXXFL. It ships in shrink wrap at 0.79 lbs (0.36 kg) and is RoHS and REACH compliant.
Ideal For
- Wall-mounted slim control electronics
- Surface-mounted interface housings
- Low-profile wall-mounted instrument cases
- OEM low-profile instrument cases
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box, flanged |
| Version | Standard |
| Part Number | 1590XXFL |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast |
| Short Description | DIECAST |
| Replacement Gasket Kit (Optional) | 1590XGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 115.00 mm [4.528 in] |
| Inside Height | 35.05 mm [1.380 in] |
| Inside Length | 139.00 mm [5.472 in] |
| Size L X W X H | 5.72 in x 4.77 in x 1.55 in (145 mm x 121 mm x 39 mm) |
| Max. P.C. Board Width | 138 mm |
| Max. P.C. Board Length | 114 mm |
| Width (Ordering Table) | 4.76 in (121 mm) |
| Height (Ordering Table) | 1.57 in (40 mm) |
| Length (Ordering Table) | 5.71 in (145 mm) |
| Overall Height (Drawing) | 39.30 mm [1.547 in] |
| Overall Length Incl. Lid Flange | 175.20 mm [6.898 in] |
Identifiers
| UPC | 623980036083 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590XX |
| Flanged Lid, Standard | 1590XXFL |
| No Flanges, Water-Tight | 1590WXX |
| Flanged Lid, Water-Tight | 1590WXXFL |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.79 lbs (0.36 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Natural aluminum; unpainted version is vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Box And Lid | Diecast aluminum alloy |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How is the 1590XXFL mounted?▾
By the wall-mounting flange that is integrated into the lid. Overall length across the flange is 175.20 mm [6.898 in].
What is the inside height?▾
35.05 mm [1.380 in], per the drawing.
Can it be made watertight?▾
Yes. Gasket kit 1590XGASKET is designed to meet IP65 with lid screws at 25-30 cN.m, or order the water-tight version 1590WXXFL.
What is included?▾
Box, lid and four 6-32 UNC cover screws.
Related Products

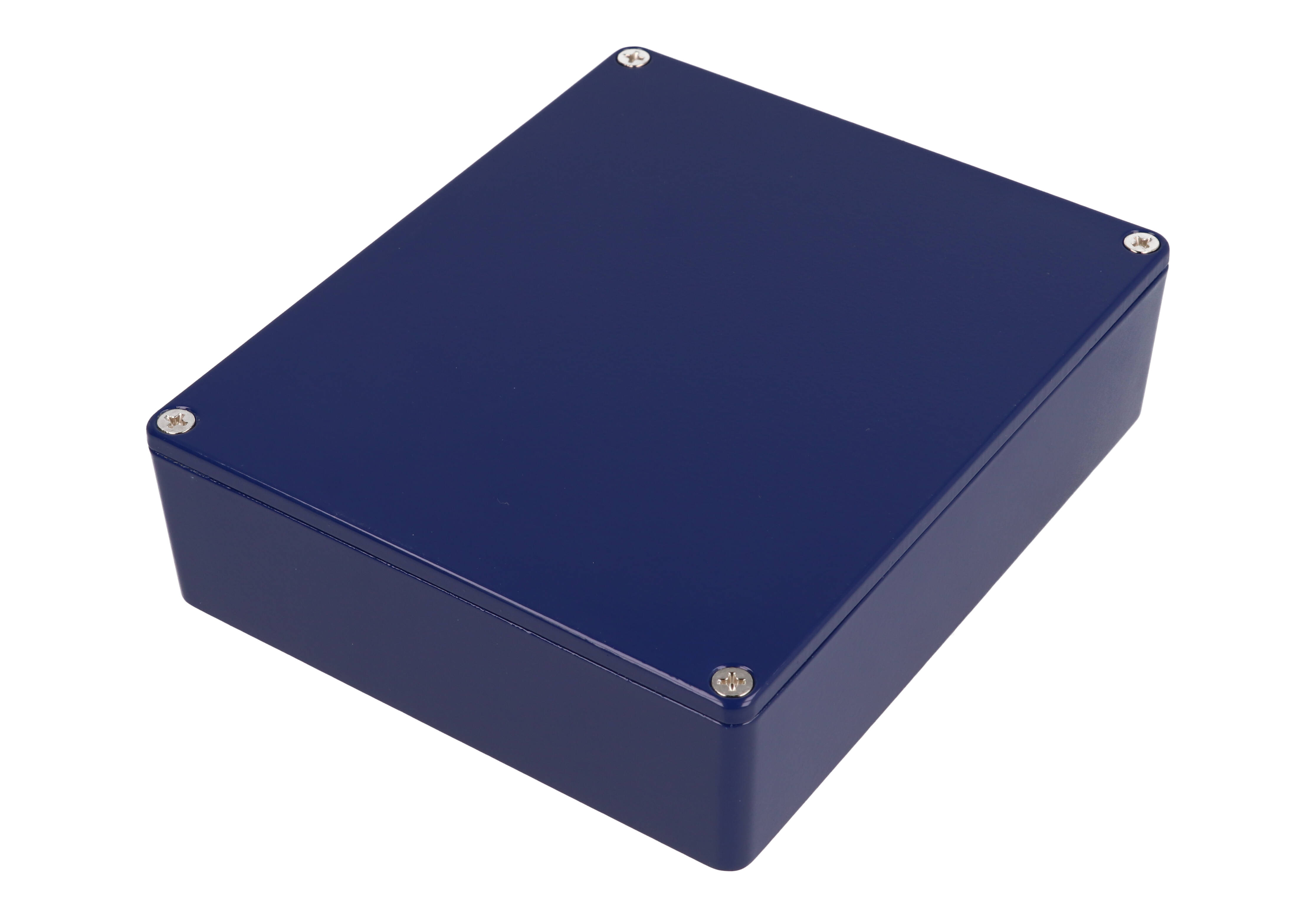

Save 52%1590XXCB — enclosure - diecast
Hammond Manufacturing · 1590XXCB

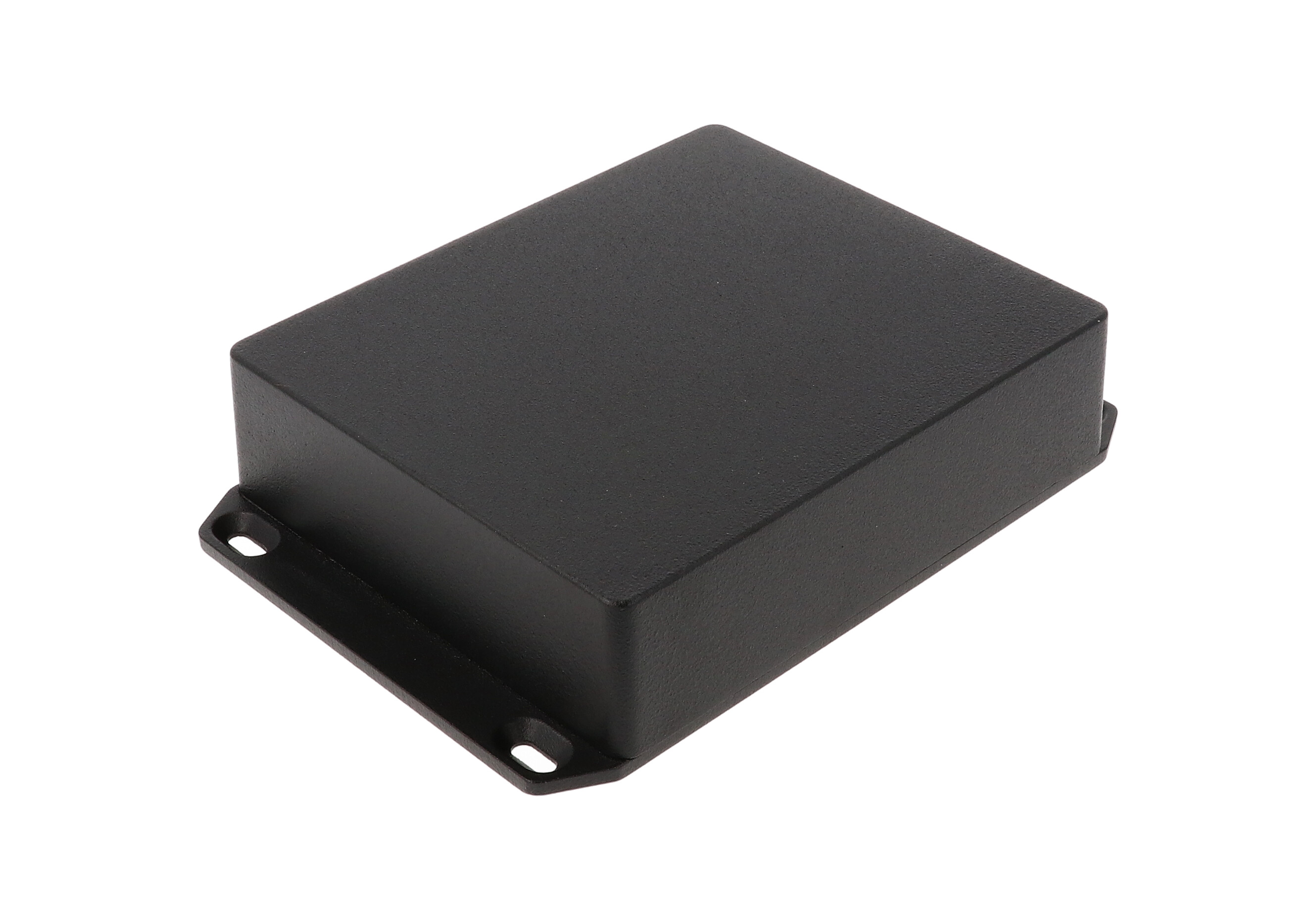

Save 52%1590XXFLBK — enclosure - diecast
Hammond Manufacturing · 1590XXFLBK

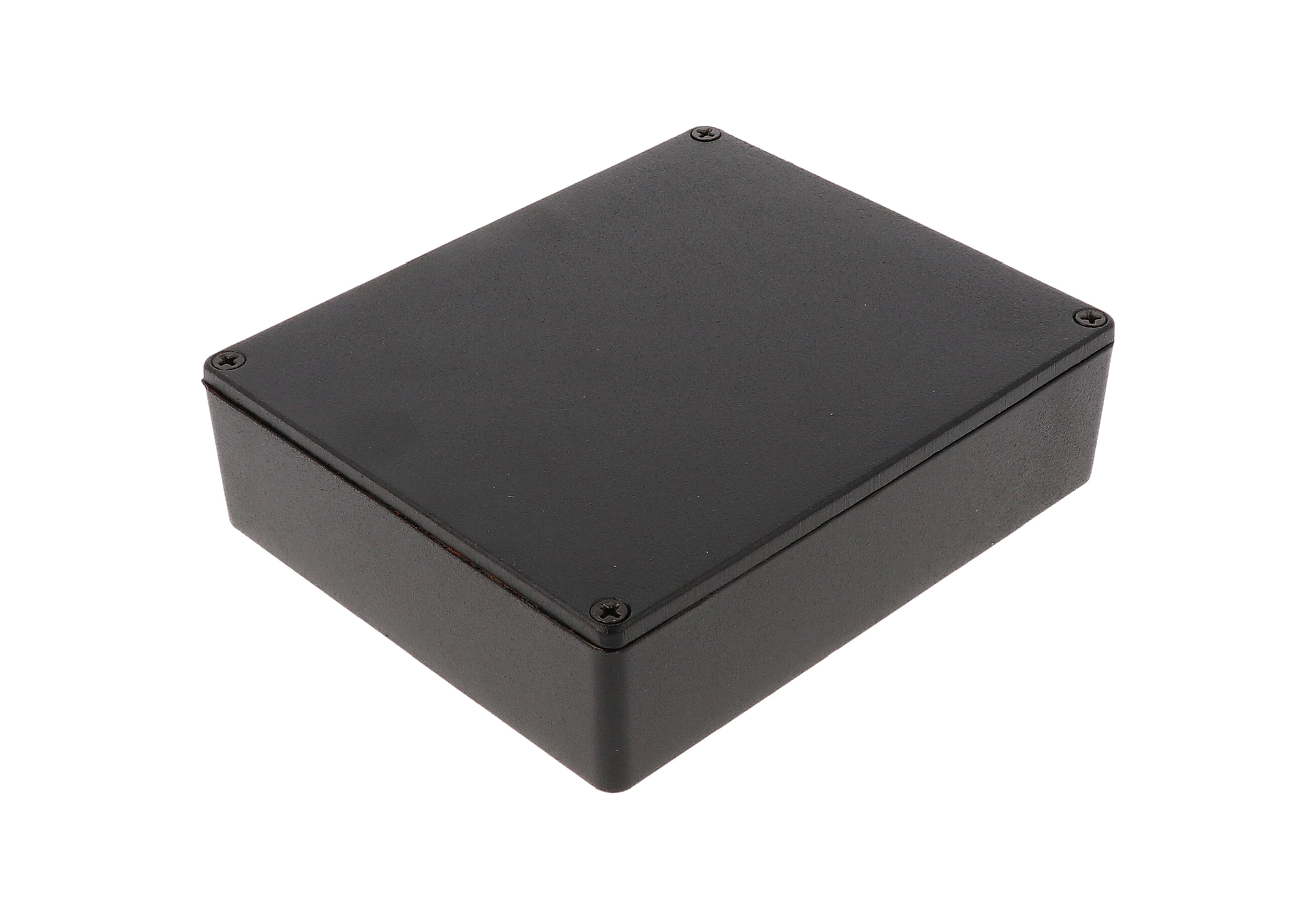

Save 52%1590XXBK — enclosure - diecast
Hammond Manufacturing · 1590XXBK

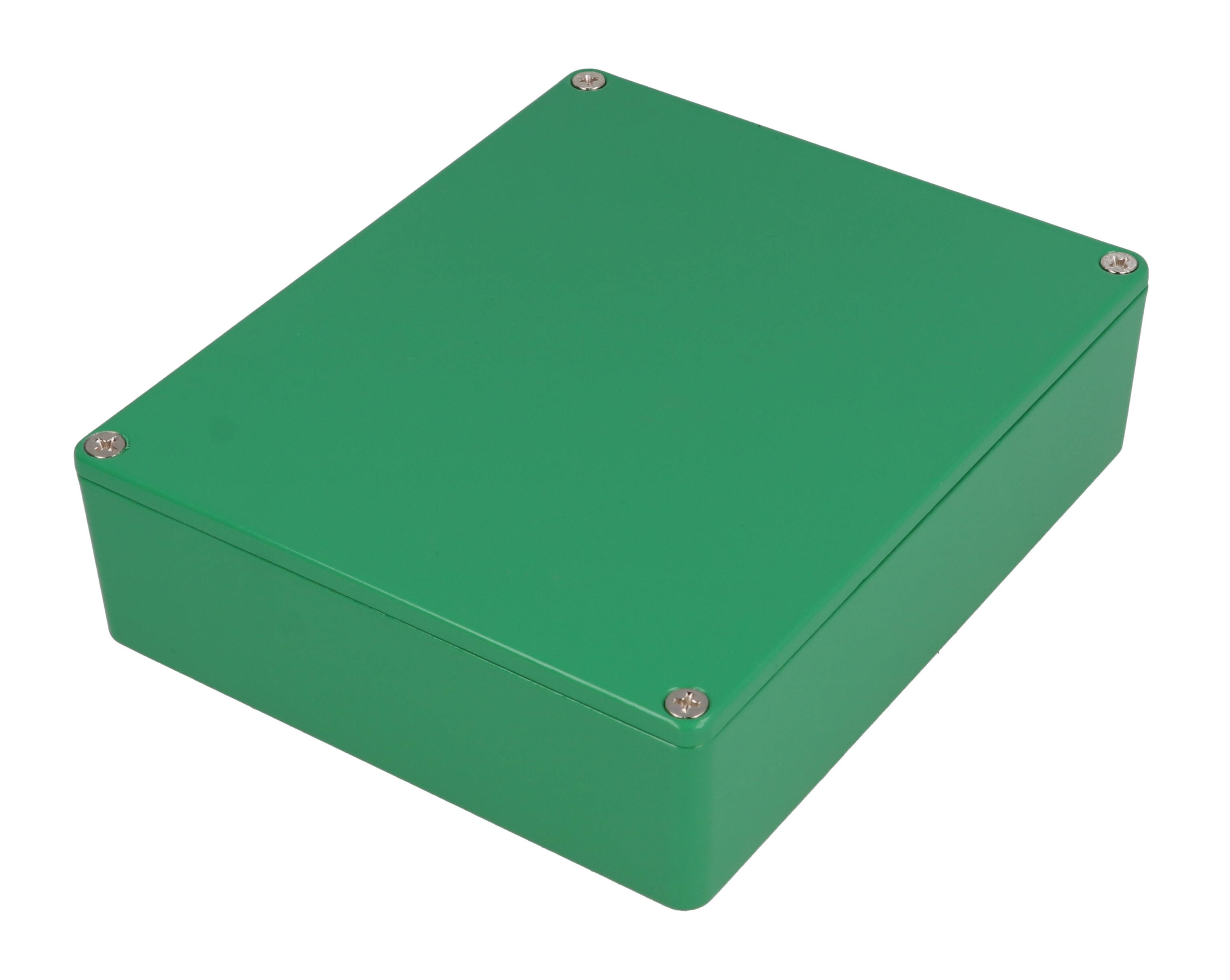

Save 52%1590XXGR — enclosure - diecast
Hammond Manufacturing · 1590XXGR

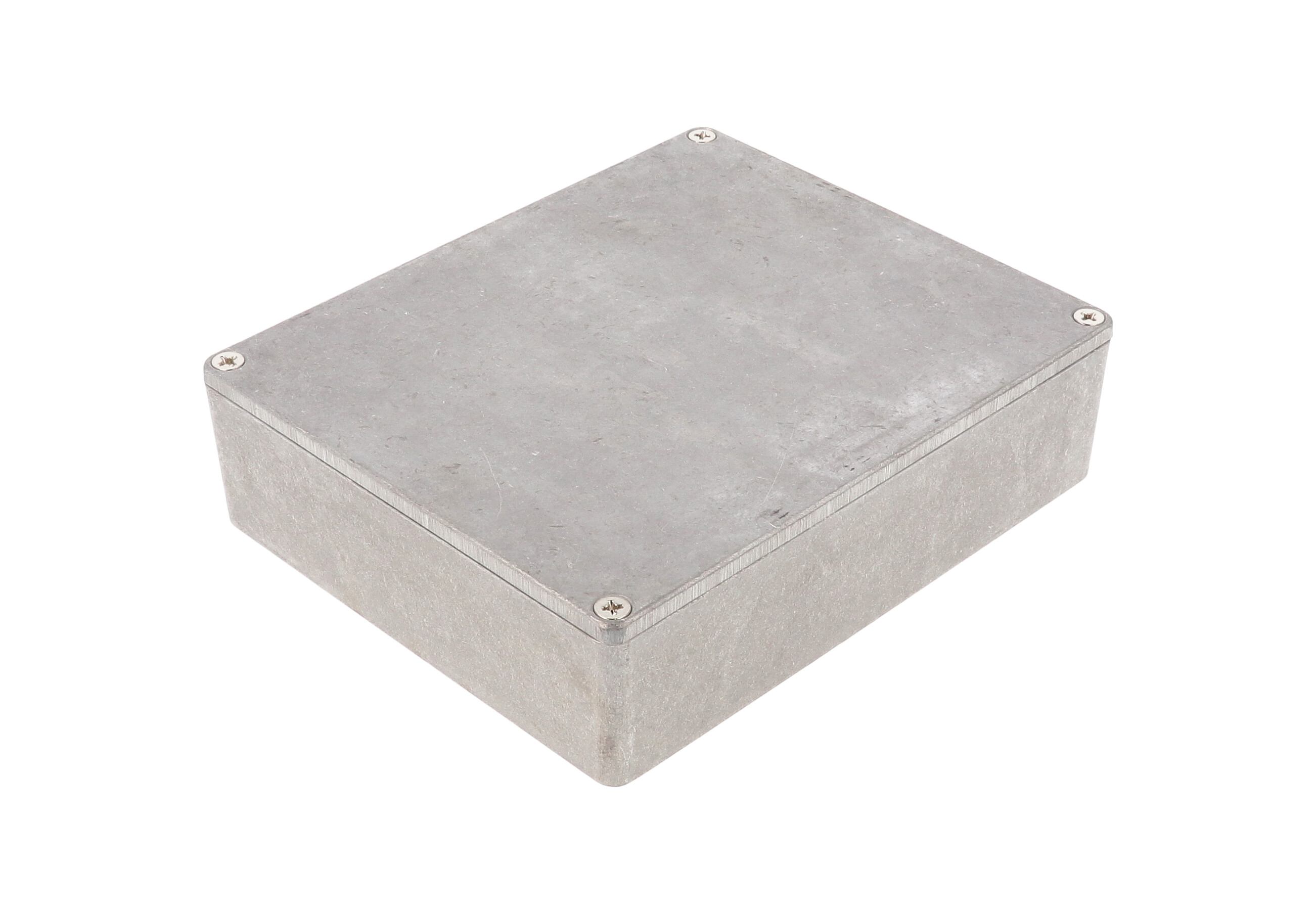

Save 52%1590XX — enclosure - diecast
