Hammond 1590XXBK Black Low-Profile 145x121x39 mm Diecast Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Textured black polyester powder paint with black screws
- Low-profile 145 x 121 x 39 mm, no flanges
- Inside 139.00 x 115.00 x 35.05 mm
- P.C. boards up to 114 x 138 mm
- Designed to meet IP54; IP65 with 1590XGASKET
- Four 6-32 UNC cover screws included
- RoHS and REACH compliant

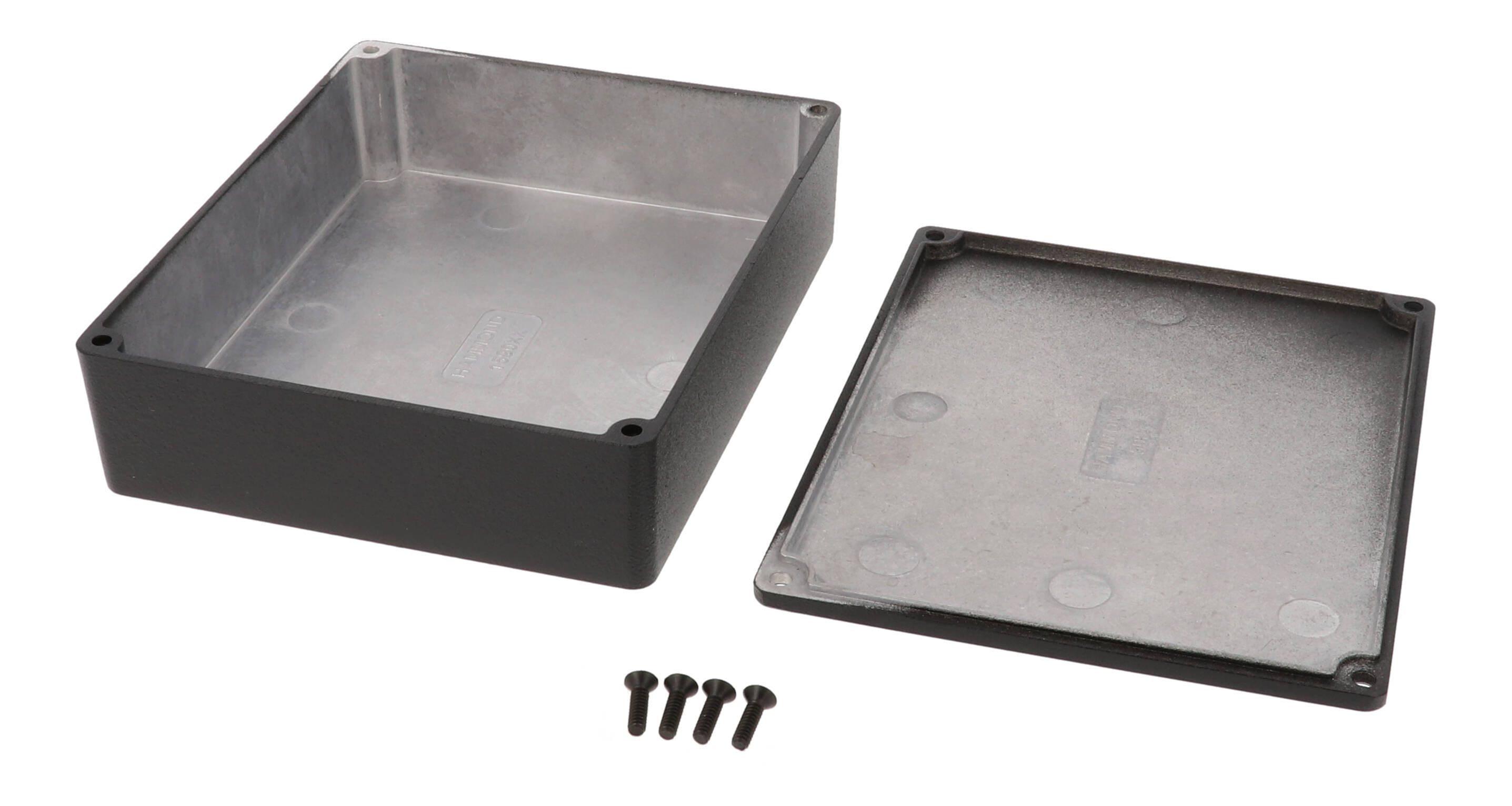

The 1590XXBK is the black textured version of the low-profile 1590XX diecast aluminum enclosure. Measuring 145 x 121 x 39 mm with no mounting flanges, it is a good match for slim control units and OEM modules that need a finished, dark metal case.
The aluminum alloy casting is coated with tough polyester powder paint for a lasting finish, even after machining, and black screws are included to enhance appearance. Lap joint construction where lid and box meet protects against dust and splashing water; this standard version is designed to meet IP54.
Nominal size is 5.72 in x 4.77 in x 1.55 in (145 mm x 121 mm x 39 mm), with 39.30 mm [1.547 in] overall height on the drawing. Inside there is 139.00 mm [5.472 in] of length, 115.00 mm [4.528 in] of width and 35.05 mm [1.380 in] of height, and the listed maximum P.C. board dimensions are 114 mm and 138 mm. Side wall draft is 2° or less.
The 1590XXBK includes box, lid and four 6-32 UNC cover screws in factory-tapped holes. Gasket kit 1590XGASKET upgrades it to IP65; the factory water-tight black version is 1590WXXBK. It ships in shrink wrap weighing 0.73 lbs (0.33 kg) and is RoHS and REACH compliant.
Ideal For
- Slim black instrument housings
- Low-profile instrument cases
- Control electronics with low-height boards
- OEM modules machined after finishing
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws (black screws) |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box |
| Version | Standard |
| Part Number | 1590XXBK |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Short Description | DIECAST |
| Replacement Gasket Kit (Optional) | 1590XGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 115.00 mm [4.528 in] |
| Inside Height | 35.05 mm [1.380 in] |
| Inside Length | 139.00 mm [5.472 in] |
| Size L X W X H | 5.72 in x 4.77 in x 1.55 in (145 mm x 121 mm x 39 mm) |
| Max. P.C. Board Width | 138 mm |
| Max. P.C. Board Length | 114 mm |
| Width (Ordering Table) | 4.76 in (121 mm) |
| Height (Ordering Table) | 1.57 in (40 mm) |
| Length (Ordering Table) | 5.71 in (145 mm) |
| Overall Width (Drawing) | 121.20 mm [4.772 in] |
| Overall Height (Drawing) | 39.30 mm [1.547 in] |
| Overall Length (Drawing, Box) | 145.20 mm [5.717 in] |
Identifiers
| UPC | 623980036045 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590XXBK |
| Flanged Lid, Standard | 1590XXFLBK |
| No Flanges, Water-Tight | 1590WXXBK |
| Flanged Lid, Water-Tight | 1590WXXFLBK |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.73 lbs (0.33 kg) |
Construction & Finish
| Color | Black |
| Finish | Textured black polyester powder paint; black screws included |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What colour screws come with the 1590XXBK?▾
Black screws are included with the textured black version.
How tall is the enclosure?▾
Nominal height is 39 mm (1.55 in); the drawing shows 39.30 mm [1.547 in] overall and 35.05 mm [1.380 in] inside.
Is there a water-tight version?▾
Yes, 1590WXXBK is the black water-tight version. You can also add gasket kit 1590XGASKET.
What does it weigh?▾
Shipping weight is 0.73 lbs (0.33 kg).
