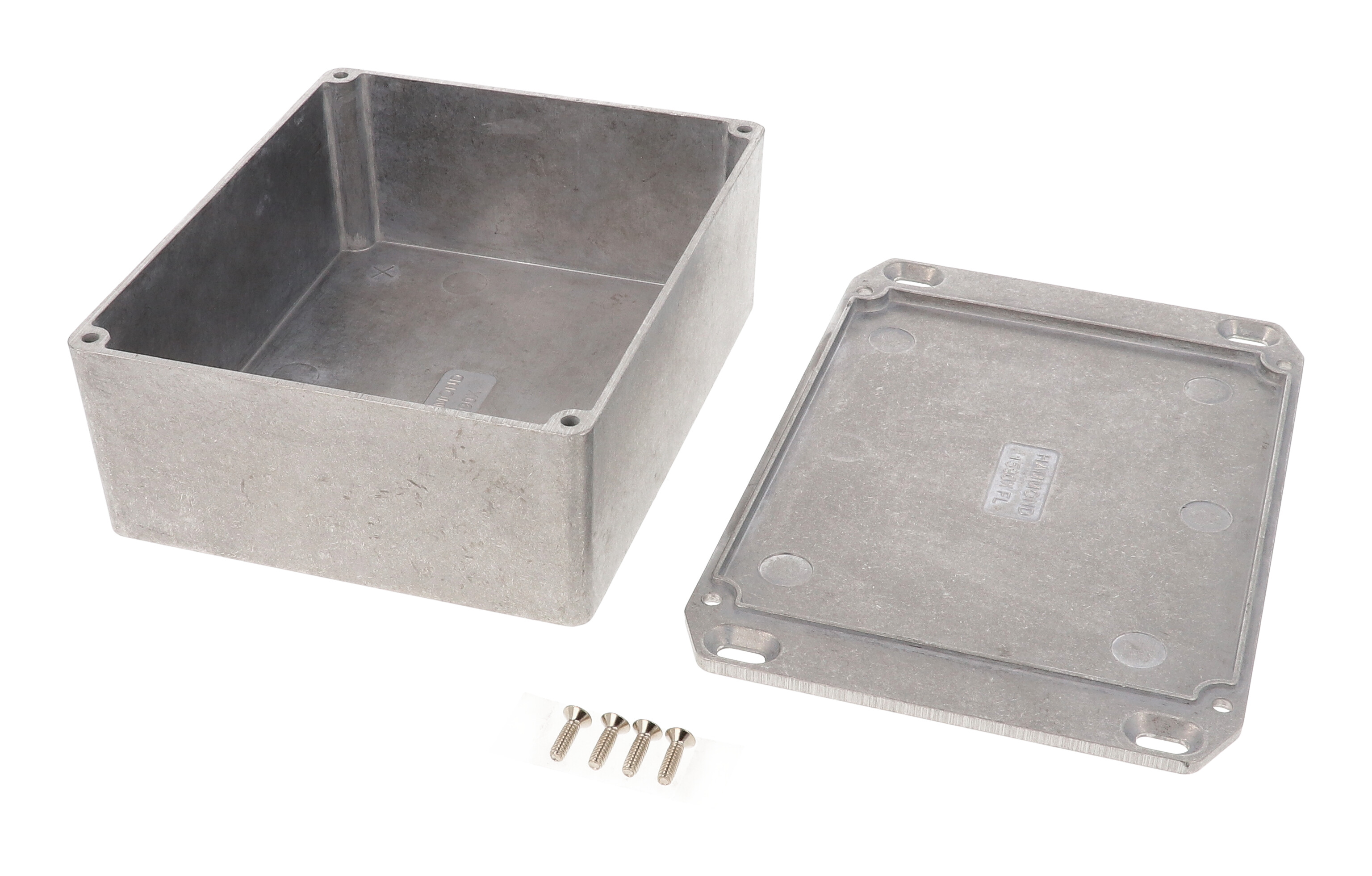

Hammond 1590XFL 145x121x56 mm Flanged-Lid Diecast Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Wall-mounting flange integrated into the lid
- 175.20 mm overall length; 145 x 121 x 56 mm nominal box
- Inside 138.09 x 114.09 x 52.40 mm
- Designed to meet IP54; IP65 with 1590XGASKET
- Natural aluminum, vibra finished with no sharp edges
- Four 6-32 UNC cover screws included
- RoHS and REACH compliant

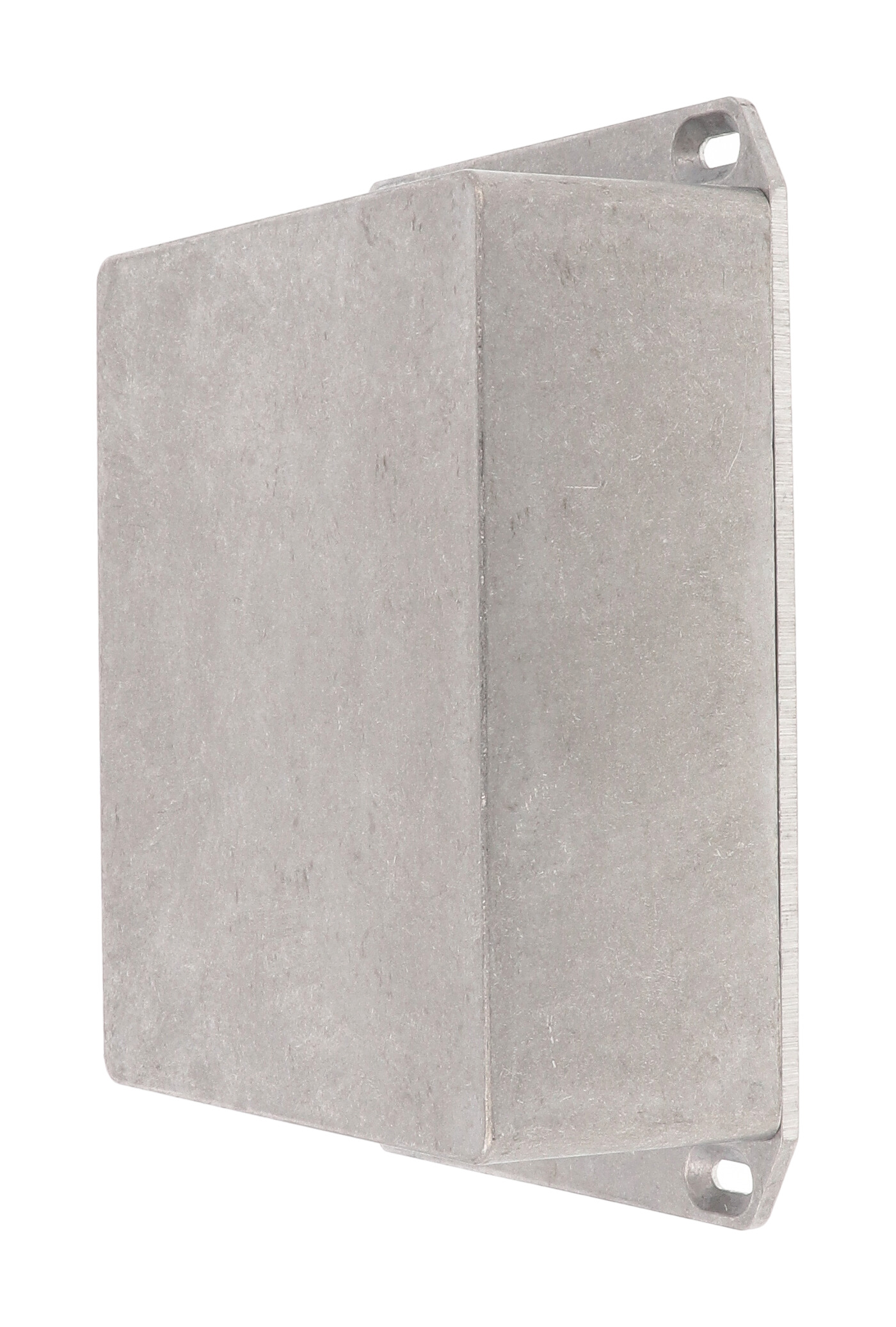

The 1590XFL takes the 145 x 121 x 56 mm 1590X diecast aluminum box and adds a wall-mounting flange integrated into the lid. It is intended for installers and OEM designers who need to fix a sizeable electronics housing to a wall, panel or equipment surface.
Box and lid are diecast aluminum alloy in a natural finish, vibra finished to a smooth surface with no sharp edges. A lap joint where lid and box meet guards against dust and splashing water, and this standard version is designed to meet IP54.
The box has a nominal size of 5.72 in x 4.77 in x 2.22 in (145 mm x 121 mm x 56 mm); with the lid flange the drawing shows 175.20 mm [6.898 in] overall length. Inside dimensions are 138.09 mm [5.437 in] long, 114.09 mm [4.492 in] wide and 52.40 mm [2.063 in] high, and the manufacturer lists maximum P.C. board dimensions of 113.09 mm and 137.09 mm. The side walls are drafted 2° or less for easy board mounting.
Each 1590XFL includes box, lid and four 6-32 UNC cover screws in factory-tapped holes, with a recommended torque of 50-55 cN.m (71-78 ozf.in). Gasket kit 1590XGASKET upgrades the enclosure to IP65, and the factory water-tight equivalent is 1590WXFL. It ships in shrink wrap at 0.79 lbs (0.36 kg) and is RoHS and REACH compliant.
Ideal For
- Wall or panel mounted control electronics
- Surface-mounted instrument housings
- Surface-mounted junction and interface enclosures
- OEM electronics requiring a flanged metal case
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box, flanged |
| Version | Standard |
| Part Number | 1590XFL |
| Mounting Style | Flanged lid (wall-mounting flange integrated into lid) |
| Long Description | enclosure - diecast |
| Short Description | DIECAST |
| Replacement Gasket Kit (Optional) | 1590XGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 114.09 mm [4.492 in] |
| Inside Height | 52.40 mm [2.063 in] |
| Inside Length | 138.09 mm [5.437 in] |
| Size L X W X H | 5.72 in x 4.77 in x 2.22 in (145 mm x 121 mm x 56 mm) |
| Max. P.C. Board Width | 137.09 mm |
| Max. P.C. Board Length | 113.09 mm |
| Width (Ordering Table) | 4.76 in (121 mm) |
| Height (Ordering Table) | 2.20 in (56 mm) |
| Length (Ordering Table) | 5.71 in (145 mm) |
| Overall Width (Drawing) | 121.20 mm [4.772 in] |
| Overall Height (Drawing) | 56.40 mm [2.220 in] |
| Overall Length Incl. Lid Flange | 175.20 mm [6.898 in] |
Identifiers
| UPC | 623980036076 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590X |
| Flanged Lid, Standard | 1590XFL |
| No Flanges, Water-Tight | 1590WX |
| Flanged Lid, Water-Tight | 1590WXFL |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.79 lbs (0.36 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Natural aluminum; unpainted version is vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Lid Flange | Wall-mounting flange integrated into lid |
| Box And Lid | Diecast aluminum alloy |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does the 1590XFL mount?▾
A wall-mounting flange is integrated into the lid, extending the overall length to 175.20 mm [6.898 in].
What is the IP rating?▾
The standard 1590XFL is designed to meet IP54. With gasket kit 1590XGASKET properly installed and lid screws at 25-30 cN.m it is designed to meet IP65.
Is there a water-tight flanged-lid version?▾
Yes, 1590WXFL is the water-tight version with a silicone gasket.
What size board fits inside?▾
The manufacturer lists maximum P.C. board dimensions of 113.09 mm and 137.09 mm; inside length is 138.09 mm and inside width 114.09 mm.
What does it weigh?▾
Shipping weight is 0.79 lbs (0.36 kg).
