Hammond 1590X 145x121x56 mm Natural Diecast Aluminum Box
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Nominal 145 x 121 x 56 mm (5.72 x 4.77 x 2.22 in)
- Designed to meet IP54 via lap joint construction
- Inside 138.09 x 114.09 mm with 52.40 mm inside height
- Natural aluminum, vibra finished with no sharp edges
- Four 6-32 UNC cover screws in factory-tapped holes
- Upgradeable to IP65 with gasket kit 1590XGASKET
- Side wall draft 2° or less for PCB mounting
- RoHS and REACH compliant

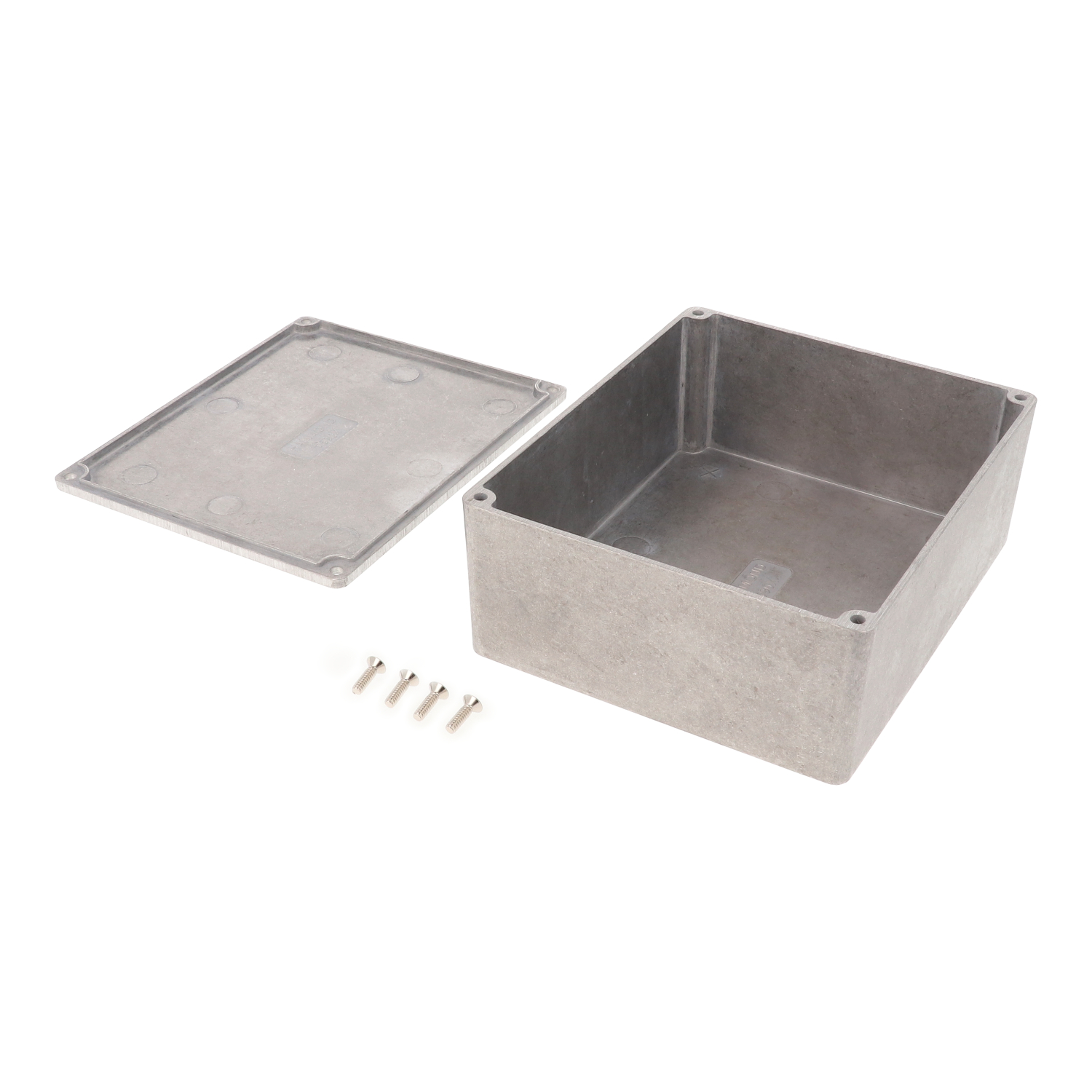

The 1590X is one of the larger enclosures in the 1590 diecast aluminum range: a 145 x 121 x 56 mm natural aluminum box with no mounting flanges. It is a general purpose housing for OEM electronics, instruments and control circuits where a rugged, machinable metal case is wanted.
The box and lid are diecast aluminum alloy, tough yet easy to machine. Lap joint construction where lid and box meet gives protection against dust and splashing water, and this standard version is designed to meet IP54. The unpainted finish is vibra finished for a smooth surface with no sharp edges.
Nominal size is 5.72 in x 4.77 in x 2.22 in (145 mm x 121 mm x 56 mm). The drawing shows an inside length of 138.09 mm [5.437 in], inside width of 114.09 mm [4.492 in] and inside height of 52.40 mm [2.063 in], with the manufacturer listing maximum P.C. board dimensions of 113.09 mm and 137.09 mm. Side walls have a draft angle of 2° or less for easy board mounting.
- Includes box, lid and four 6-32 UNC cover screws
- Recommended torque 50-55 cN.m (71-78 ozf.in)
- Water-tight equivalent: 1590WX; gasket kit 1590XGASKET upgrades to IP65
The 1590X ships in shrink wrap at 0.81 lbs (0.37 kg) and is RoHS and REACH compliant. Factory modification such as milling, drilling and printing is available on quotation, and STEP or IGES solid models exist for design work.
Ideal For
- General purpose electronic instrument enclosures
- Machined housings for OEM circuit boards
- Rugged metal cases for circuit boards
- Control electronics requiring dust and splash protection
Other
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
Hardware
| Included | Box, lid and 4 cover screws |
| Cover Screw Thread | 6-32 UNC, into factory-tapped holes (4X) |
| Recommended Cover Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Tamper-Resistant Screwdriver Bit | SCDRIVET10-2 |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless / 1590WMS100BK black stainless [6-32 x 1/2" with O-Ring] |
| Tamper-Resistant Screws (Torx With Pin, 50-packs) | 1590MS50T natural / 1590MS50TBK black; water-tight 1590WMS50T / 1590WMS50TBK |
Overview
| Type | Die-cast box |
| Version | Standard |
| Part Number | 1590X |
| Mounting Style | No mounting flanges |
| Long Description | enclosure - diecast |
| Short Description | DIECAST |
| Replacement Gasket Kit (Optional) | 1590XGASKET |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 114.09 mm [4.492 in] |
| Inside Height | 52.40 mm [2.063 in] |
| Inside Length | 138.09 mm [5.437 in] |
| Size L X W X H | 5.72 in x 4.77 in x 2.22 in (145 mm x 121 mm x 56 mm) |
| Max. P.C. Board Width | 137.09 mm |
| Max. P.C. Board Length | 113.09 mm |
| Width (Ordering Table) | 4.76 in (121 mm) |
| Height (Ordering Table) | 2.20 in (56 mm) |
| Length (Ordering Table) | 5.71 in (145 mm) |
| Overall Width (Drawing) | 121.20 mm [4.772 in] |
| Overall Height (Drawing) | 56.40 mm [2.220 in] |
| Overall Length (Drawing, Box) | 145.20 mm [5.717 in] |
Identifiers
| UPC | 623980035994 |
| UNSPSC | 39121301 |
Related Versions
| No Flanges, Standard | 1590X |
| Flanged Lid, Standard | 1590XFL |
| No Flanges, Water-Tight | 1590WX |
| Flanged Lid, Water-Tight | 1590WXFL |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.81 lbs (0.37 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Natural aluminum; unpainted version is vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Diecast aluminum alloy |
| Joint Construction | Lap joint where lid and box meet |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| IP Rating | IP54 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What IP rating does the 1590X have?▾
The standard 1590X is designed to meet IP54. Adding the 1590XGASKET kit with properly torqued lid screws is designed to meet IP65.
What are the inside dimensions of the 1590X?▾
Inside length is 138.09 mm [5.437 in], inside width 114.09 mm [4.492 in] and inside height 52.40 mm [2.063 in].
Does the 1590X have mounting flanges?▾
No. The flanged-lid versions are 1590XFL (standard) and 1590WXFL (water-tight).
What screws are included?▾
Four 6-32 UNC cover screws threaded into factory-tapped holes. Replacement packs are 1590MS100 (plated) or 1590MS100BK (black).
Can Hammond modify the enclosure?▾
The drawing notes that enclosures can be factory modified (milling, drilling, printing etc.) on quotation.
