Hammond 1590WUF 120x120x59 mm IP65 Diecast Box with Flanged Bottom
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65; silicone gasket supplied loose for fitting to the lid
- Size 4.72 in x 4.72 in x 2.32 in (120 mm x 120 mm x 59 mm)
- Welded flanged bottom plate for wall or panel mounting; 149.10 mm [5.870 in] overall length
- Inside space 112.65 mm x 112.65 mm x 53.60 mm; max PC board 111.74 x 111.74 mm
- Die-cast aluminum alloy box and lid, tough yet easy to machine
- Natural aluminum, vibra finished for a smooth surface with no sharp edges
- Lap joint seam and low 2° (or less) side wall draft for easy PC board mounting
- Includes 4 x 6-32 UNC cover screws in factory-tapped holes; RoHS and REACH compliant

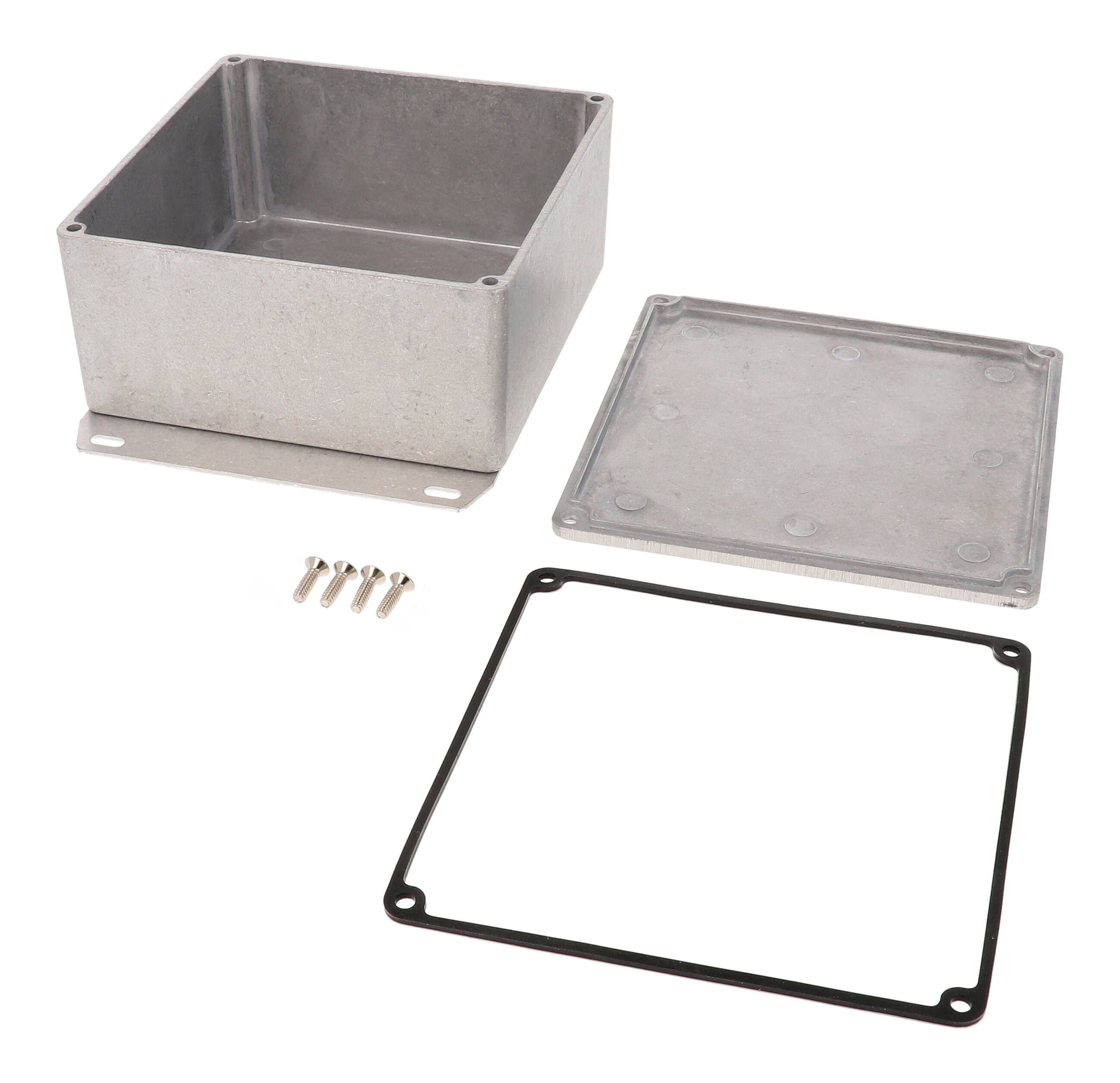

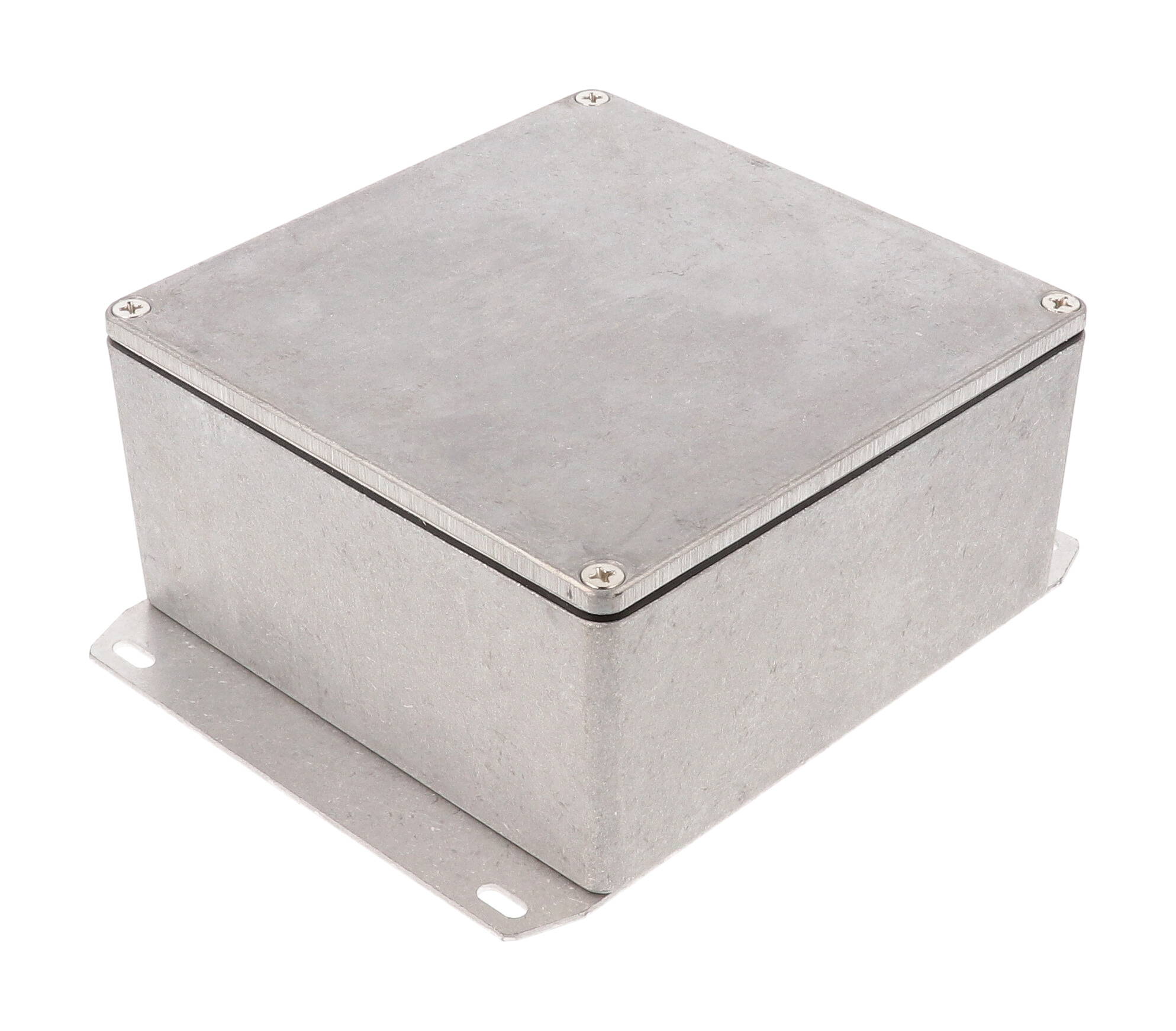

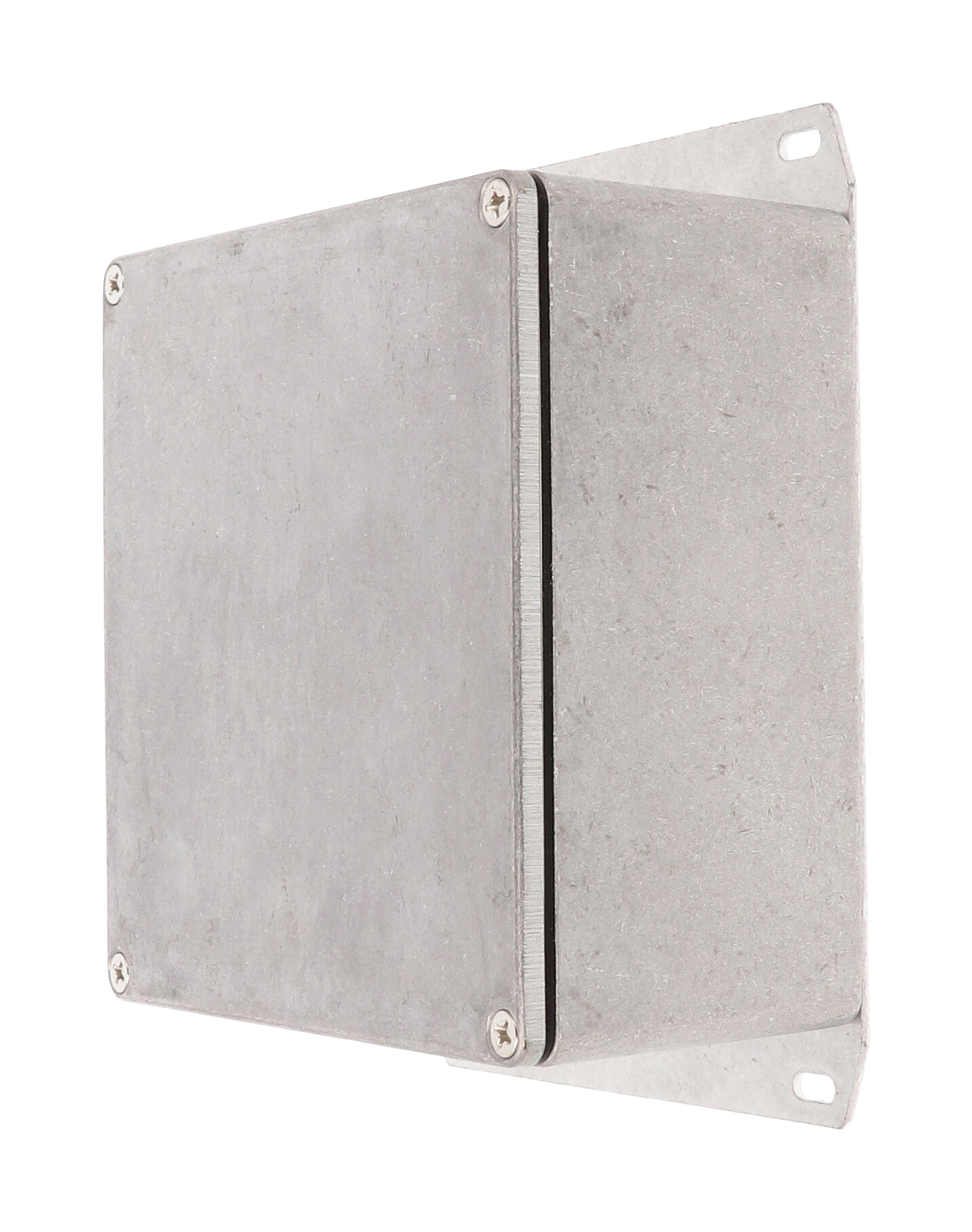

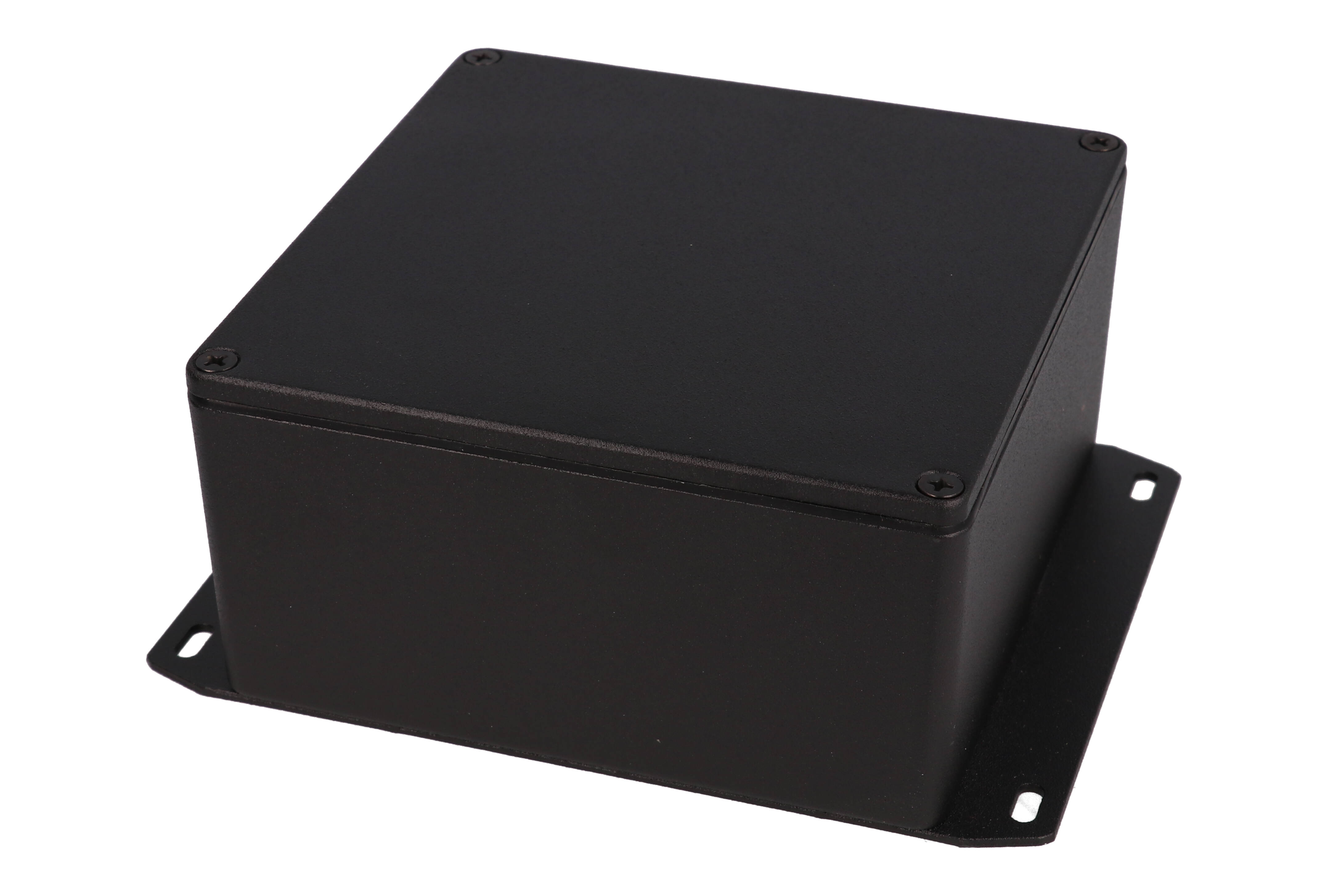

The 1590WUF is a watertight diecast aluminum enclosure with a flanged bottom plate, built for electronics designers, OEM engineers and integrators who need a square, surface-mountable housing designed to meet IP65. The body measures 120 x 120 mm with a nominal height of 59 mm, and the welded bottom flange extends the footprint to 149.10 mm [5.870 in] so the box can be screwed flat to a wall or panel.
Box and lid are die-cast aluminum alloy, which is tough yet easy to machine for connectors, glands, switches and displays. Lap joint construction where the lid and box meet guards against dust and splashing water, and a silicone gasket is supplied loose inside the enclosure for you to fit to the lid. The side walls have a low draft angle of 2° or less, which simplifies PC board mounting. The natural aluminum version is left unpainted and vibra finished for a smooth surface with no sharp edges.
Inside there is 112.65 x 112.65 mm [4.435 x 4.435 in] of floor area and 53.60 mm [2.110 in] of height, with a maximum PC board size of 111.74 x 111.74 mm. The lid closes with four 6-32 UNC cover screws threaded into factory-tapped holes; the recommended torque with the gasket fitted is 25-30 cN.m [36-43 ozf.in].
The assembly ships shrink wrapped as box, lid and four cover screws, and is RoHS and REACH compliant. The same size is offered without flanges (1590WU) or with a flanged lid (1590WUFL), and 1590QGASKET is listed as the optional replacement gasket kit.
Ideal For
- Wall- or panel-mounted watertight electronics housing
- Surface-mounted instrument and control enclosures
- Custom PC board assemblies up to 111.74 x 111.74 mm
- Enclosures needing machined cut-outs for glands, connectors or displays
Overview
| Mounting | Flanged bottom plate (welded) |
| Description | enclosure - watertight diecast |
| Product Type | Die-cast box, water-tight |
| Ordering Table Version | w/ Flanged Bottom Plate, Water-Tight Version |
| Standard (Non-Watertight) Equivalent | 1590UF |
Dimensions
| Inside Width | 112.65 mm [4.435 in] |
| Inside Height | 53.60 mm [2.110 in] |
| Inside Length | 112.65 mm [4.435 in] |
| Size (L X W X H) | 4.72 in x 4.72 in x 2.32 in (120 mm x 120 mm x 59 mm) |
| Body Length X Width | 120.00 mm x 120.00 mm [4.724 in x 4.724 in] |
| Max. P.C. Board Width | 111.74 mm |
| Max. P.C. Board Length | 111.74 mm |
| Nominal Size (Ordering Table) | 4.72 in (120 mm) x 4.72 in (120 mm) x 2.32 in (59 mm) |
| Overall Height (Incl. Bottom Flange) | 60.10 mm [2.366 in] |
| Overall Length (Incl. Bottom Flange) | 149.10 mm [5.870 in] |
Accessories
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory on quotation |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated; 1590MS100BK black [6-32 x 1/2"] |
| Liquid Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel; 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Identifiers
| UPC | 623980677224 |
| UNSPSC | 39121301 |
| Part Number | 1590WUF |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.93 lbs (0.42 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Included | Box, lid and 4 cover screws; silicone gasket (supplied loose, not pre-installed) |
| Material | Aluminum (Die-Cast Alloy) |
| Construction | Lap joint where lid and box meet |
| Cover Screws | 4 x 6-32 UNC, threaded into factory-tapped holes |
| Bottom Flange | Welded |
| Side Wall Draft Angle | 2° or less |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Screw Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Environmental & Protection
| Gasket | Silicone, supplied with liquid resistant enclosure |
| IP Rating | IP65 |
| Optional Replacement Gasket Kit | 1590QGASKET |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What IP rating does the 1590WUF have?▾
It is rated IP65. The watertight version includes a silicone gasket, supplied loose inside the enclosure (not pre-installed), that is applied to the lid; the gasket spec calls for lid screws torqued to 25-30 cN.m (36-43 ozf.in).
What size PC board fits inside?▾
The maximum PC board size is 111.74 mm (length) x 111.74 mm (width). Inside dimensions are 112.65 mm [4.435 in] x 112.65 mm [4.435 in] with an inside height of 53.60 mm [2.110 in].
What is included with the enclosure?▾
The purchased assembly includes the box, lid and 4 cover screws (6-32 UNC, threaded into factory-tapped holes), plus a silicone gasket supplied loose.
How does the 1590WUF mount?▾
It has a welded flanged bottom plate that extends the overall length to 149.10 mm [5.870 in], so the box can be fastened to a wall or panel.
Is a replacement gasket available?▾
Yes. The optional replacement gasket kit for this size is 1590QGASKET. Liquid resistant stainless steel cover screws with O-ring (6-32 x 1/2") are also offered as 1590WMS100 and 1590WMS100BK in packs of 100.
What does the 1590WUF weigh?▾
The shipping weight is 0.93 lbs (0.42 kg). It is supplied in shrink wrap packaging.
