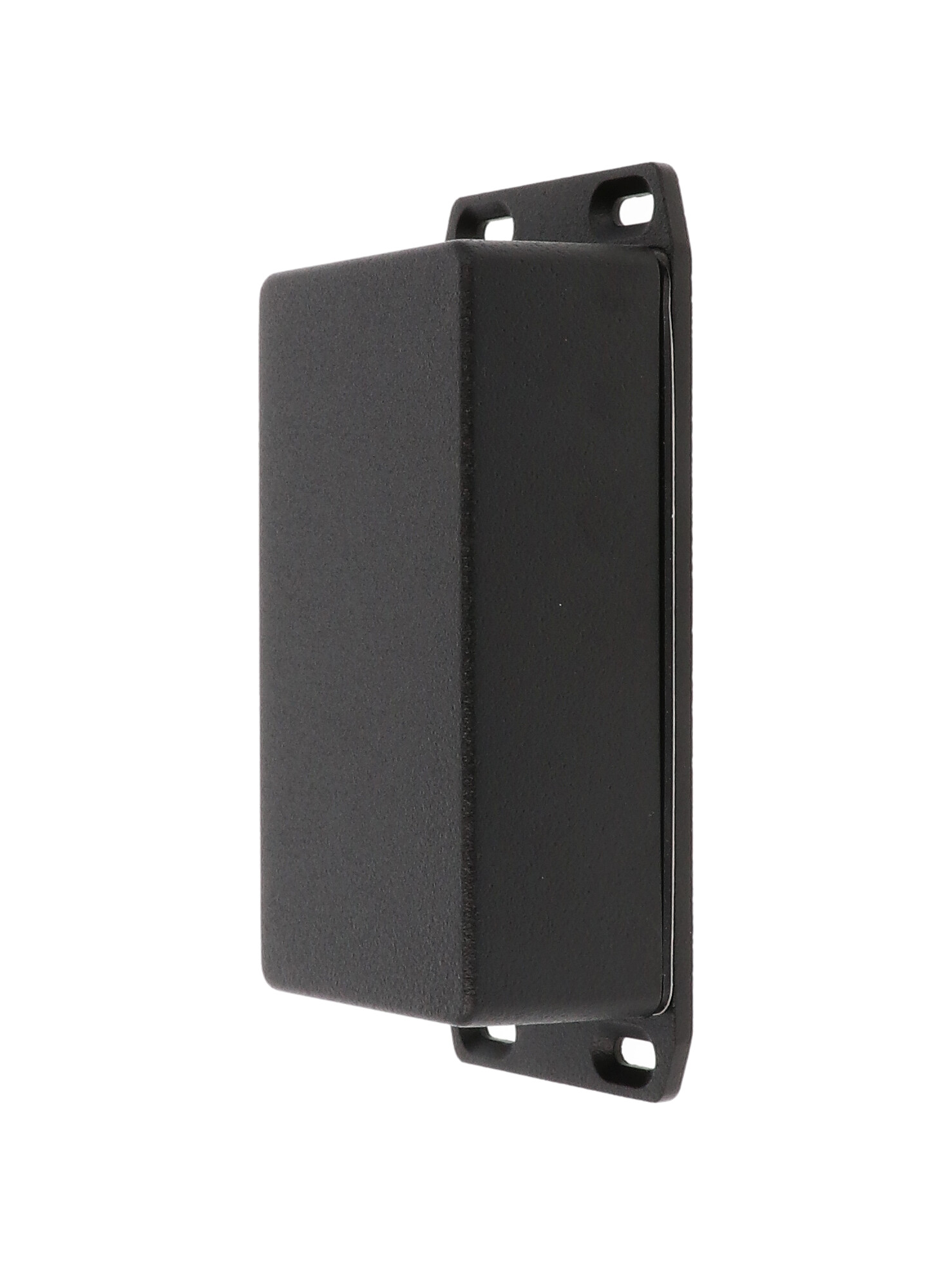

Hammond 1590WN1FLBK Black Flanged-Lid Watertight Enclosure, 121x66x40 mm
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Watertight version designed to meet IP65, with silicone gasket supplied loose inside
- Nominal size 4.77 in x 2.58 in x 1.57 in (121 mm x 66 mm x 40 mm)
- Mounting: wall-mounting flange integrated into lid
- Textured black polyester powder paint; black screws included
- Diecast aluminum alloy box and lid, tough yet easy to machine
- Max. P.C. board length 60.21 mm / width 115.91 mm (as listed)
- Includes box, lid and 4 cover screws (4X 6-32 UNC)
- Low side wall draft angle (2° or less) for easy PC board mounting
The 1590WN1FLBK is a textured black, watertight diecast aluminum enclosure in the 1590N1 size, 4.77 x 2.58 x 1.57 in (121 x 66 x 40 mm), with a wall-mounting flange built into the lid. Designed to meet IP65, it is aimed at integrators and OEM designers who need a small wall-mountable box with a durable black finish.
The box and lid are diecast aluminum alloy, which is tough yet easy to machine, and this part has textured black polyester powder paint for a lasting finish, even after machining, with black screws included. Lap joint construction where lid and box meet helps keep out dust and splashing water, and the low side wall draft angle (2° or less) makes P.C. board mounting easier.
Its flanged lid extends the overall length to 149.50 mm (5.886 in) and the inside height is 35.45 mm (1.396 in), providing room for a compact circuit board assembly.

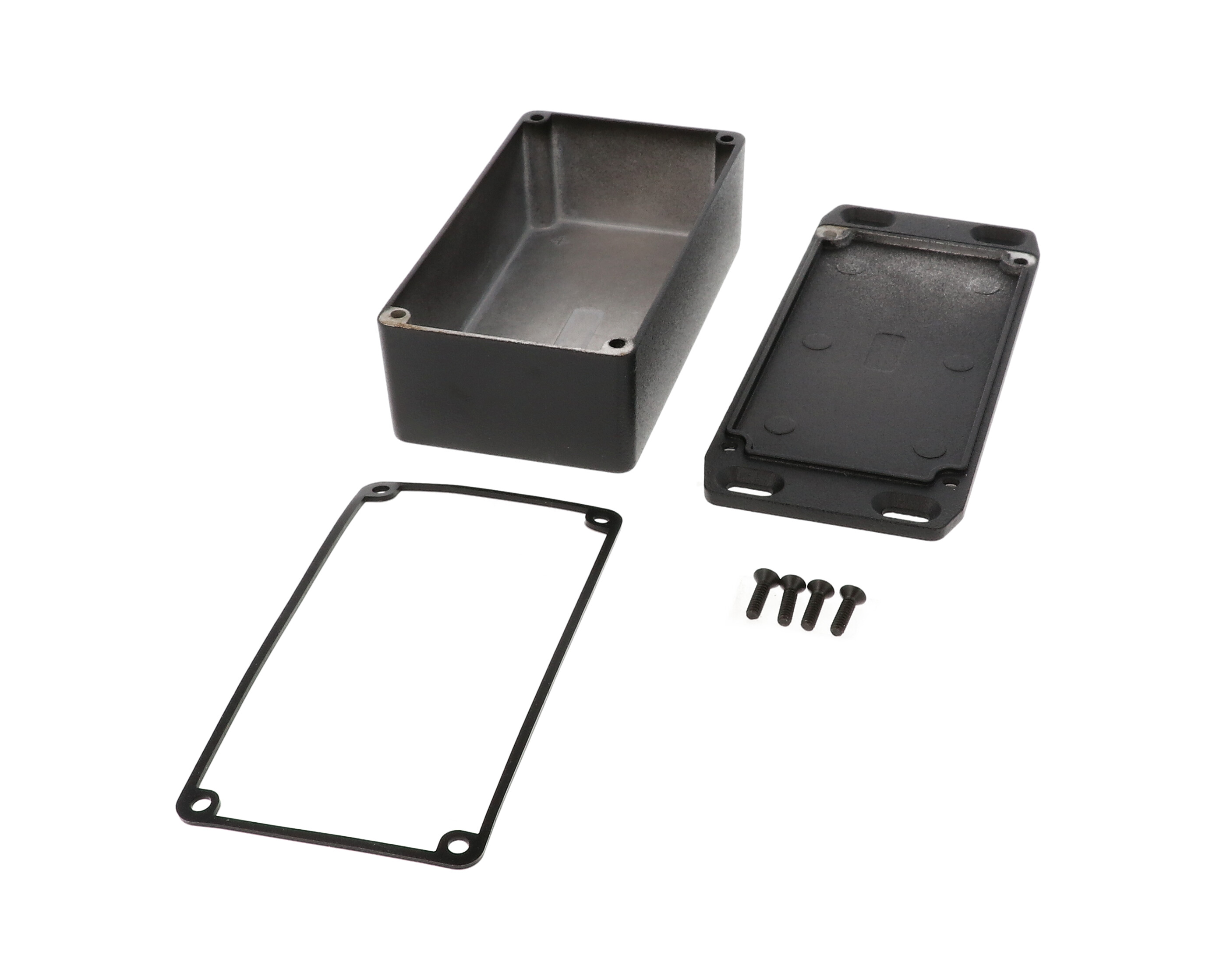

A silicone gasket is supplied with this liquid resistant enclosure, loose inside the box rather than pre-installed. The purchased assembly includes the box, lid and 4 cover screws (4X 6-32 UNC threads); recommended torque is 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] with the gasket. The part is RoHS and REACH compliant, and the enclosure can be factory modified (milling, drilling, printing).
Ideal For
- Wall-mounted black watertight electronics housing
- Control and sensor enclosures on equipment
- Visible installations that call for a black finish
- Custom-machined instrument cases
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-Tight (liquid resistant, silicone gasket) |
| Description | enclosure - watertight diecast |
| Part Number | 1590WN1FLBK |
| Mounting Style | Wall-mounting flange integrated into lid |
| Enclosure Family | 1590N1FL |
| Manufacturer Short Description | 1590N1 W-PROOF F-LID BLACK |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 60.21 mm [2.370 in] |
| Inside Height | 35.45 mm [1.396 in] |
| Inside Length | 115.91 mm [4.563 in] |
| Overall Width | 65.50 mm [2.579 in] |
| Overall Height | 39.80 mm [1.567 in] |
| Size (L X W X H) | 4.77 in x 2.58 in x 1.57 in (121 mm x 66 mm x 40 mm) |
| Max. P.C. Board Width | 115.91 mm |
| Max. P.C. Board Length | 60.21 mm |
| Nominal Size (L X W X H) | 4.76 in (121 mm) x 2.60 in (66 mm) x 1.57 in (40 mm) |
| Overall Length Incl. Lid Flange | 149.50 mm [5.886 in] |
Accessories
| Solid Models | STEP or IGES |
| Factory Modification | Milling, drilling, printing available from factory |
| Black Cover Screws (Pkg 100) | 1590MS100BK [6-32 x 1/2"] |
| Plated Cover Screws (Pkg 100) | 1590MS100 [6-32 x 1/2"] |
| Optional Replacement Gasket Kit | 1590NGASKET |
| Stainless Steel Cover Screws With O-Ring (Pkg 100) | 1590WMS100 [6-32 x 1/2"] |
| Black Stainless Steel Cover Screws With O-Ring (Pkg 100) | 1590WMS100BK [6-32 x 1/2"] |
Identifiers
| UPC | 623980593975 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.41 lbs (0.19 kg) |
Construction & Finish
| Color | Black (Textured) |
| Joint | Lap joint construction where lid and box meet |
| Finish | Textured polyester powder paint |
| Included | Box, lid and 4 cover screws; black screws |
| Material | Aluminum (Die-Cast Alloy) |
| Cover Screw Threads | 4X 6-32 UNC |
| Side Wall Draft Angle | 2° or less |
Environmental & Protection
| Gasket | Silicone gasket supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
| Recommended Lid Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
Is the 1590WN1FLBK waterproof?▾
It is the watertight version of the enclosure, designed to meet IP65. A silicone gasket is included, supplied loose inside the enclosure (not pre-installed), and the recommended lid screw torque with the gasket is 25-30 cN.m [36-43 ozf.in].
What are the dimensions of the 1590WN1FLBK?▾
The listed size is 4.77 in x 2.58 in x 1.57 in (121 mm x 66 mm x 40 mm). overall length incl. lid flange: 149.50 mm [5.886 in]; overall width: 65.50 mm [2.579 in]; overall height: 39.80 mm [1.567 in].
What is it made of and what finish does it have?▾
Box and lid are diecast aluminum alloy. This version is coated with textured black polyester powder paint, and black screws are included.
Can the enclosure be machined or modified?▾
Yes. Diecast aluminum is described as tough yet easy to machine, and the drawing notes the enclosure can be factory modified (milling, drilling, printing). Solid models are available in STEP or IGES.
Is the 1590WN1FLBK painted?▾
Yes. The black version is coated with textured polyester powder paint for a lasting finish even after machining, and black screws are included.
Is a replacement gasket available?▾
Yes. The optional replacement gasket kit for this size is 1590NGASKET. Kits include two pre-formed silicone gaskets with adhesive backing, applied to the lid.
