Hammond 1590WMS100BK Black #6-32 x 1/2" Watertight Screws with O-Rings
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- 100 black #6-32 x 1/2" watertight screws, each with an o-ring
- Stainless steel with black colour
- IP65 rating listed on the part page
- Listed for imperial 1590 and 1590K4 series enclosures
- Watertight assembly screws per the hardware list
- RoHS and REACH compliant; bagged, 0.18 lbs (0.08 kg)

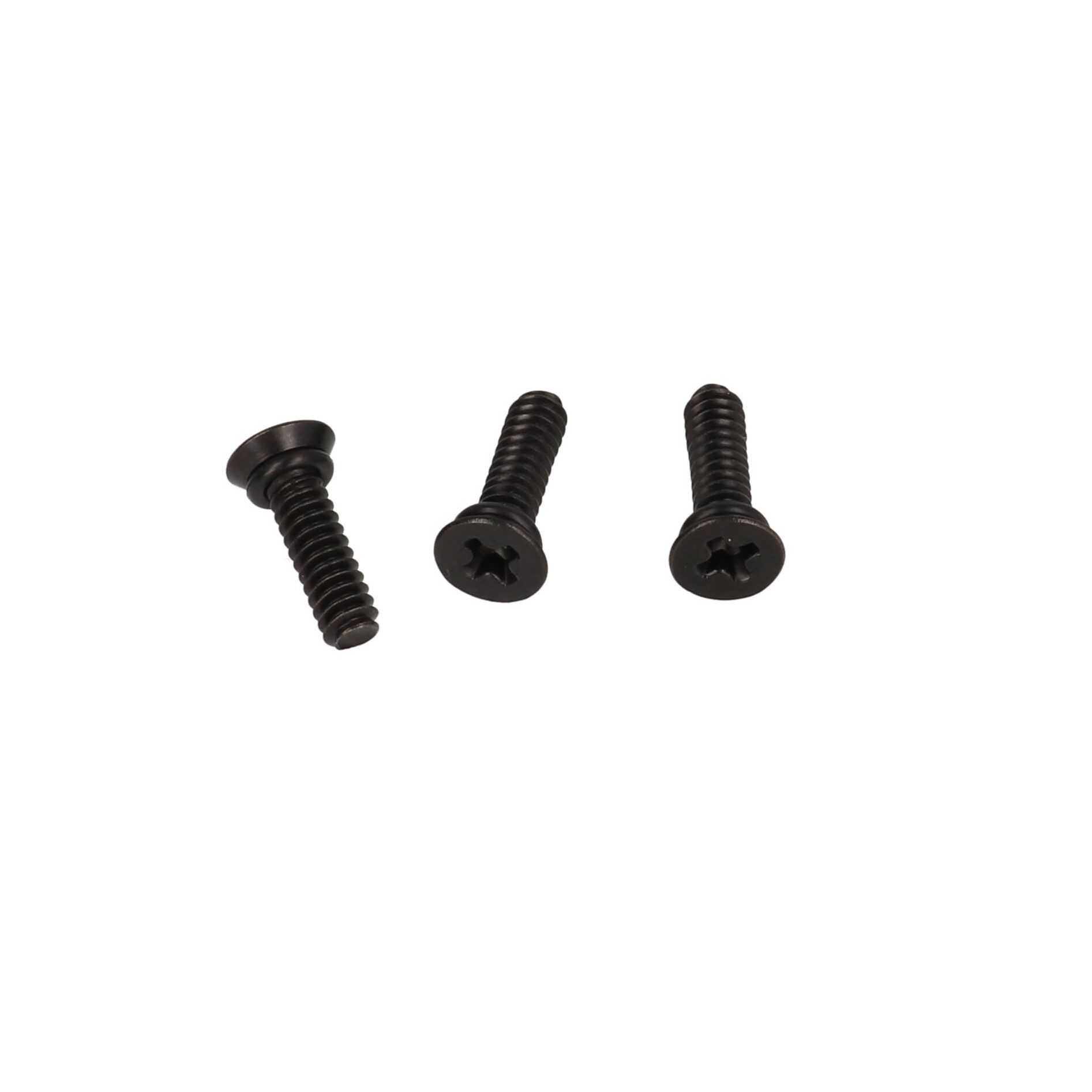

The 1590WMS100BK is a 100-pack of black watertight #6-32 x 1/2" stainless steel screws with o-rings for Hammond's imperial 1590 series enclosures. It serves integrators and OEM engineers who seal 1590 or 1590K4 enclosures and want replacement fasteners in black to match a dark enclosure finish.
Every screw is supplied with an o-ring, and the series hardware list classes the part as watertight assembly screws. The material is stainless steel and the colour is black; the short description reads "1590 SS WATERTIGHT SCR BLACK".

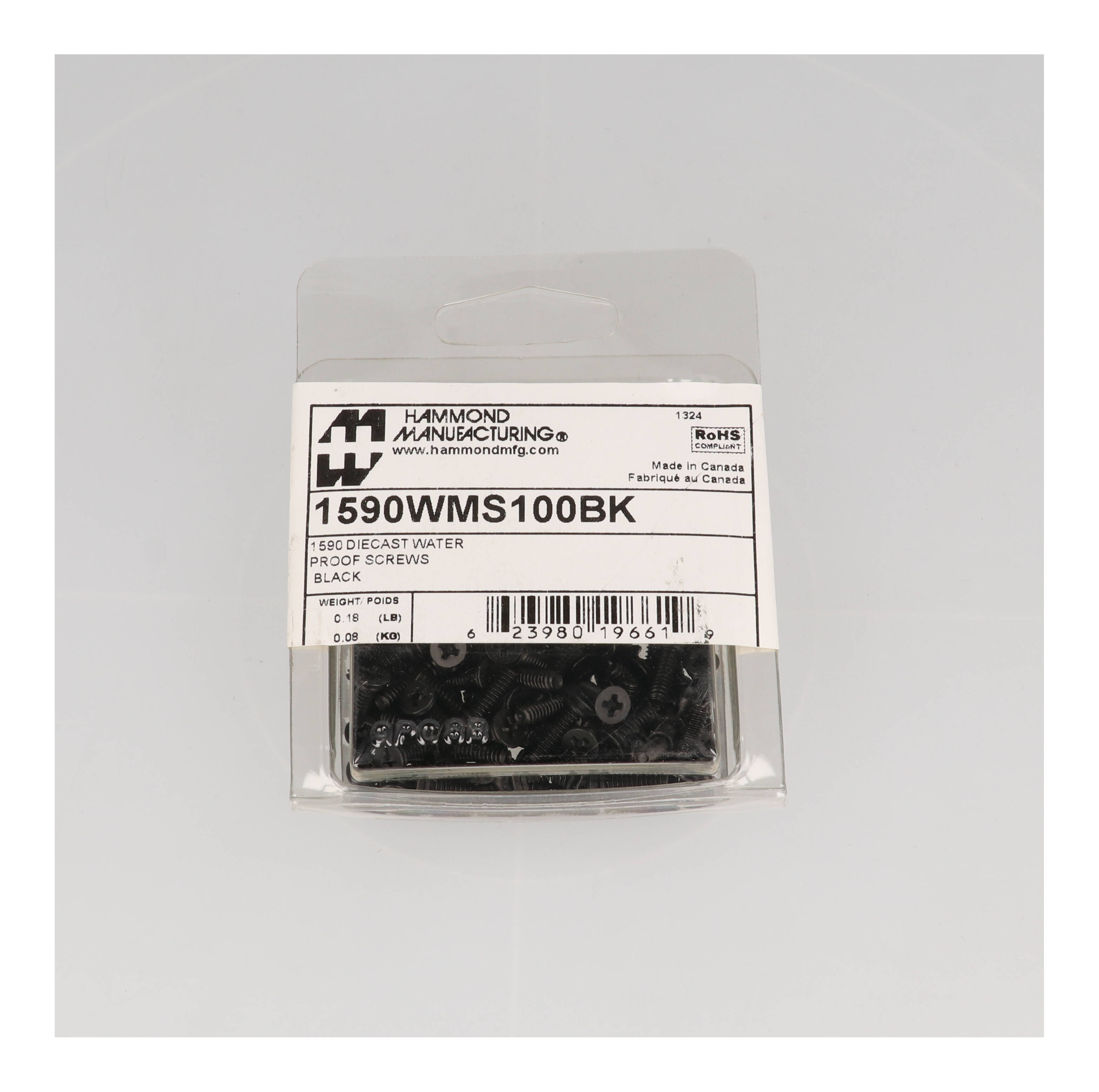

An IP65 rating is listed on the part page. The pack holds 100 screws in a bag with a shipping weight of 0.18 lbs (0.08 kg). The 1590WMS100BK is RoHS compliant and REACH compliant, supporting equipment that must meet those material-restriction requirements.
The same watertight screw is also listed without the black finish for builds that do not need dark hardware. In most cases enclosures include all hardware needed for assembly; this pack is for replacements and spares. Because hardware packs may not be compatible with all parts in the listed series, check the enclosure's replacement parts and accessories list before ordering.
Ideal For
- Sealing black 1590 die-cast enclosures
- Replacing watertight screws on 1590K4 enclosures
- Dark-finish sealed enclosure builds
- Spare sealed hardware for maintenance
Overview
| Part Number | 1590WMS100BK |
| Thread Size | #6-32 |
| Product Type | screws |
| Hardware Type | Watertight Assembly Screws |
| Included Sealing | O-ring with each screw |
| Long Description | watertight screws & o-rings for imperial 1590 series, BLACK, 100-pack |
| Quantity Per Pack | 100 |
| Short Description | 1590 SS WATERTIGHT SCR BLACK |
| Hardware Description | #6-32 x 1/2" stainless steel screws with o-ring, black |
Dimensions

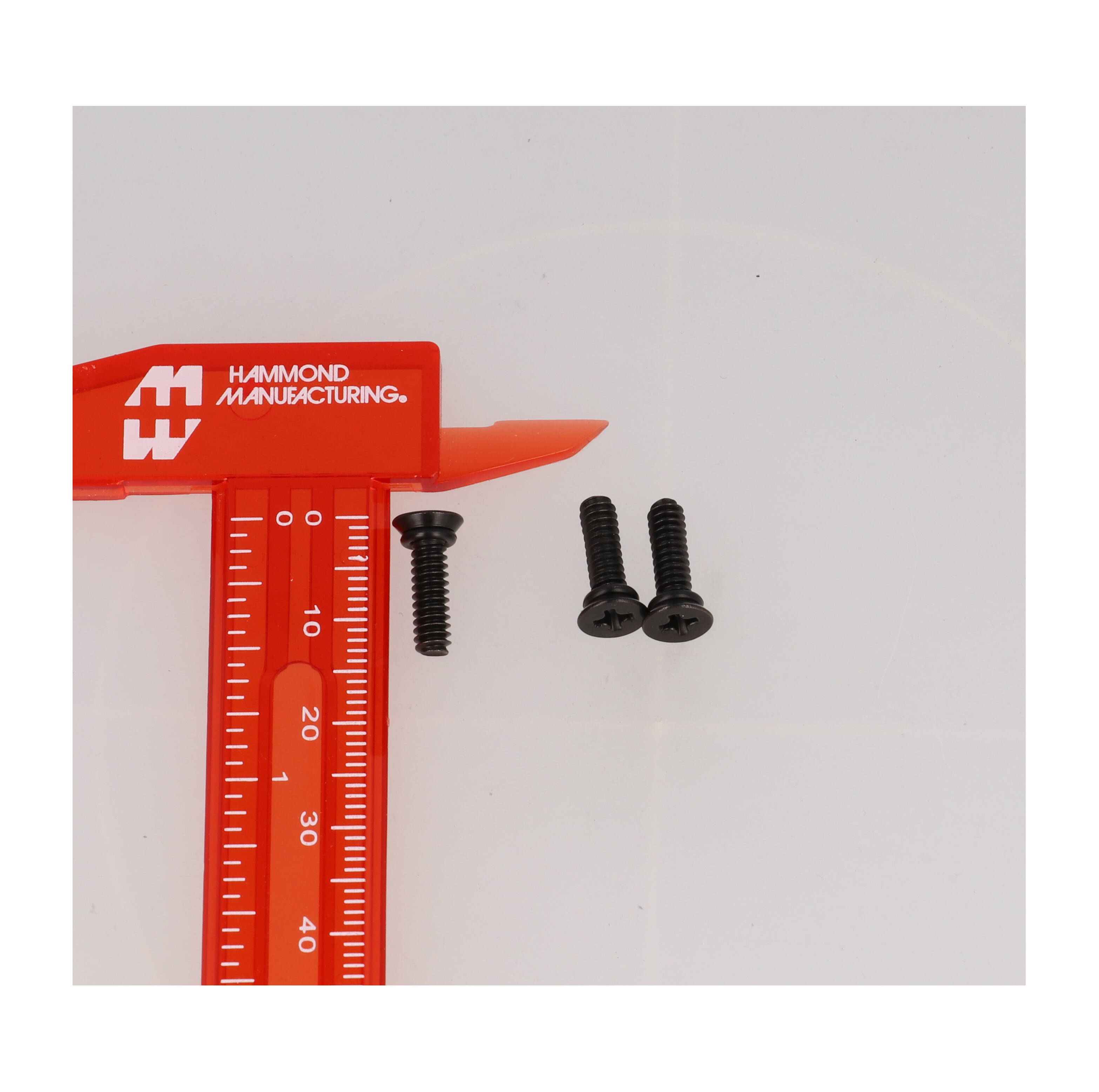

| Screw Length | 1/2" |
Identifiers
| UPC | 623980196619 |
| UNSPSC | 39121301 |
Compatibility
| Applicable Enclosure Series | 1590, 1590K4 |
Packaging & Shipping
| Packaging Type | bag |
| Shipping Weight | 0.18 lbs (0.08 kg) |
Construction & Finish
| Color | Black |
| Material | Stainless Steel |
Environmental & Protection
| IP Rating | IP65 |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How does 1590WMS100BK differ from the standard watertight pack?▾
It is the black version of the #6-32 x 1/2" stainless steel screw with o-ring for the 1590 series.
Which enclosures is it for?▾
The imperial 1590 series; the hardware list names the 1590 and 1590K4 series.
Are o-rings included?▾
Yes, the pack is described as watertight screws and o-rings, 100-pack.
What IP rating is listed?▾
IP65 is listed on the part page.
What does the pack weigh?▾
The shipping weight is 0.18 lbs (0.08 kg).
Related Products
Save 52%1590WMS100 — watertight screws & o-rings for imperial 1590 series, 100-pack
Hammond Manufacturing · 1590WMS100
Save 52%1590WMS50T — tamper resistant watertight screws for imperial 1590 series, 50-pack
Hammond Manufacturing · 1590WMS50T
Save 52%1590WLLBFLBK — enclosure - diecast; watertight; flanged lid; black
Hammond Manufacturing · 1590WLLBFLBK

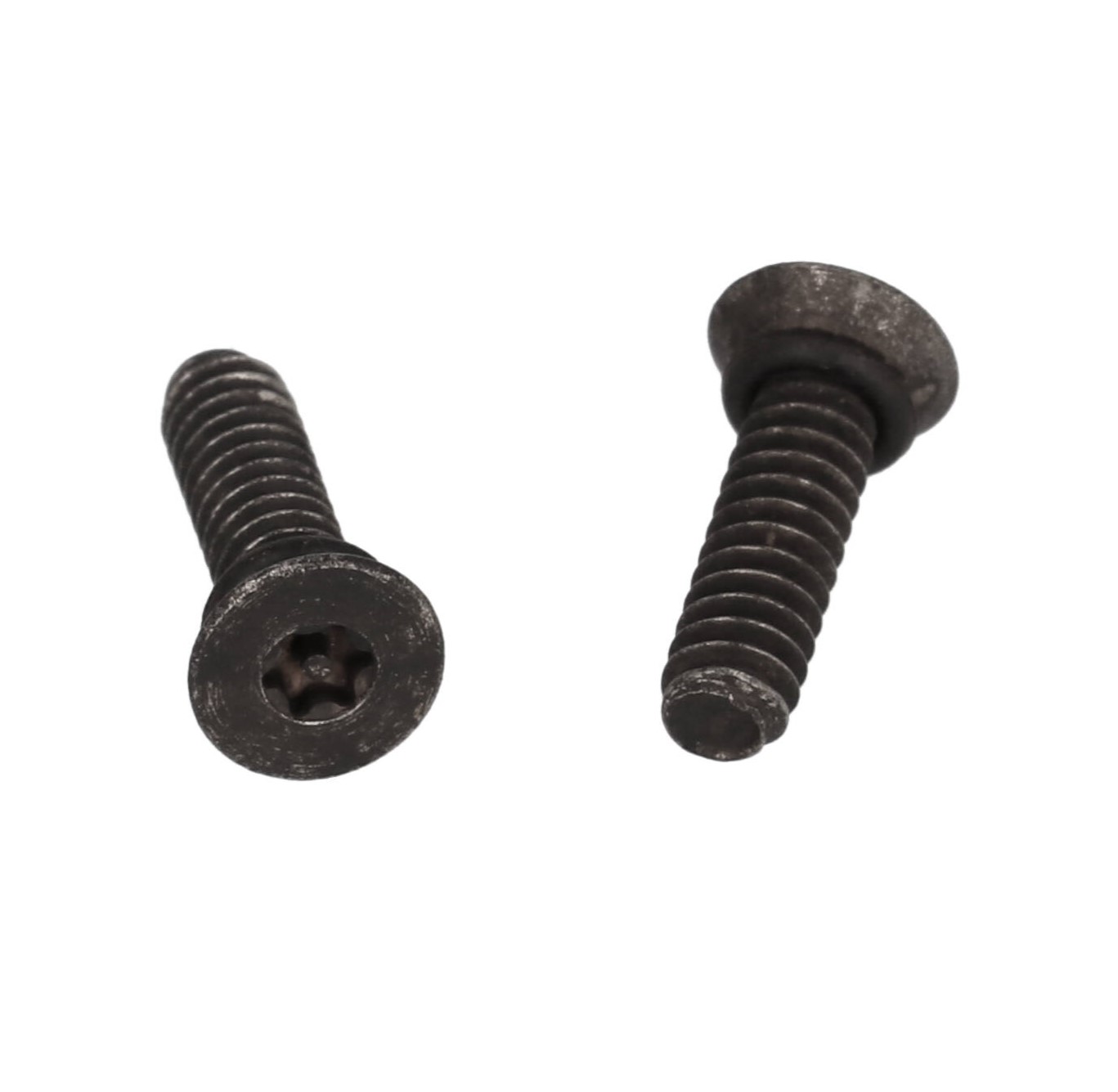

Save 52%1590WMS50TBK — tamper resistant watertight screws for imperial 1590 series, BLACK, 50-pack
