Hammond 1590WBXF 10 in IP65 Diecast Enclosure with Flanged Base
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Flanged bottom plate for surface mounting; 273.00 mm overall length
- IP65 water-tight version with silicone gasket supplied loose
- 254 x 70 x 50 mm (10 x 2.76 x 1.95 in) diecast aluminum body
- Inside 247.68 x 63.68 x 44.70 mm; PC boards to 245.68 x 61.68 mm
- Six 6-32 UNC cover screws included
- Natural vibra finish with smooth, no-sharp-edge surface
- Replacement gasket kit 1590BXGASKET
- RoHS and REACH compliant; 0.9 lbs (0.41 kg)

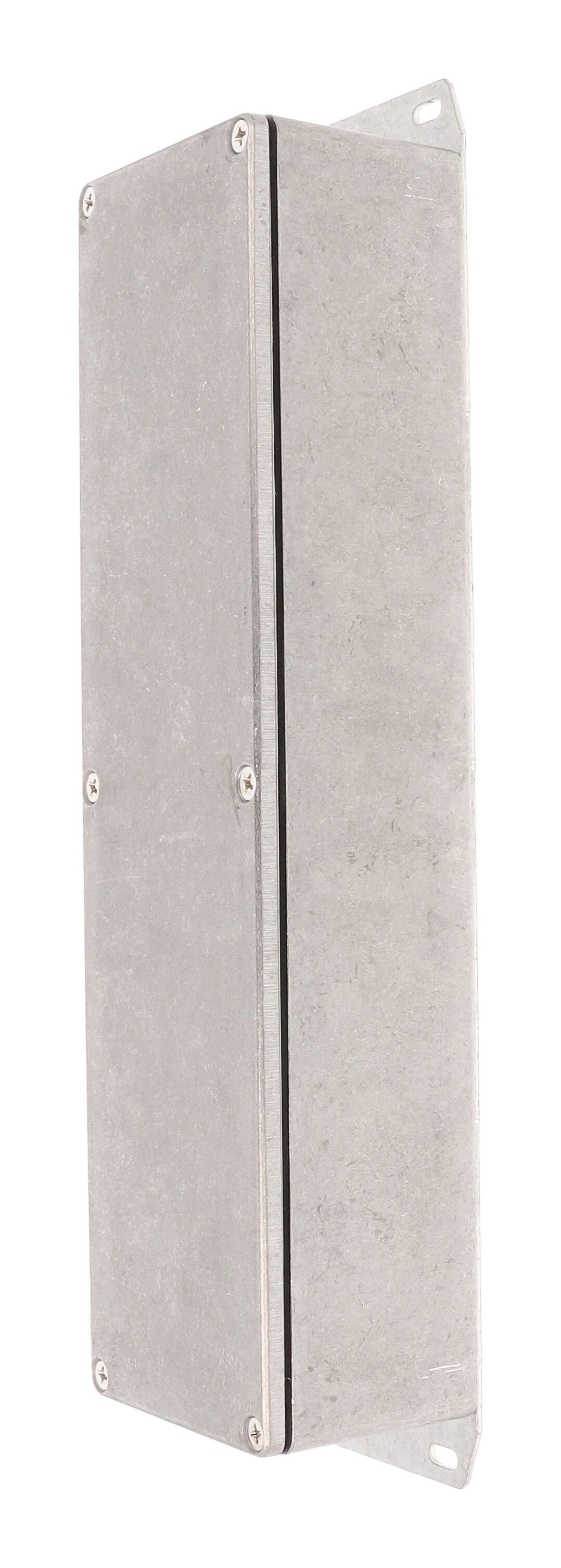

The 1590WBXF takes the 10-inch 1590BX diecast aluminum enclosure and adds a flanged bottom plate, so the water-tight IP65 box can be bolted straight to a panel, machine frame or wall. It is the natural aluminum version. It is intended for integrators and OEM designers housing long PC boards or instrument electronics.
Box and lid are diecast aluminum alloy that is tough yet easy to machine. Lap joint construction at the lid resists dust and splashing water, while the 2°-or-less side wall draft angle makes PC board mounting easier. The natural version is left unpainted and vibra finished, giving a smooth surface with no sharp edges that is ready to machine or paint.
The listed size is 10 x 2.76 x 1.95 in (254 x 70 x 50 mm), with a nominal 10.00 x 2.76 x 1.97 in in the ordering table. Including the bottom flange the overall length is 273.00 mm [10.748 in]. Internally you get 247.68 x 63.68 mm with 44.70 mm of height, and the maximum PC board is 245.68 x 61.68 mm. Lid height is 0.16 in (4 mm).

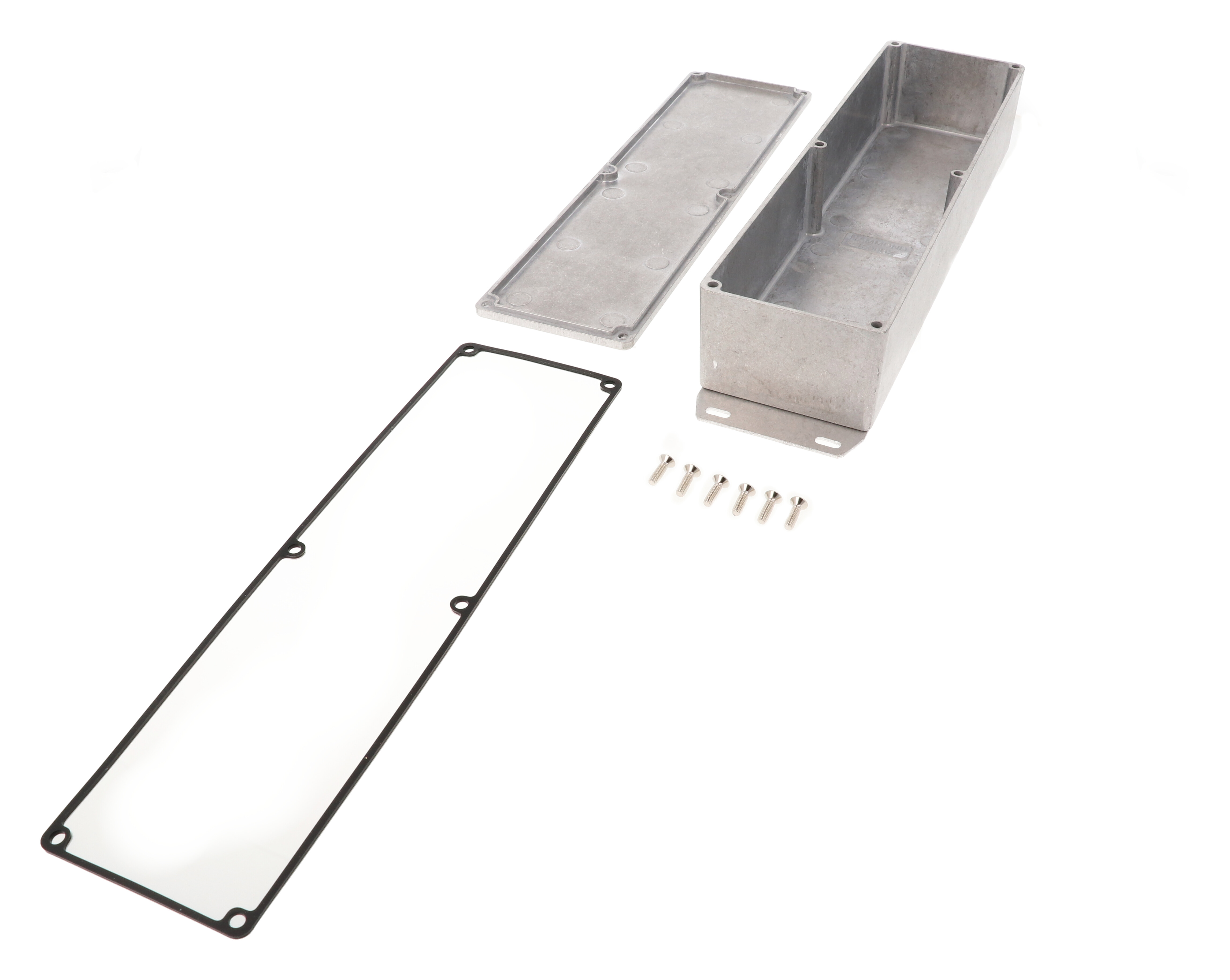

The assembly ships with box, lid, six 6-32 UNC cover screws and a loose silicone gasket. Recommended torque is 50-55 cN.m, reduced to 25-30 cN.m with the gasket. Stainless O-ring cover screws are sold as 1590WMS100 and 1590WMS100BK; the replacement gasket kit is 1590BXGASKET. RoHS and REACH compliant, shrink wrapped, 0.9 lbs (0.41 kg).
Ideal For
- Panel- or frame-mounted long PC board housings
- Sealed sensor and instrument electronics
- Surface-mounted IP65 junction enclosures
- OEM equipment enclosures
Hardware
| Included | Box, lid and 6 cover screws |
| Cover Screw Thread | 6-32 UNC |
| Recommended Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
| Standard Cover Screws (Pkg 100) | 1590MS100 plated / 1590MS100BK black [6-32 x 1/2"] |
| Liquid-Resistant Cover Screws (Pkg 100) | 1590WMS100 stainless steel / 1590WMS100BK black stainless steel [6-32 x 1/2" with O-ring] |
Mounting
| Mounting Style | Flanged bottom plate |
| Side Wall Draft Angle | 2° or less (for easy PC board mounting) |
Overview
| Type | Die-cast box, water-tight |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-tight |
| Description | enclosure - diecast |
| Part Number | 1590WBXF |
| Short Description | 1590BX W-PROOF FLANGED BASE |
| Standard (IP54) Equivalent | 1590BXF |
Services
| CAD Models | Solid models available in STEP or IGES |
| Factory Modification | Milling, drilling, printing etc. available from the factory |
Dimensions
| Box Width | 70.00 mm [2.756 in] |
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 63.68 mm [2.507 in] |
| Inside Height | 44.70 mm [1.760 in] |
| Inside Length | 247.68 mm [9.751 in] |
| Size (L X W X H) | 10 in x 2.76 in x 1.95 in (254 mm x 70 mm x 50 mm) |
| Max. P.C. Board Width | 245.68 mm |
| Max. P.C. Board Length | 61.68 mm |
| Nominal Size (L X W X H) | 10.00 in (254 mm) x 2.76 in (70 mm) x 1.97 in (50 mm) |
| Overall Length Incl. Bottom Flange | 273.00 mm [10.748 in] |
Identifiers
| UPC | 623980405360 |
| UNSPSC | 39121301 |
Packaging & Shipping
| Packaging Type | shrink wrap |
| Shipping Weight | 0.9 lbs (0.41 kg) |
Construction & Finish
| Color | Natural Aluminum |
| Finish | Unpainted, vibra finished for a smooth surface with no sharp edges |
| Material | Aluminum (Die-Cast Alloy) |
| Box And Lid | Made from diecast aluminum alloy |
| Lid-to-Box Joint | Lap joint construction |
Environmental & Protection
| Gasket | Silicone gasket included, supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Replacement Gasket Kit | 1590BXGASKET |
| Gasket Kit Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
How long is the 1590WBXF including its flange?▾
273.00 mm [10.748 in] overall. The enclosure body itself is listed as 254 x 70 x 50 mm.
Is it water-tight?▾
Yes, it is the IP65 water-tight version and includes a silicone gasket supplied loose inside (not pre-installed).
What is included?▾
Box, lid, six 6-32 UNC cover screws and the silicone gasket.
What PC board size fits?▾
Up to 245.68 mm long and 61.68 mm wide; inside height is 44.70 mm.
Is there an IP54 standard version?▾
Yes, the standard (non-watertight) equivalent is 1590BXF.
