Hammond 1590WBBS 120x94x42mm IP65 Diecast Aluminum Enclosure
Ships from and sold by A5 IT
Exclusive pricing and Net-30 terms. Sign in or create a free account.
Create Free Business AccountKey Features
- Designed to meet IP65; silicone gasket included, supplied loose
- Nominal 120 x 94 x 42 mm (4.72 x 3.70 x 1.65 in), no mounting flanges
- 37.85 mm [1.490 in] inside height; inside 113.48 x 87.98 mm
- Maximum PC board 85.98 x 111.48 mm
- Natural diecast aluminum, vibra finished with no sharp edges
- 4 cover screws included for factory-tapped 6-32 UNC holes
- RoHS and REACH compliant; replacement gasket kit 1590BBGASKET

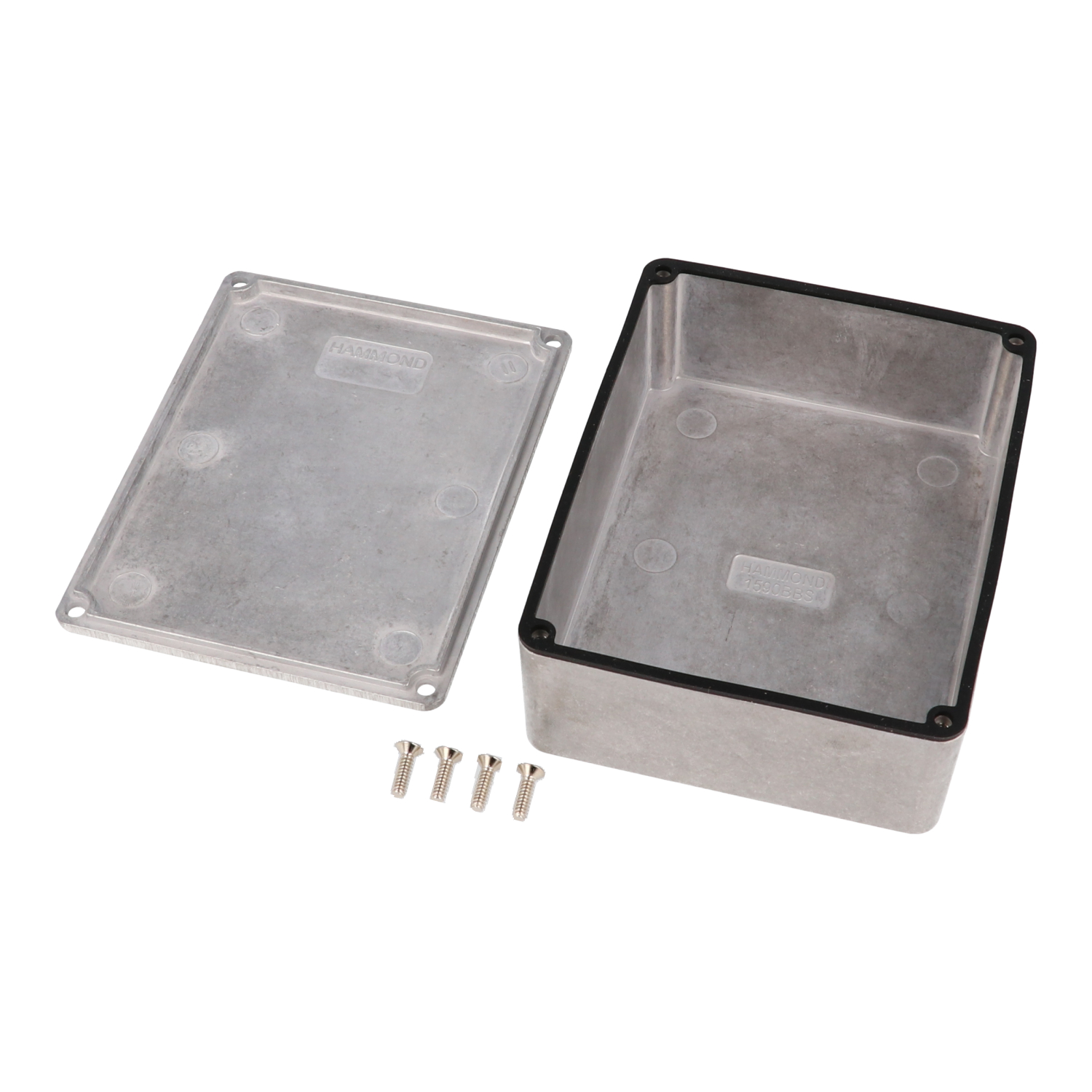

The 1590WBBS is the water-tight, natural-finish version of the 1590BBS diecast aluminum enclosure, the taller body in the 1590BB footprint. With no mounting flanges, it is a straightforward rugged box for electronics designers, integrators and OEM teams who need more internal height and a housing designed to meet IP65.
The box and lid are diecast aluminum alloy, tough yet easy to machine. The unpainted version is vibra finished for a smooth surface with no sharp edges. Lap joint construction where lid and box meet protects against dust and splashing water, and a silicone gasket is included, supplied loose inside the enclosure.
Nominal size is 4.72 x 3.70 x 1.65 in (120 x 94 x 42 mm). The drawing lists an outside length of 119.50 mm [4.705 in], width of 94.00 mm [3.701 in] and height of 42.10 mm [1.657 in]. Inside, there is 113.48 mm [4.468 in] of length, 87.98 mm [3.464 in] of width and 37.85 mm [1.490 in] of height, and the maximum PC board is 85.98 x 111.48 mm. The low side wall draft angle (2 degrees or less) helps with PC board mounting.
Included are the box, lid and 4 cover screws that thread into factory-tapped 6-32 UNC holes. Torque the screws to 50-55 cN.m [71-78 ozf.in], or 25-30 cN.m [36-43 ozf.in] when the gasket is fitted. The 1590WBBS has a listed shipping weight of 0.31 lbs (0.14 kg) and is RoHS and REACH compliant.
Ideal For
- Electronic instruments needing extra internal height
- Electronics exposed to dust and splashing water
- Machined sensor and control housings
- PC board enclosures for OEM products
Other
| CAD Models | Solid models available in .stp or .x_t |
| Drawing Reference | 1590BBS |
| Factory Modification | Milling, drilling, printing etc. available from the factory on a quote basis |
Mounting
| Cover Screw Thread | 6-32 UNC (4 factory-tapped holes) |
| Recommended Screw Torque | 50-55 cN.m [71-78 ozf.in] |
| Recommended Torque With Gasket | 25-30 cN.m [36-43 ozf.in] |
Overview
| Type | Die-cast box, water-tight |
| Color | Natural Aluminum |
| Series | 1590 Series Diecast Aluminum Enclosures |
| Version | Water-Tight |
| Description | enclosure - watertight diecast |
| Part Number | 1590WBBS |
| Mounting Style | No mounting flanges |
| Short Description | 1590 BBS WATERPROOF |
Dimensions
| Lid Height | 0.16 in (4 mm) |
| Inside Width | 87.98 mm [3.464 in] |
| Inside Height | 37.85 mm [1.490 in] |
| Inside Length | 113.48 mm [4.468 in] |
| Overall Width | 94.00 mm [3.701 in] |
| Overall Height | 42.10 mm [1.657 in] |
| Overall Length | 119.50 mm [4.705 in] |
| Size (L X W X H) | 4.7 in x 3.7 in x 1.66 in (119 mm x 94 mm x 42 mm) |
| Max. P.C. Board Width | 111.48 mm |
| Side Wall Draft Angle | 2° or less |
| Max. P.C. Board Length | 85.98 mm |
| Nominal Size (L X W X H) | 4.72 in (120 mm) x 3.70 in (94 mm) x 1.65 in (42 mm) |
Accessories
| Standard Cover Screws | 1590MS100 plated / 1590MS100BK black, 6-32 x 1/2" (Pkg 100) |
| Liquid Resistant Cover Screws | 1590WMS100 stainless steel / 1590WMS100BK black stainless steel, 6-32 x 1/2" with O-ring (Pkg 100) |
| Optional Replacement Gasket Kit | 1590BBGASKET (two pre-formed silicone gaskets with adhesive backing) |
Identifiers
| UPC | 623980027722 |
| UNSPSC | 39121301 |
Related Versions
| Standard Version (No Flanges) | 1590BBS |
| Standard Version (Flanged Lid) | 1590BBSFL |
| Water-Tight Version (No Flanges) | 1590WBBS |
| Water-Tight Version (Flanged Lid) | 1590WBBSFL |
| Standard Version (Flanged Bottom Plate) | 1590BBSF |
| Water-Tight Version (Flanged Bottom Plate) | 1590WBBSF |
Packaging & Shipping
| Included | Box, lid and 4 cover screws; silicone gasket |
| Packaging Type | shrink wrap |
| Shipping Weight | 0.31 lbs (0.14 kg) |
Construction & Finish
| Finish | Unpainted, vibra finished (smooth surface, no sharp edges) |
| Material | Aluminum (Die-Cast Alloy) |
| Lid-to-Box Joint | Lap joint construction |
| Box And Lid Material | Diecast Aluminum Alloy |
Environmental & Protection
| Gasket | Silicone gasket included, supplied loose inside the enclosure (not pre-installed) |
| IP Rating | IP65 |
| Gasket Kit Temperature Rating | -40°C to 150°C (-40°F to 302°F) |
Compliance & Certifications
| RoHS Compliant | Yes |
| REACH Compliant | Yes |
Purchasing this for your business?
Business account holders get access to exclusive pricing, volume discounts, and dedicated support. Create a free account to get started.
Frequently Asked Questions
What are the inside dimensions?▾
113.48 mm [4.468 in] long, 87.98 mm [3.464 in] wide and 37.85 mm [1.490 in] high.
Is the 1590WBBS waterproof?▾
It is the water-tight version, designed to meet IP65 with the included silicone gasket, which is shipped loose inside the enclosure.
What screws are used?▾
Four cover screws in factory-tapped 6-32 UNC holes are included. Stainless steel 6-32 x 1/2 in screws with o-ring are available as 1590WMS100 (pack of 100).
Is a black version available?▾
Yes, the black textured water-tight version is 1590WBBSBK.
